Toyota Sprinter

1995-05 → 2000-08 · chassis AE11#,CE11#,EE111 · catalogue 152140 · Japan

Discontinued model Data version 2001-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

16 part groups · 8 illustrations

Illustrations

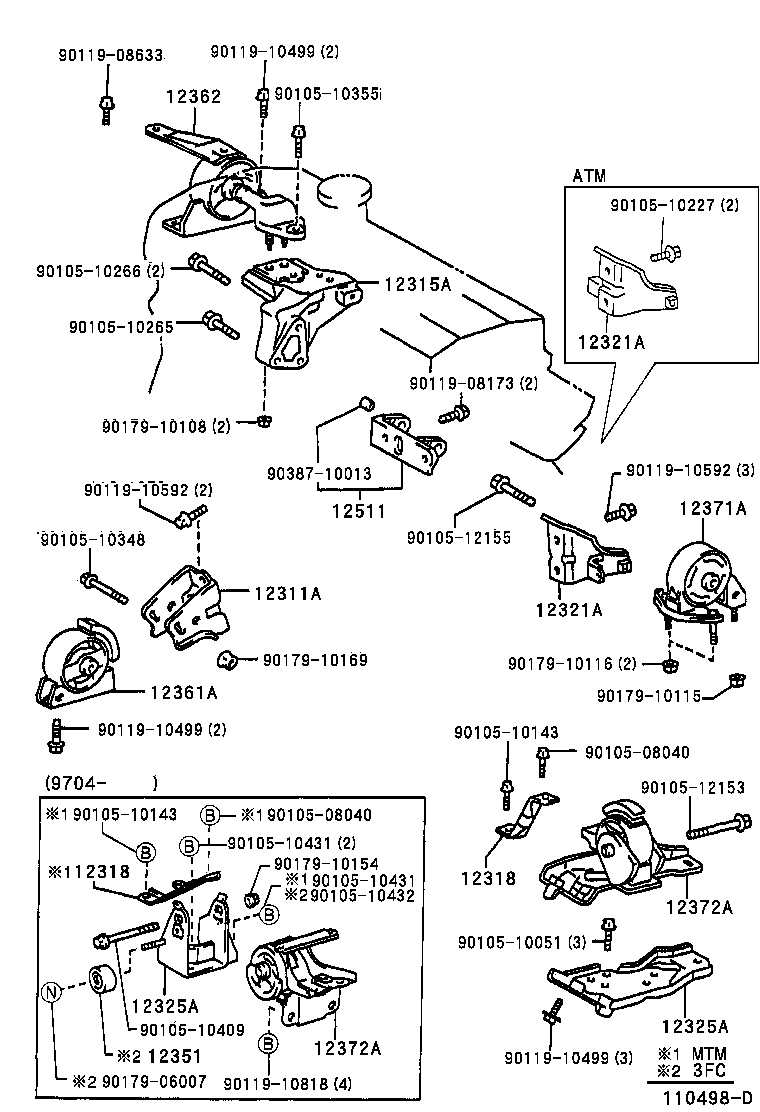

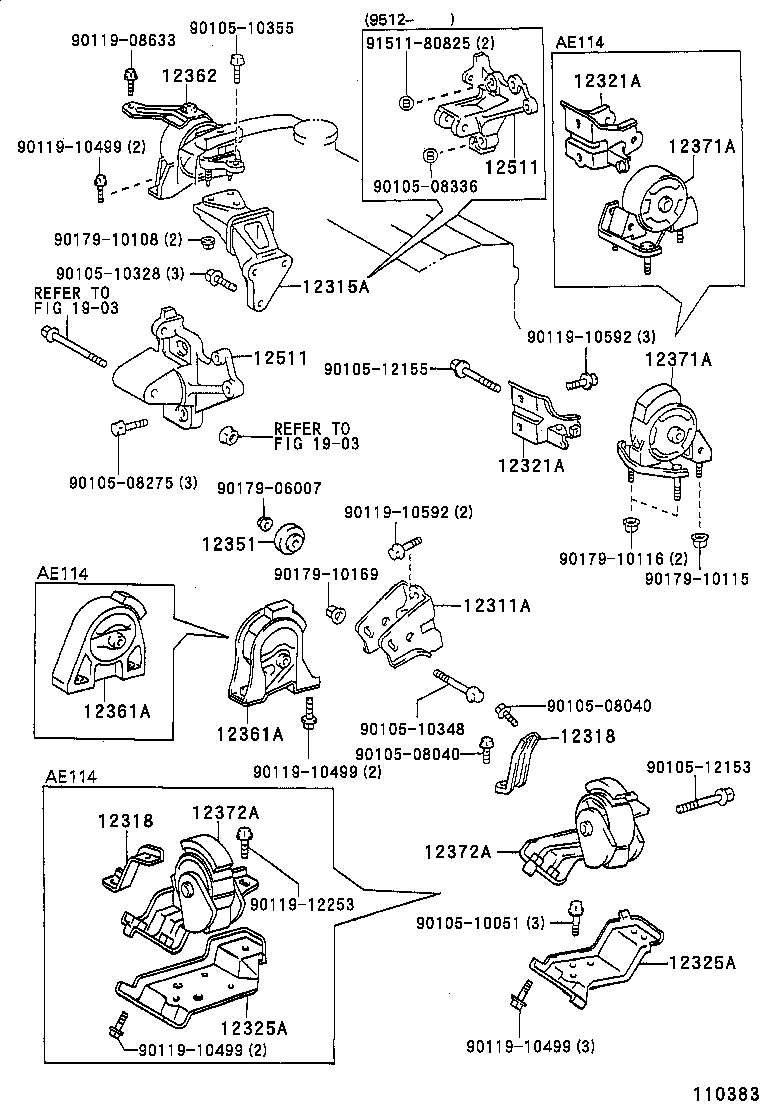

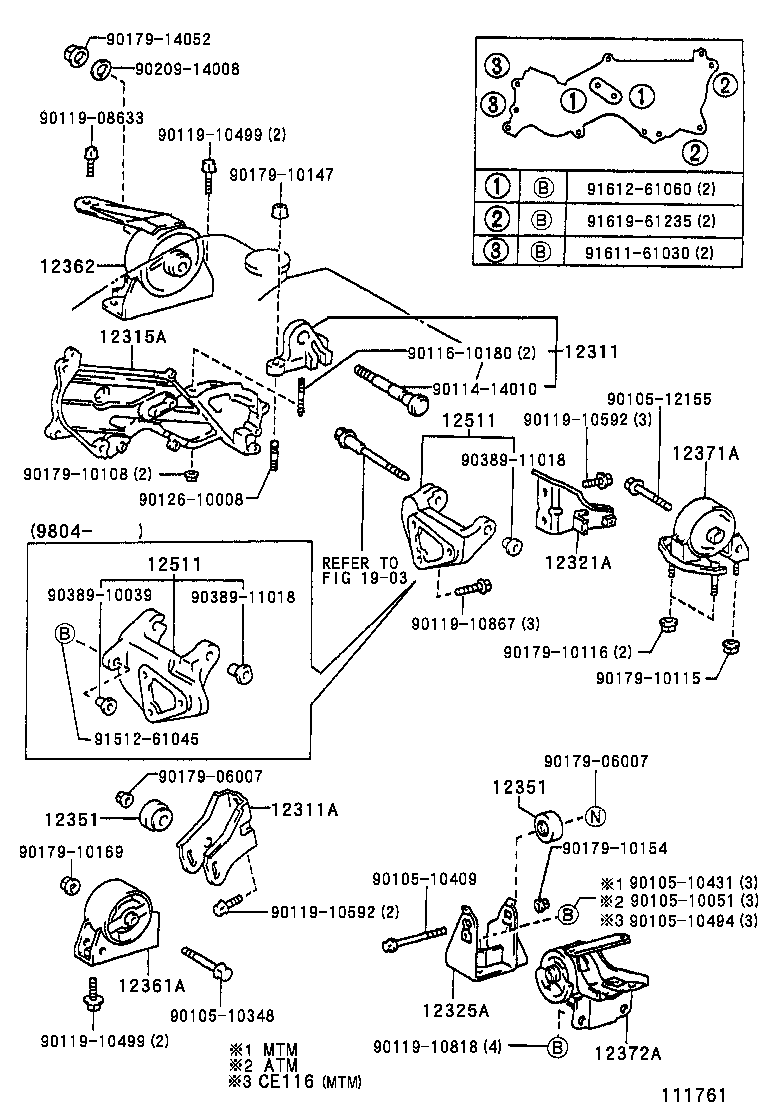

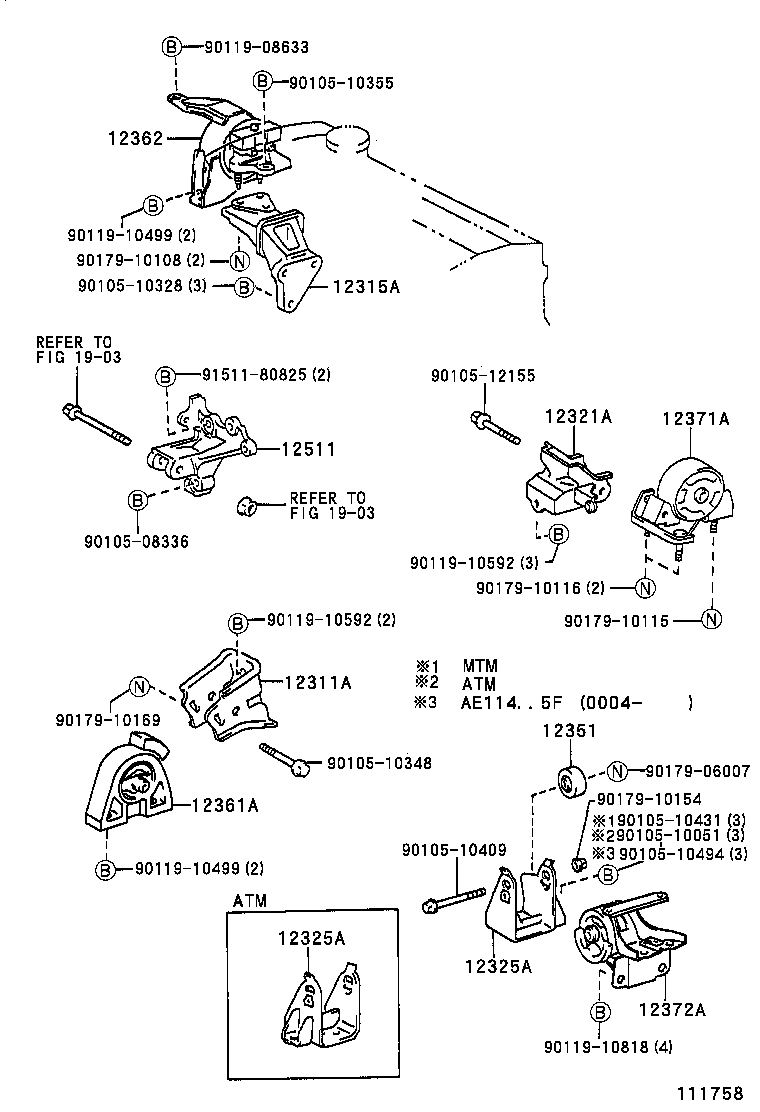

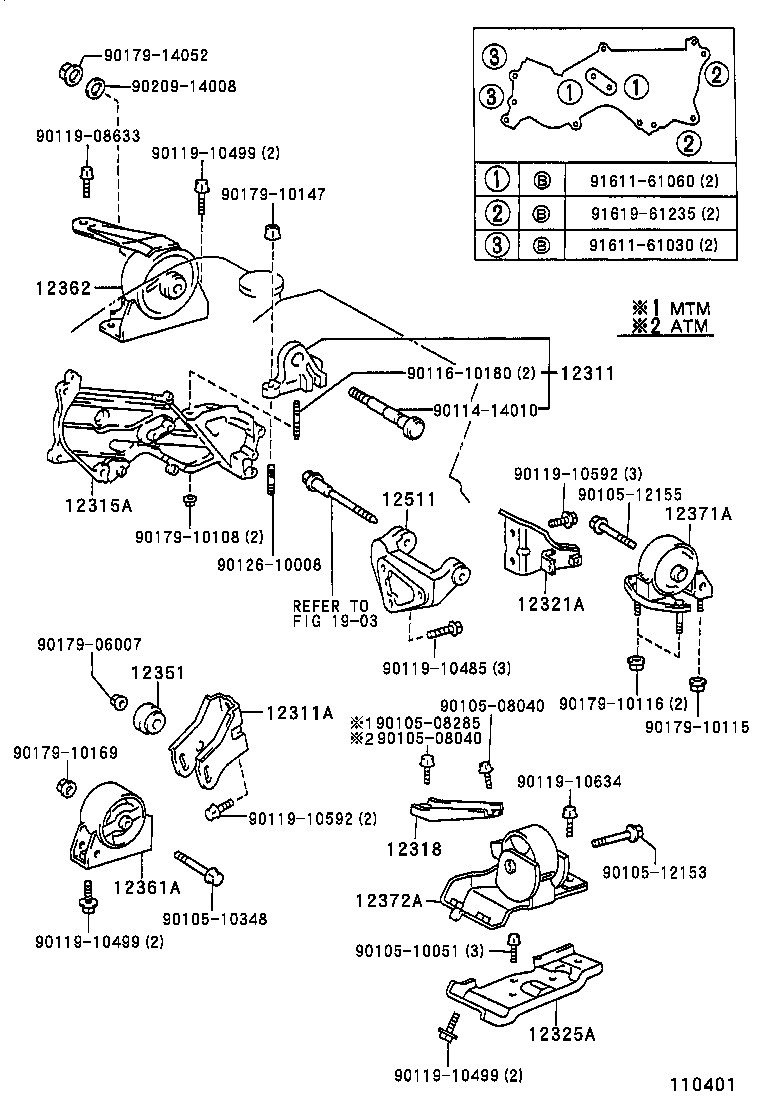

Figure 110382 110382 1995-05 → 1997-04 Figure 110383 110383 1995-05 → 1997-04 Figure 111758 111758 1997-04 → — Figure 110460A 110460A 1997-04 → — Figure 110457A 110457A 1997-04 → — Figure 110401 110401 1995-05 → 1997-04 Figure 111761 111761 1997-04 → — Figure 110498D 110498D 1995-05 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12317 Stay, Engine Mounting, RH
12318 Stay, Engine Mounting, LH
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12351 Damper, Engine Mounting
12361A Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12362 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12371A Insulator, Engine Mounting, Rear
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12511 Bracket, Alternator, NO.1
12511A Bush, Alternator Bracket
13570A Idler Assy, V-ribbed, NO.1
13583A Shaft, Idler, V-ribbed Belt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
