Toyota Sprinter

1995-05 → 2000-08 · chassis AE11#,CE11#,EE111 · catalogue 152140 · Japan

Discontinued model Data version 2001-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

22 part groups · 6 illustrations

Illustrations

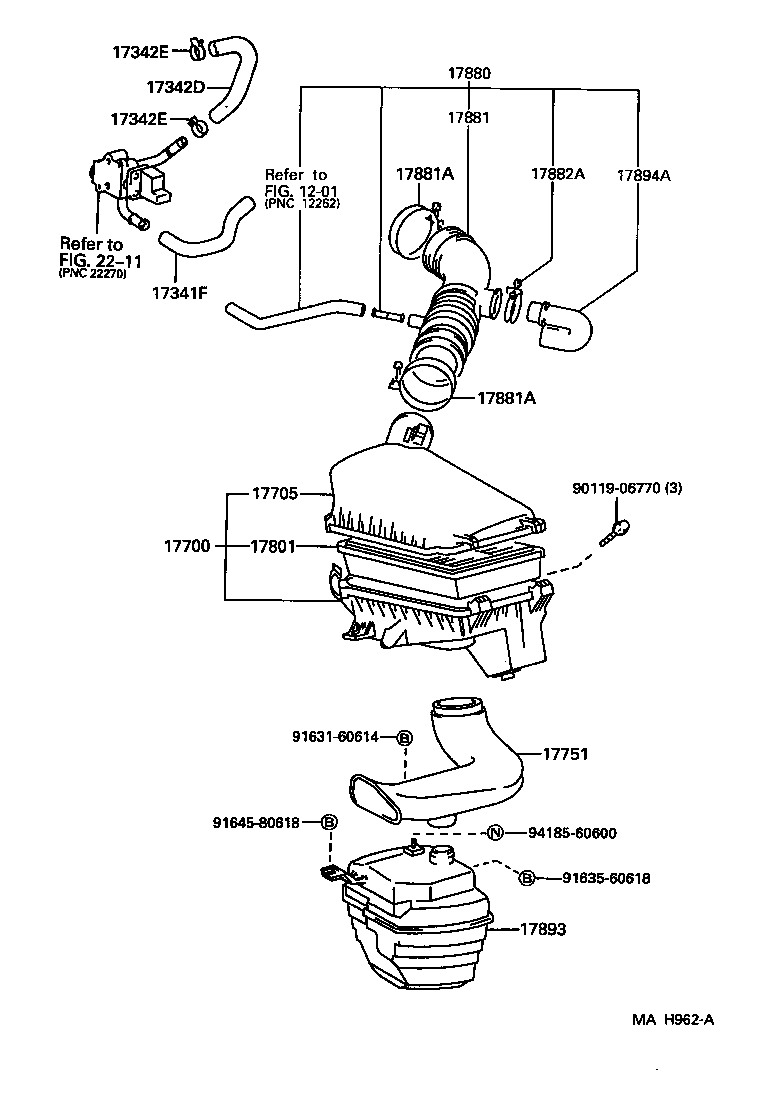

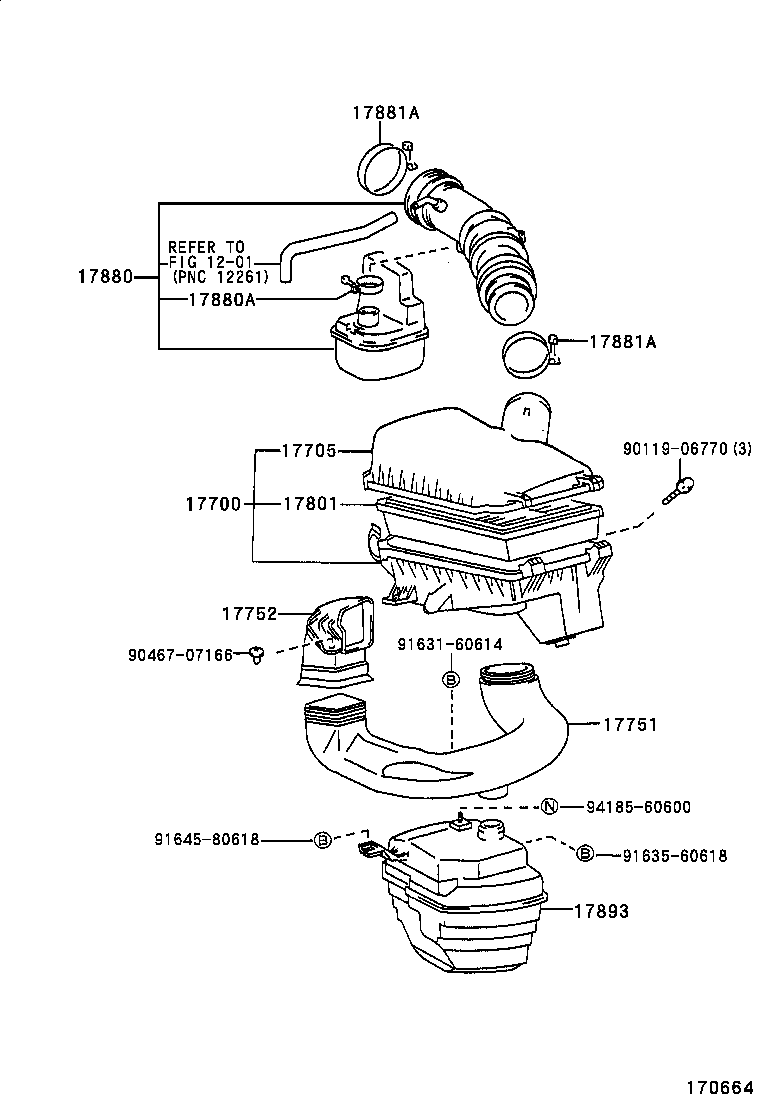

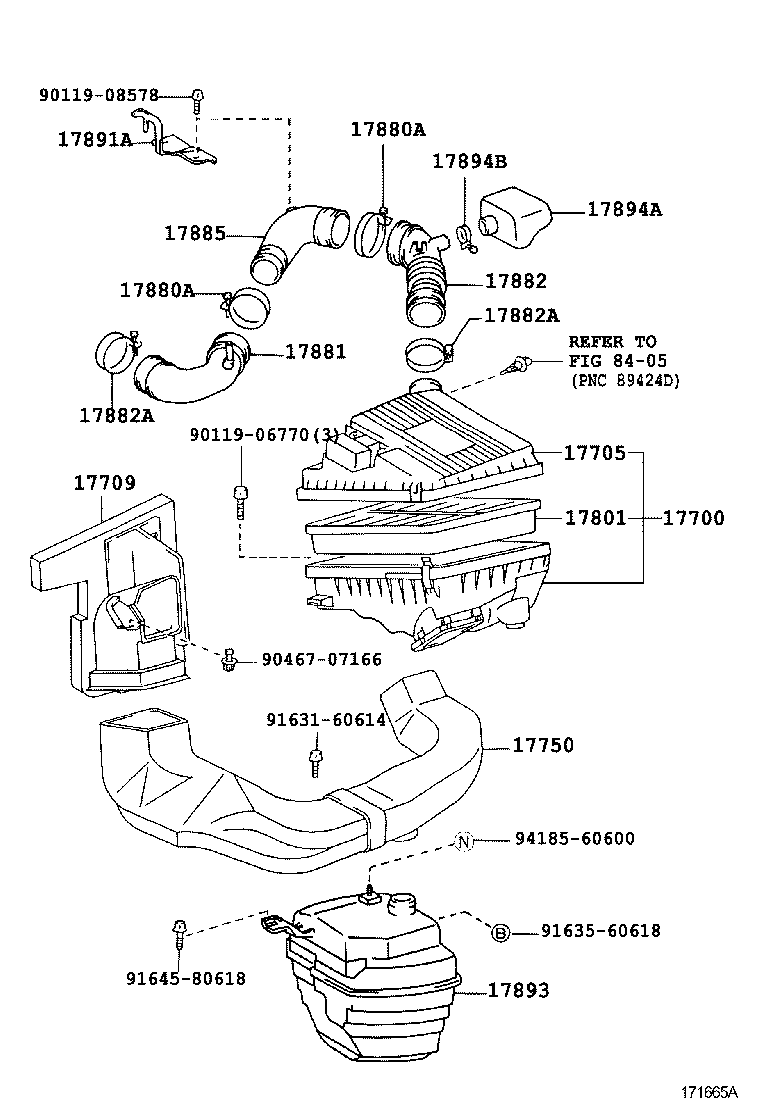

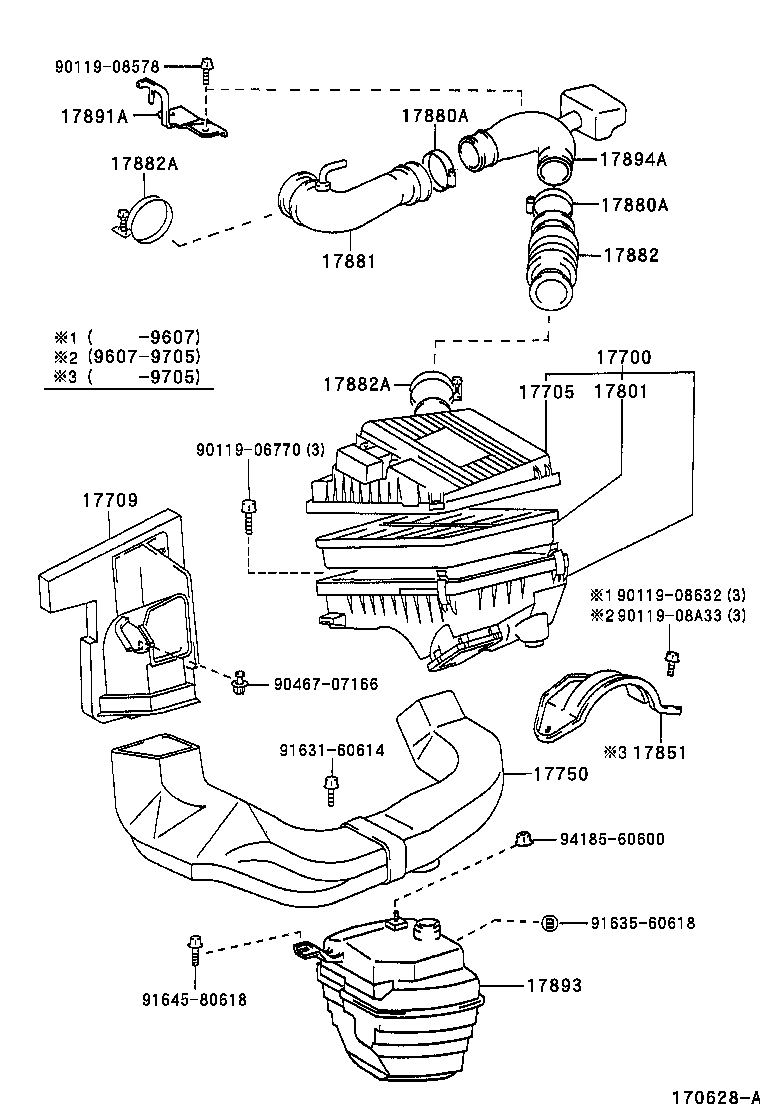

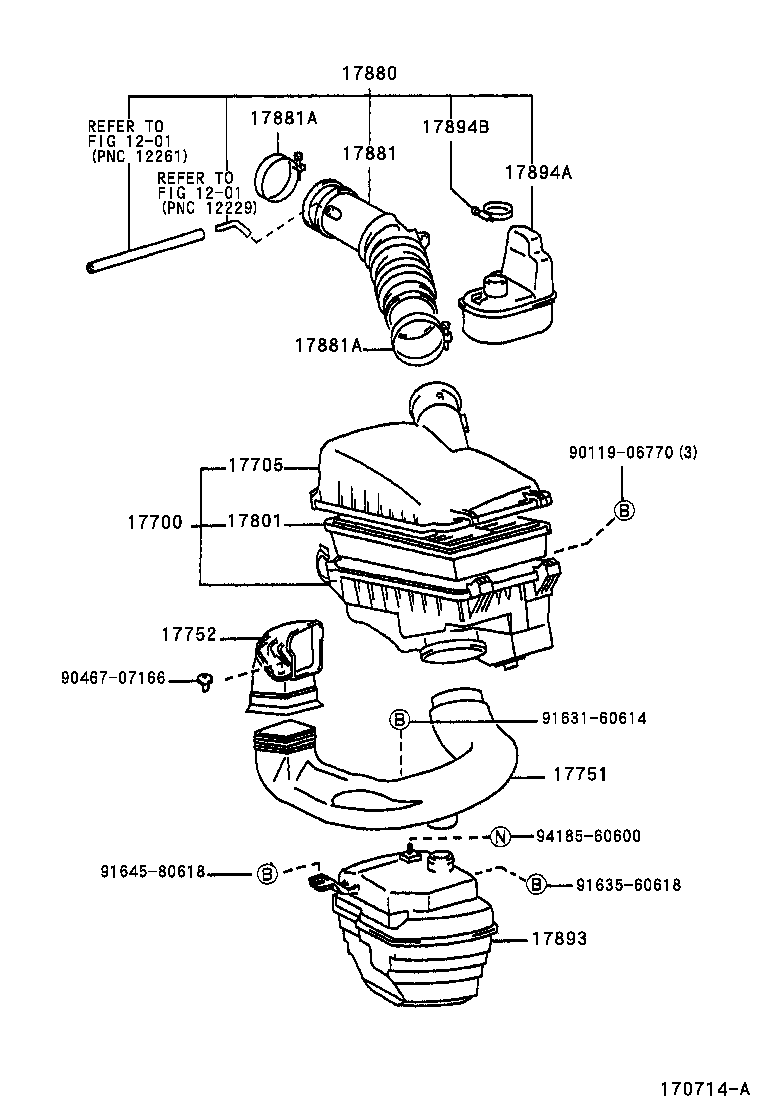

Figure 170431 170431 1995-05 → — Figure MAH962A MAH962A 1997-04 → — Figure 170628A 170628A 1995-05 → 1998-04 Figure 171665A 171665A 1998-04 → — Figure 170664 170664 1995-05 → 1997-04 Figure 170714A 170714A 1997-04 → —

Part groups

PNCDescription
17341F Hose, Air, NO.1
17342D Hose, Air, NO.2
17342E Clamp OR Clip(FOR AIR HOSE, NO.2)
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17709 Inlet Sub-assy, Air Cleaner
17750 Cover Assy, Air Cleaner Inlet, Seal
17751 Inlet, Air Cleaner, NO.1
17752 Inlet, Air Cleaner, NO.2
17801 Element Sub-assy, Air Cleaner Filter
17851 Bracket, Air Cleaner Support
17880 Hose Assy, Air Cleaner
17880A Clamp, Hose
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17885 Pipe, Air Cleaner
17891A Clamp, Air Cleaner Hose
17893 Resonator, Intake Air
17894A Resonator, Intake Air, NO.2
17894B Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
