Toyota Sprinter

1995-05 → 2000-08 · chassis AE11#,CE11#,EE111 · catalogue 152140 · Japan

Discontinued model Data version 2001-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

5 part groups · 3 illustrations

Illustrations

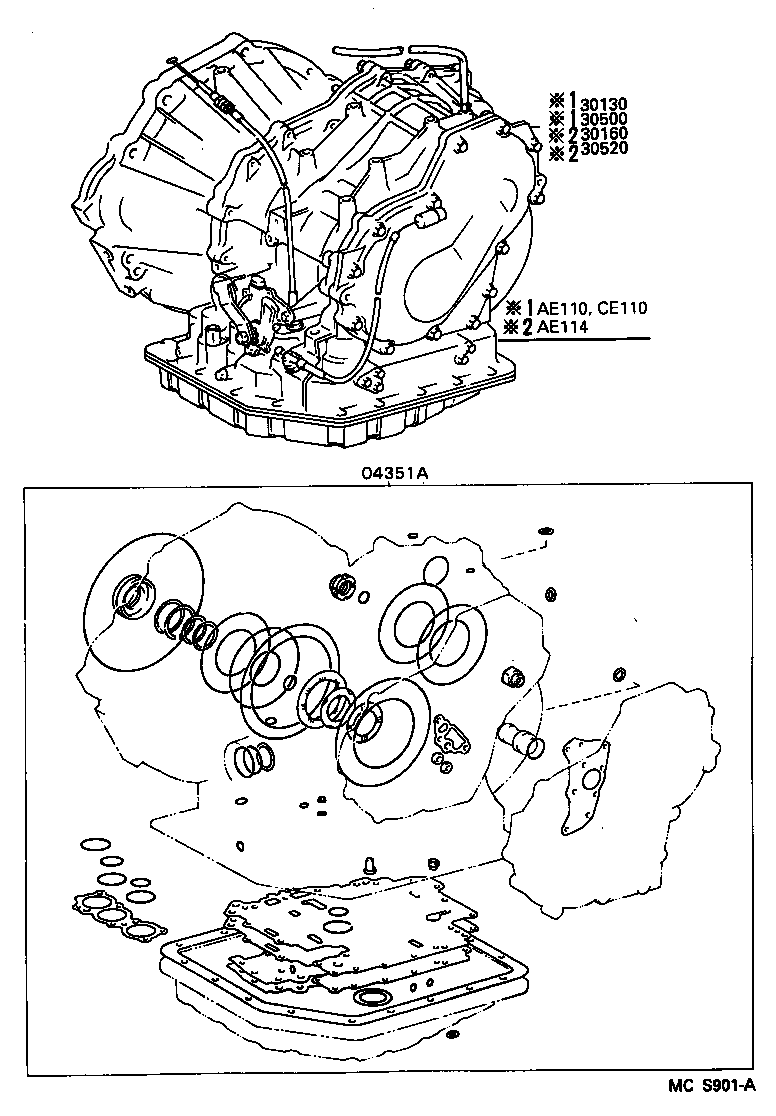

Figure MCS900A MCS900A 1995-05 → — Figure MCS901A MCS901A 1995-05 → — Figure MCS912A MCS912A 1995-05 → —

Part groups

PNCDescription
04351A Gasket Kit, Transaxle Overhaul(ATM)
30130 Transaxle Assy, Rebuilt
30160 Transaxle Assy, Automatic W/Transfer, Rebuilt
30500 Transaxle Assy, Automatic
30520 Transaxle Assy, Automatic W/Transfer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
