Toyota Sprinter
1995-05 → 2000-08 · chassis AE11#,CE11#,EE111 · catalogue 152140 · Japan
Discontinued model
Data version 2001-02

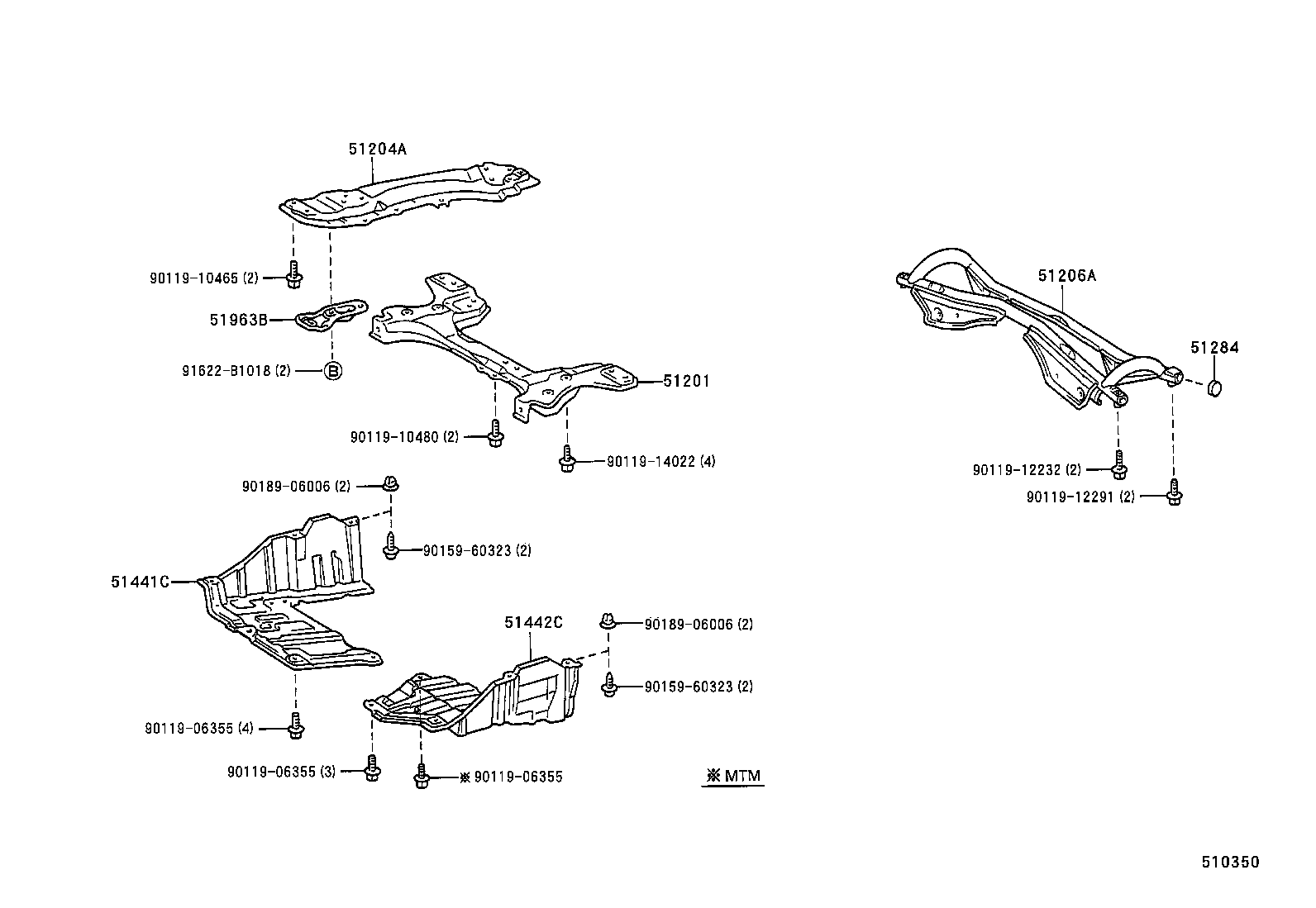

Suspension Crossmember & Under Cover
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51201 | Crossmember Sub-assy, Front Suspension |
| 51204A | Member Sub-assy, Engine Mounting, Center |
| 51206A | Member Sub-assy, Rear Suspension |
| 51227 | Weight, Front Suspension Member Damper |
| 51284 | Cover, Rear Suspension Member Hole |
| 51441C | Cover, Engine Under, RH |
| 51442C | Cover, Engine Under, LH |
| 51963B | Hook, Transport, Front RH |
| 52295 | Brace, Rear Suspension Member, RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
