Toyota Sprinter

1995-05 → 2000-08 · chassis AE11#,CE11#,EE111 · catalogue 152140 · Japan

Discontinued model Data version 2001-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

12 part groups · 2 illustrations

Illustrations

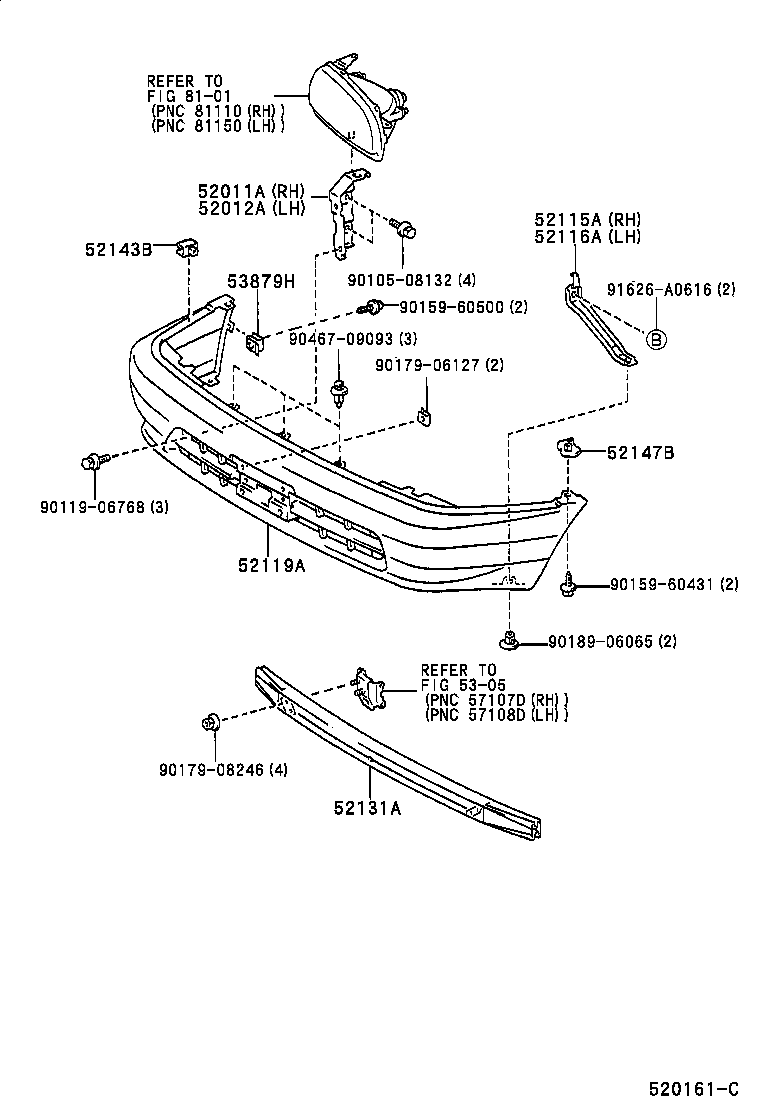

Figure 520777A 520777A 1995-05 → 1997-04 Figure 520161C 520161C 1997-04 → —

Part groups

PNCDescription
52011A Arm Sub-assy, Front Bumper, RH
52012A Arm Sub-assy, Front Bumper, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52129B Cover, Front Bumper, Lower
52131A Reinforcement, Front Bumper
52141C Arm, Front Bumper, RH
52142B Arm, Front Bumper, LH
52143B Bracket, Front Bumper Side
52147B Bracket, Front Bumper Mounting
53879H Retainer, Front Fender Liner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
