Toyota Sprinter
1995-05 → 2000-08 · chassis AE11#,CE11#,EE111 · catalogue 152140 · Japan
Discontinued model
Data version 2001-02

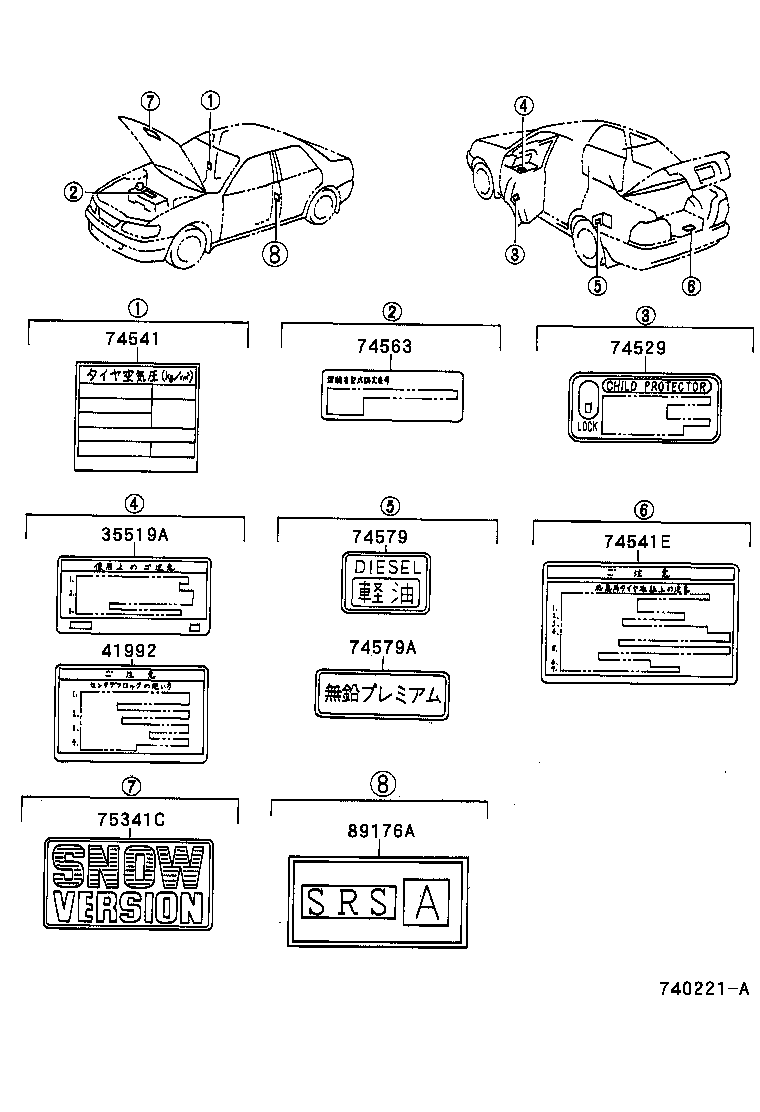

Caution Plate (EXTERIOR & INTERIOR)
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11289B | Label, Spark Plug Notice |
| 11296C | Label, Engine Service Information |
| 13564 | Label, Timing Belt Replacement Information |
| 15369A | Label, Engine Oil Information |
| 17791A | Label, Maintenance Information |
| 35519A | Label, Automatic Transfer Infomation |
| 41992 | Label, Differential Notice |
| 74529 | Plate, Child Proof OR Child Protector Lock Caution |
| 74541 | Plate, Tire Pressure Caution |
| 74541E | Plate, Compact Spare Tire Caution |
| 74563 | Plate, Emission Control Device Identification |
| 74579 | Plate, Unleaded Fuel Caution |
| 74579A | Label, Unleaded Fuel Information |
| 75341C | Plate, Hood Name |
| 88723E | Label, Cooler Service Caution |
| 89176A | Label, Airbag Deployment Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
