Toyota Sprinter

1995-05 → 2000-08 · chassis AE11#,CE11#,EE111 · catalogue 152140 · Japan

Discontinued model Data version 2001-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

6 part groups · 2 illustrations

Illustrations

Figure 810346D

810346D 1995-05 → 1997-04

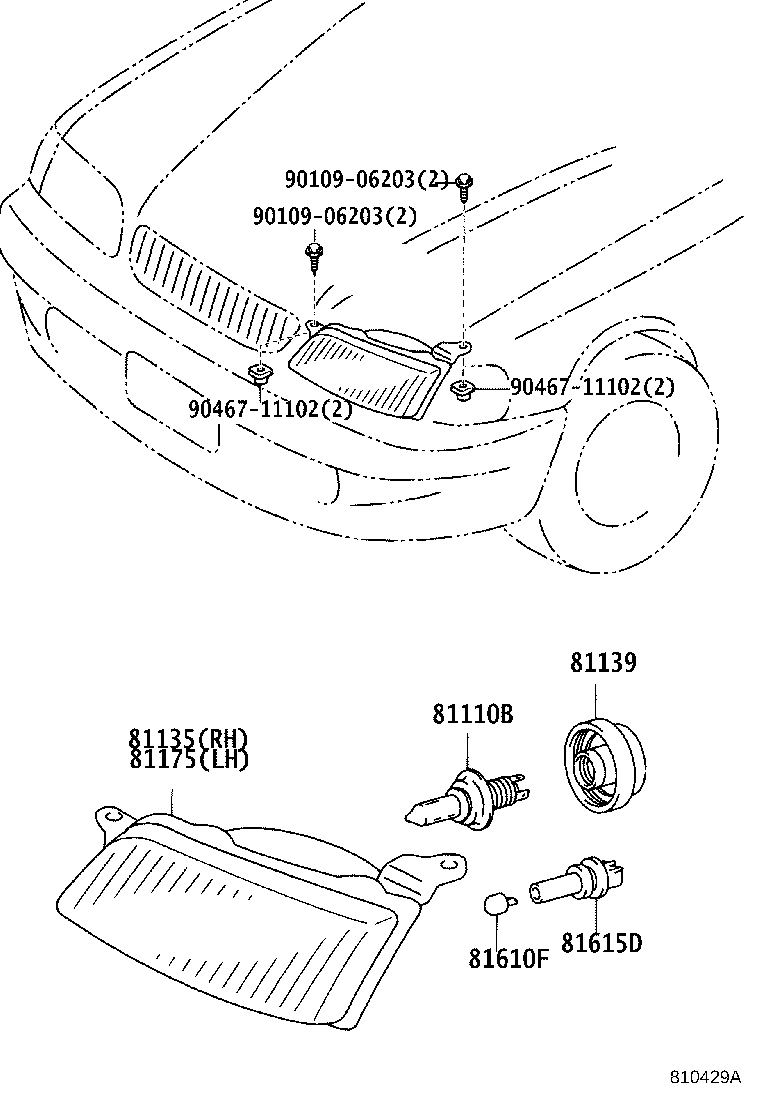

Figure 810429A

810429A 1997-04 → —

Part groups

PNC	Description
81110B	Bulb(FOR HEADLAMP, NO.1)
81135	Unit Assy, Headlamp, RH
81139	Cover, Headlamp Socket
81175	Unit Assy, Headlamp, LH
81610F	Bulb(FOR CLEARANCE LAMP)
81615D	Socket, Clearance Lamp

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
