Toyota Sprinter

1995-05 → 2000-08 · chassis AE11#,CE11#,EE111 · catalogue 152140 · Japan

Discontinued model Data version 2001-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

12 part groups · 3 illustrations

Illustrations

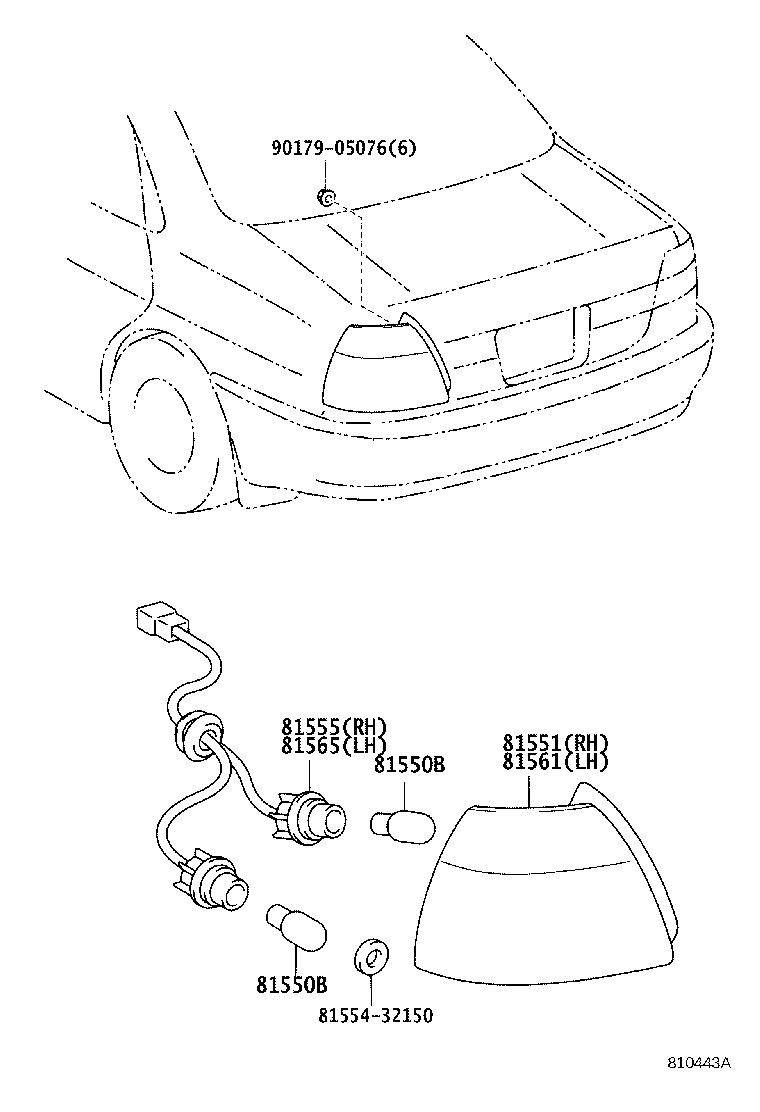

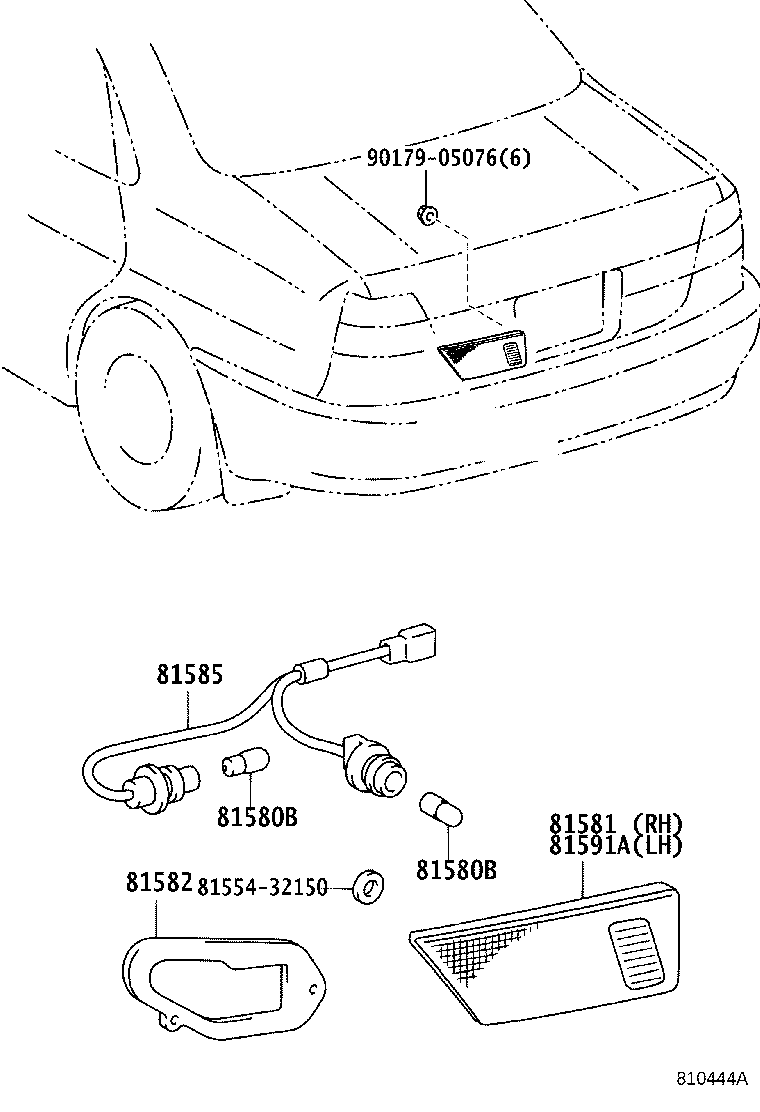

Figure 810357A 810357A 1995-05 → 1997-04 Figure 810443A 810443A 1997-04 → — Figure 810444A 810444A 1997-04 → —

Part groups

PNCDescription
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81580B Bulb (FOR REAR LAMP)
81581 Lens, Rear Lamp
81582 Gasket, Rear Lamp
81585 Socket & Wire, Rear Lamp
81591A Lens Rear Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
