Toyota Sprinter

1995-05 → 2000-08 · chassis AE11#,CE11#,EE111 · catalogue 152140 · Japan

Discontinued model Data version 2001-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear License Plate Lamp

3 part groups · 2 illustrations

Illustrations

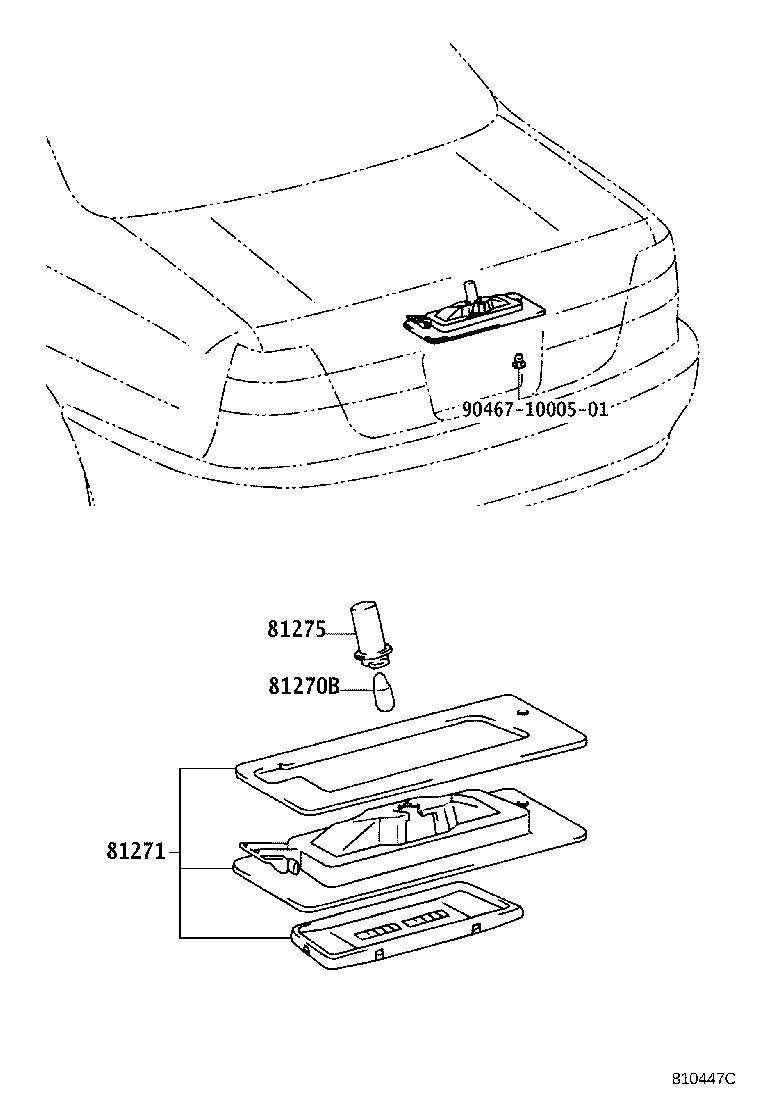

Figure 810351C 810351C 1995-05 → 1997-04 Figure 810447C 810447C 1997-04 → —

Part groups

PNCDescription
81270B Bulb (FOR LICENSE PLATE LAMP)
81271 Lens, License Plate Lamp
81275 Socket And Wire, License Plate Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
