Toyota Sprinter

1995-05 → 2000-08 · chassis AE11#,CE11#,EE111 · catalogue 152140 · Japan

Discontinued model Data version 2001-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

36 part groups · 14 illustrations

Illustrations

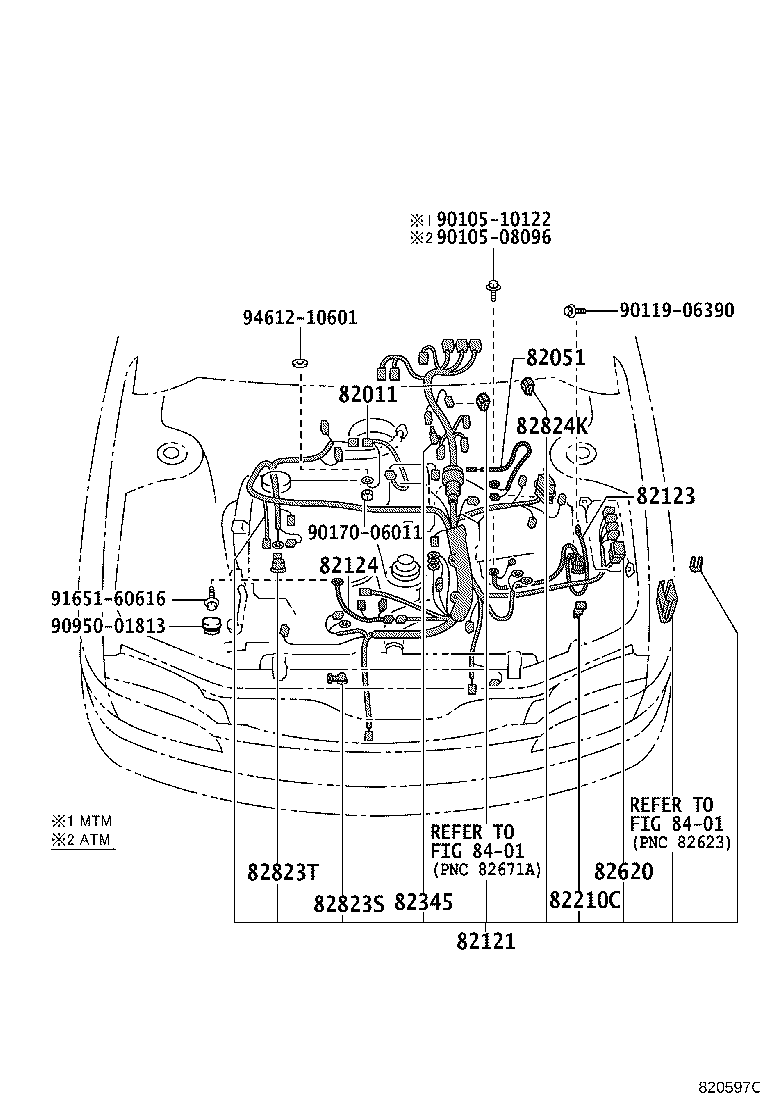

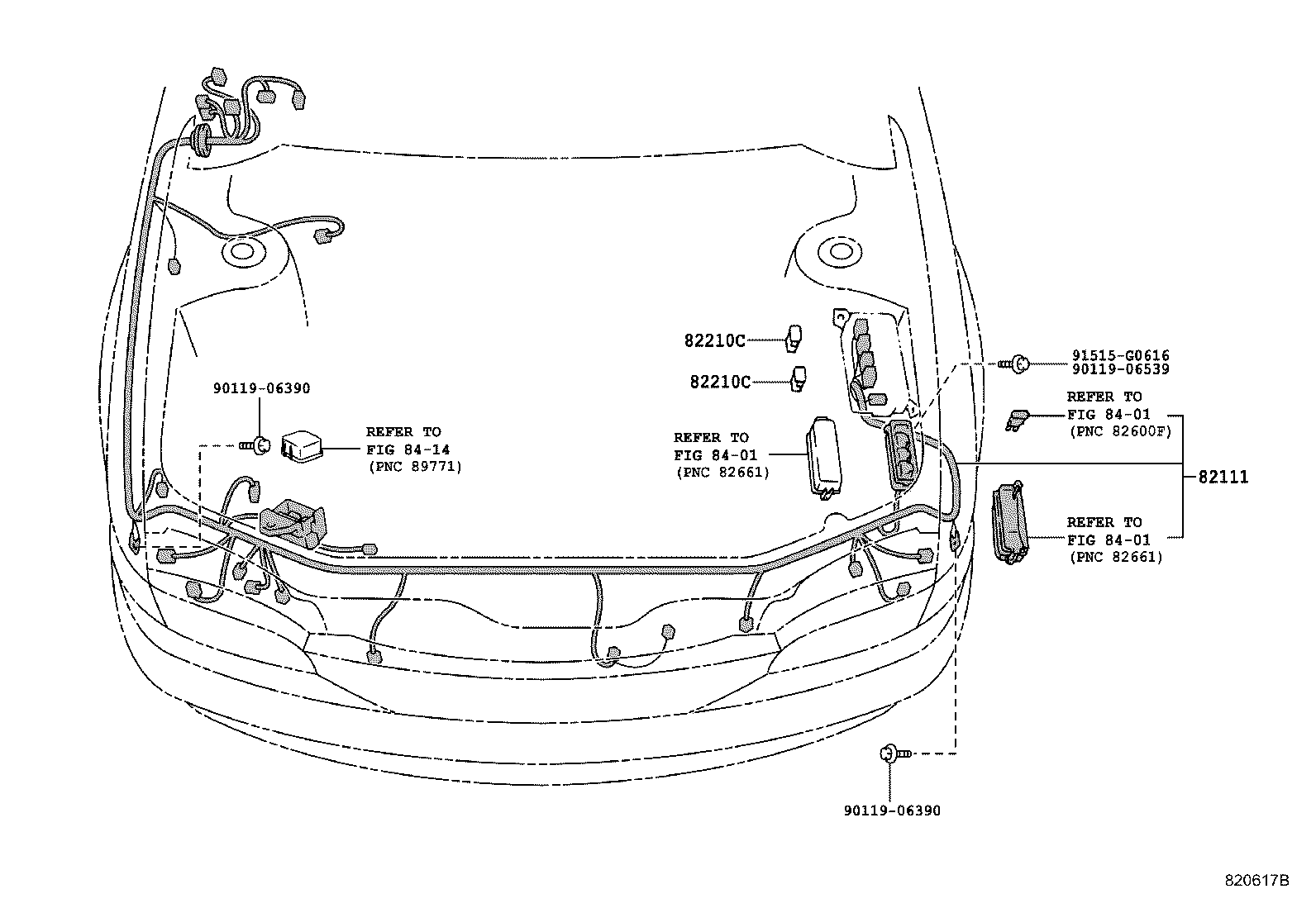

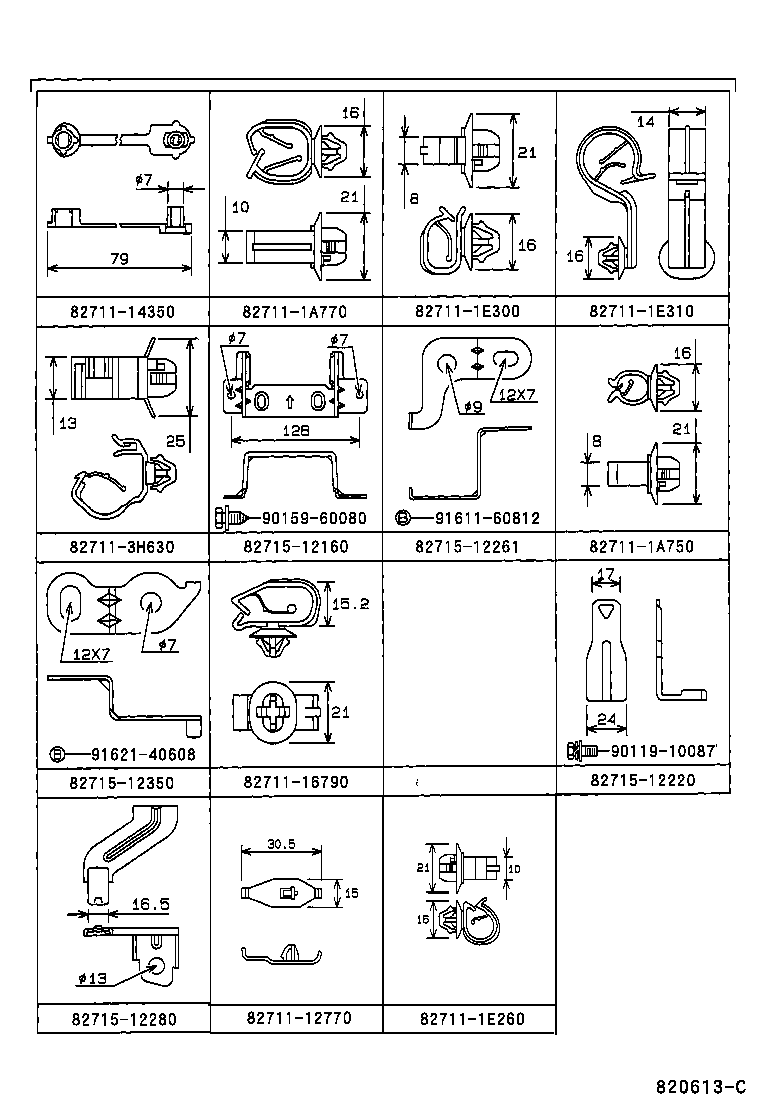

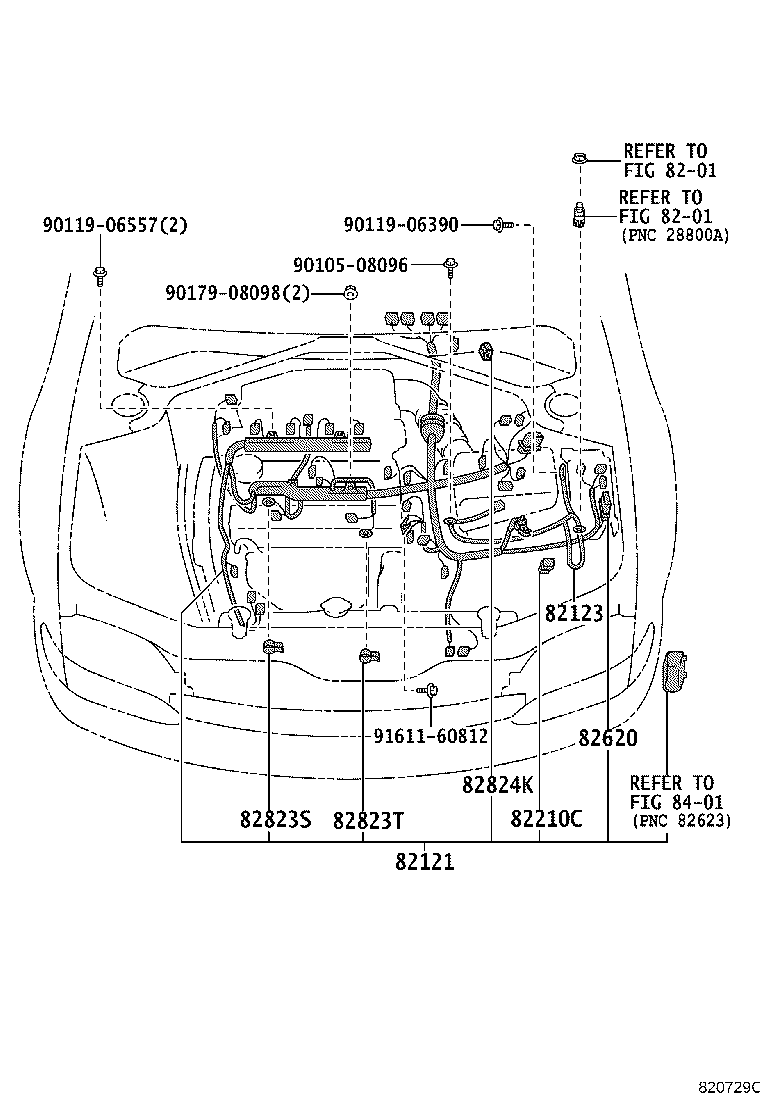

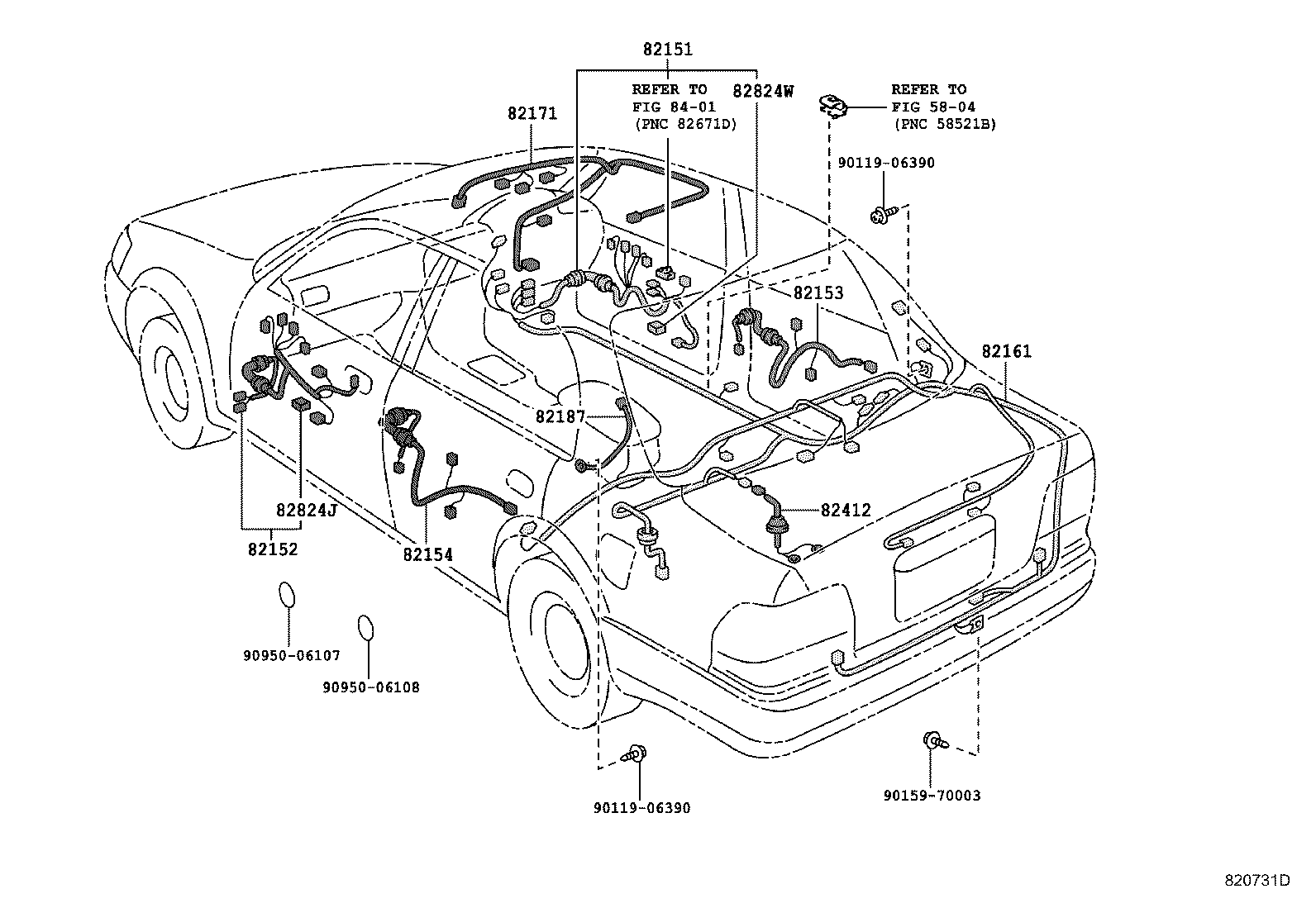

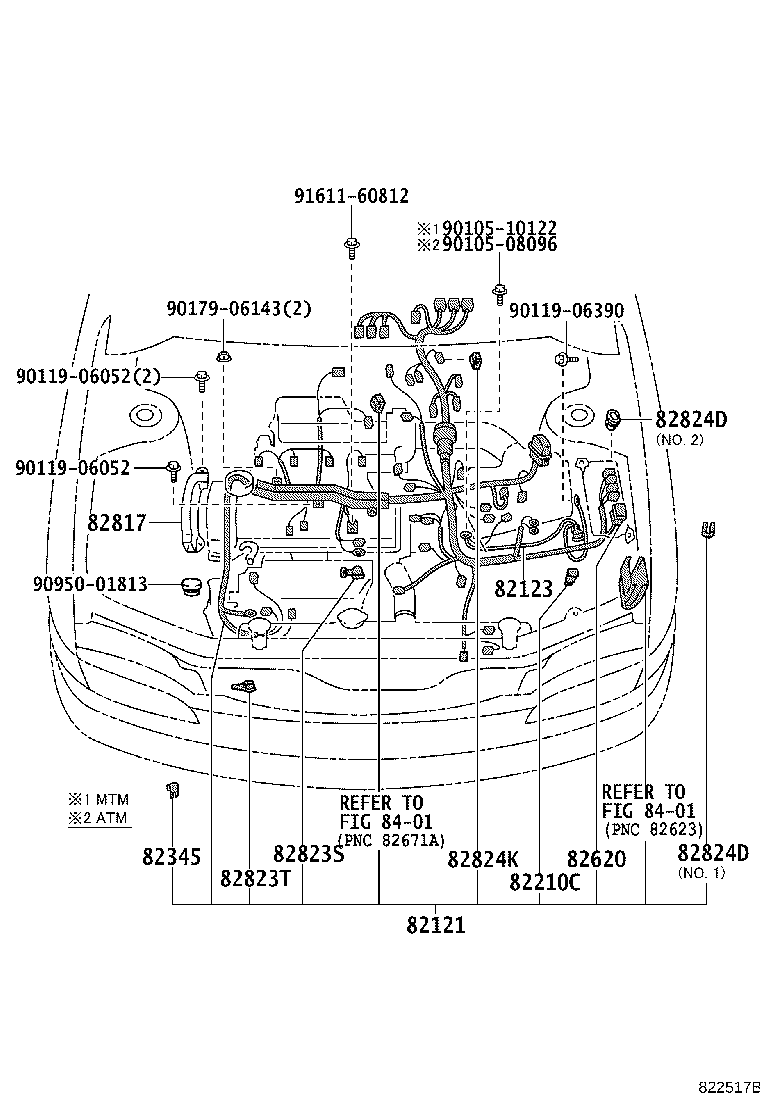

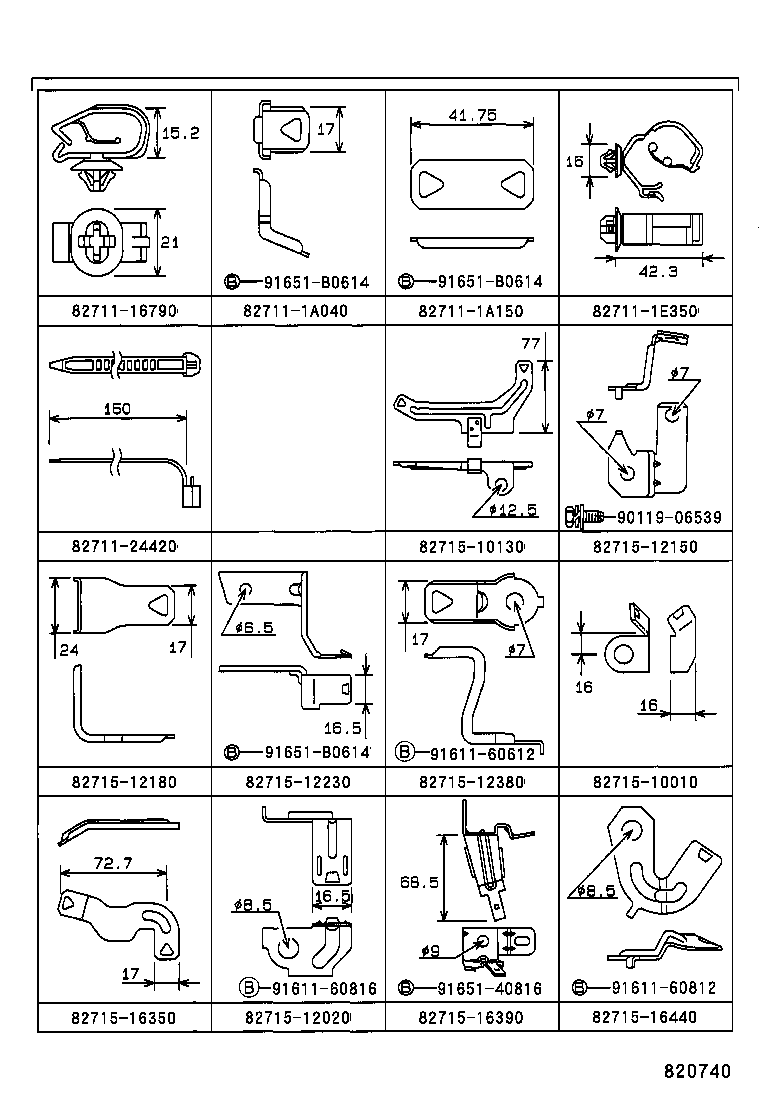

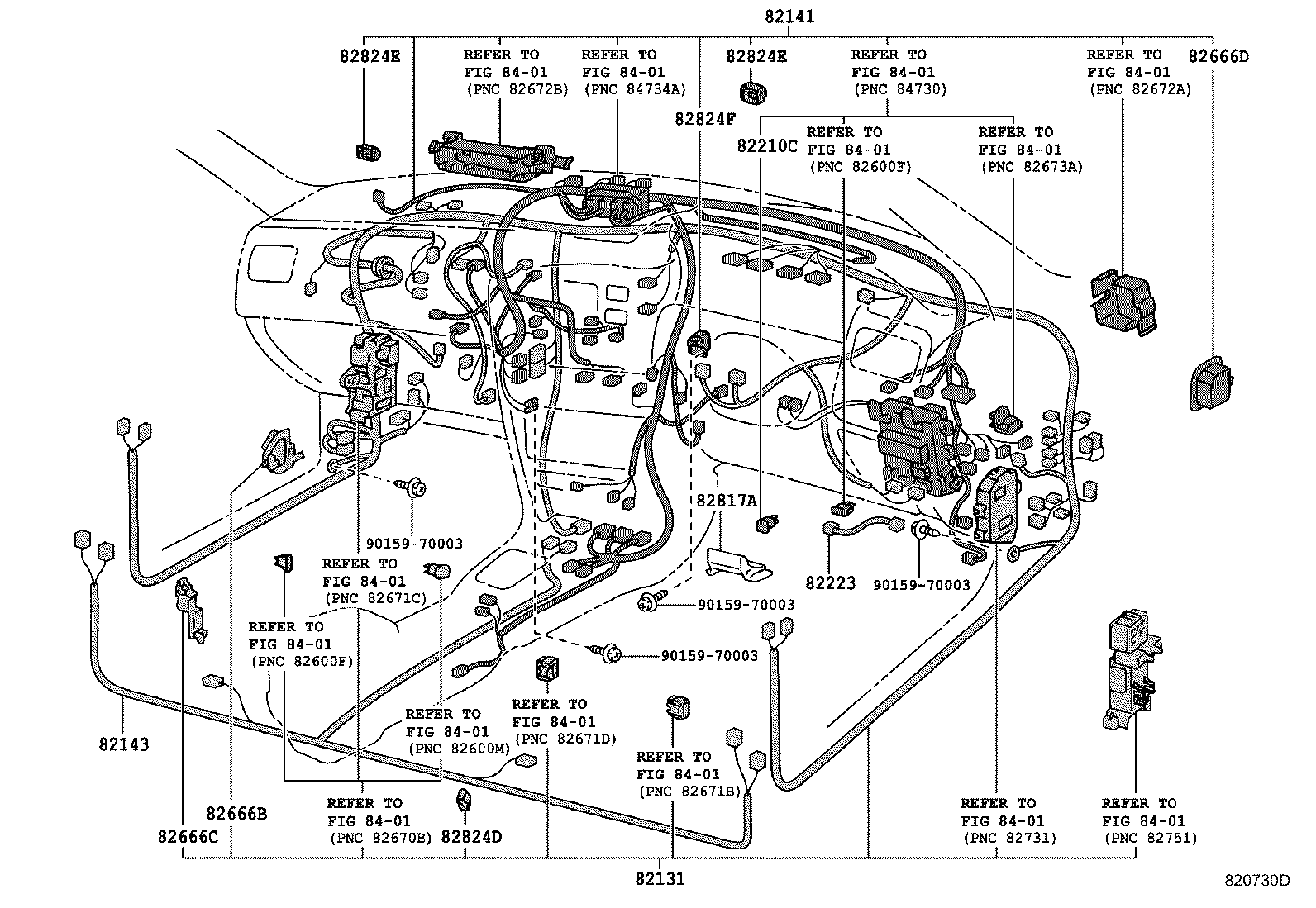

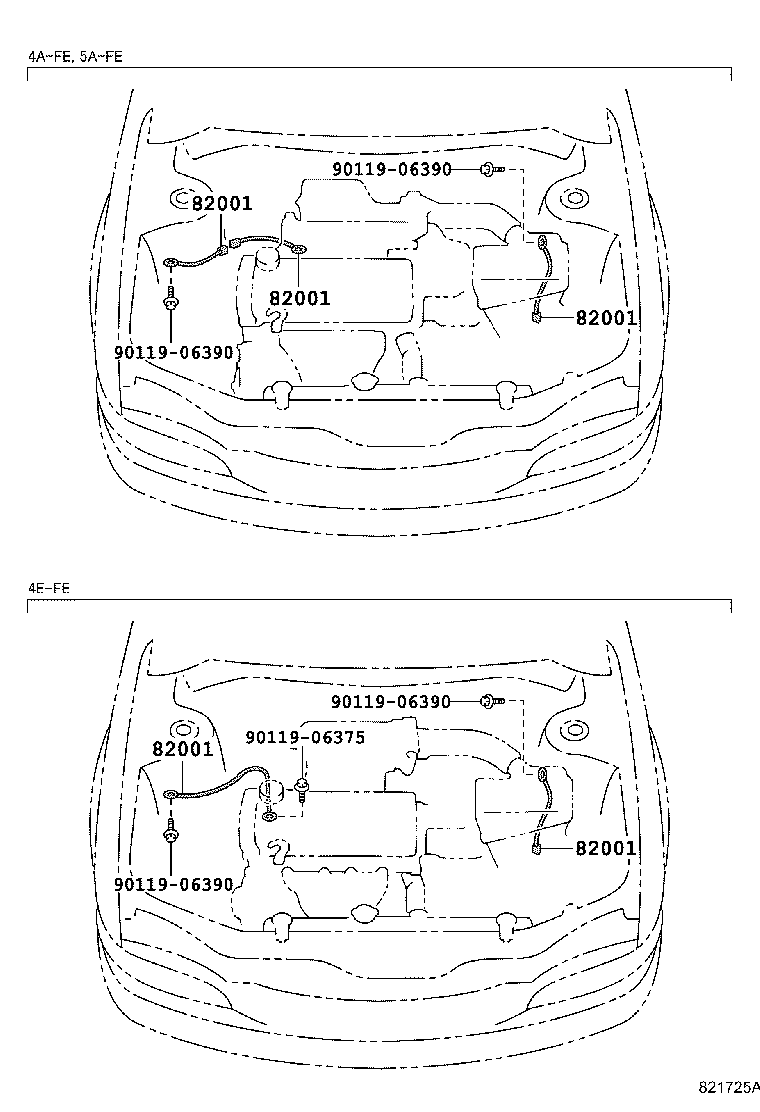

Figure 820728E 820728E 1995-05 → — Figure 822517B 822517B 1995-05 → — Figure 820729C 820729C 1997-04 → — Figure 820597C 820597C 1995-05 → — Figure 820617B 820617B 1995-05 → — Figure 820730D 820730D 1995-05 → — Figure 820731D 820731D 1995-05 → — Figure 820740A 820740A 1995-05 → — Figure 820613C 820613C 1995-05 → — Figure 820818A 820818A 1995-05 → — Figure 821725A 821725A 1995-05 → — Figure 820732A 820732A 1997-04 → — Figure 820599 820599 1995-05 → — Figure 822096 822096 1995-05 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82011 Wiring Assy, Brake Warning System
82051 Harness Assy, Fuel Control
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82131 Wire, Cowl
82141 Wire, Instrument Panel
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82171 Wire, Roof, NO.1
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82223 Wire, Switch
82345 Diode
82412 Wire, Fuel Gage
82620 Block Assy, Fusible Link
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824J Connector, Wiring Harness
82824K Connector, Wiring Harness
82824W Connector, Wiring Harness
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
