Toyota Sprinter

1995-05 → 2000-08 · chassis AE11#,CE11#,EE111 · catalogue 152140 · Japan

Discontinued model Data version 2001-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

115 part groups · 14 illustrations

Illustrations

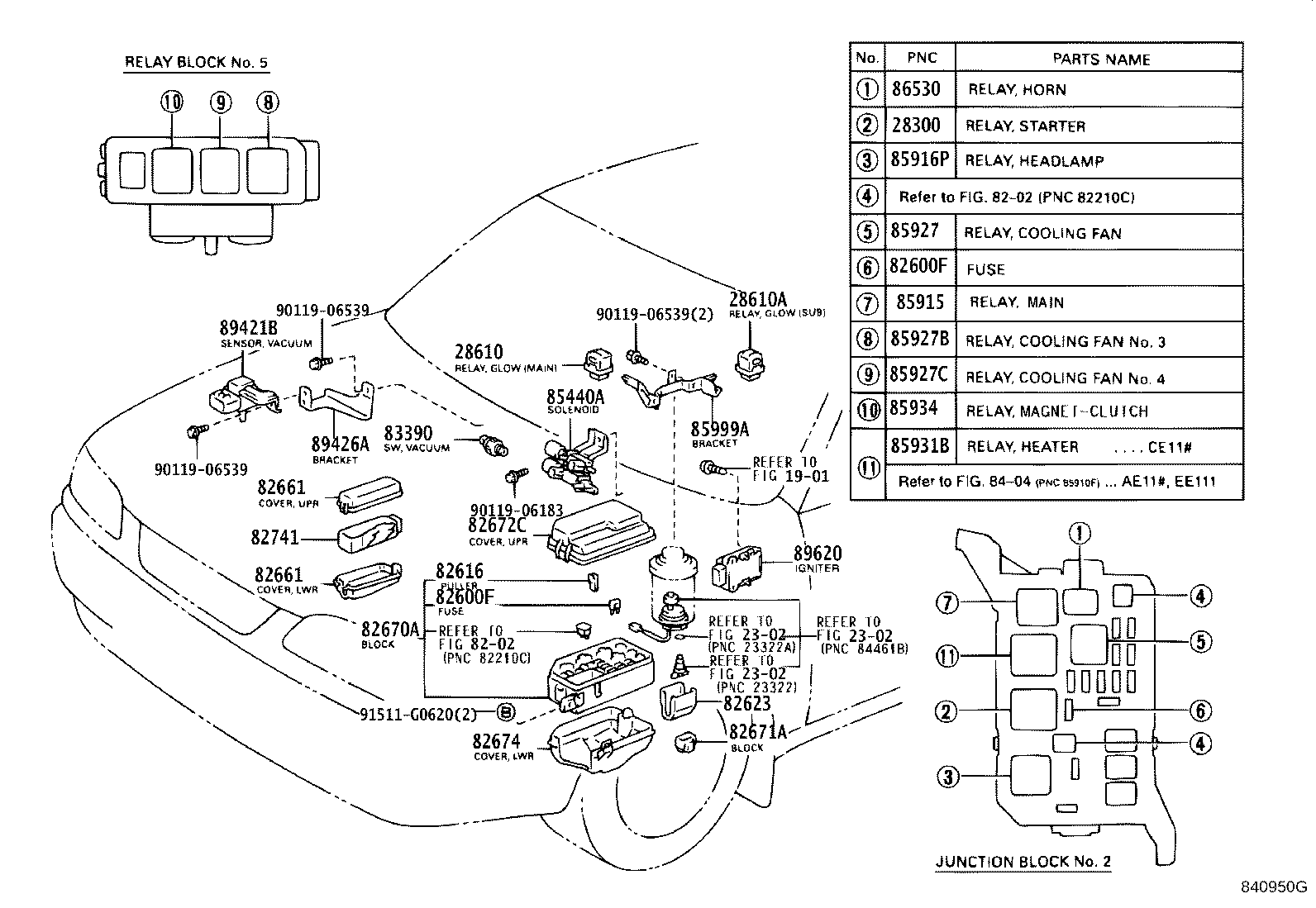

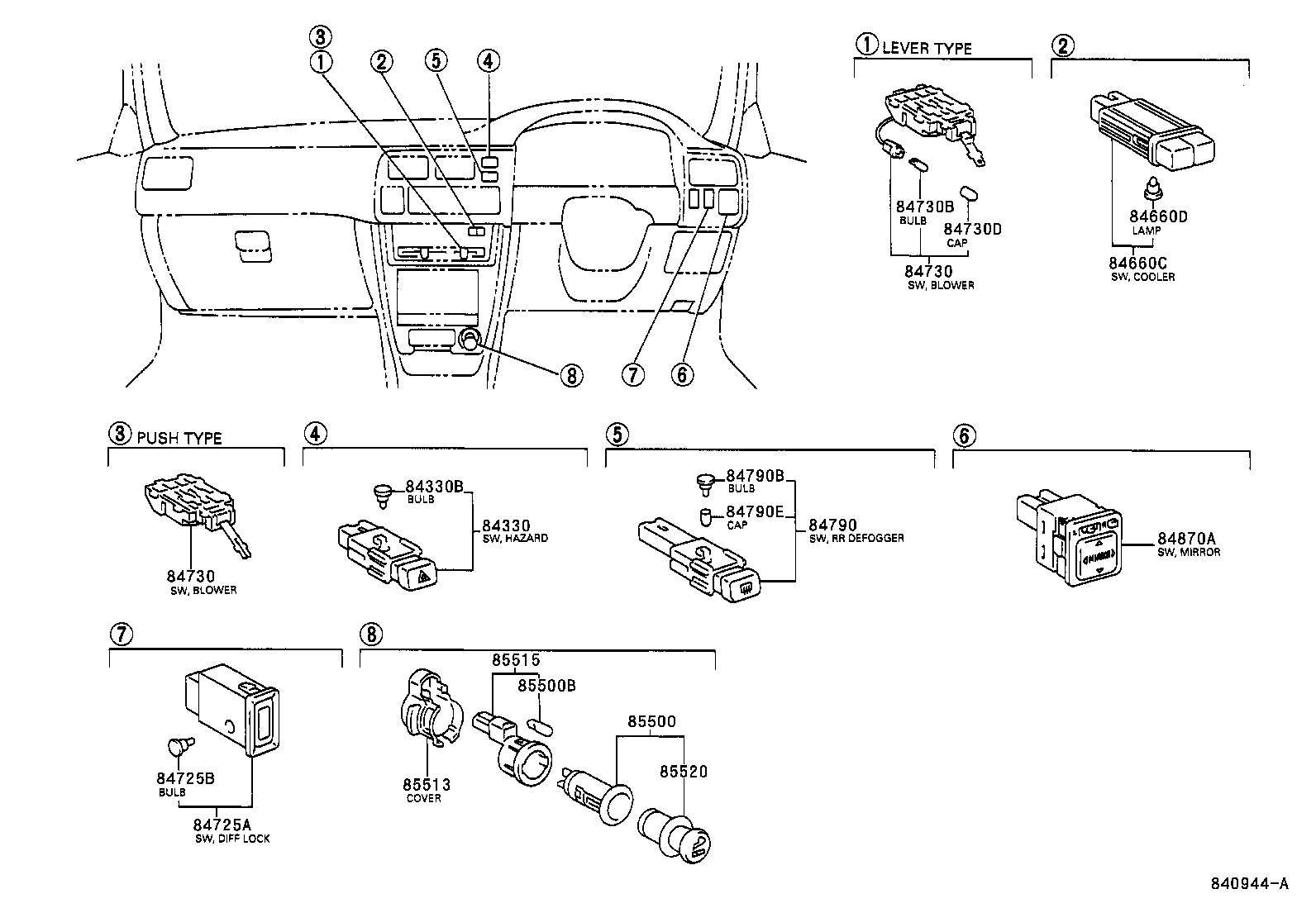

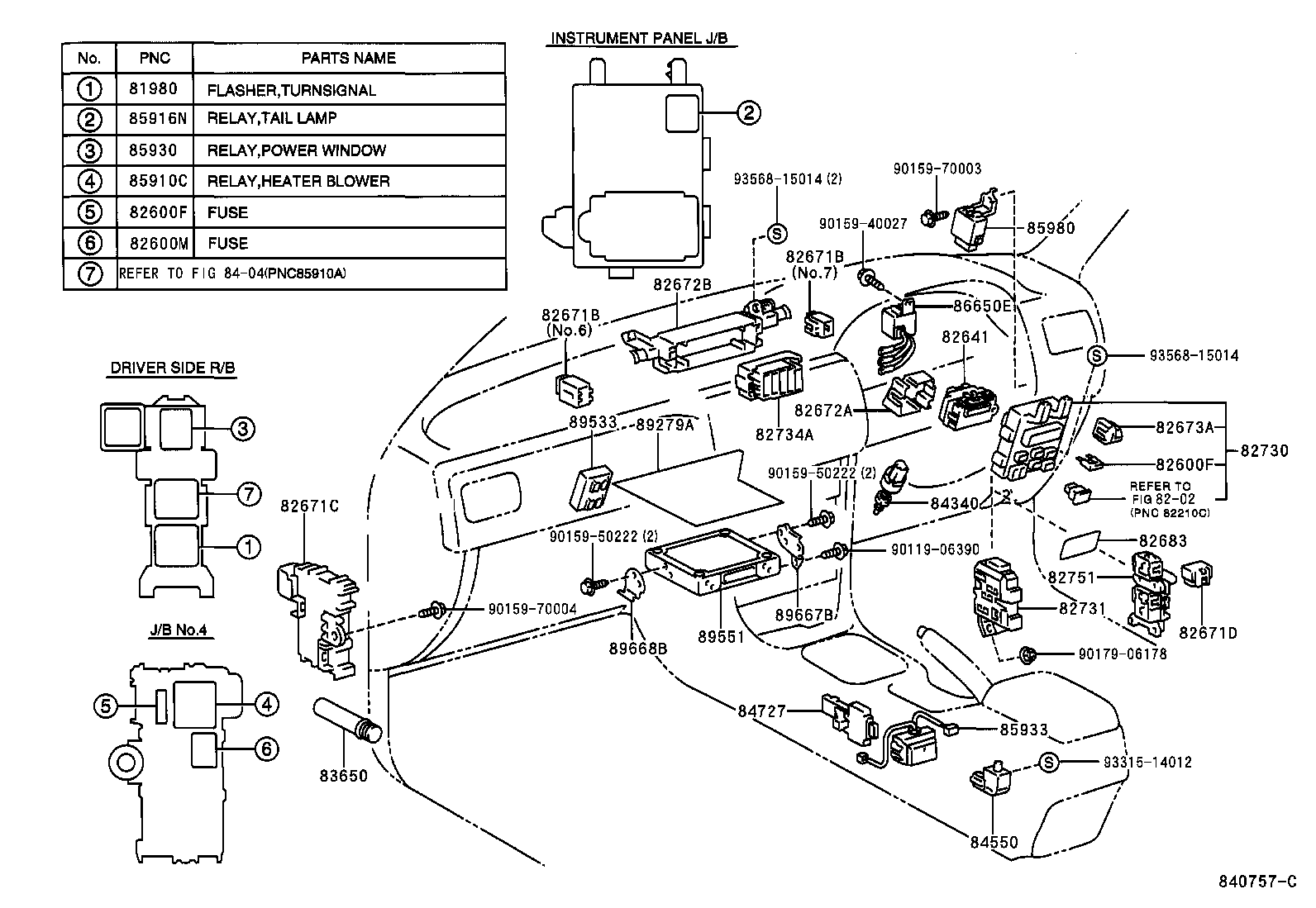

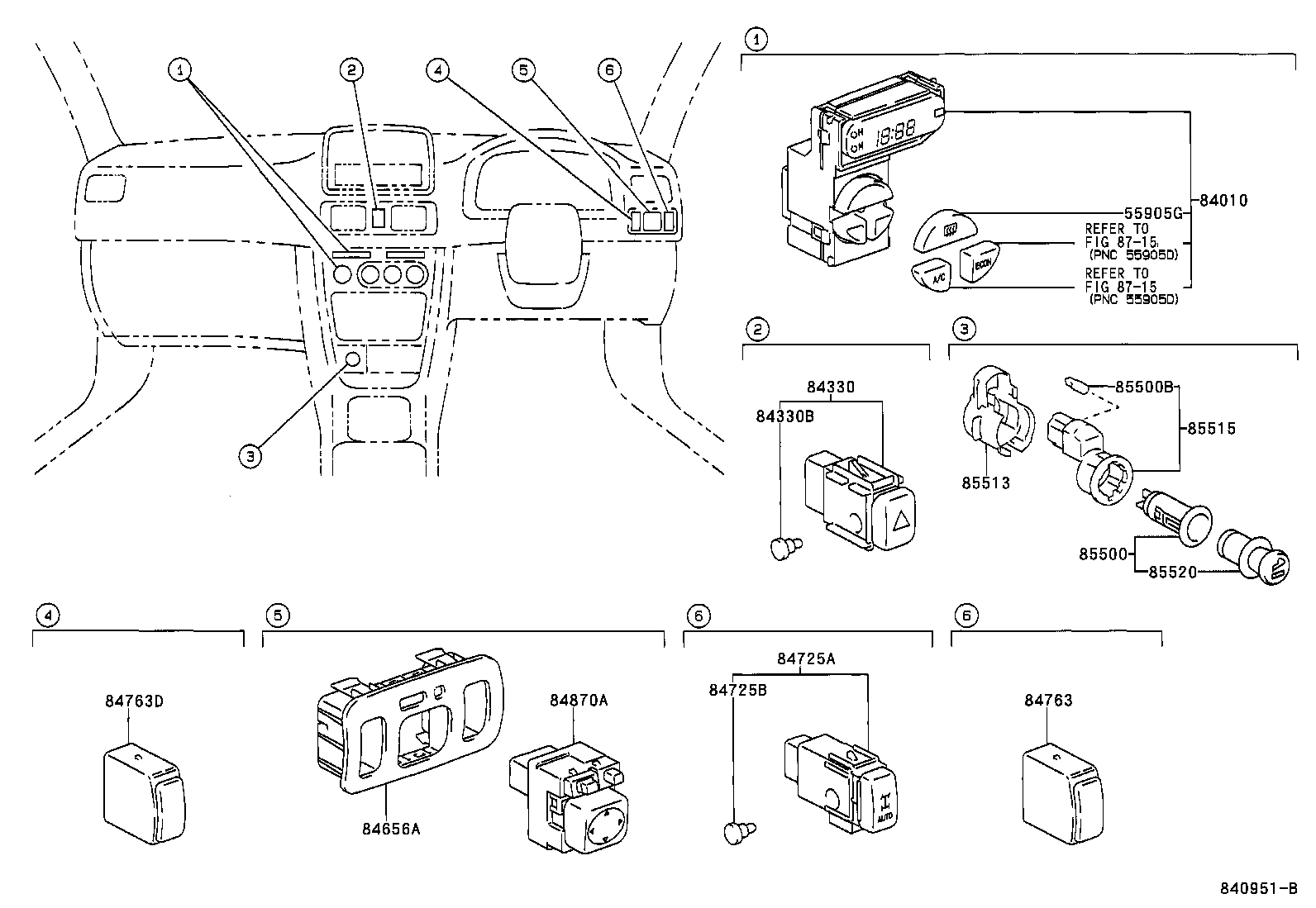

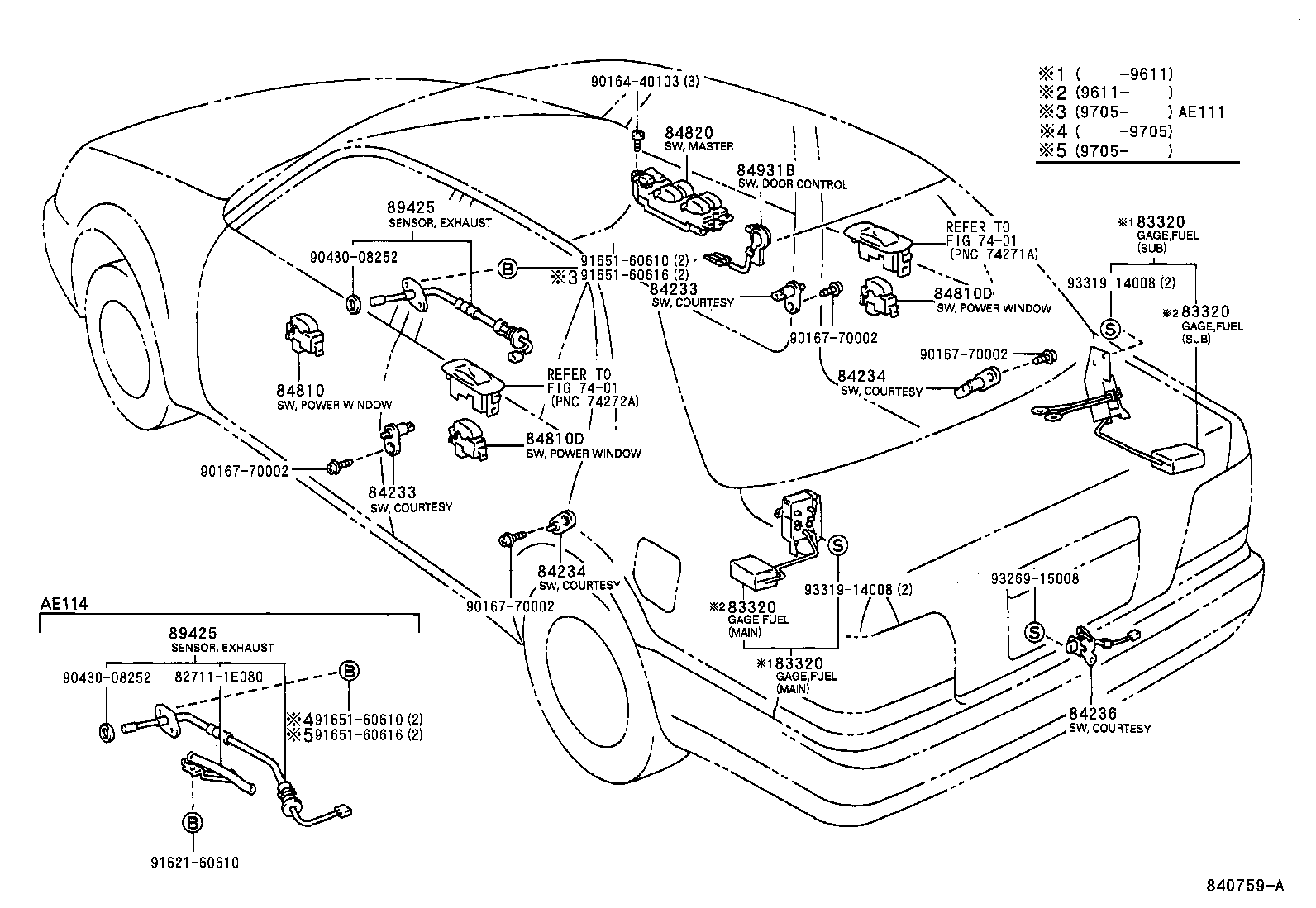

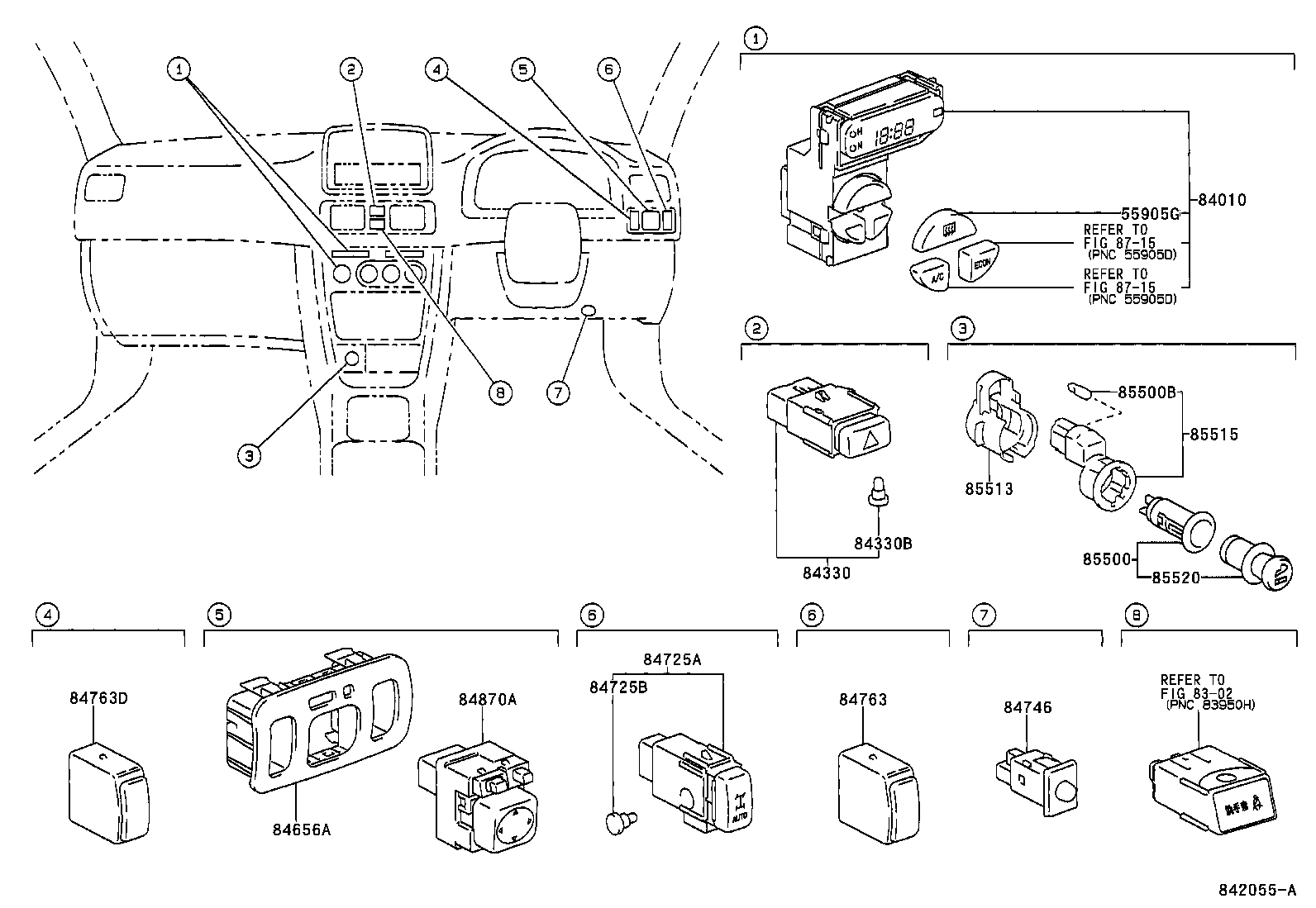

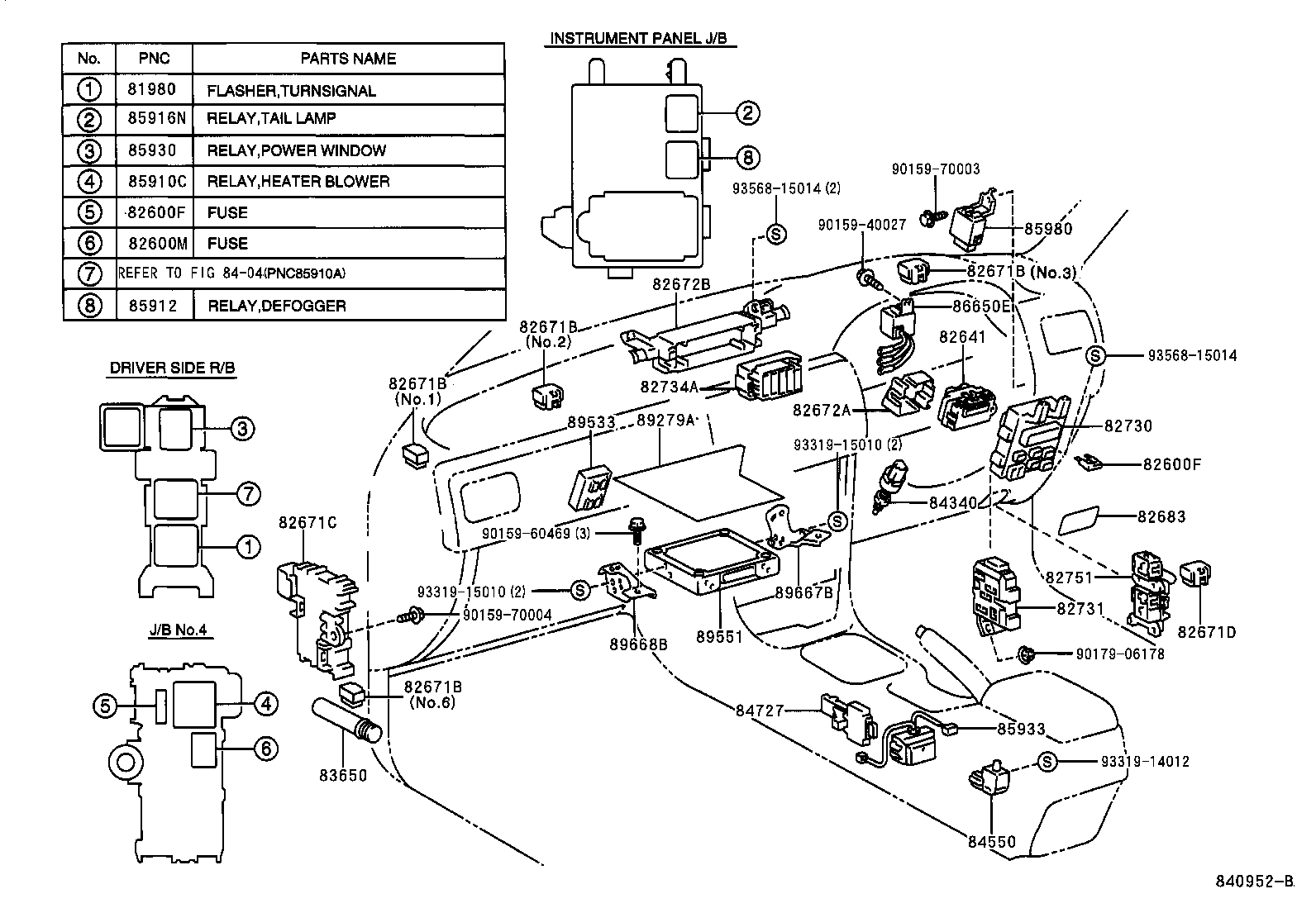

Figure 84B493 84B493 1995-05 → 1997-04 Figure 84B493 84B493 1997-04 → — Figure 84B494 84B494 1997-04 → — Figure 84J013 84J013 1995-05 → — Figure MEZ133 MEZ133 1995-05 → — Figure 840950G 840950G 1995-05 → — Figure 840944A 840944A 1995-05 → 1997-04 Figure 840951B 840951B 1997-04 → 1998-04 Figure 842055A 842055A 1998-04 → — Figure 840757C 840757C 1995-05 → 1997-04 Figure 840952B 840952B 1997-04 → — Figure MEZ127 MEZ127 1995-05 → — Figure NE2534 NE2534 1996-05 → — Figure 840759A 840759A 1995-05 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28610 Relay Assy, Intake Heater OR Glow Plug
28610A Relay Assy, Glow Plug(SUB)
28621 Resistor, Glow Plug
28624 Plate, Current Sensor
55905G Knob Sub-assy, Control
81980 Flasher Assy, Turn Signal
82600F Fuse, Fuse Block
82600M Fuse, Medium Current
82616 Puller, Fuse
82623 Cover, Fusible Link, Lower
82641 Relay, Integration NO.1
82661 Cover, Relay Block, NO.1
82670A Block Assy, Junction, NO.1
82671A Block, Junction
82671B Block, Junction
82671C Block, Junction
82671D Block, Junction
82672A Cover, Junction Block
82672B Cover, Junction Block
82672C Cover, Junction Block
82673A Bracket, Junction Block, NO.1
82674 Cover, Junction Block Lower
82683 Plate, Fuse Block Caution
82730 Block Assy, Instrument Panel Junction
82731 Block, Driver Side Junction
82734A Block, Center Junction
82741 Block, Engine Room Relay
82751 Block, Driver Side Relay
83320 Gage Assy, Fuel Sender
83390 Switch Assy, Vacuum Warning
83420 Gage Assy, Water Temperature Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83531A Switch, Oil Pressure
83650 Fusee
84010 Switch Assy, Center Cluster Integration
84052 Switch Assy, Un-lock Warning
84140 Switch Assy, Headlamp Dimmer
84210 Switch Assy, Back-up Lamp
84222 Switch, Transfer Indicator, NO.1
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84236 Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM)
84306 Cable Sub-assy, Spiral
84310 Switch Assy, Turn Signal
84312 Plate, Horn Contact
84330 Switch Assy, Hazard Warning Signal
84330B Bulb, Hazard Warning Signal Switch
84340 Switch Assy, Stop Lamp
84450 Switch Assy, Ignition OR Starter
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84656A Bezel, Switch
84660C Switch, Cooler
84660D Bulb(FOR COOLER SWITCH)
84725A Switch, Differential Lock
84725B Blub, Differential Lock Switch
84727 Switch, Shift Lock Control
84730 Switch Assy, Heater Blower
84730B Bulb, Heater Blower Switch
84730D Cap, Heater Blower Switch Bulb
84746 Switch, Tire Pressure Warning
84763 Plate, Switch
84763D Plate, Switch
84790 Switch Assy, Rear Window Defogger
84790B Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
84790E Cap, Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84931B Switch, Door Control
85420E Solenoid Assy, Transmission
85420F Ring, O(FOR TRANSMISSION SOLENOID)
85432 Solenoid, Key Interlock
85440A Solenoid Assy, Four Wheel Drive Control
85500 Lighter Assy, Cigarette
85500B Bulb, Cigarette Lighter
85513 Cover, Cigarette Lighter
85515 Stay, Cigarette Lighter Bezel
85520 Knob And Element Assy, Cigarette Lighter
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85912 Relay, Defogger
85915 Relay, Main
85916N Relay, Taillamp
85916P Relay, Headlamp
85927 Relay, Cooling Fan
85927B Relay, Cooling Fan, NO.3
85927C Relay, Cooling Fan, NO.4
85930 Relay Assy, Power Window
85931B Relay, Fuel Heater
85933 Computer, Shift Lock Control
85934 Relay, Magnet-clutch
85980 Relay Assy, Door Control
85999A Bracket, Relay, NO.2
86530 Relay Assy, Horn
86650E Buzzer Assy
88620C Thermo Switch Assy
89279A Cover, Computer
89421B Sensor, Vacuum
89422A Sensor, Water Temperature
89425 Sensor, Exhaust Gas Temperature
89426A Bracket, Vacuum Sensor
89427E Switch, Temperature (FOR HEATER IDLE UP)
89428 Switch, Temperature Detect, NO.2
89428E Switch, Temperature, NO.2 (FOR TRANSMISSION)
89465 Sensor, Oxygen
89466 Gasket, Oxygen Sensor
89533 Computer, 4 Wheel Drive Control
89551 Computer, Emission Control
89615 Sensor, Knock Control
89620 Igniter Assy
89667B Bracket, Engine Control Computer, NO.1
89668B Bracket, Engine Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
