Toyota Sprinter

1995-05 → 2000-08 · chassis AE11#,CE11#,EE111 · catalogue 152140 · Japan

Discontinued model Data version 2001-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

41 part groups · 8 illustrations

Illustrations

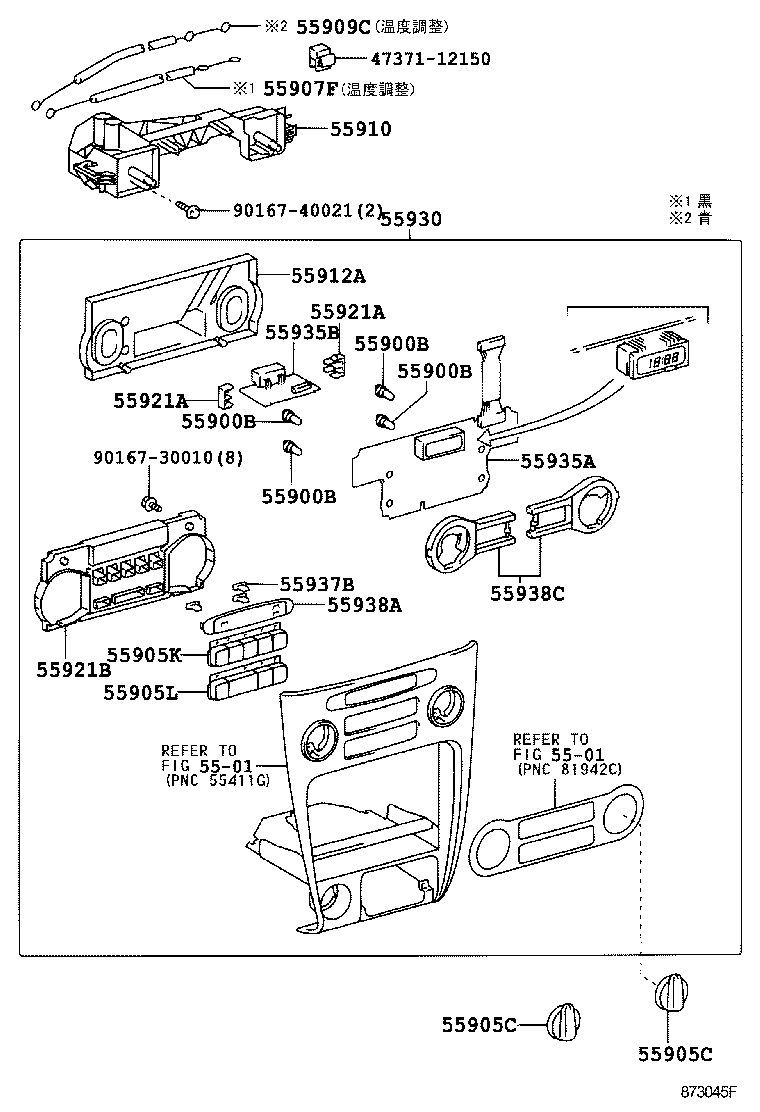

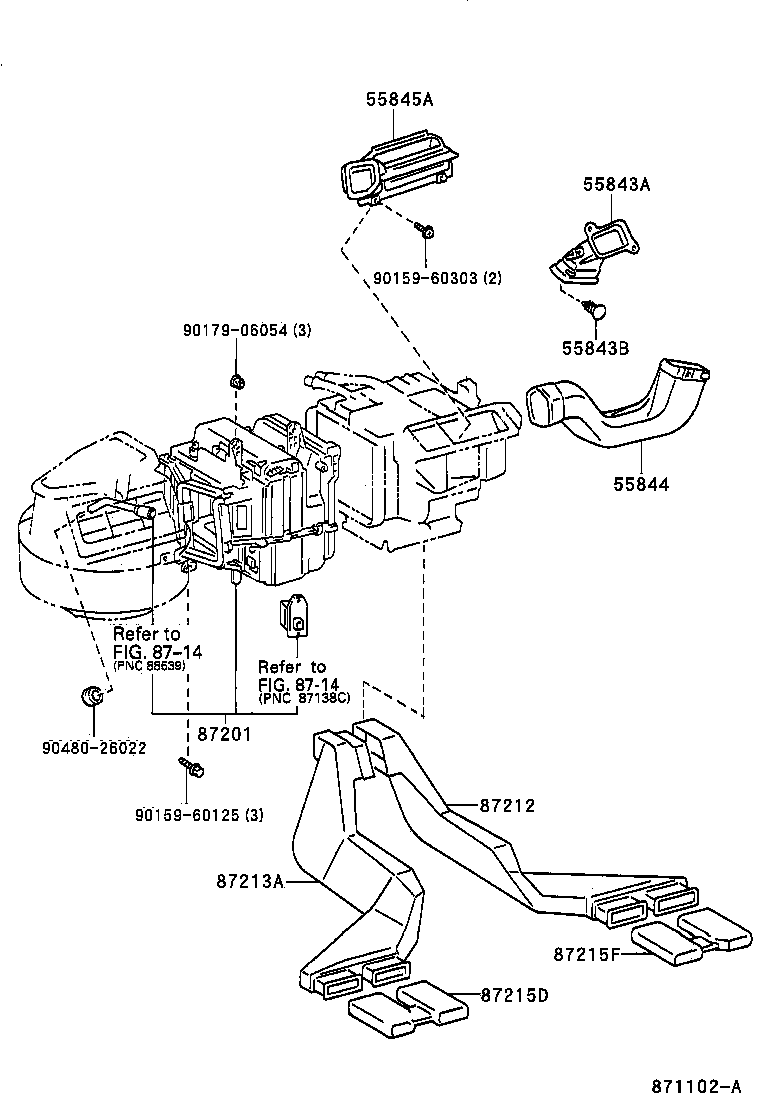

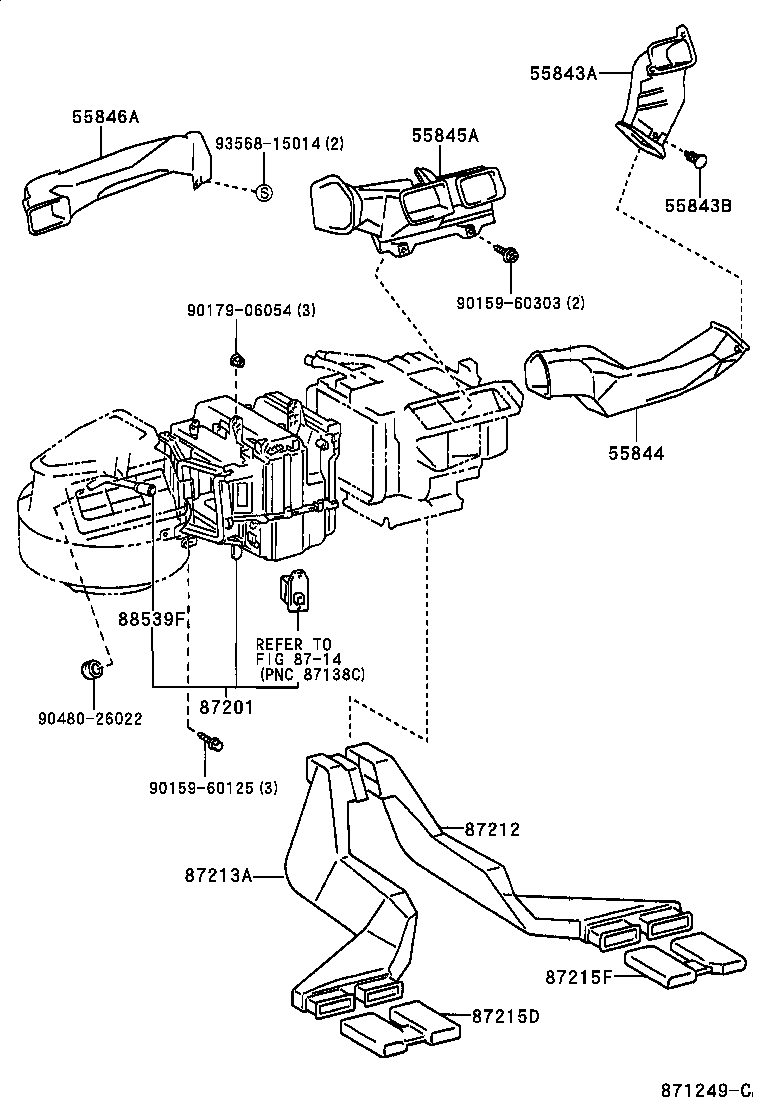

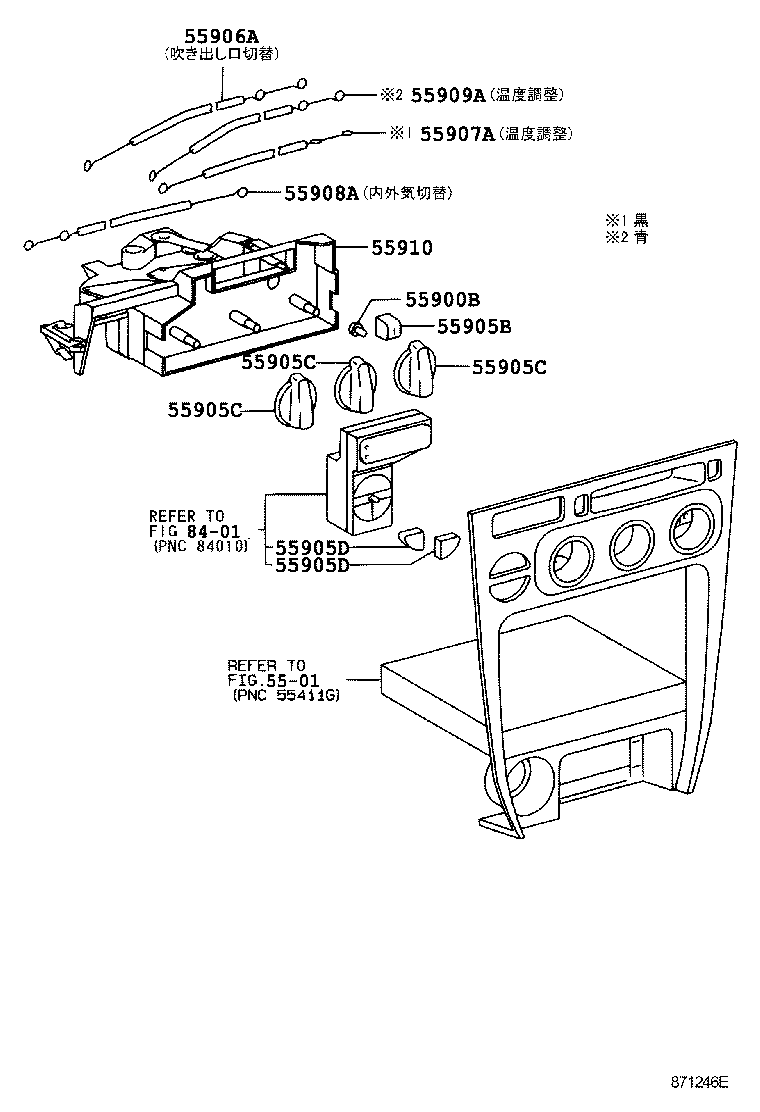

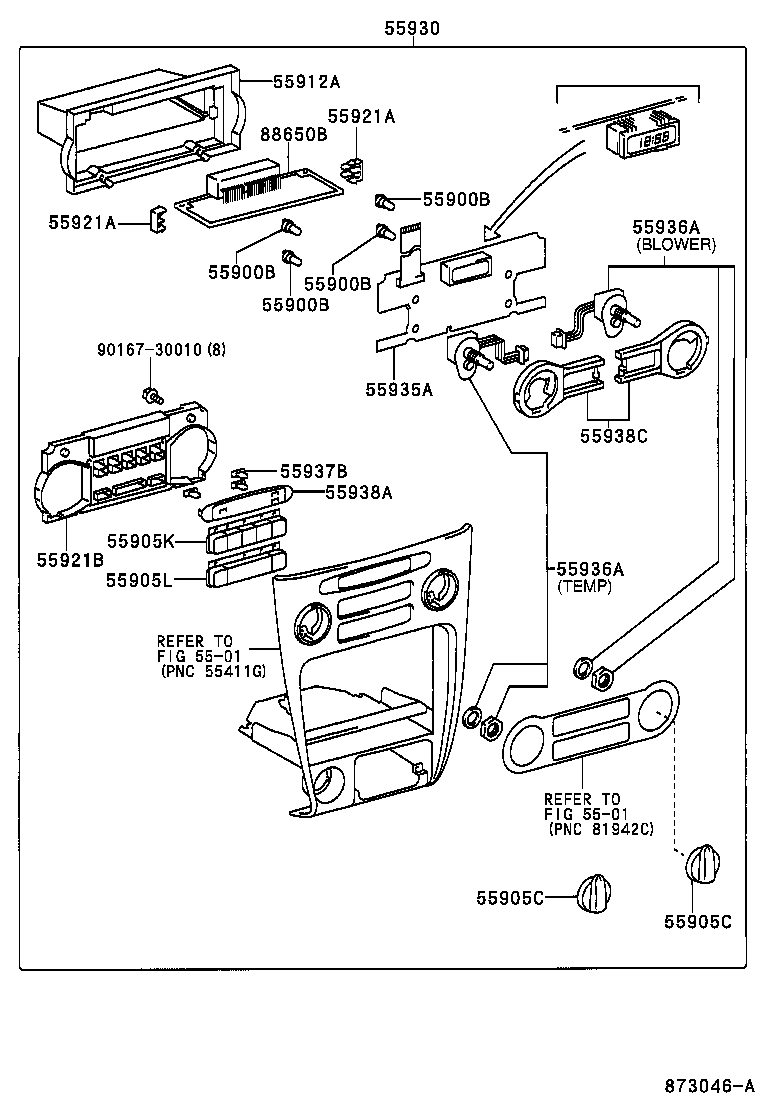

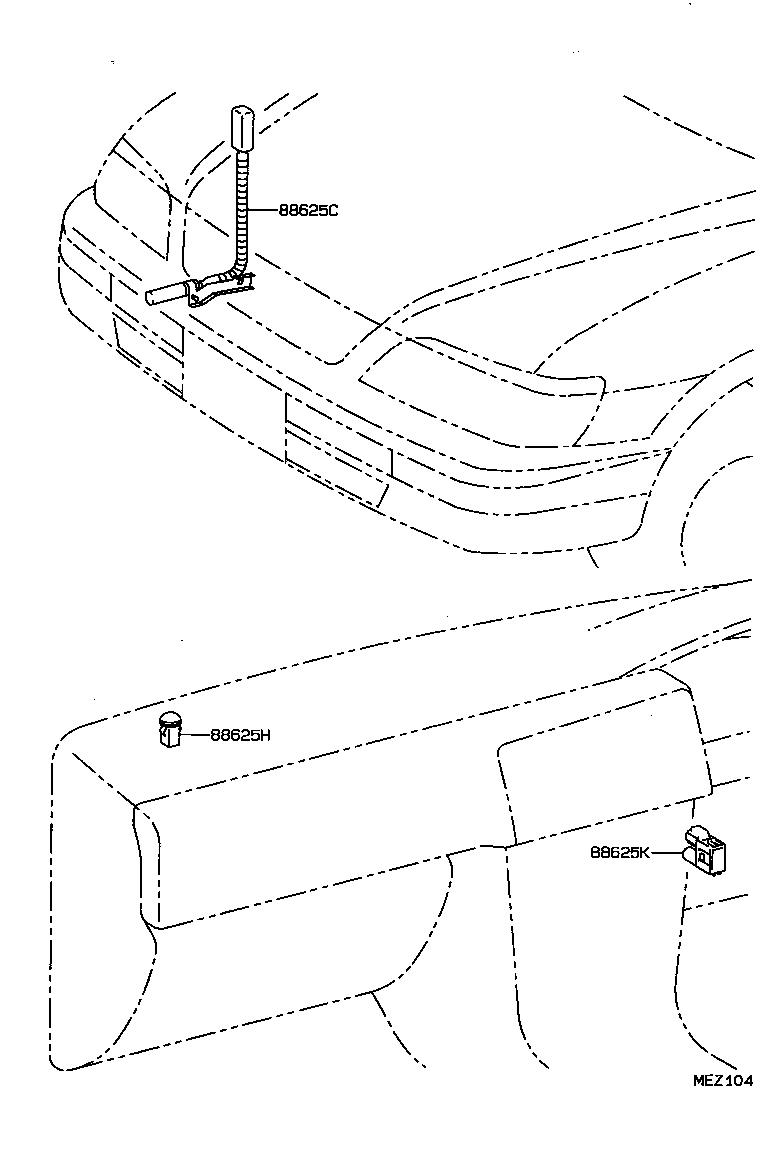

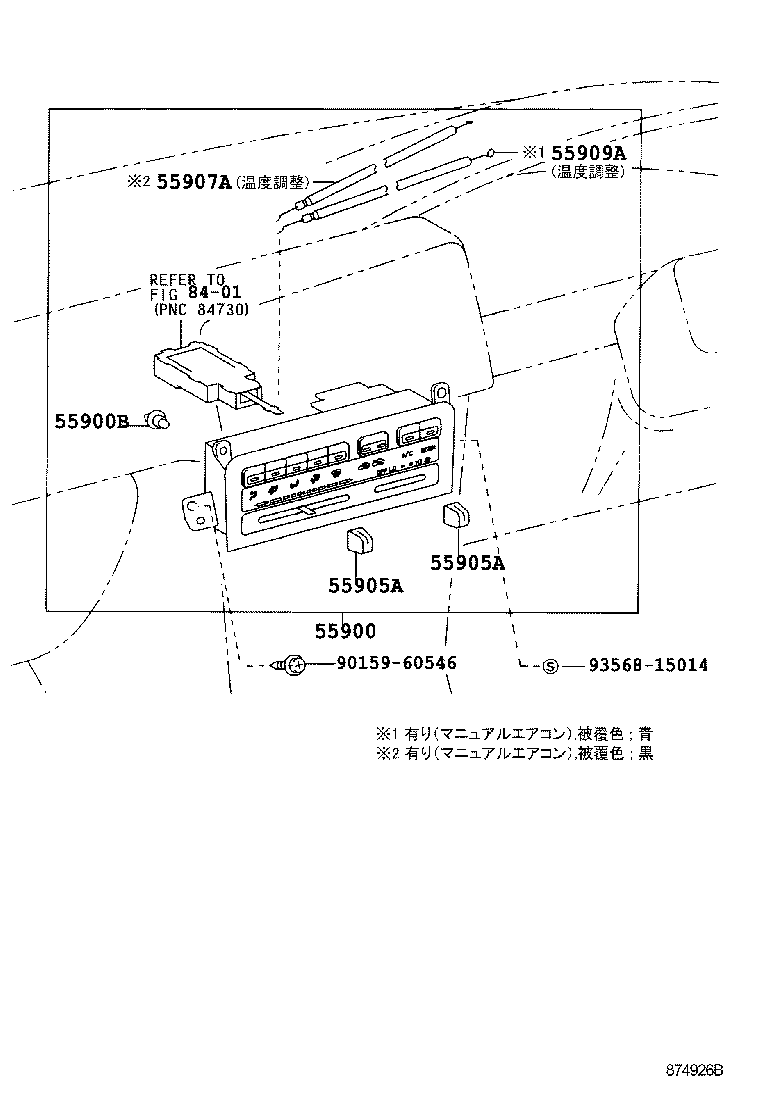

Figure 87D484 87D484 1995-05 → 1997-04 Figure 871246E 871246E 1997-04 → — Figure 874926C 874926C 1995-05 → 1997-04 Figure 873045F 873045F 1997-04 → — Figure 873046A 873046A 1997-04 → — Figure 871102A 871102A 1995-05 → 1997-04 Figure 871249C 871249C 1997-04 → — Figure MEZ104 MEZ104 1995-05 → —

Part groups

PNCDescription
55519 Plate, Heater Control Name
55843A Duct, Heater TO Register, NO.1
55843B Clip, Heater TO Register Duct
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55846A Duct, Heater TO Register, NO.4
55900 Control Assy, Air Conditioner
55900B Bulb, Air Conditioner Control
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55905C Knob, Heater Control, NO.3
55905D Knob Sub-assy, Control
55905K Knob, Heater Control, NO.4
55905L Knob, Heater Control, NO.5
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55907F Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55909C Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55912A Housing, Heater Control
55921A Retainer, Heater Control
55921B Retainer, Heater Control
55930 Control Assy, Center Cluster Module
55935A Circuit, Center Cluster Module
55935B Circuit, Center Cluster Module
55936A Switch, Heater Control Volume
55937B Knob, Clock Adjust
55938A Lens, Clock
55938C Lens, Center Cluster Module
87201 Duct Sub-assy, Air, NO.1
87212 Duct, Air, Rear NO.1
87213A Duct, Air Rear NO.2
87215D Duct, Air, Rear NO.4
87215F Duct, Air, Rear NO.3
88539F Hose, Drain
88625C Thermistor, Cooler
88625H Thermistor, Cooler (SOLAR SENSOR)
88625K Thermistor, Cooler
88650B Amplifier Assy, Airconditioner
