Toyota Corolla Levin

1987-05 → 1991-06 · chassis AE9# · catalogue 153120 · Japan

Discontinued model Data version 1992-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 6 illustrations

Illustrations

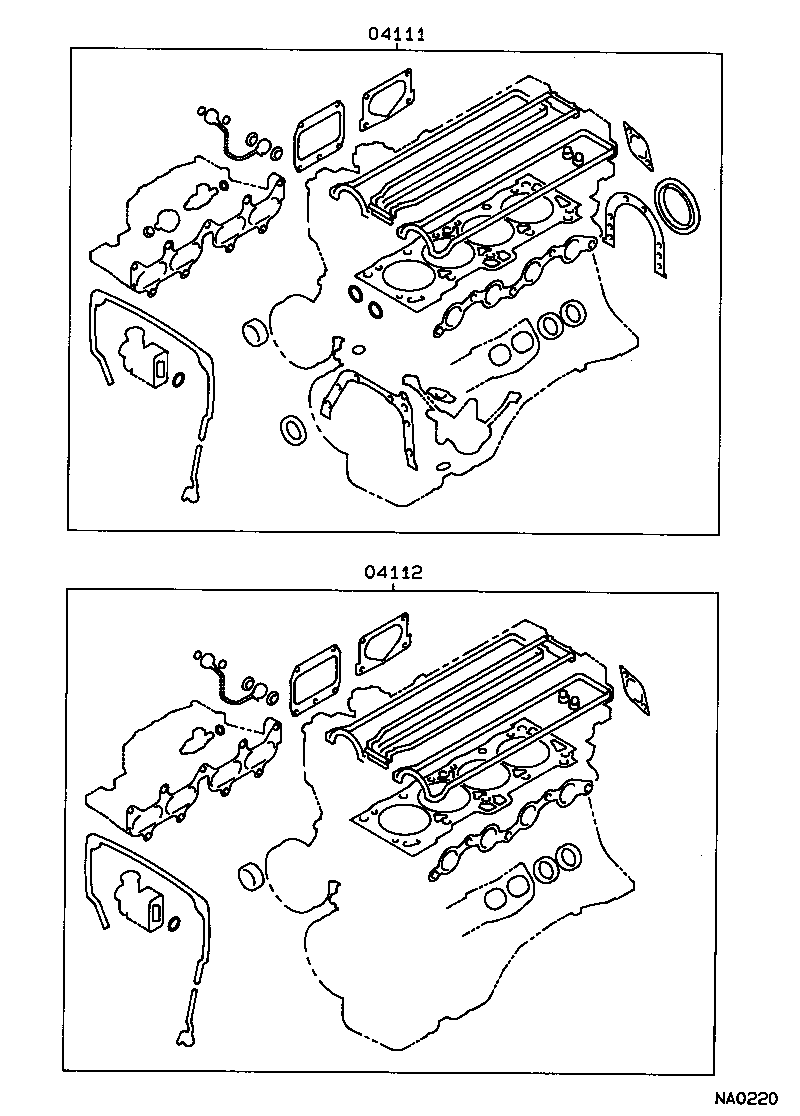

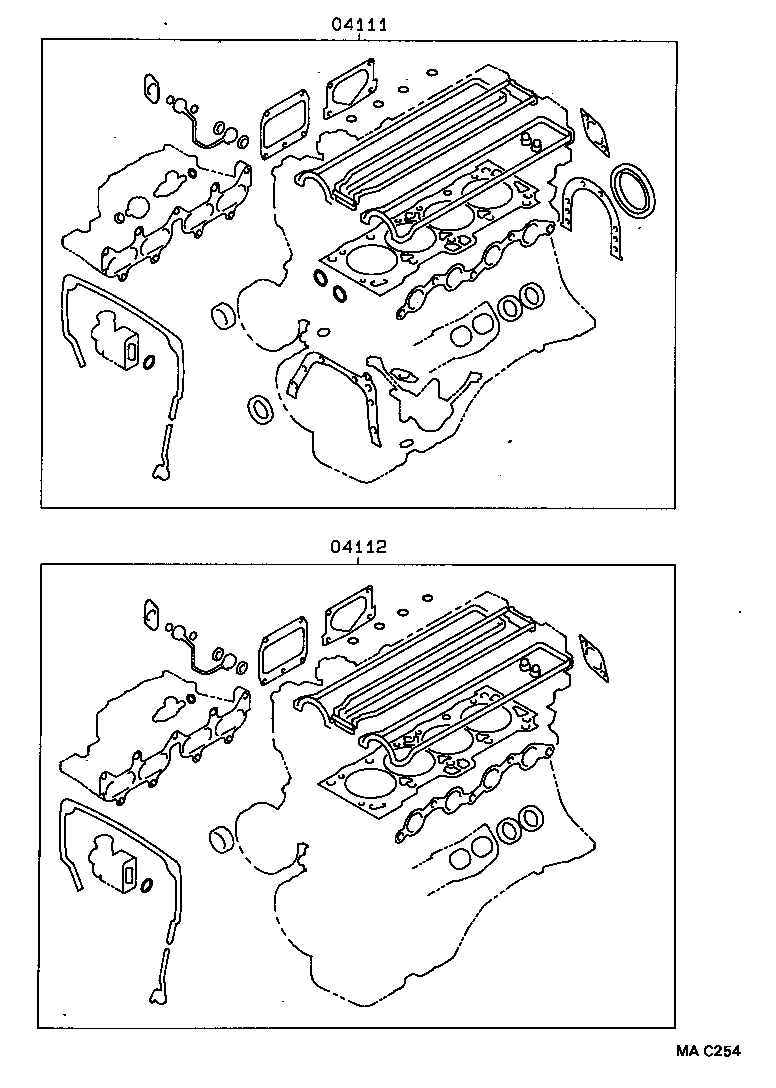

Figure NA0041A NA0041A 1987-05 → 1989-05 Figure NA0042A NA0042A 1987-05 → — Figure NA0043A NA0043A 1987-05 → 1989-05 Figure MAC235 MAC235 1989-05 → — Figure NA0220 NA0220 1987-05 → 1989-05 Figure MAC254 MAC254 1989-05 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
