Toyota Corolla Levin
1987-05 → 1991-06 · chassis AE9# · catalogue 153120 · Japan
Discontinued model
Data version 1992-06
Manifold
54 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 13570 | Idler Assy, V-ribbed, NO.1 |
| 13583 | Shaft, Idler, V-ribbed Belt(FOR SUPERCHARGER) |
| 16265 | Hose, Intake Manifold Water |
| 16265A | Clamp OR Clip, Hose(FOR INTAKE MANIFOLD WATER) |
| 17064 | Housing Sub-assy, Rotor |
| 17064A | Elbow(FOR SUPERCHARGER) |
| 17065 | Plate Sub-assy, Rotor Housing, RR |
| 17065A | Union(FOR SUPERCHARGER) |
| 17067 | Pulley Sub-assy, Clutch |
| 17067A | Ring, Shaft Snap(FOR CLUTCH PULLEY SUB-ASSY) |
| 17068 | Hub Sub-assy, Clutch |
| 17068A | Shim(FOR SUPERCHARGER) |
| 17069 | Stator Sub-assy, Clutch |
| 17069A | Ring, Shaft Snap(FOR CLUTCH STATOR SUB-ASSY) |
| 17110B | Union(FOR VENTILATION HOSE TO MANIFOLD) |

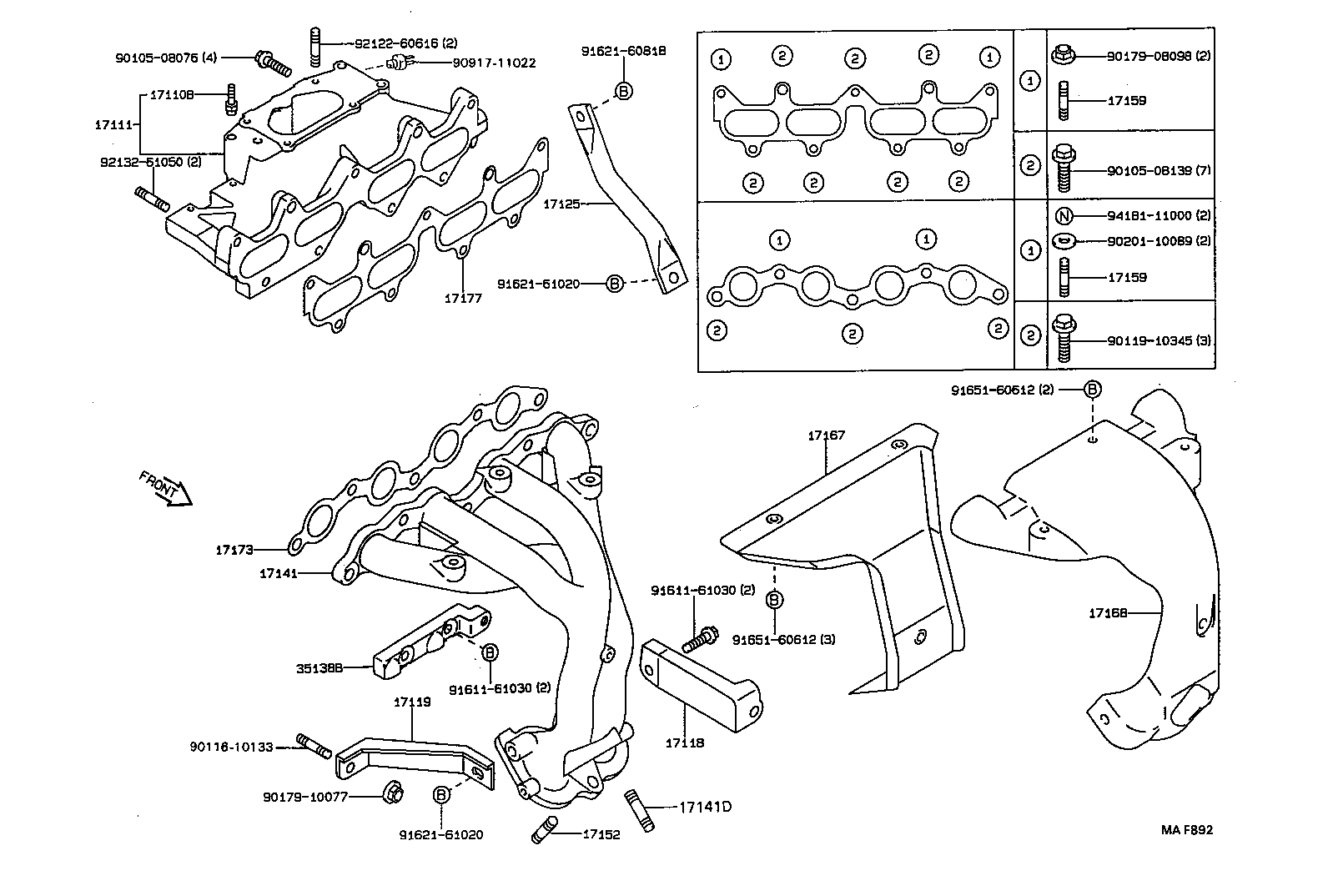

| 17111 | Manifold, Intake |
| 17111A | Plug, NO.1 |
| 17111B | Plug, NO.2 |
| 17118 | Stay, Manifold |
| 17119 | Stay, Manifold, NO.2 |
| 17125 | Stay, Surge Tank, NO.1 |
| 17129A | Union, NO.1 |
| 17141 | Manifold, Exhaust |
| 17141D | Bolt, Stud(FOR OXYGEN SENSOR) |
| 17151 | Bolt, Stud(FOR MANIFOLD TO CARBURETOR) |
| 17152 | Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17168 | Insulator, Exhaust Manifold Heat, NO.2 |
| 17169 | Insulator, Exhaust Manifold Heat, NO.3 |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 17179A | Gasket, Intake Manifold, NO.2 |
| 17300 | Valve Assy, Intake Air Control |
| 17303N | Pipe Sub-assy, Air |
| 17347 | Hose, Air, NO.7 |
| 17347A | Clip(FOR AIR HOSE NO.7) |
| 17605A | Bracket, Sub-assy, Supercharger |

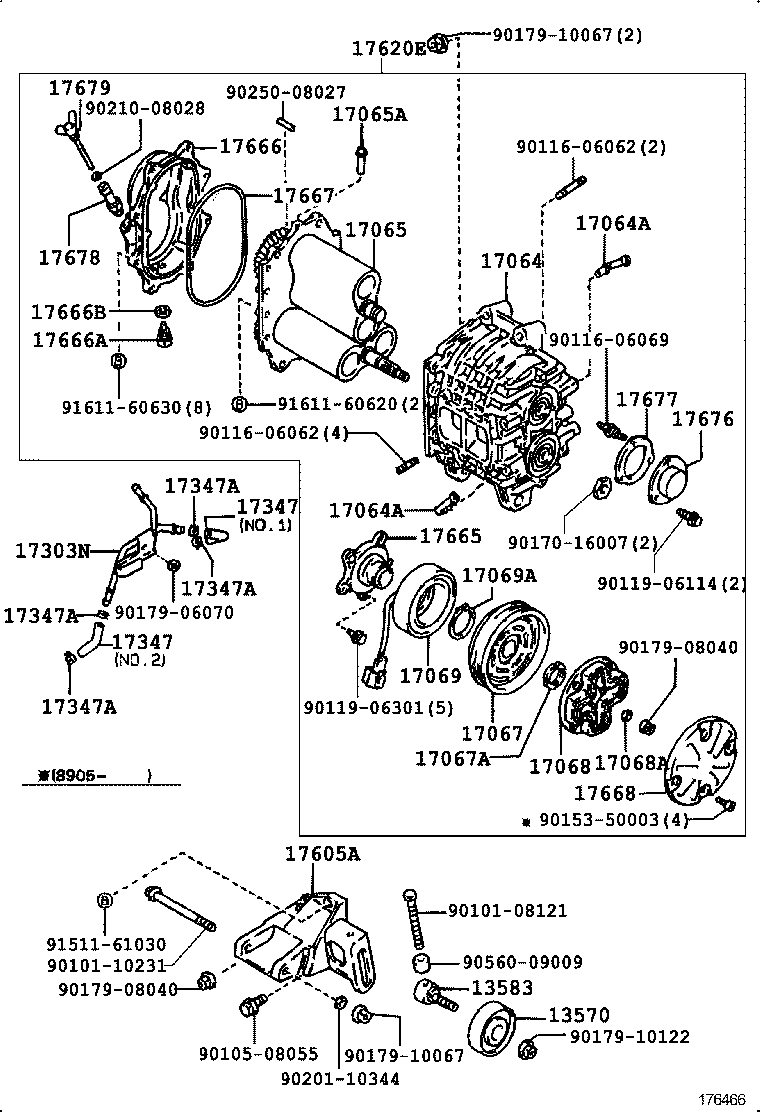

| 17620E | Supercharger Assy |
| 17665 | Flange, Clutch |
| 17666 | Cover, Rear(FOR SUPERCHARGER) |
| 17666A | Plug Sub-assy, W/Head Straight Screw(FOR SUPERCHARGER) |
| 17666B | Gasket, Seat(FOR SUPERCHARGER) |
| 17667 | Gasket, Rear Cover(FOR SUPERCHARGER) |
| 17668 | Cover, Clutch Hub |
| 17676 | Cover, Housing, Front |
| 17677 | Gasket, Housing Front Cover |
| 17678 | Guide, Supercharger Oil Level Gage |
| 17679 | Gage, Supercharger Oil Level |
| 25508 | Converter Sub-assy, Manifold |
| 25508A | Bolt, Stud(FOR MANIFOLD CONVERTER) |
| 25509 | Insulator Sub-assy, Manifold Convertor |
| 25576 | Gasket, Manifold Converter |
| 35138B | Adapter, Stiffener Plate |
