Toyota Corolla Levin

1987-05 → 1991-06 · chassis AE9# · catalogue 153120 · Japan

Discontinued model Data version 1992-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

20 part groups · 2 illustrations

Illustrations

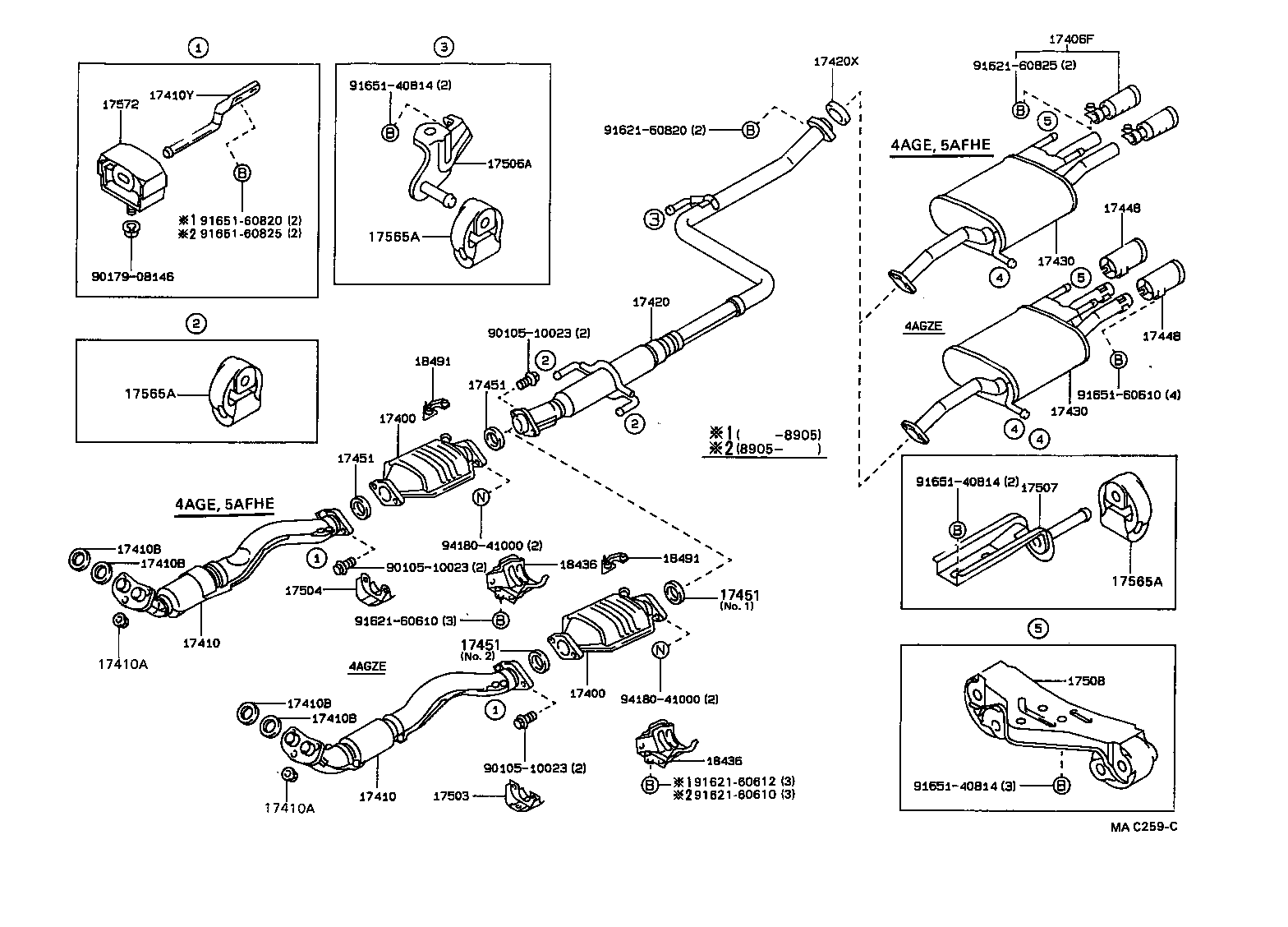

Figure MAC258A MAC258A 1987-05 → — Figure MAC259C MAC259C 1987-05 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17406F Diffuser Sub-assy, Exhaust Gas
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410Y Bolt OR Ring, Exhaust Pipe Front (FOR REAR)
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17448 Baffle, Tailpipe
17451 Gasket, Exhaust Pipe
17503 Bracket Sub-assy, Catalytic Converter, Rear
17504 Bracket Sub-assy, Catalytic Converter
17506A Bracket Sub-assy, Exhaust Pipe NO.1 Support
17507 Bracket Sub-assy, Exhaust Pipe NO.2 Support
17508 Support Sub-assy, Exhaust Pipe, NO.3
17565A Support, Exhaust Pipe, NO.4
17572 Bracket, Exhaust Pipe NO.1 Support
18436 Protector, Monolithic Converter, NO.1
18491 Flange, Thermosensor Inlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
