Toyota Corolla Levin

1987-05 → 1991-06 · chassis AE9# · catalogue 153120 · Japan

Discontinued model Data version 1992-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

27 part groups · 8 illustrations

Illustrations

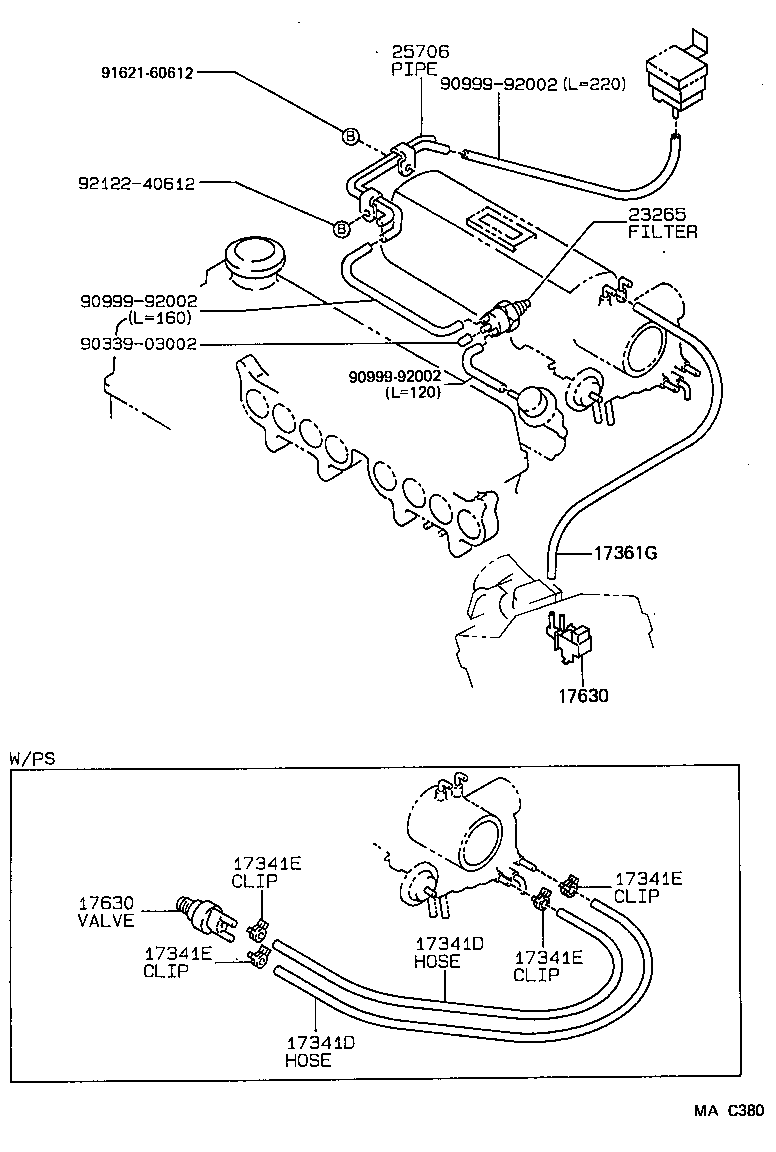

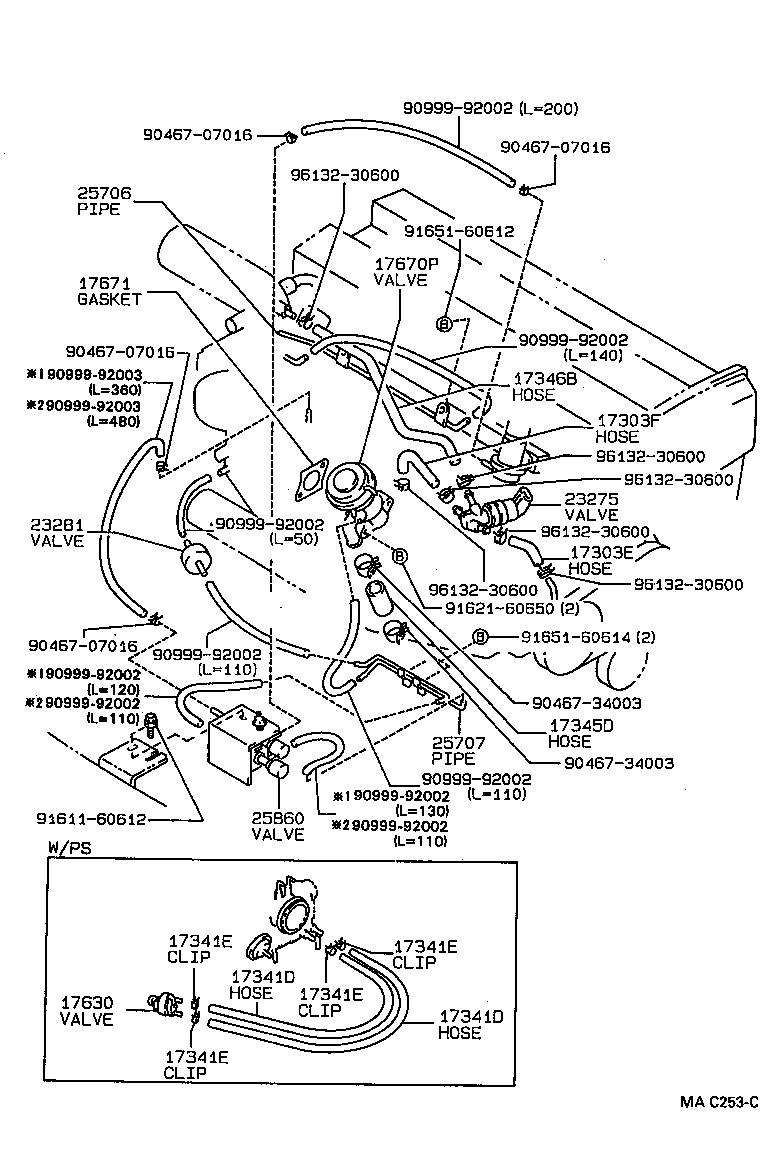

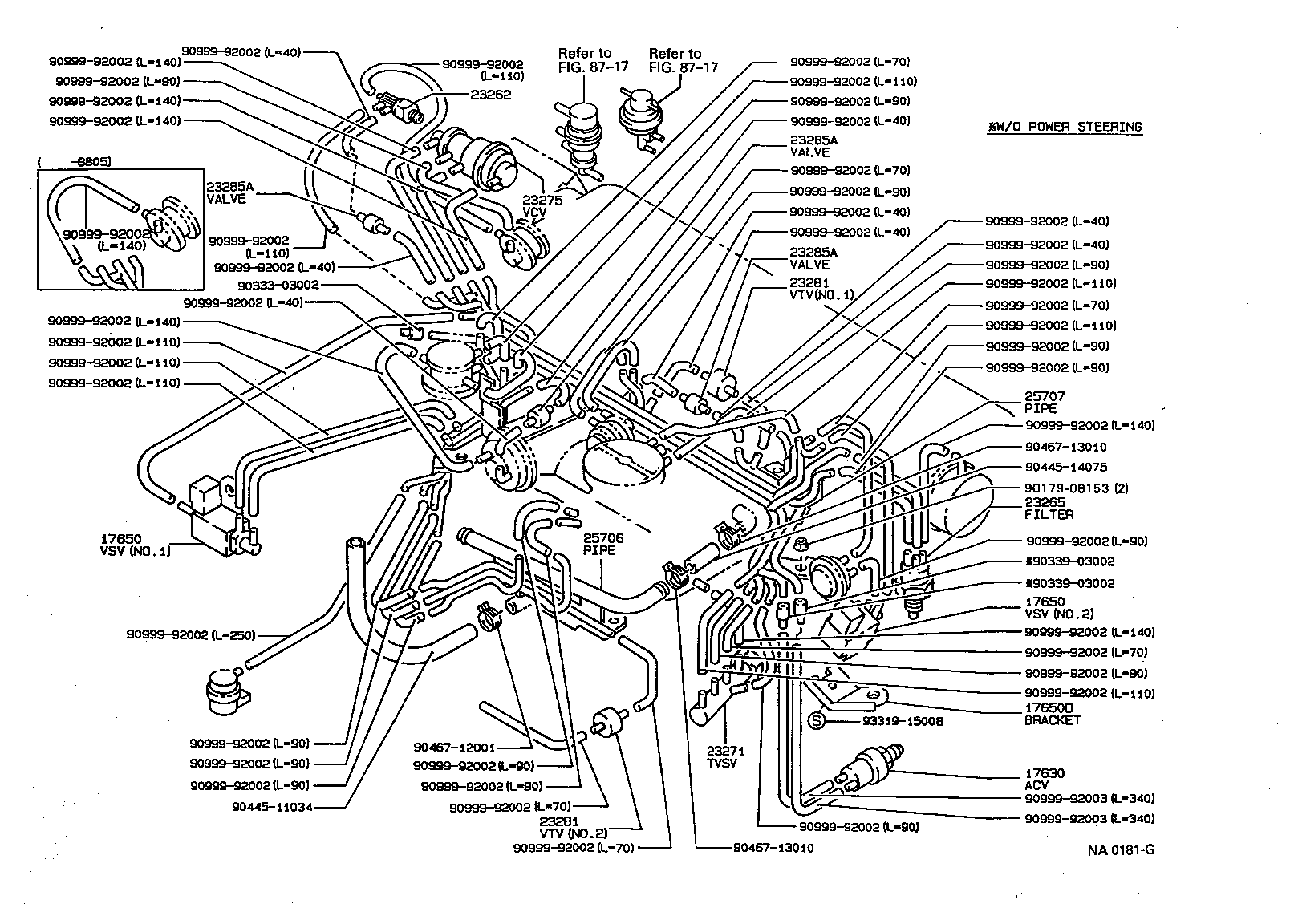

Figure MA9503A MA9503A 1987-05 → — Figure NA0181G NA0181G 1987-05 → 1989-05 Figure NA0182F NA0182F 1987-05 → 1989-05 Figure MAC218C MAC218C 1989-05 → — Figure MAC219C MAC219C 1989-05 → — Figure NA0198A NA0198A 1987-05 → 1989-05 Figure MAC380 MAC380 1989-05 → — Figure MAC253C MAC253C 1987-05 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17303E Hose, NO.1(FOR AIR PIPE)
17303F Hose, NO.2(FOR AIR PIPE)
17341B Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17345D Hose, Air, NO.5
17346B Hose, Air, NO.6
17361G Tube, Air(FOR IDLE-UP)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650D Bracket, Vacuum Switching Valve
17670P Valve Assy, Air By-pass
17671 Gasket, Air By-pass Valve
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23271 Valve, Thermostatic Vacuum Switching, NO.1
23271C Hose, Fuel
23275 Valve, Vacuum Control, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23285A Valve, Check, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25719 Tank, Vacuum Surge
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
