Toyota Corolla Levin

1987-05 → 1991-06 · chassis AE9# · catalogue 153120 · Japan

Discontinued model Data version 1992-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

15 part groups · 3 illustrations

Illustrations

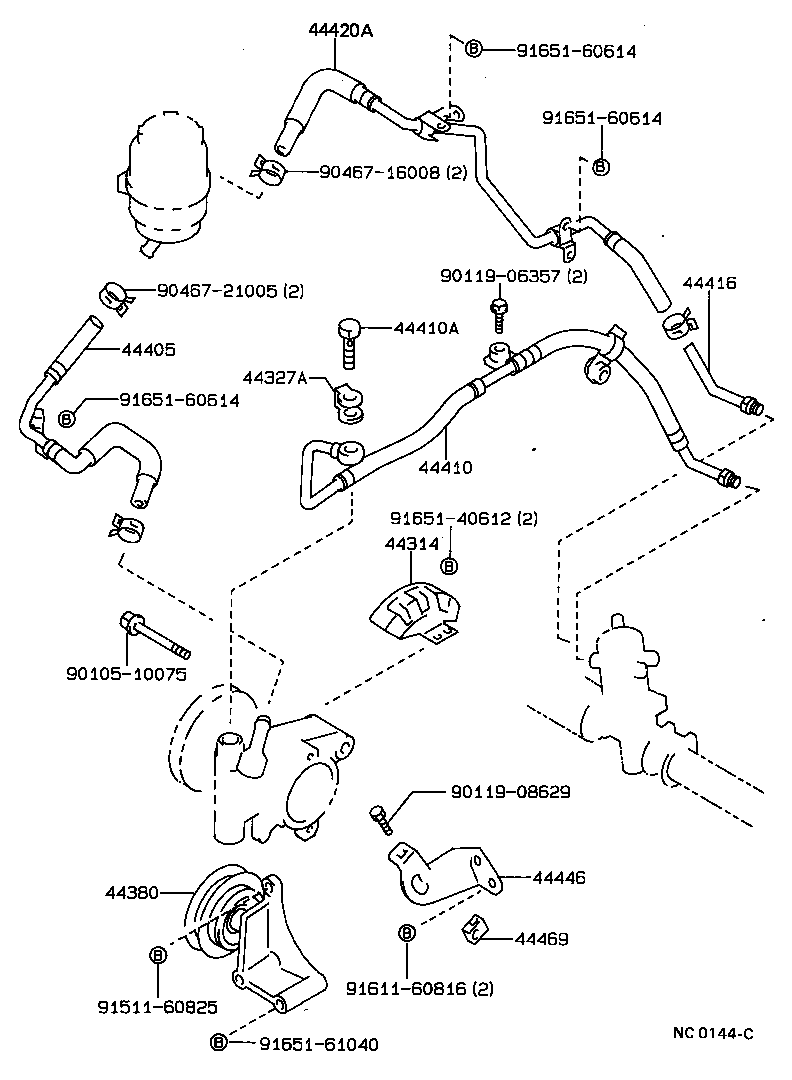

Figure NC0140 NC0140 1987-05 → — Figure NC0142B NC0142B 1987-05 → — Figure NC0144C NC0144C 1987-05 → —

Part groups

PNCDescription
44314 Cover, Pulley
44327A Gasket, Pressure Port, NO.1
44350 Pulley Assy, Power Steering Idle
44350A Bolt(FOR POWER STEERING IDLE PULLEY)
44380 Pulley Assy, Power Steering Idle W/Bracket
44381 Bracket, Power Steering Idle Pulley
44405 Tube Sub-assy, Oil Reservoir TO Pump, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44420A Tube Assy, Return
44443 Bracket, Pump
44446 Strut, Adjusting
44469 Slider, Power Steering Belt Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
