Toyota Corolla Levin
1987-05 → 1991-06 · chassis AE9# · catalogue 153120 · Japan
Discontinued model
Data version 1992-06

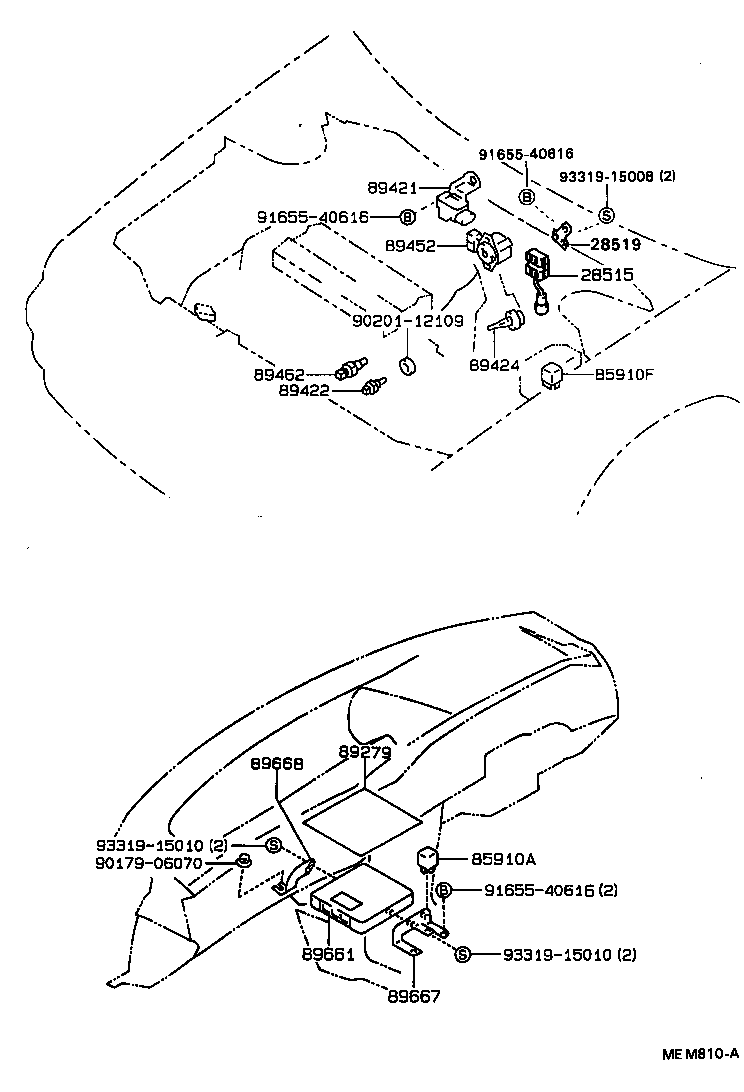

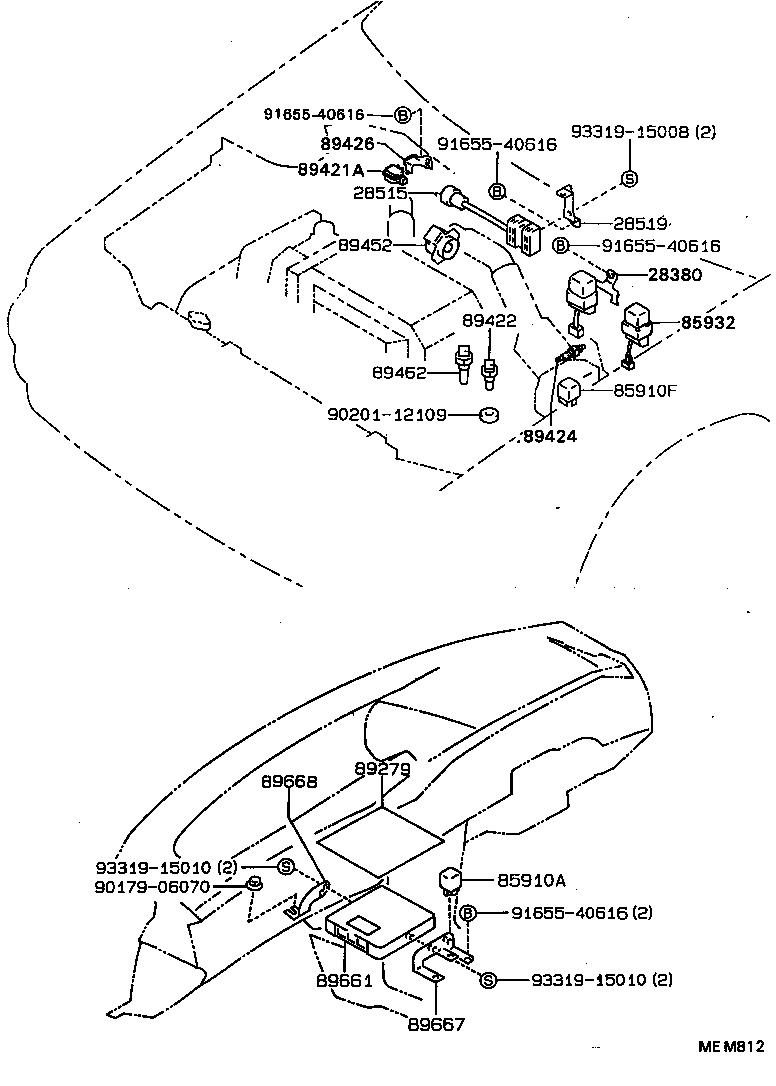

Electronic Fuel Injection System
17 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 28380 | Relay Assy, Fuel Pump |
| 28515 | Resistor, Solenoid |
| 28519 | Bracket, Solenoid Resistor |
| 85910A | Relay Assy, Circuit Opening (FOR EFI) |
| 85910F | Relay, Computer (FOR EFI) |
| 85932 | Relay, Supercharger |
| 89279 | Cover, Engine Control Computer |
| 89421 | Sensor Assy, Vacuum (FOR E.F.I.) |
| 89421A | Sensor, Turbo Pressure |
| 89422 | Sensor, Water Temperature (FOR E.F.I.) |
| 89424 | Sensor, Inlet Air Temperature (FOR E.F.I.) |
| 89426 | Bracket, Vacuum Sensor |
| 89452 | Sensor, Throttle Position (FOR E.F.I.) |
| 89462 | Switch, Start Injector Time |
| 89661 | Computer, Engine Control |
| 89667 | Bracket, Engine Control Computer |
| 89668 | Bracket, Engine Control Computer, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
