Toyota Lvn/Cre/Trn/Mrn

1991-06 → 1998-08 · chassis AE10# · catalogue 153130 · Japan

Discontinued model Data version 1999-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

48 part groups · 6 illustrations

Illustrations

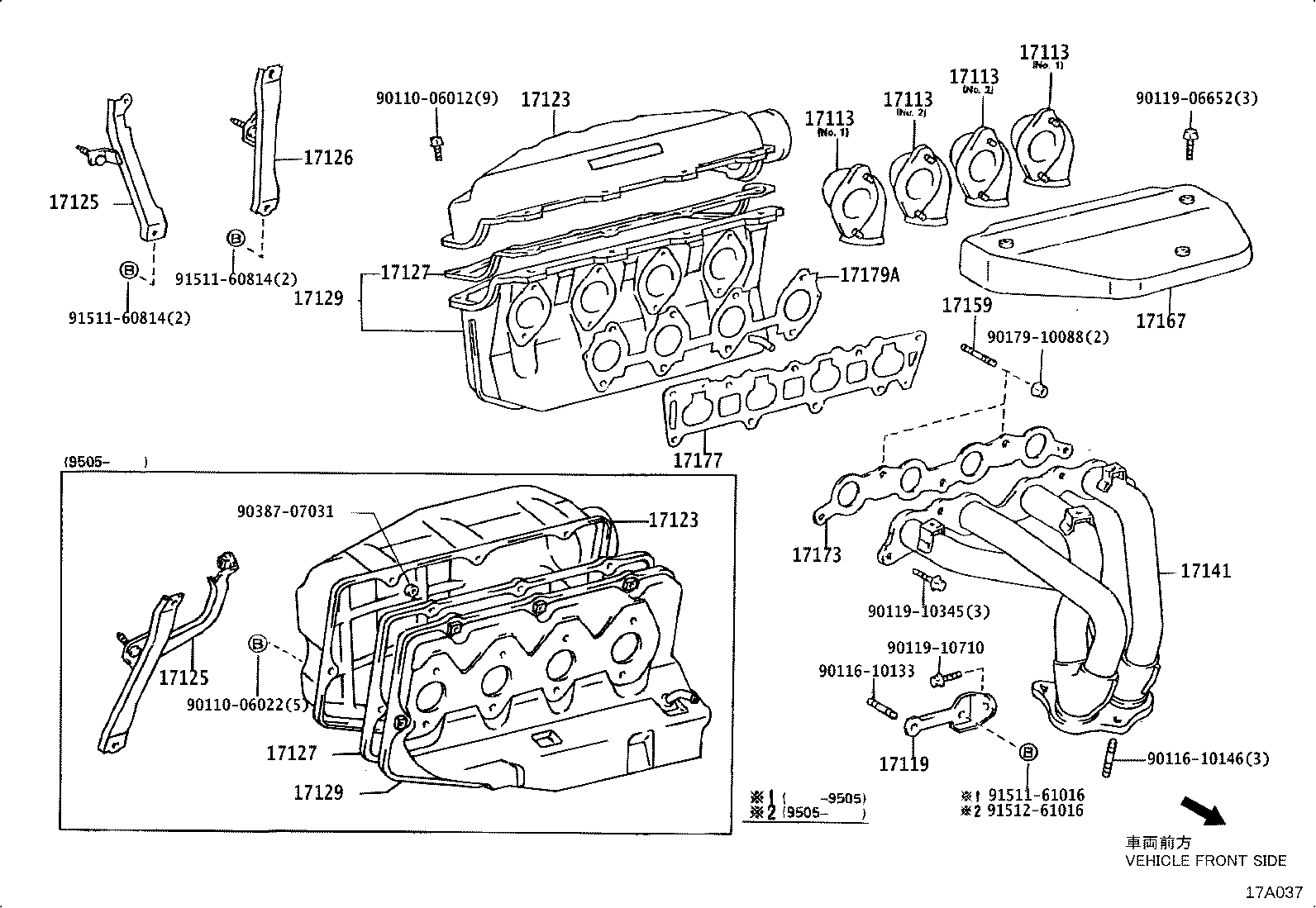

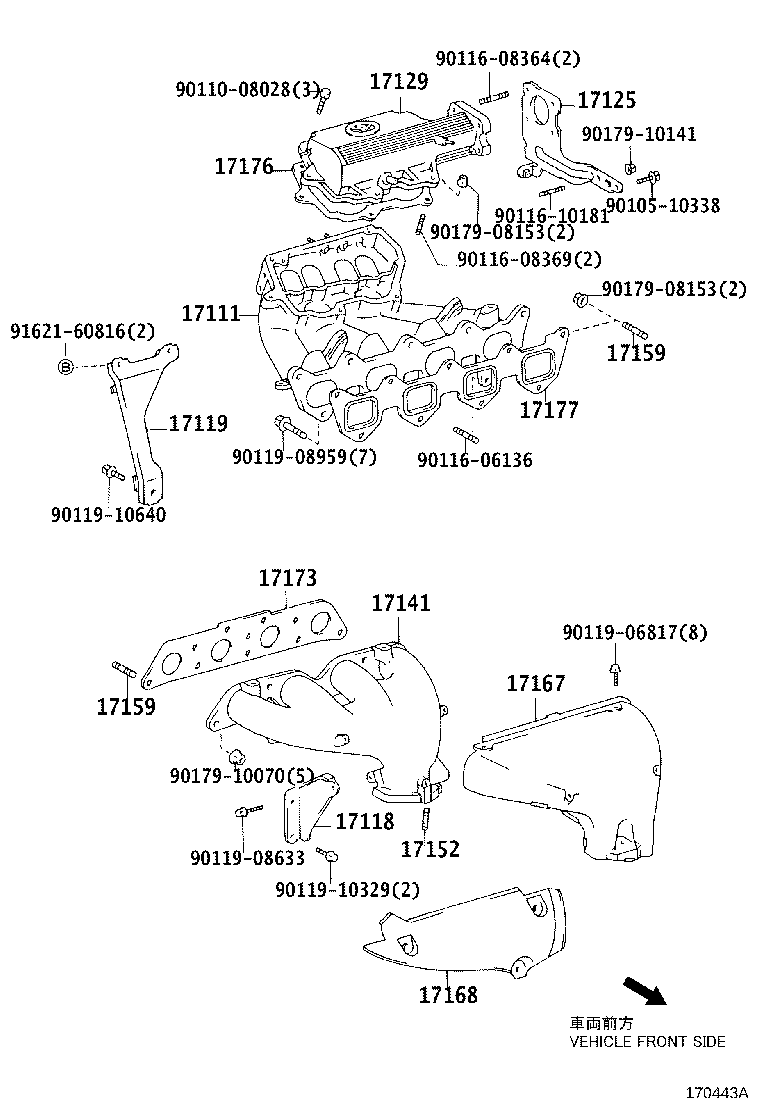

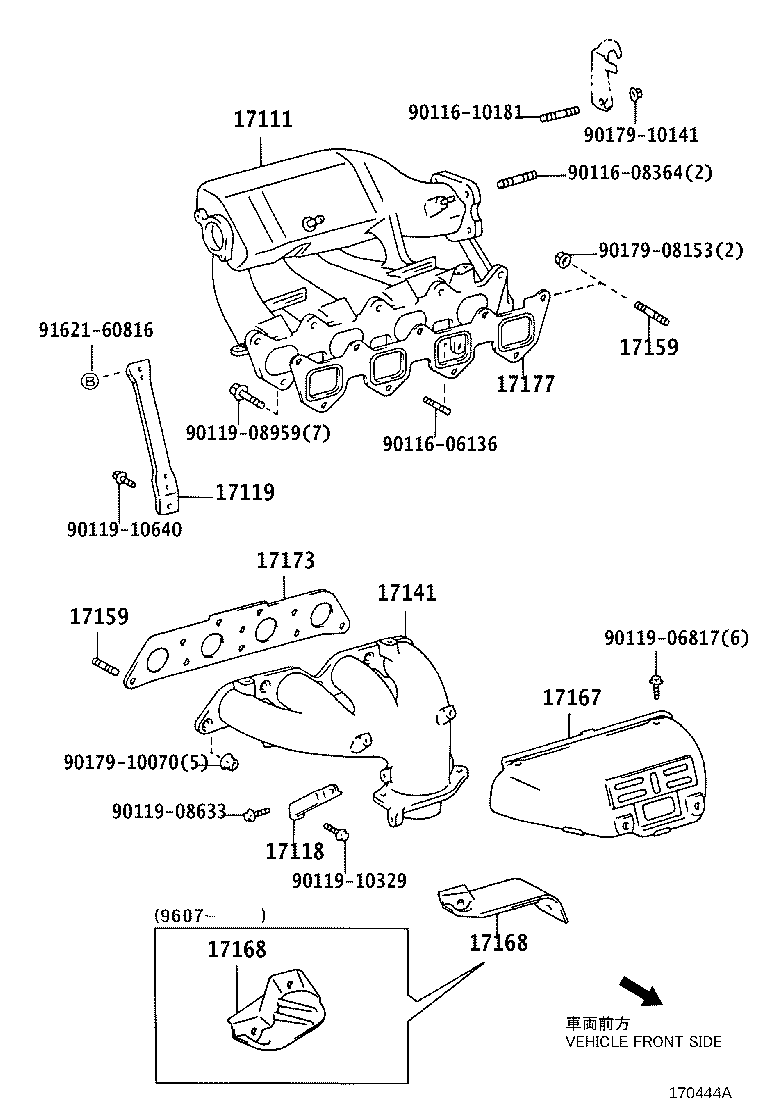

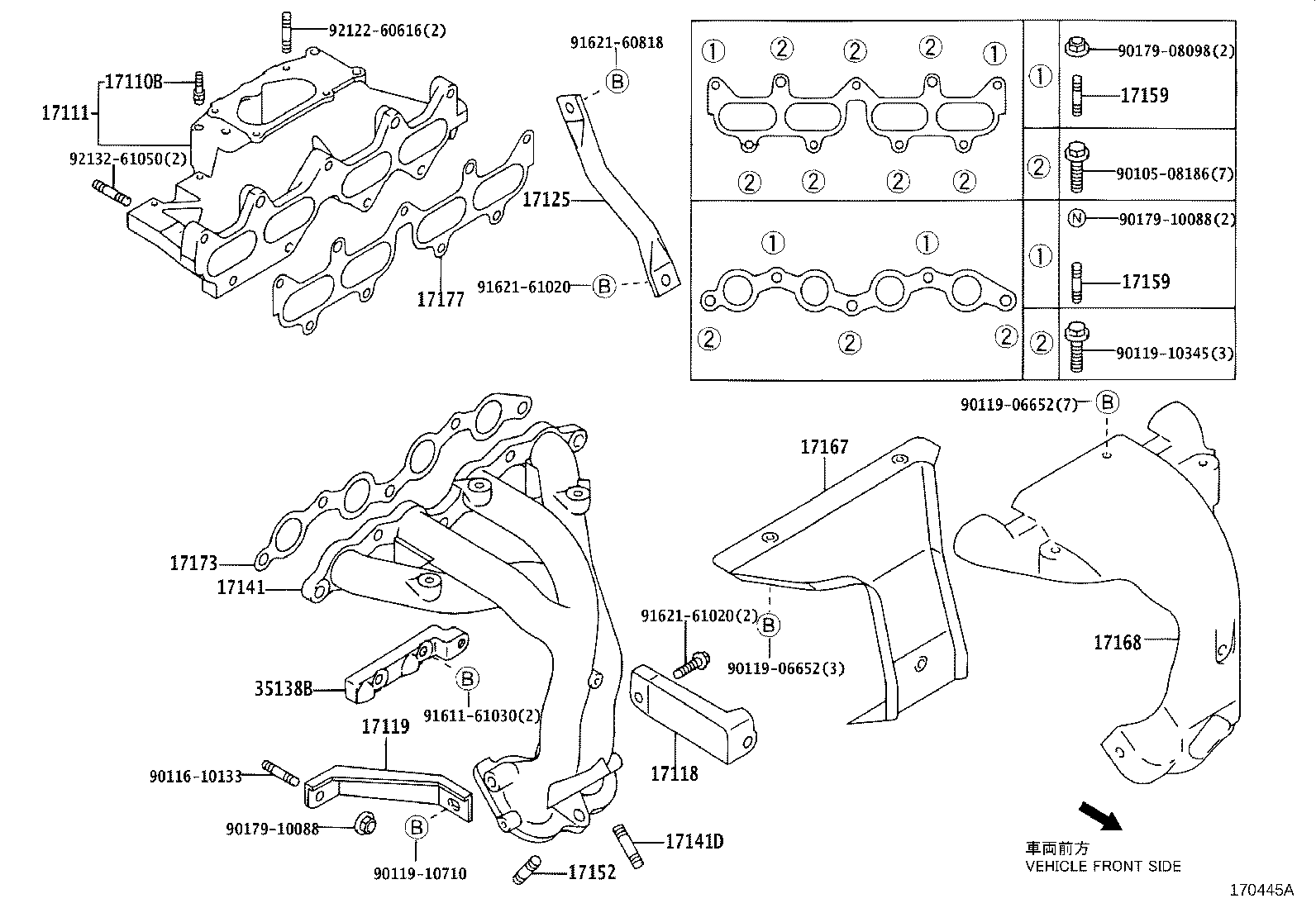

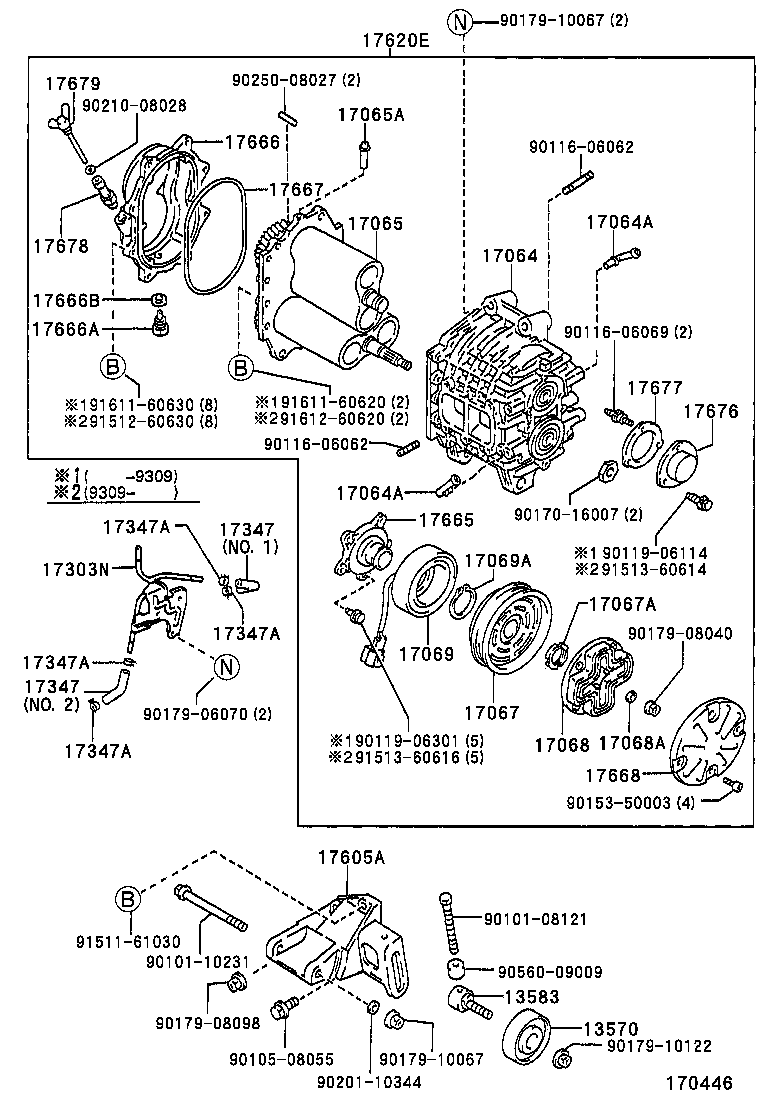

Figure 17A036 17A036 1991-06 → — Figure 170443A 170443A 1991-06 → 1995-05 Figure 170444A 170444A 1995-05 → — Figure 17A037 17A037 1991-06 → — Figure 170445A 170445A 1991-06 → 1995-05 Figure 170446 170446 1991-06 → 1995-05

Part groups

PNCDescription
13570 Idler Assy, V-ribbed, NO.1
13583 Shaft, Idler, V-ribbed Belt(FOR SUPERCHARGER)
17064 Housing Sub-assy, Rotor
17064A Elbow(FOR SUPERCHARGER)
17065 Plate Sub-assy, Rotor Housing, RR
17065A Union(FOR SUPERCHARGER)
17067 Pulley Sub-assy, Clutch
17067A Ring, Shaft Snap(FOR CLUTCH PULLEY SUB-ASSY)
17068 Hub Sub-assy, Clutch
17068A Shim(FOR SUPERCHARGER)
17069 Stator Sub-assy, Clutch
17069A Ring, Shaft Snap(FOR CLUTCH STATOR SUB-ASSY)
17110B Union(FOR VENTILATION HOSE TO MANIFOLD)
17111 Manifold, Intake
17113 Pipe, Intake
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17123 Cover, Surge Tank
17125 Stay, Surge Tank, NO.1
17126 Stay, Surge Tank, NO.2
17127 Gasket, Surge Tank Cover
17129 Tank, Intake Air Surge
17141 Manifold, Exhaust
17141D Bolt, Stud(FOR OXYGEN SENSOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17179A Gasket, Intake Manifold, NO.2
17303N Pipe Sub-assy, Air
17347 Hose, Air, NO.7
17347A Clip(FOR AIR HOSE NO.7)
17605A Bracket, Sub-assy, Supercharger
17620E Supercharger Assy
17665 Flange, Clutch
17666 Cover, Rear(FOR SUPERCHARGER)
17666A Plug Sub-assy, W/Head Straight Screw(FOR SUPERCHARGER)
17666B Gasket, Seat(FOR SUPERCHARGER)
17667 Gasket, Rear Cover(FOR SUPERCHARGER)
17668 Cover, Clutch Hub
17676 Cover, Housing, Front
17677 Gasket, Housing Front Cover
17678 Guide, Supercharger Oil Level Gage
17679 Gage, Supercharger Oil Level
35138B Adapter, Stiffener Plate
