Valve Body & Oil Strainer (ATM)

181 part groups · 16 illustrations

Illustrations

MCM064 1991-06 → 1992-10

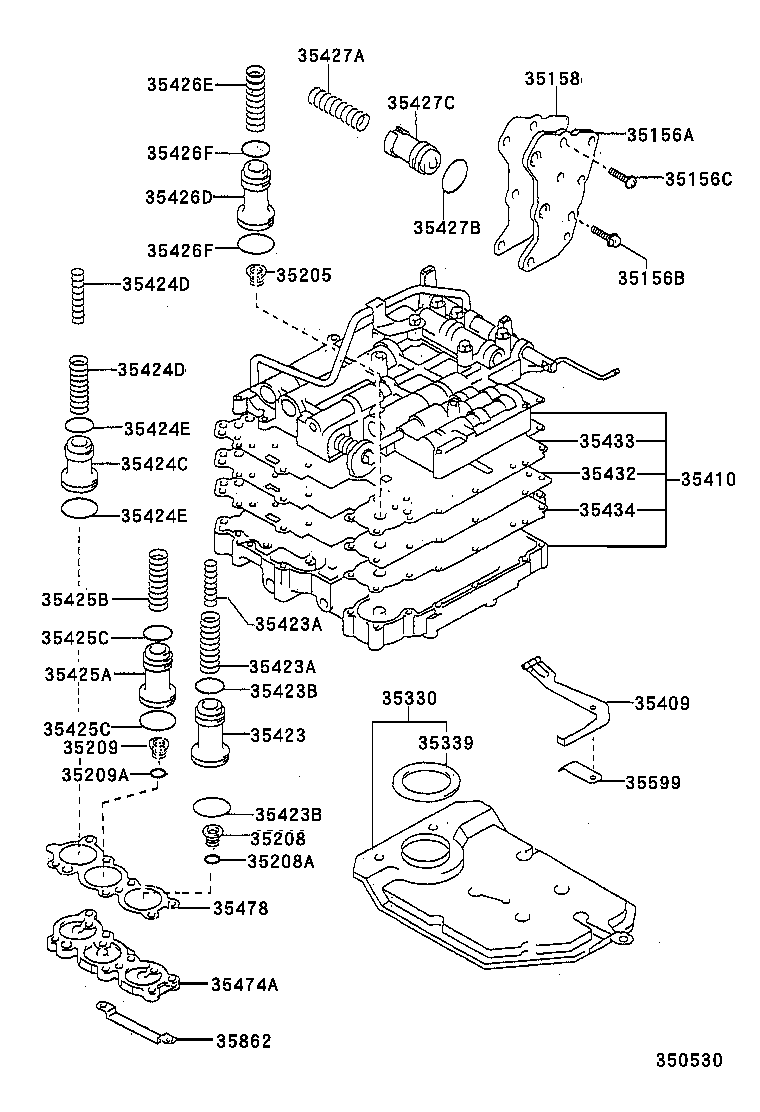

350530 1992-10 → 1993-05

350530 1993-05 → —

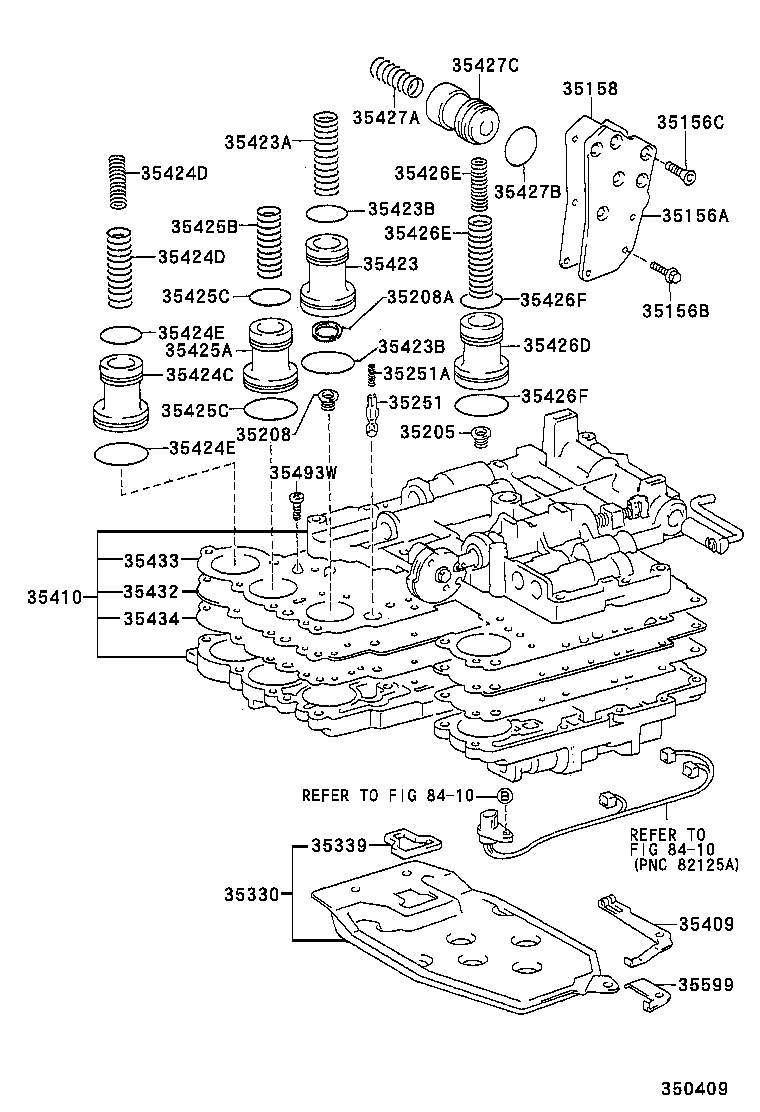

350409 1993-05 → —

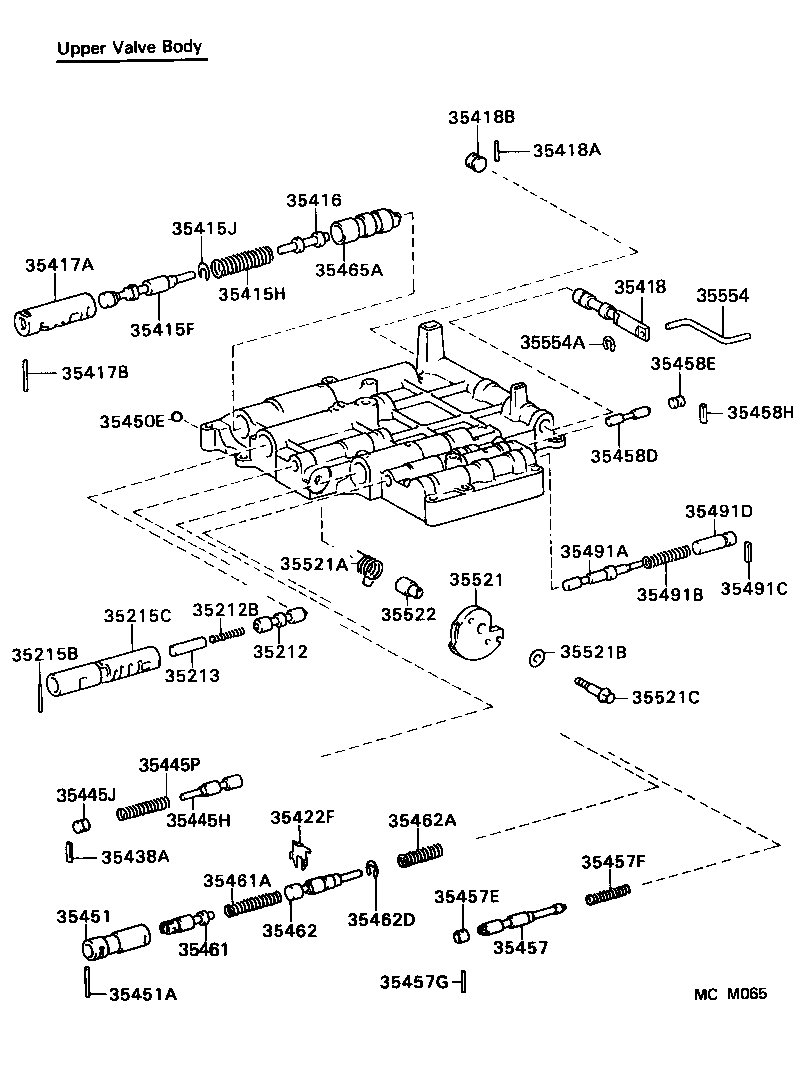

MCM065 1991-06 → —

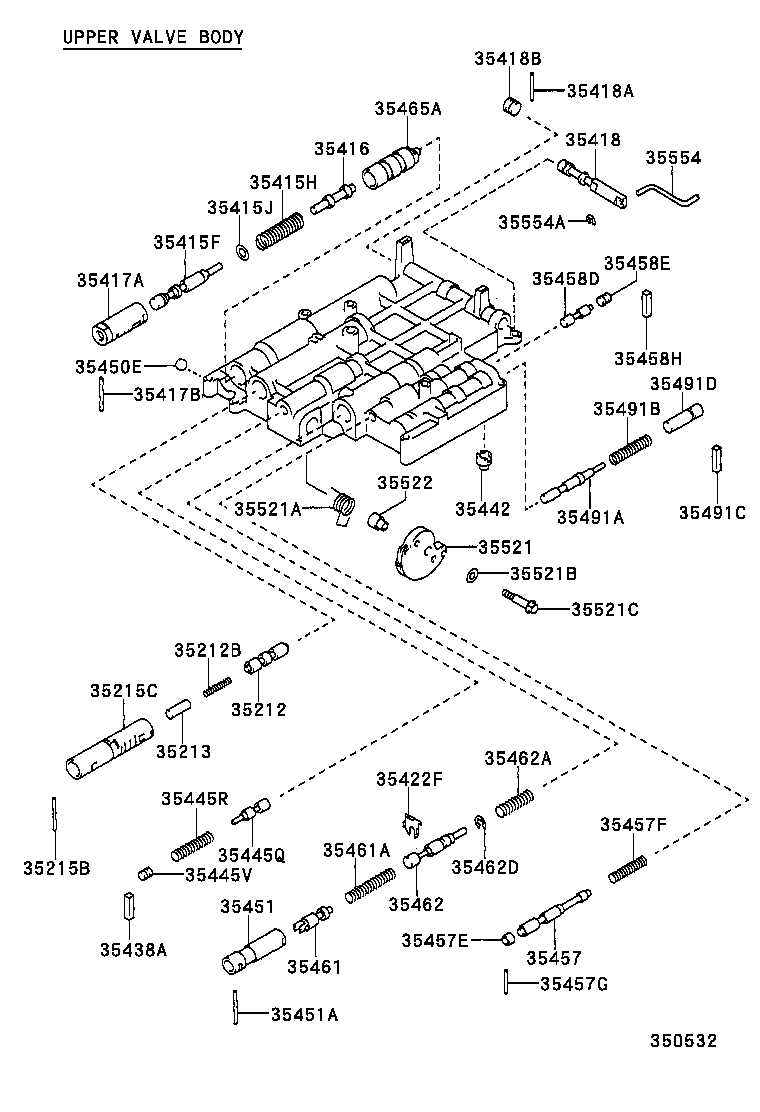

350532 1991-06 → 1993-05

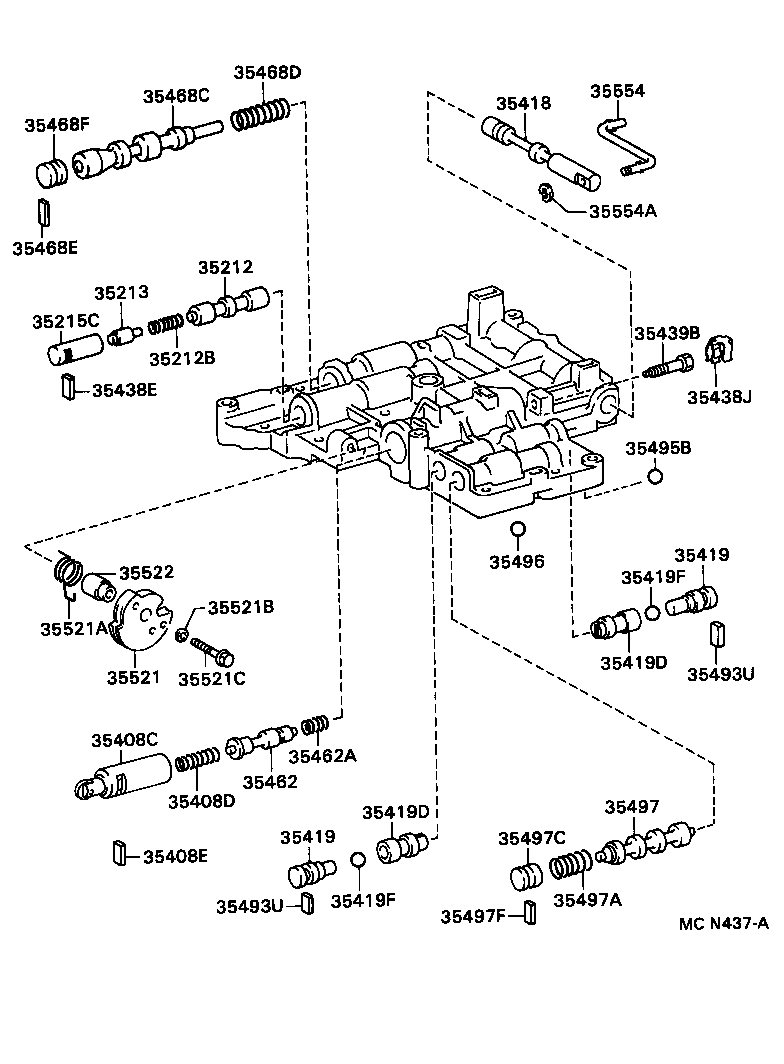

MCN437A 1993-05 → —

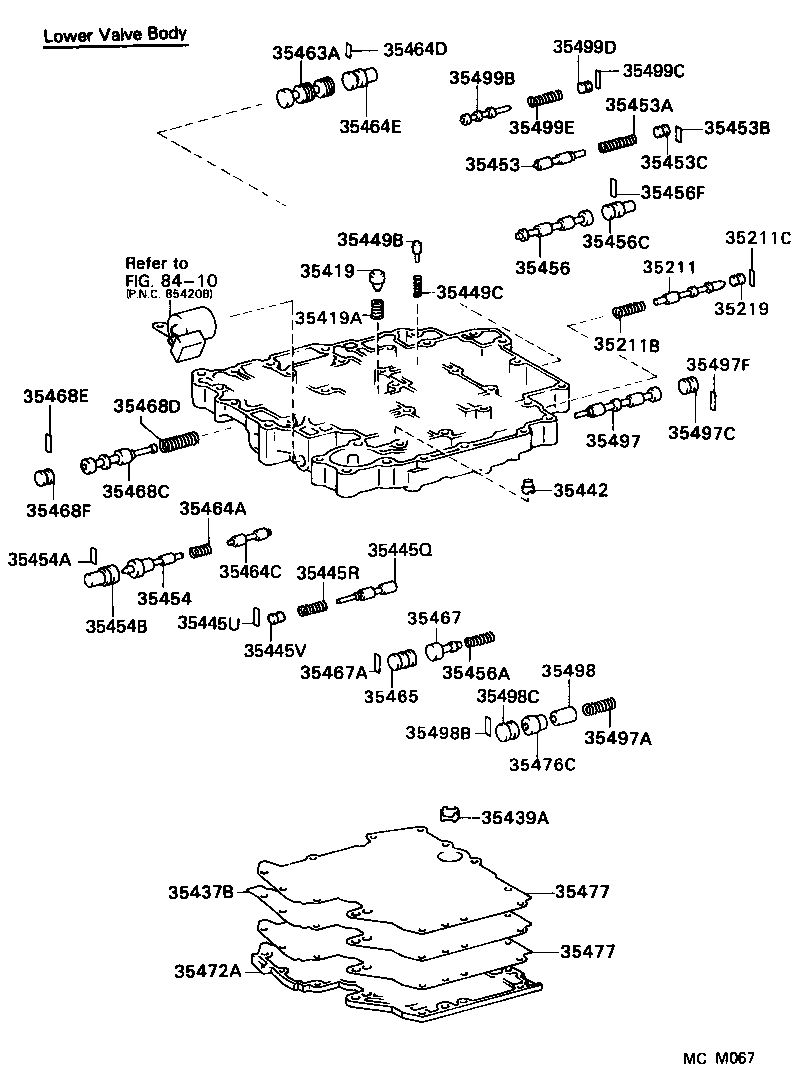

MCM067 1991-06 → —

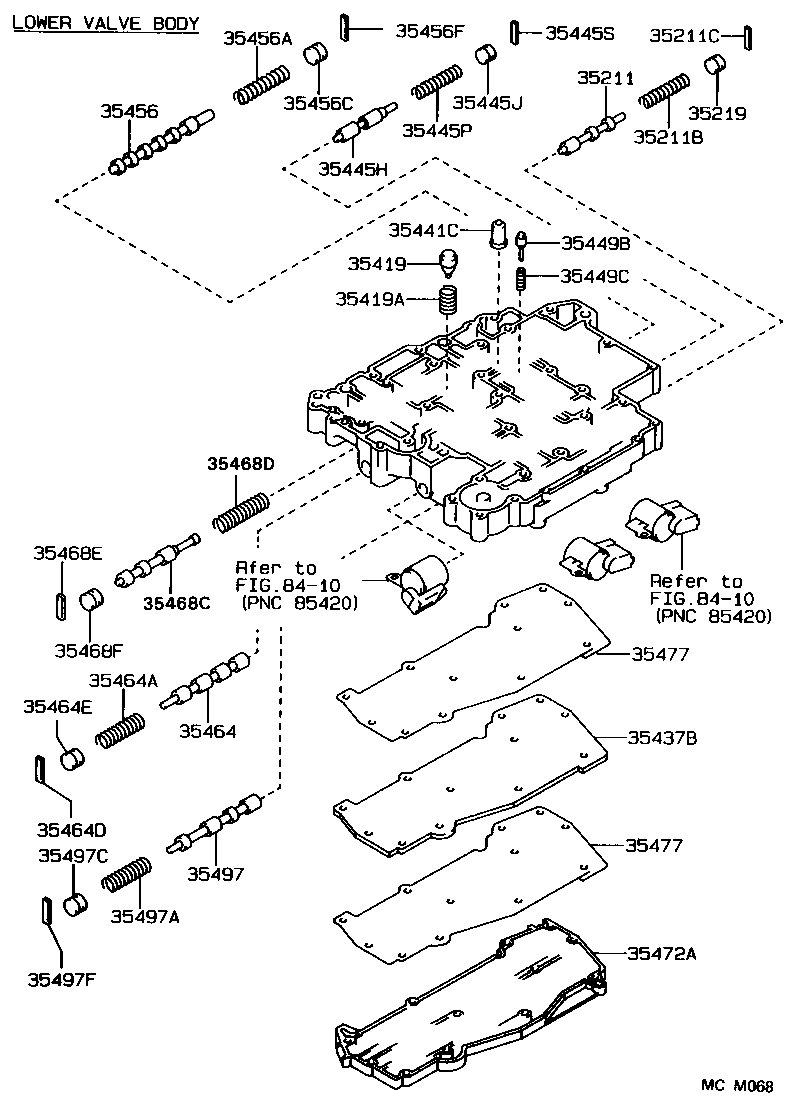

MCM068 1991-06 → 1993-05

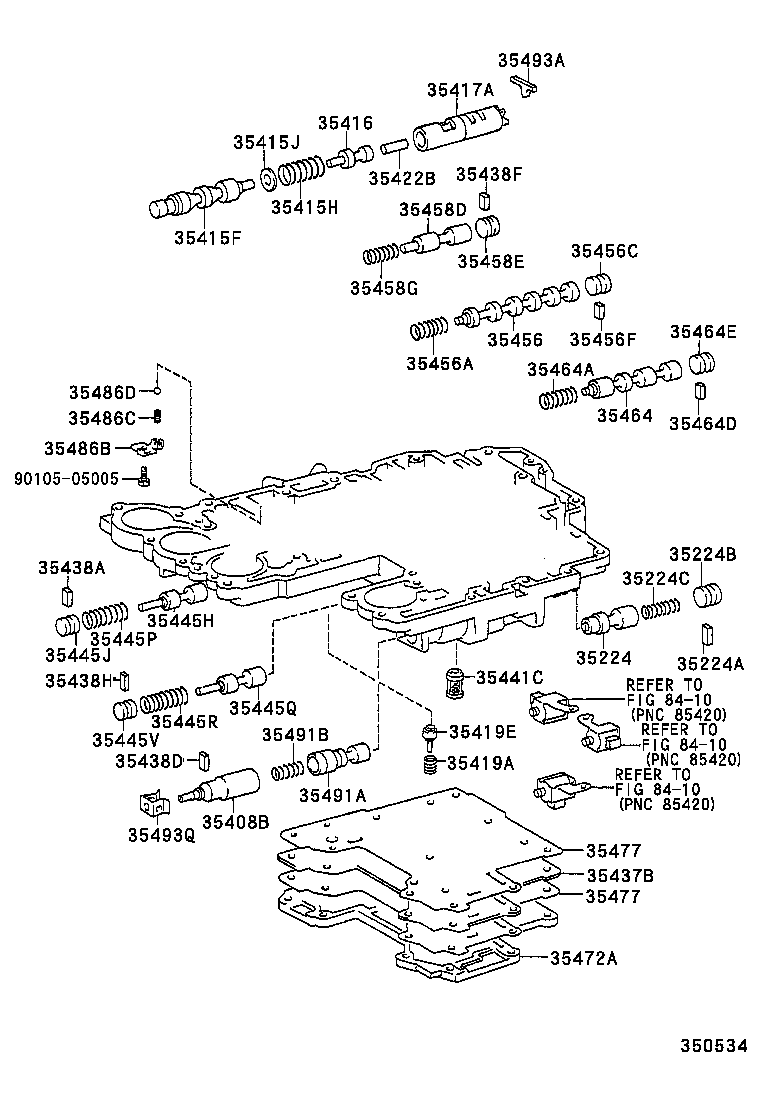

350534 1993-05 → —

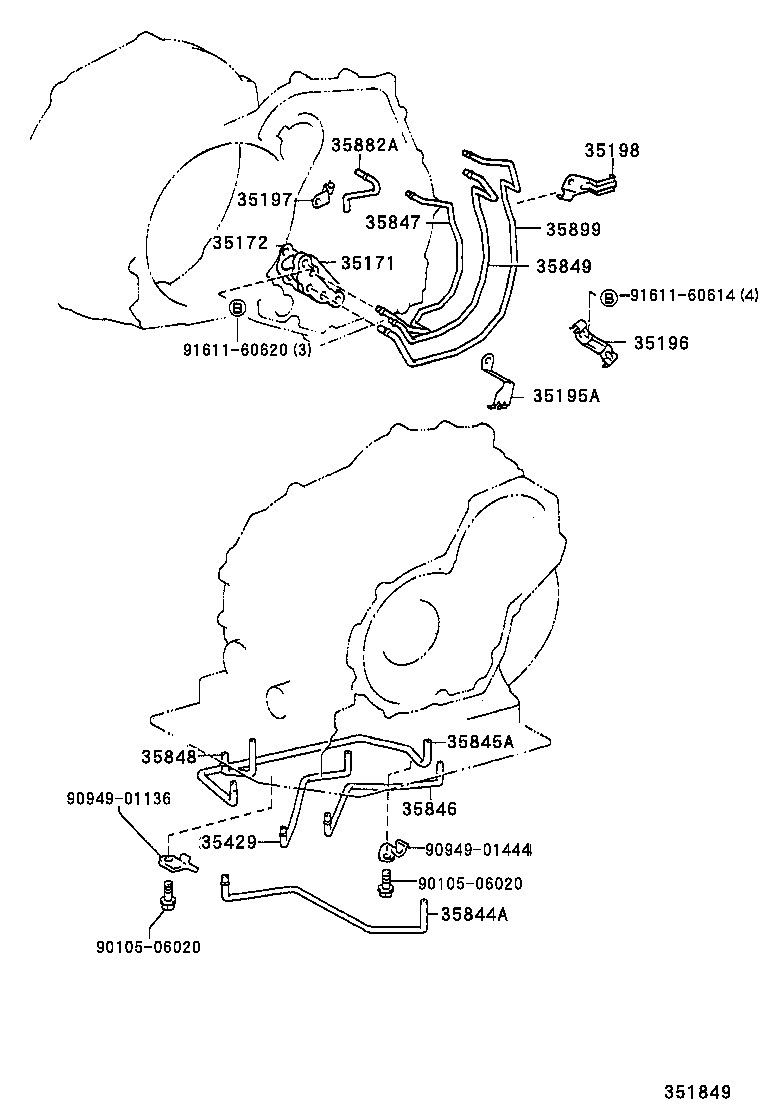

351849 1991-06 → 1993-05

351849 1993-05 → —

MCN439 1993-05 → —

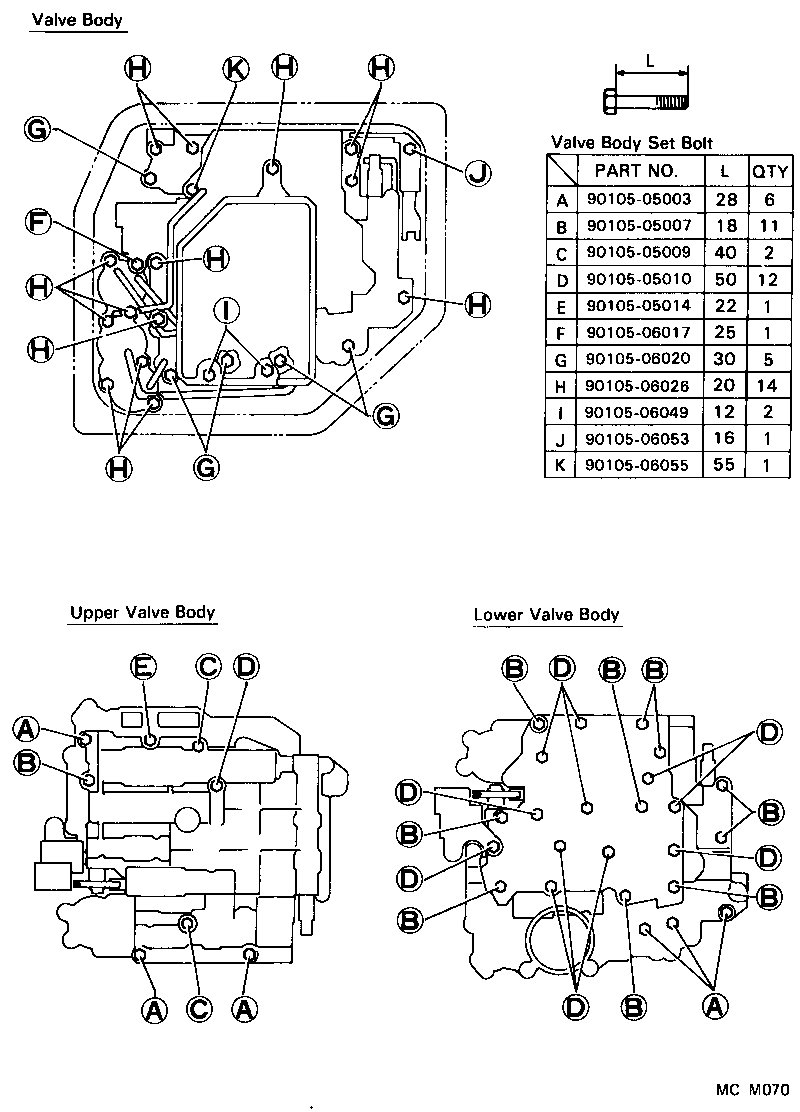

MCM070 1991-06 → —

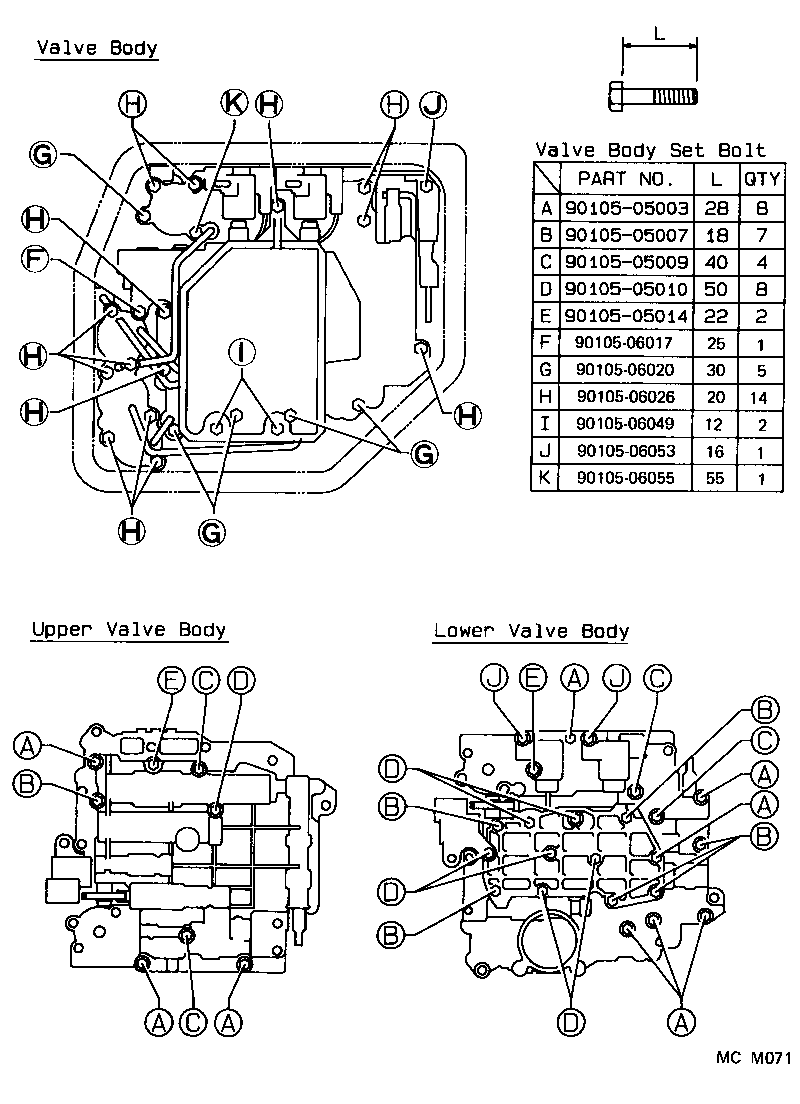

MCM071 1991-06 → 1993-05

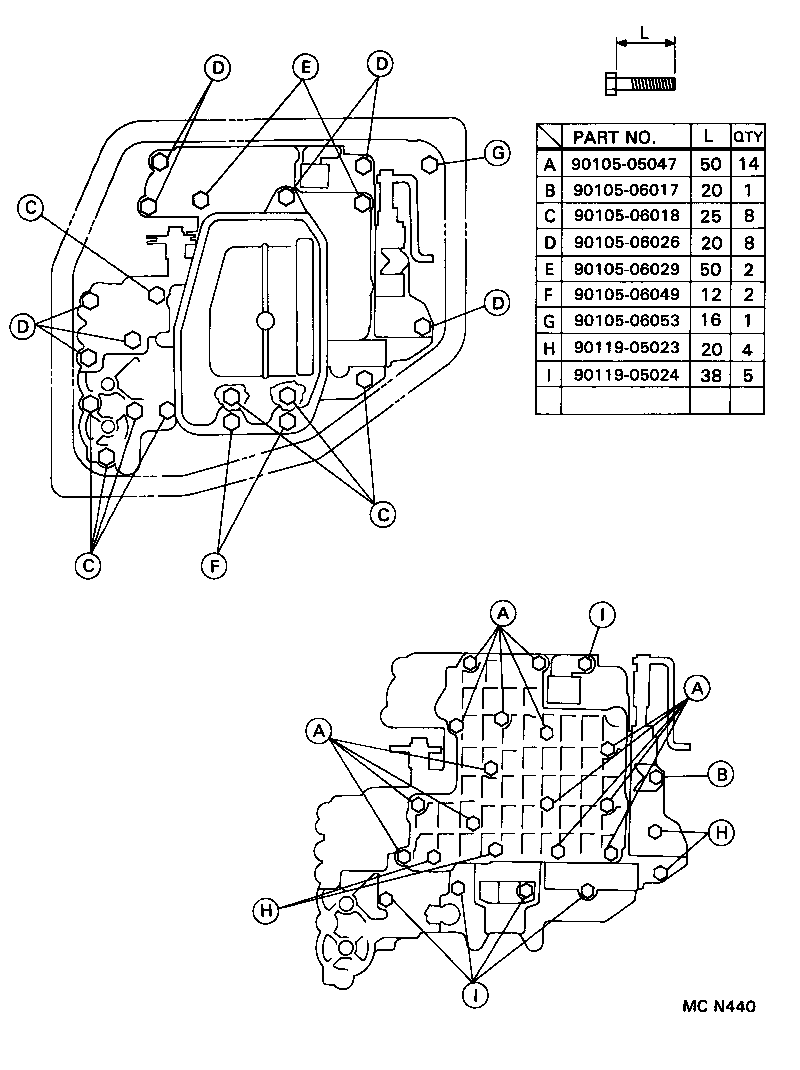

MCN440 1993-05 → —

Part groups

PNC	Description
35156A	Plate, Transmission Case, NO.2
35156B	Bolt(FOR TRANSMISSION CASE NO.2 PLATE)
35156C	Screw(FOR TRANSMISSION CASE NO.2 PLATE)
35158	Gasket, Transmission Case, NO.2 Plate
35171	Cover, Transaxle Housing
35172	Gasket, Transaxle Housing Cover
35195A	Clamp, Transaxle Apply Tube, NO.1
35196	Clamp, Transaxle Apply Tube, NO.2
35197	Clamp, Transaxle Apply Tube, NO.3
35198	Clamp, Transaxle Apply Tube, NO.4
35205	Spring Sub-assy, C-3 Accumulator
35208	Spring Sub-assy, B-2 Accumulator
35208A	Ring, Hole Snap (FOR B-2 ACCUMULATOR SPRING)
35209	Spring Sub-assy, C-2 Accumulator
35209A	Ring, Hole Snap (FOR C-2 ACCUMULATOR SPRING)
35211	Valve, Lock UP Signal
35211B	Spring, Compression (FOR LOCK UP SIGNAL VALVE)
35211C	Key, Straight (FOR LOCK UP SIGNAL VALVE)
35212	Valve, Lock UP Relay
35212B	Spring, Compression (FOR LOCK UP RELAY VALVE)
35213	Valve, Lock UP Relay Control
35215B	Pin, Straight (FOR LOCK UP RELAY VALVE SLEEVE)
35215C	Sleeve, Lock UP Relay Valve, NO.1
35219	Plug, Lock UP Signal Valve
35224	Valve, Reverse Control
35224A	Key, Straight (FOR REVERSE CONTROL VALVE)
35224B	Plug (FOR REVERSE CONTROL VALVE)
35224C	Spring, Compression (FOR REVERSE CONTROL VALVE)
35251	Body, Check Ball
35251A	Spring, Compression (FOR CHECK BALL BODY)
35330	Strainer Assy, Valve Body Oil
35339	Gasket, Oil Strainer
35408B	Plug Sub-assy, Accumulator Control Valve
35408C	Plug Sub-assy, Throttle Valve
35408D	Spring, Compression (FOR THROTTLE VALVE PLUG)
35408E	Key, Straight (FOR THROTTLE VALVE PLUG)
35409	Spring Sub-assy, Manual Detent
35410	Body Assy, Transmission Valve
35415F	Valve, Primary Regulator
35415H	Spring, Compression (FOR PRIMARY REGULATOR VALVE)
35415J	Washer (FOR PRIMARY REGULATOR VALVE)
35416	Plunger, Primary Regulator Valve, NO.1
35417A	Sleeve, Primary Regulator Valve
35417B	Pin, Straight (FOR PRIMARY REGULATOR VALVE SLEEVE)
35418	Valve, Manual
35418A	Pin, Straight (FOR MANUAL VALVE)
35418B	Plug (FOR MANUAL VALVE)
35419	Valve, Check, NO.1
35419A	Spring, Compression (FOR CHECK VALVE)
35419D	Valve, Check, NO.2
35419E	Valve, Check, NO.3
35419F	Ball, Check Valve
35422B	Plunger, Primary Regulator Valve, NO.2
35422F	Stopper, Valve Vibrating
35423	Piston, B-2 Accumulator
35423A	Spring, Compression (FOR B-2 ACCUMULATOR PISTON)
35423B	Ring, O (FOR B-2 ACCUMULATOR PISTON)
35424C	Piston, C-1 Accumulator
35424D	Spring, Compression (FOR C-1 ACCUMULATOR PISTON)
35424E	Ring, O (FOR C-1 ACCUMULATOR PISTON)
35425A	Piston, C-2 Accumulator
35425B	Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
35425C	Ring, O (FOR C-2 ACCUMULATOR PISTON)
35426D	Piston, C-3 Accumulator
35426E	Spring, Compression (FOR C-3 ACCUMULATOR PISTON)
35426F	Ring, O (FOR C-3 ACCUMULATOR PISTON)
35427A	Spring, Compression (FOR B-4 ACCUMULATOR PISTON)
35427B	Ring, O (FOR B-4 ACCUMULATOR PISTON)
35427C	Piston, B-4 Accumulator
35429	Tube, Line Pressure
35432	Plate, Valve Body, NO.1
35433	Gasket, Valve Body, NO.1
35434	Gasket, Valve Body, NO.2
35437B	Plate, Valve Body Cover
35438A	Seat, 2ND Coast Modulator Valve Spring
35438D	Seat, Accumulator Control Valve Spring
35438E	Seat, Lock UP Relay Valve Spring
35438F	Seat, Detent Spring
35438H	Seat, Low Coast Modulator Valve Spring
35438J	Seat, Throttle Valve Spring
35439A	Strainer, Line Pressure Oil
35439B	Screw, Throttle Valve
35441C	Strainer, Solenoid Oil
35442	Strainer, Throttle Modulator Oil
35445H	Valve, 2ND Coast Modulator
35445J	Plug (FOR 2ND COAST MODULATOR VALVE)
35445P	Spring, Compression (FOR 2ND COAST MODULATOR VALVE)
35445Q	Valve, Low Coast Modulator
35445R	Spring, Compression (FOR LOW COAST MODULATOR VALVE)
35445S	Key, Straight (FOR 2ND COAST MODULATOR VALVE)
35445U	Key, Straight (FOR LOW COAST MODULATOR VALVE)
35445V	Plug (FOR LOW COAST MODULATOR VALVE)
35449B	Valve, Pressure Relief
35449C	Spring, Compression (FOR VALVE PRESSURE RELIEF)
35450E	Ball (FOR UPPER VALVE BODY)
35451	Sleeve, Throttle Valve
35451A	Pin, Straight (FOR THROTTLE VALVE SLEEVE)
35453	Valve, Detent Regulator
35453A	Spring, Compression (FOR DETENT REGULATOR VALVE)
35453B	Key, Straight (FOR DETENT REGULATOR VALVE)
35453C	Plug (FOR DETENT REGULATOR VALVE)
35454	Valve, Low Coast Shift
35454A	Key, Straight (FOR LOW COAST SHIFT VALVE)
35454B	Plug (FOR LOW COAST SHIFT VALVE)
35456	Valve, 2-3 Shift
35456A	Spring, Compression (FOR 2-3 SHIFT VALVE)
35456C	Plug (FOR 2-3 SHIFT VALVE)
35456F	Key, Straight (FOR 2-3 SHIFT VALVE)
35457	Valve, Throttle Modulator
35457E	Plug (FOR THROTTLE MODULATOR VALVE)
35457F	Spring, Compression (FOR THROTTLE MODULATOR VALVE)
35457G	Pin, Straight (FOR THROTTLE MODULATOR VALVE)
35458D	Valve, Cut Back
35458E	Plug (FOR CUT BACK VALVE)
35458G	Spring, Compression (FOR CUT BACK VALVE)
35458H	Key, Straight (FOR CUT BACK VALVE)
35461	Plug, Down Shift
35461A	Spring, Compression (FOR DOWN SHIFT PLUG)
35462	Valve, Throttle
35462A	Spring, Compression (FOR THROTTLE VALVE)
35462D	Ring, E (FOR THROTTLE VALVE)
35463A	Valve, 1-2 Shift, Lower
35464	Valve, 1-2 Shift
35464A	Spring, Compression (FOR 1-2 SHIFT VALVE)
35464C	Valve, 1-2 Shift, Upper
35464D	Key, Straight (FOR 1-2 SHIFT VALVE)
35464E	Plug (FOR 1-2 SHIFT VALVE)
35465	Plug, Intermediate Shift Valve
35465A	Sleeve, Primary Regulator Valve Plunger
35467	Valve, Intermediate Shift
35467A	Key, Straight (FOR INTERMEDIATE SHIFT VALVE)
35468C	Valve, Secondary Regulator
35468D	Spring, Compression (FOR SECONDARY REGULATOR VALVE)
35468E	Key, Straight (FOR SECONDARY REGULATOR VALVE)
35468F	Plug (FOR SECONDARY REGULATOR VALVE)
35472A	Cover, Lower Valve Body
35474A	Cover, Accumulator
35476C	Valve, 3RD Coast
35477	Gasket, Valve Body Cover
35478	Gasket, Accumulator Cover
35486B	Seat, Pressure Relief Valve Spring
35486C	Spring, Compression(FOR PRESSURE RELIFE VALVE)
35486D	Ball (FOR PRESSURE RELIFE VALVE)
35491A	Valve, Accumulator Control, NO.1
35491B	Spring, Compression (FOR ACCUMULATOR CONTROL VALVE NO.1)
35491C	Key, Straight (FOR ACCUMULATOR CONTROL VALVE NO.1)
35491D	Plug (FOR ACCUMULATOR CONTROL VALVE NO.1)
35493A	Seat, Primary Regulator Valve Plug
35493Q	Seat, Accumulator Control Valve Plug, NO.1
35493U	Seat, Check Valve, NO.1
35493W	Seat, Valve Body
35495B	Ball, Check, NO.1
35496	Ball, Check, NO.2
35497	Valve, 3-4 Shift
35497A	Spring, Compression (FOR 3-4 SHIFT VALVE)
35497C	Plug (FOR 3-4 SHIFT VALVE)
35497F	Key, Straight (FOR 3-4 SHIFT VALVE)
35498	Valve, 3-4 Coast Shift
35498B	Key, Straight (FOR 3-4 COAST SHIFT VALVE)
35498C	Plug (FOR 3-4 COAST SHIFT VALVE)
35499B	Valve, Overdrive Sequence
35499C	Key, Straight (FOR OVERDRIVE SEQUENCE VALVE)
35499D	Plug (FOR OVERDRIVE SEQUENCE VALVE)
35499E	Spring, Compression (FOR OVERDRIVE SEQUENCE VALVE)
35521	Cam, Throttle Valve
35521A	Spring (FOR THROTTLE VALVE CAM RETURN)
35521B	Washer (FOR THROTTLE VALVE CAM SET)
35521C	Bolt (FOR THROTTLE VALVE CAM SET)
35522	Pin, Throttle Valve Cam
35554	Rod, Manual Valve Connecting
35554A	Ring, E (FOR MANUAL VALVE CONNECTING ROD)
35599	Cover, Manual Detent Spring
35844A	Tube, Accumulator Back Pressure, NO.1
35845A	Tube, Direct Clutch Accumulator
35846	Tube, Brake Accumulator
35847	Tube, Transmission Lube Apply
35848	Tube, Forward Clutch Accumulator
35849	Tube, Governor Apply
35862	Bracket, Accumulator Apply Tube
35882A	Tube, Differential Gear Lube Apply
35899	Tube, Governor Pressure
