Toyota Lvn/Cre/Trn/Mrn

1991-06 → 1998-08 · chassis AE10# · catalogue 153130 · Japan

Discontinued model Data version 1999-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

23 part groups · 14 illustrations

Illustrations

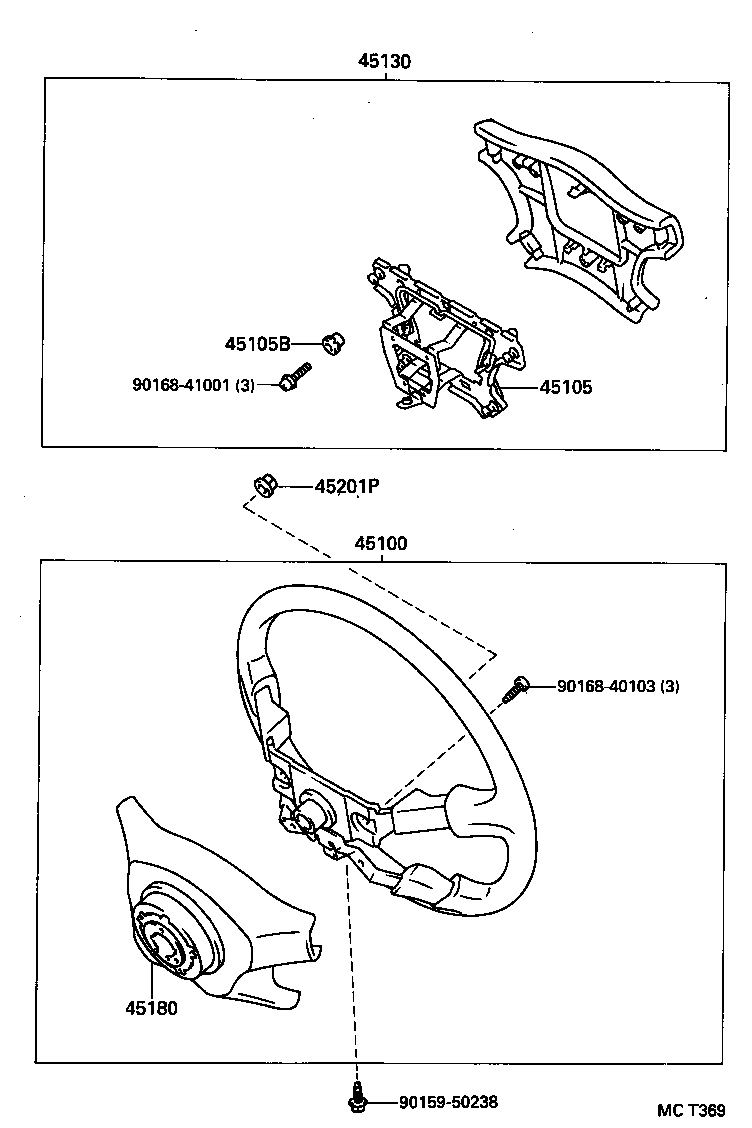

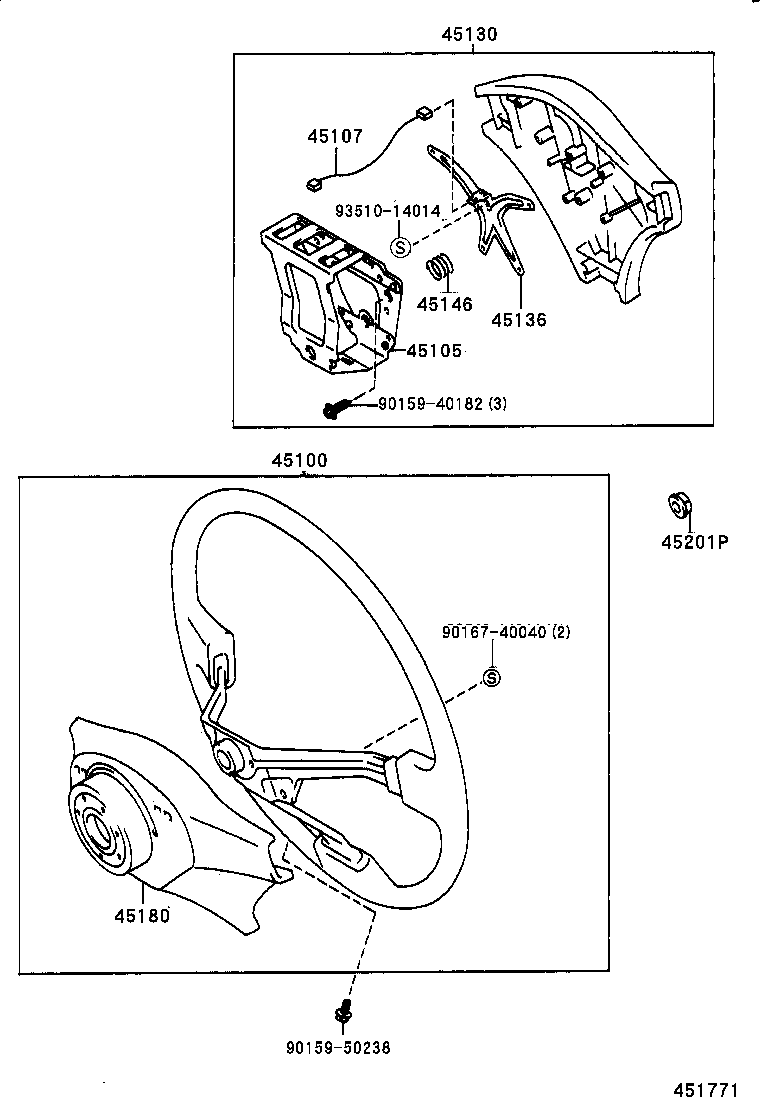

Figure 450315 450315 1991-06 → — Figure MCL867 MCL867 1992-05 → 1995-05 Figure 450316A 450316A 1991-06 → 1995-05 Figure 451771 451771 1995-05 → 1996-05 Figure MCT369 MCT369 1995-05 → 1996-05 Figure 451812 451812 1991-06 → 1995-05 Figure 451812 451812 1992-12 → 1993-04 Figure 451812 451812 1993-12 → 1994-04 Figure 450317E 450317E 1991-06 → 1996-05 Figure 450317E 450317E 1996-05 → — Figure MCT256B MCT256B 1995-05 → 1996-05 Figure MCT256B MCT256B 1996-05 → — Figure 450314C 450314C 1996-12 → — Figure 450313 450313 1996-12 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45103 Hub Sub-assy, Steering Wheel
45105 Plate Sub-assy, Horn Button Contact, NO.1
45105B Spacer(FOR HORN BUTTON CONTACT PLATE)
45107 Wire Sub-assy, Horn Button
45108B Button Sub-assy, Horn(FOR STEERING WHEEL ASSY)
45111 Wheel, Steering
45112 Pad, Steering Wheel
45126 Plate, Steering Wheel Pad Set
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45130A Spring, Compression(FOR HORN BUTTON)
45131 Button, Horn, NO.1
45136 Plate, Horn Button Contact
45137B Plate, Horn Button Stop, NO.1
45146 Spring, Horn Button Contact
45158A Socket, Horn Button Joint
45180 Cover Sub-assy, Steering Wheel
45184 Cover, Steering Wheel Boss, Lower
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45201P Nut, Steering Wheel Set
45713A Damper, Steering Shake
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
