Parking Brake & Cable

11 part groups · 3 illustrations

Illustrations

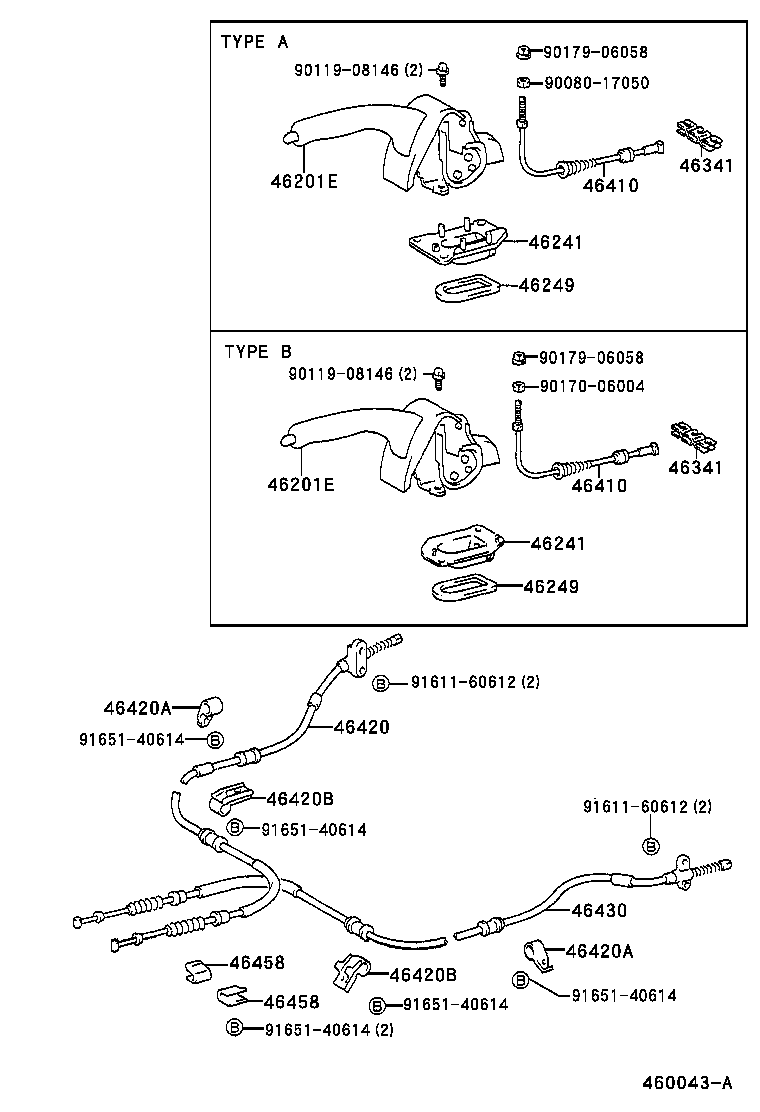

Figure MCS915A MCS915A 1991-06 → 1995-05 Figure MCS915A MCS915A 1995-05 → — Figure 460043A 460043A 1995-05 → —

Part groups

PNCDescription
46201E Lever Sub-assy, Parking Brake
46241 Boot, Parking Brake Lever
46249 Shield, Parking Brake Hole
46341 Equalizer, Parking Brake
46410 Cable Assy, Parking Brake, NO.1
46420 Cable Assy, Parking Brake, NO.2
46420A Clamp, NO.1(FOR PARKING BRAKE CABLE)
46420B Clamp, NO.2(FOR PARKING BRAKE CABLE)
46420C Pin, W/Hole(FOR PARKING BRAKE CABLE)
46430 Cable Assy, Parking Brake, NO.3
46458 Retainer, Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
