Toyota Lvn/Cre/Trn/Mrn

1991-06 → 1998-08 · chassis AE10# · catalogue 153130 · Japan

Discontinued model Data version 1999-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Pan & Lower Back Panel

24 part groups · 2 illustrations

Illustrations

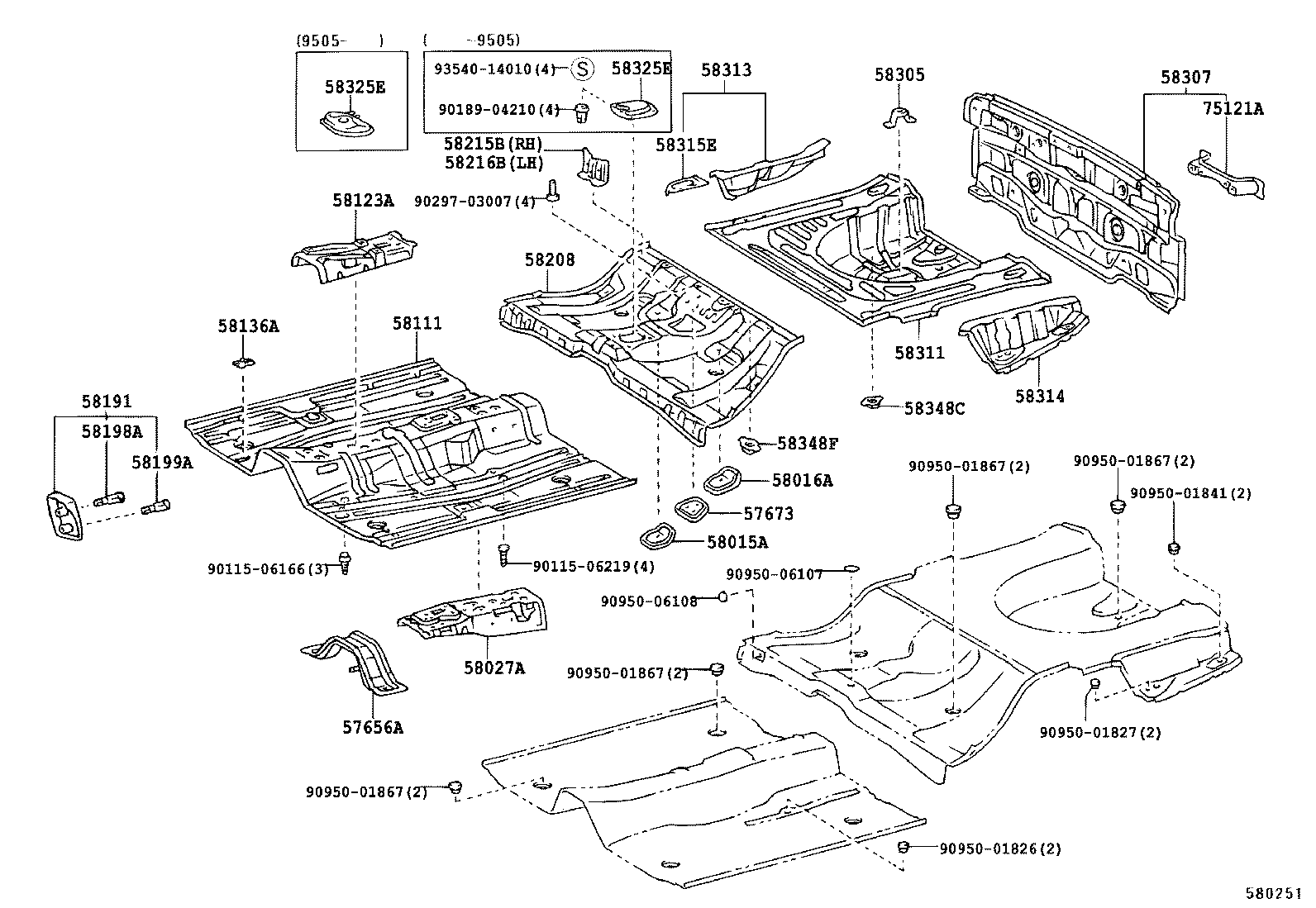

Figure 580387A 580387A 1991-06 → — Figure 580251B 580251B 1992-05 → —

Part groups

PNCDescription
57656A Bracket, Exhaust Pipe Mounting, NO.1
57673 Bracket, Rear Seatback Hinge Mounting
58015A Reinforce Sub-assy, Belt Anchor, NO.3 RH
58016A Reinforce Sub-assy, Belt Anchor, NO.3 LH
58027A Reinforce Sub-assy, Seat Belt Anchor
58111 Pan, Front Floor
58123A Support, Shift & Select Lever
58136A Cover, Front Floor Service Hole
58191 Footrest, Front Floor
58198A Clip, Footrest, NO.1
58199A Clip, Footrest, NO.2
58208 Pan, Center Floor
58215B Bracket, Rear Seat Mounting, RH
58216B Bracket, Rear Seat Mounting, LH
58305 Bracket Sub-assy, Spare Wheel Clamp
58307 Panel Sub-assy, Body Lower Back
58311 Pan, Rear Floor
58313 Panel, Rear Floor Side, RH
58314 Panel, Rear Floor Side, LH
58315E Extension Rear Floor Side Panel, Front RH
58325E Cover, Rear Floor Service Hole
58348C Bracket, Rear Floor Heat Insulator, NO.3
58348F Bracket, Center Floor Hear Insulator, NO.3
75121A Bracket, Rear License Plate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
