Toyota Lvn/Cre/Trn/Mrn
1991-06 → 1998-08 · chassis AE10# · catalogue 153130 · Japan
Discontinued model
Data version 1999-02

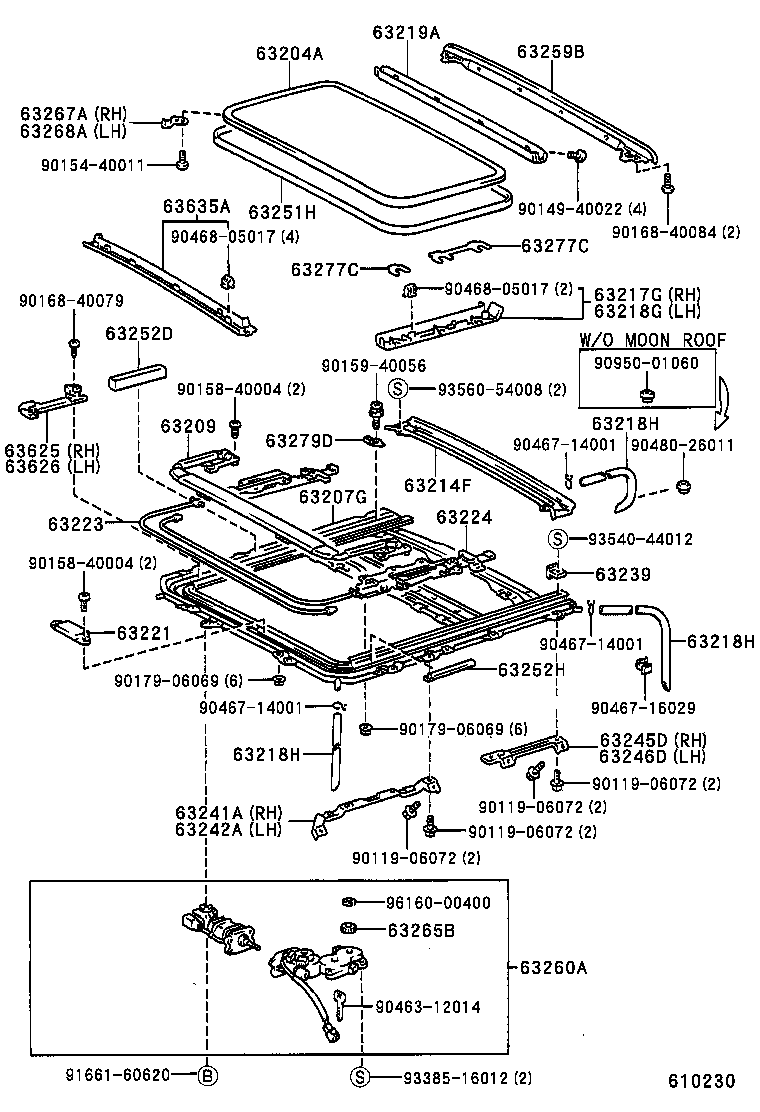

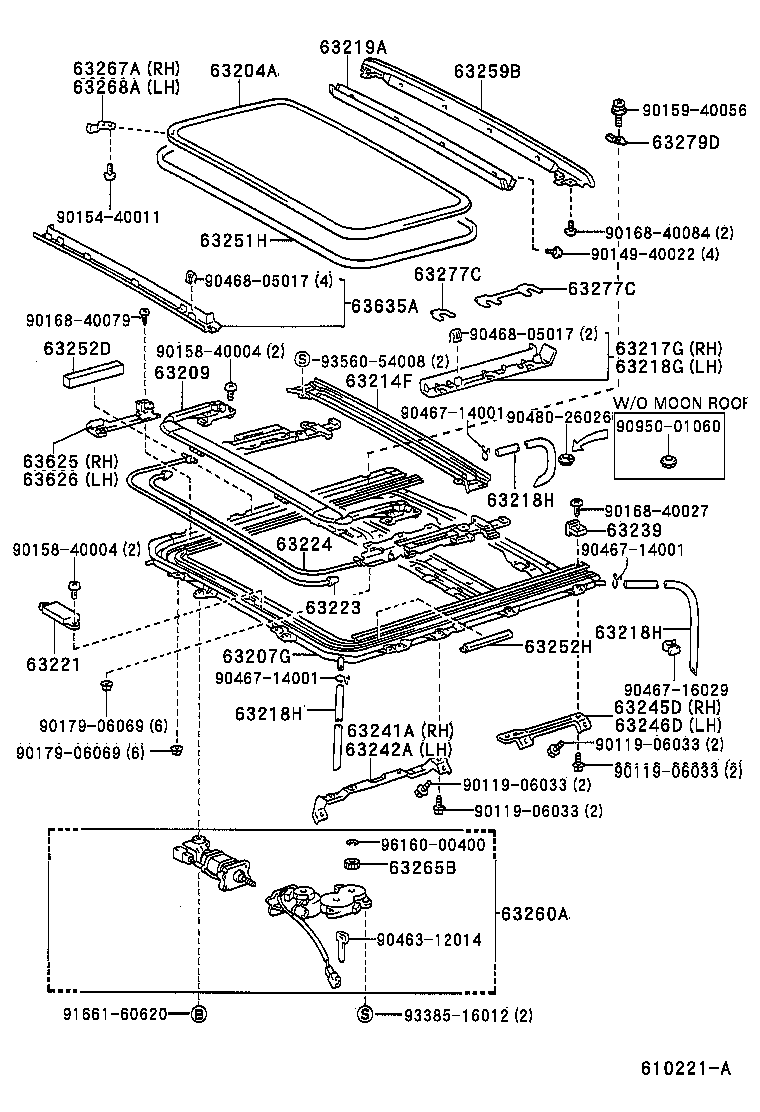

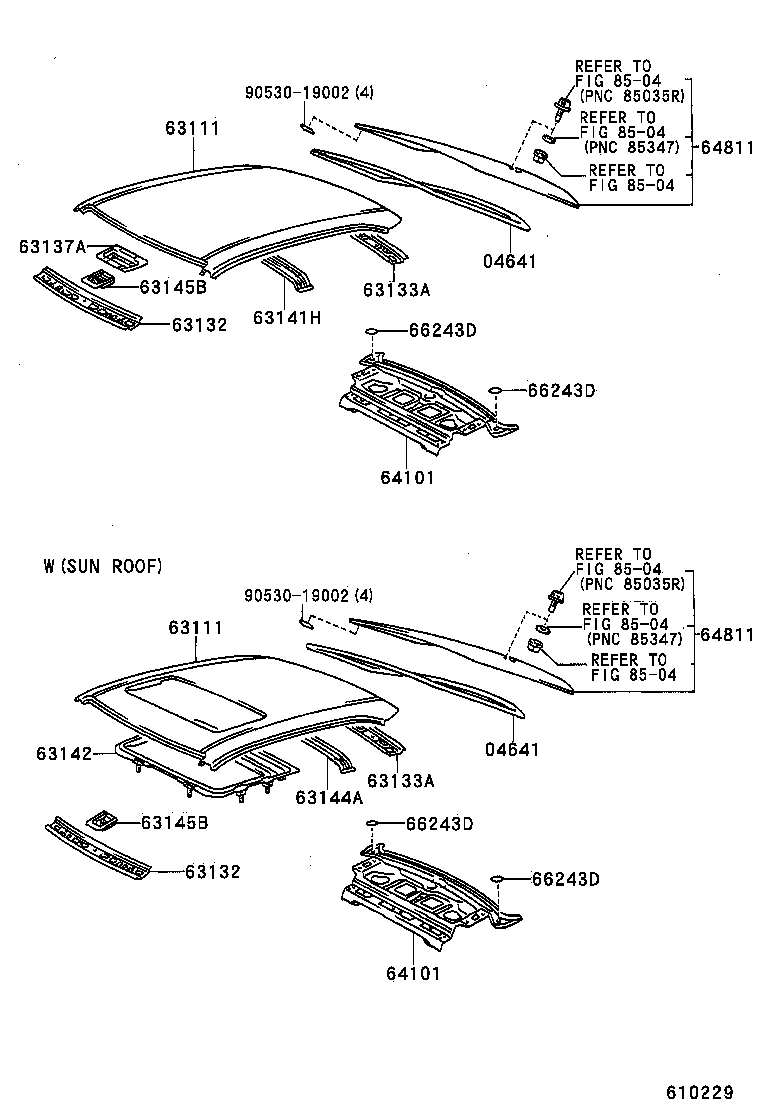

Roof Panel & Back Window Glass
50 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04641 | Dam Kit, Back Window Glass |
| 63111 | Panel, Roof |
| 63118 | Support, Roof Panel, RH |
| 63119 | Support, Roof Panel, LH |
| 63132 | Panel, Windshield Header, Inner |
| 63133A | Frame, Back Window, Upper |
| 63137A | Bracket, Dome Lamp, NO.1 |
| 63141H | Reinforcement, Roof Panel, Center |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63144A | Reinforcement, Roof Panel, NO.4 |
| 63145B | Reinforcement, Windshield Header Panel |
| 63204A | Panel Sub-assy, Sliding Roof, Inner |
| 63207G | Rail Sub-assy, Sliding Roof Guide |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63214F | Channel, Roof Drip, Rear |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63218H | Hose, Sliding Roof Drain |
| 63219A | Garnish, Sliding Roof, Rear |
| 63221 | Casing, Sliding Roof Cable Guide |
| 63223 | Cable, Sliding Roof Drive, RH |
| 63224 | Cable, Sliding Roof Drive, LH |
| 63239 | Stopper, Sliding Roof Panel |
| 63241A | Bracket, Sliding Roof Housing Front Mounting, RH |
| 63242A | Bracket, Sliding Roof Housing Front Mounting, LH |
| 63245D | Bracket, Sliding Roof Housing Rear Mounting, RH |
| 63246D | Bracket, Sliding Roof Housing Rear Mounting, LH |
| 63251H | Weatherstrip, Sliding Roof |
| 63252D | Weatherstrip, Sliding Roof Housing |
| 63252H | Dam, Sliding Roof Housing |
| 63259B | Holder, Sliding Roof Weatherstrip |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63265B | Gear, Sliding Roof Drive |
| 63267A | Protector, Sliding Roof Weatherstrip, RH |
| 63268A | Protector, Sliding Roof Weatherstrip, LH |
| 63277C | Shim, Sliding Roof Panel |
| 63279D | Stopper, Sliding Roof Guide Rail |
| 63431A | Bracket, Roof Inner Rack, NO.1 RH |
| 63432A | Bracket, Roof Inner Rack, NO.1 LH |
| 63433B | Bracket, Roof Inner Rack, NO.2 RH |
| 63434A | Bracket, Roof Inner Rack, NO.2 LH |
| 63435D | Bracket, Roof Inner Rack, NO.3 |
| 63435F | Seal, Roof Carrier, NO.1 |
| 63625 | Block, Sliding Roof Guide, RH |
| 63626 | Block, Sliding Roof Guide, LH |
| 63635A | Garnish, Sliding Roof, Front |
| 64101 | Panel Sub-assy, Upper Back |
| 64173A | Bracket, High Mounting Stop Lamp |
| 64811 | Glass, Back Window |
| 66243D | Protector, Rear Body, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
