Toyota Lvn/Cre/Trn/Mrn
1991-06 → 1998-08 · chassis AE10# · catalogue 153130 · Japan
Discontinued model
Data version 1999-02

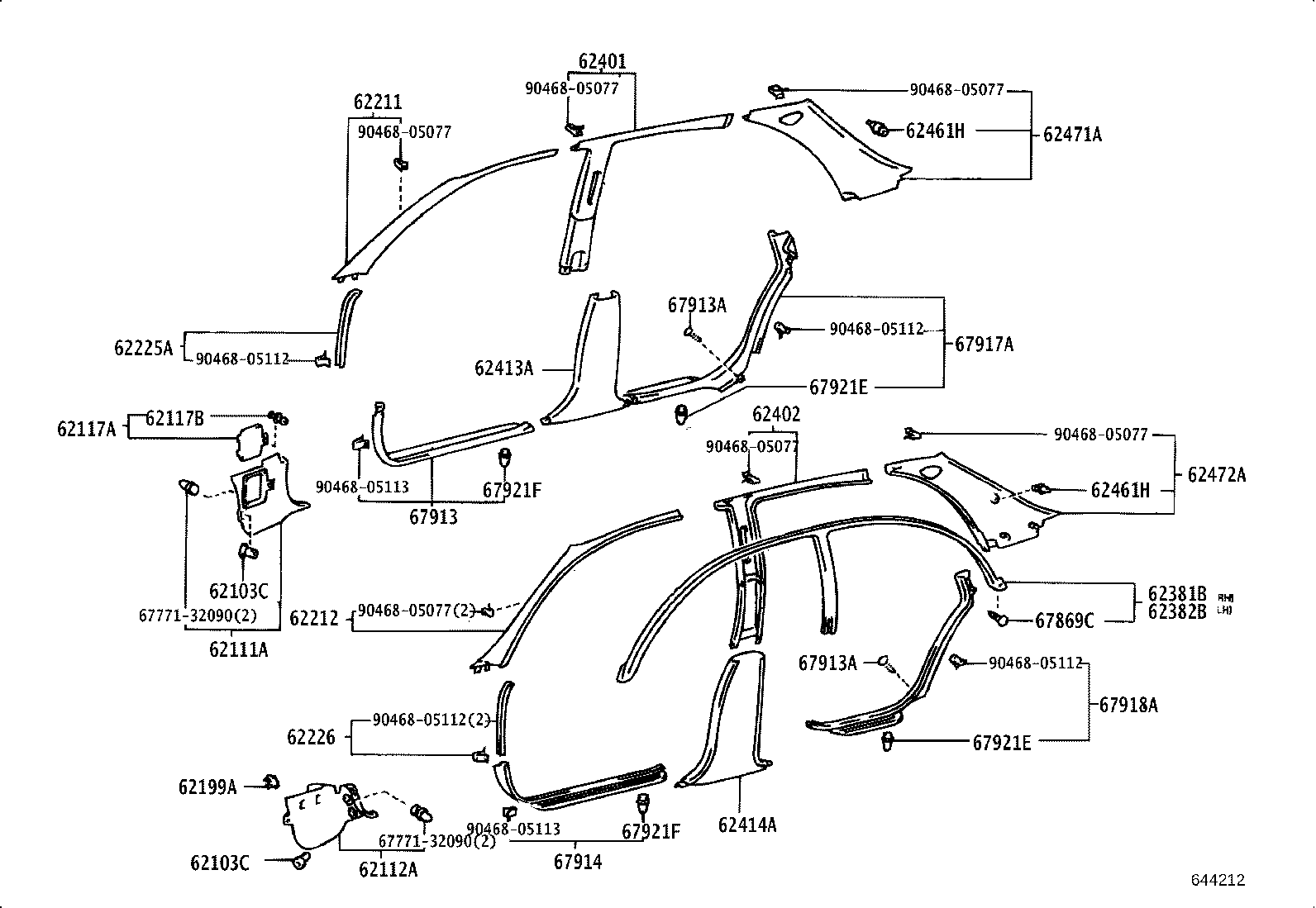

Inside Trim Board & Door Opening Trim Moulding
36 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62103C | Clip, Cowl Side Trim Board Set |
| 62111A | Trim Sub-assy, Cowl Side, RH |
| 62112A | Trim Sub-assy, Cowl Side, LH |
| 62117A | Cover, Cowl Side Trim Service Hole |
| 62117B | Clip, NO.1(FOR COWL SIDE TRIM) |
| 62199A | Holder, Fusee |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62225A | Garnish, Front Pillar, Lower RH |
| 62226 | Garnish, Front Pillar, Lower LH |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62381 | Weatherstrip, Roof Side Rail, Front RH |
| 62381B | Weatherstrip, Roof Side Rail, RH |
| 62382 | Weatherstrip, Roof Side Rail, Front LH |
| 62382B | Weatherstrip, Roof Side Rail, LH |
| 62401 | Panel Sub-assy, Center Pillar Garnish, Upper RH |
| 62402 | Panel Sub-assy, Center Pillar Garnish, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62461H | Clip (FOR ROOF SIDE INNER GARNISH) |
| 62471A | Garnish, Roof Side, Inner RH |
| 62471J | Clip (FOR ROOF SIDE GARNISH) |
| 62472A | Garnish, Roof Side, Inner LH |
| 62511 | Board, Quarter Inside Trim, RH |
| 62511F | Retainer (FOR QUARTER INSIDE TRIM BOARD) |
| 62512 | Board, Quarter Inside Trim, LH |
| 62567E | Clamp, Rocker Panel Inner Protector, NO.2 |
| 67869C | Clip, Roof Side Rail Weatherstrip |
| 67913 | Plate, Front Door Scuff, RH |
| 67913A | Clip(FOR SCUFF PLATE) |
| 67914 | Plate, Front Door Scuff, LH |
| 67917A | Plate, Rear Door Scuff, RH |
| 67918A | Plate, Rear Door Scuff, LH |
| 67921E | Retainer, Rear Door Scuff Plate |
| 67921F | Retainer, Front Door Scuff Plate |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
