Toyota Lvn/Cre/Trn/Mrn

1991-06 → 1998-08 · chassis AE10# · catalogue 153130 · Japan

Discontinued model Data version 1999-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

6 part groups · 2 illustrations

Illustrations

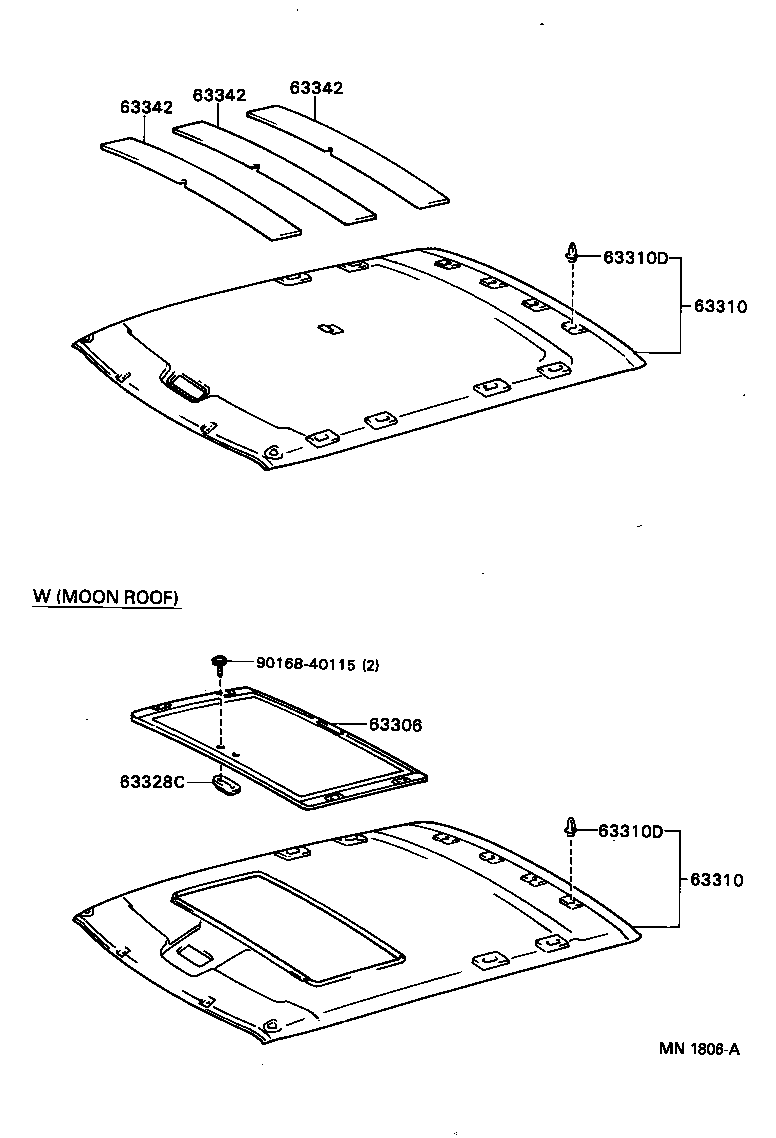

Figure MN1233C MN1233C 1991-06 → 1995-05 Figure MN1806A MN1806A 1992-05 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63328C Knob, Sunshade Trim
63342 Pad, Roof Silencer, NO.2
63343B Pad, Roof Silencer, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
