Toyota Lvn/Cre/Trn/Mrn

1991-06 → 1998-08 · chassis AE10# · catalogue 153130 · Japan

Discontinued model Data version 1999-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Panel & Glass

31 part groups · 2 illustrations

Illustrations

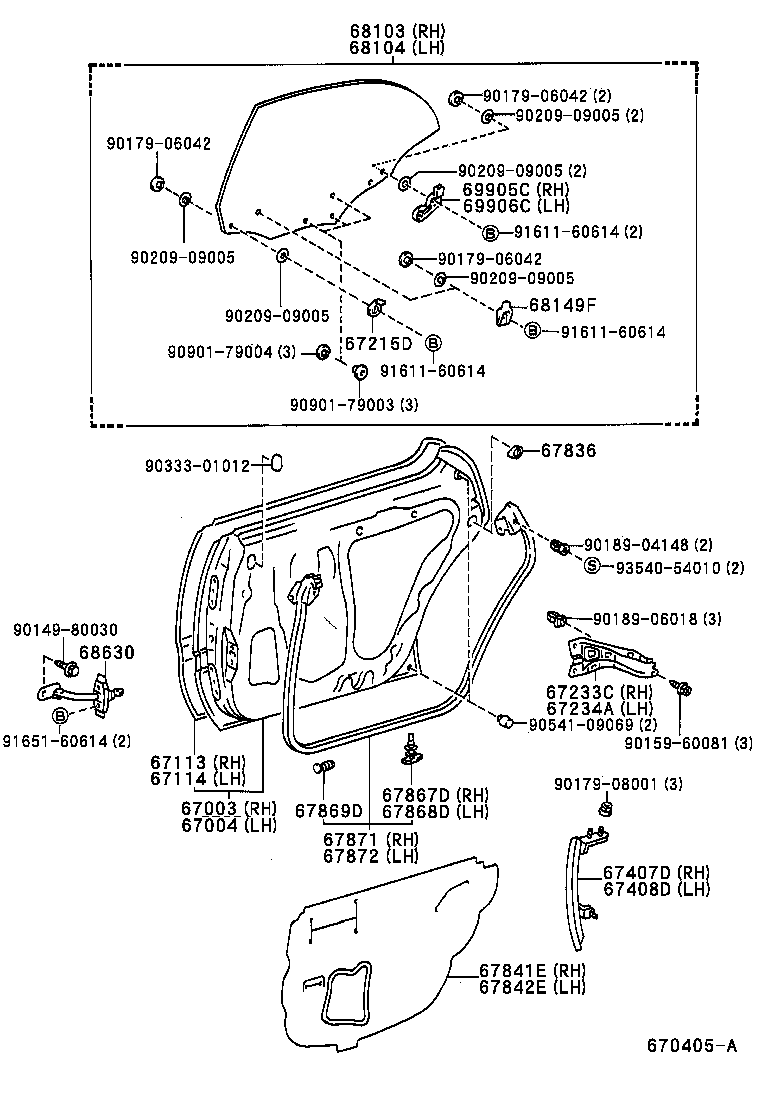

Figure MN1851B MN1851B 1992-05 → — Figure 670405A 670405A 1992-05 → —

Part groups

PNCDescription
67003 Panel Sub-assy, Rear Door, RH
67004 Panel Sub-assy, Rear Door, LH
67113 Panel, Rear Door, Outer RH
67114 Panel, Rear Door, Outer LH
67215D Stop, Rear Door Window, Upper
67233C Support, Rear Door Trim, RH
67234A Support, Rear Door Trim, LH
67407D Guide Sub-assy, Rear Door Window, Rear RH
67408D Guide Sub-assy, Rear Door Window, Rear LH
67603 Board Sub-assy, Rear Door Trim, RH
67603D Retainer, Rear Door Trim, RH
67603E Clip(FOR REAR DOOR TRIM BOARD)
67604 Board Sub-assy, Rear Door Trim, LH
67604D Retainer, Rear Door Trim, LH
67836 Cover, Rear Door Lock Child Protection, RH
67841E Cover, Rear Door Service Hole, RH
67842E Cover, Rear Door Service Hole, LH
67867D Retainer, Rear Door Weatherstrip, RH
67868D Retainer, Rear Door Weatherstrip, LH
67869D Clip, Door Weatherstrip
67871 Weatherstrip, Rear Door, RH
67872 Weatherstrip, Rear Door, LH
68103 Glass Sub-assy, Rear Door, RH
68104 Glass Sub-assy, Rear Door, LH
68149F Stabilizer, Door Glass Male
68190 Weatherstrip Assy, Rear Door Glass, Inner
68190A Clip(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET)
68240B Clip, Door Glass Weatherstrip
68630 Check Assy, Rear Door
69905C Bracket Sub-assy, Rear Door Glass, RH
69906C Bracket Sub-assy, Rear Door Glass, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
