Toyota Lvn/Cre/Trn/Mrn

1991-06 → 1998-08 · chassis AE10# · catalogue 153130 · Japan

Discontinued model Data version 1999-02

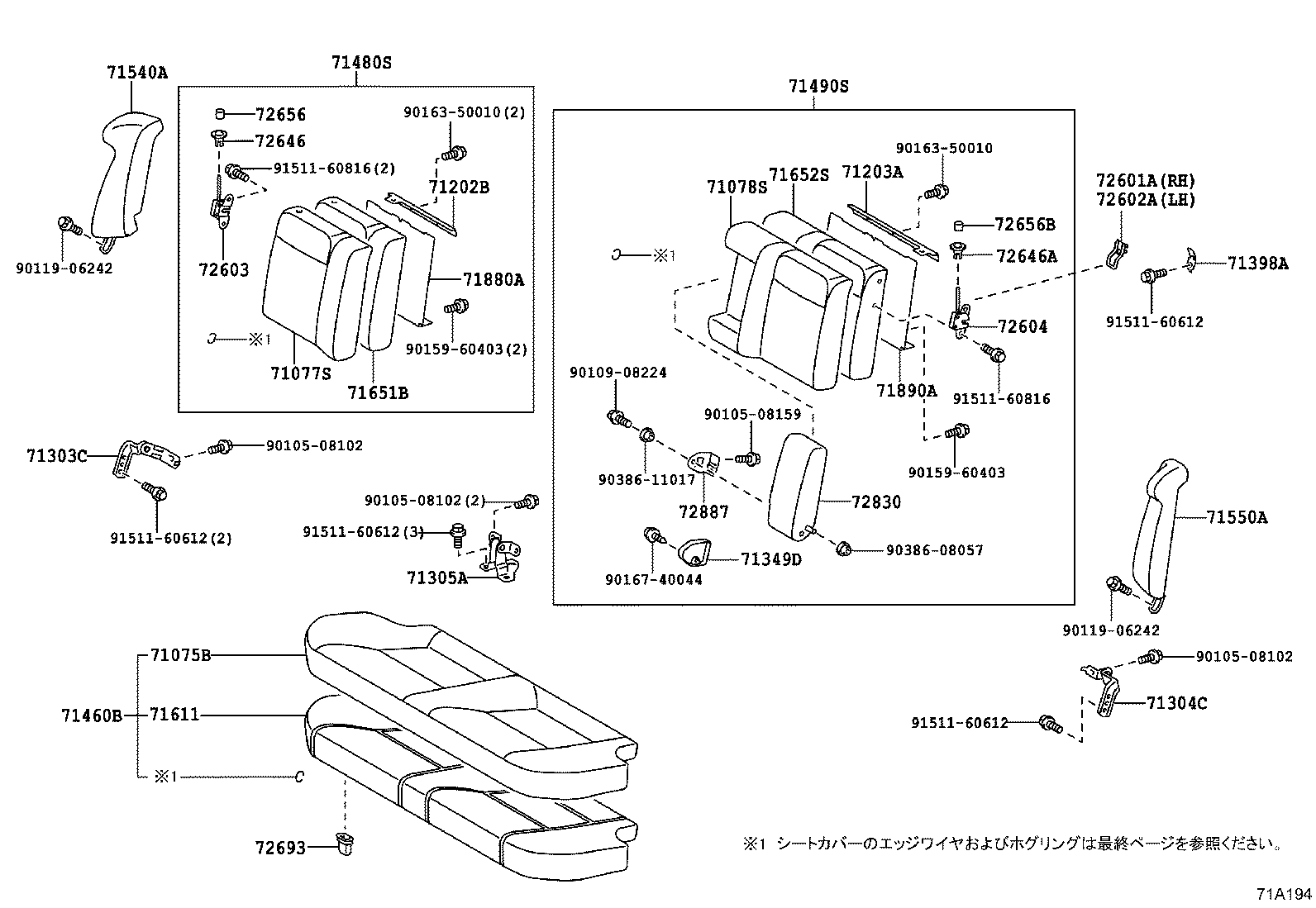

Rear Seat & Seat Track

37 part groups · 3 illustrations

PNC	Description
71017	Frame Sub-assy, Rear Seatback, RH
71018	Frame Sub-assy, Rear Seatback, LH
71075B	Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71202B	Panel, Rear Seatback
71203A	Panel Sub-assy, Rear Seatback, LH
71303	Hinge Sub-assy, Rear Seatback
71303C	Hinge Sub-assy, Rear Seatback, RH
71304C	Hinge Sub-assy, Rear Seatback, LH
71305A	Hinge Sub-assy, Rear Seatback, Center
71349D	Cover, Rear Seatback Hinge, RH
71398A	Holder, Rear Seatback
71460B	Cushion Assy, Rear Seat (FOR BENCH TYPE)
71480E	Clip, Rear Seatback, RH
71480S	Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490A	Clip, Rear Seatback, LH
71490S	Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71540A	Back Assy, Rear Side Seat, RH
71550A	Back Assy, Rear Side Seat, LH
71611	Pad, Rear Seat Cushion
71651B	Pad, Rear Seatback(FOR BENCH TYPE)
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71880A	Carpet Assy, Rear Seatback Board, RH
71890A	Carpet Assy, Rear Seatback Board, LH
72601A	Striker Sub-assy, Rear Seatback Look, RH
72602A	Striker Sub-assy, Rear Seatback Lock, LH
72603	Lock Sub-assy, Rear Seatback, RH
72604	Lock Sub-assy, Rear Seatback, LH
72646	Grommet, Rear Seatback Stop Button
72646A	Grommet, Rear Seatback Stop Button
72656	Button, Rear Seatback Stop Release
72656B	Button, Rear Seatback Stop Release
72693	Hook, Rear Seat Cushion Lock
72830	Armrest Assy, Rear Seat, Center
72887	Stopper, Rear Seat Center Armrest Door

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
