Toyota Lvn/Cre/Trn/Mrn

1991-06 → 1998-08 · chassis AE10# · catalogue 153130 · Japan

Discontinued model Data version 1999-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

26 part groups · 2 illustrations

Illustrations

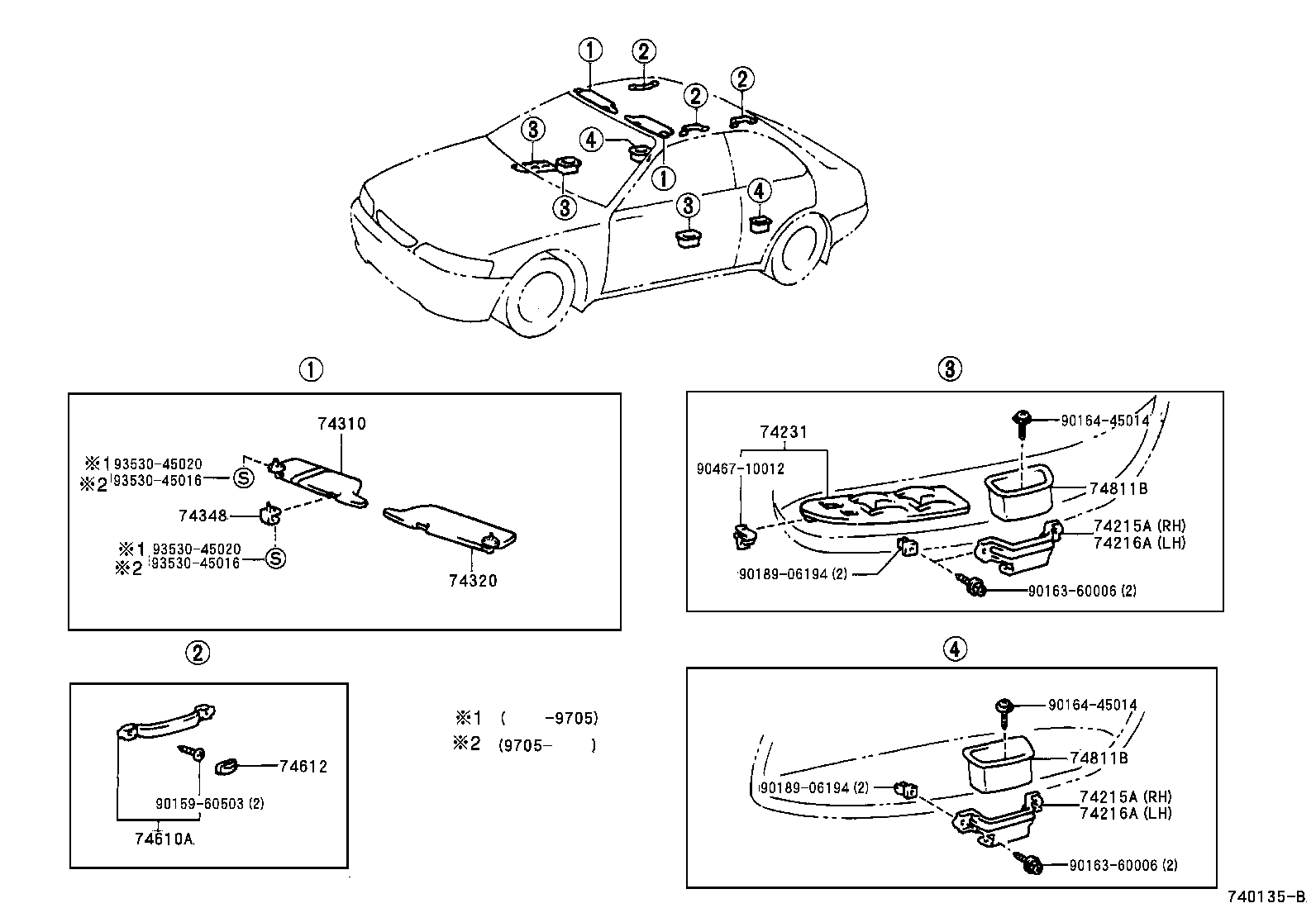

Figure MN1273C MN1273C 1991-06 → 1995-05 Figure 740135B 740135B 1992-05 → —

Part groups

PNCDescription
67701B Cover Sub-assy, Door Trim, RH
67702A Cover Sub-assy, Door Trim, LH
74215A Base, Door Armrest RH
74216A Base, Door Armrest, LH
74223 Cap, Door Armrest, RH
74224 Cap, Door Armrest, LH
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74233B Panel, Front Door Armrest Base, Lower RH
74234B Panel, Front Door Armrest Base, Lower LH
74241 Plug, Front Door Armrest, RH
74242 Plug, Front Door Armrest, LH
74295 Plate, Door Armrest, NO.3
74296 Plate, Door Armrest, NO.4
74310 Visor Assy, RH
74317 Cover, Visor Bracket, RH
74318 Cover, Visor Bracket, LH
74320 Visor Assy, LH
74348 Holder, Visor
74603 Grip Sub-assy, Assist, Front
74610A Grip Sub-assy, Assist
74612 Cover, Assist Grip
74613 Plug, Assist Grip
74631B Hook, Coat
74634A Collar, Coat Hook
74811B Handle, Door Pull
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
