Toyota Lvn/Cre/Trn/Mrn

1991-06 → 1998-08 · chassis AE10# · catalogue 153130 · Japan

Discontinued model Data version 1999-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

24 part groups · 2 illustrations

Illustrations

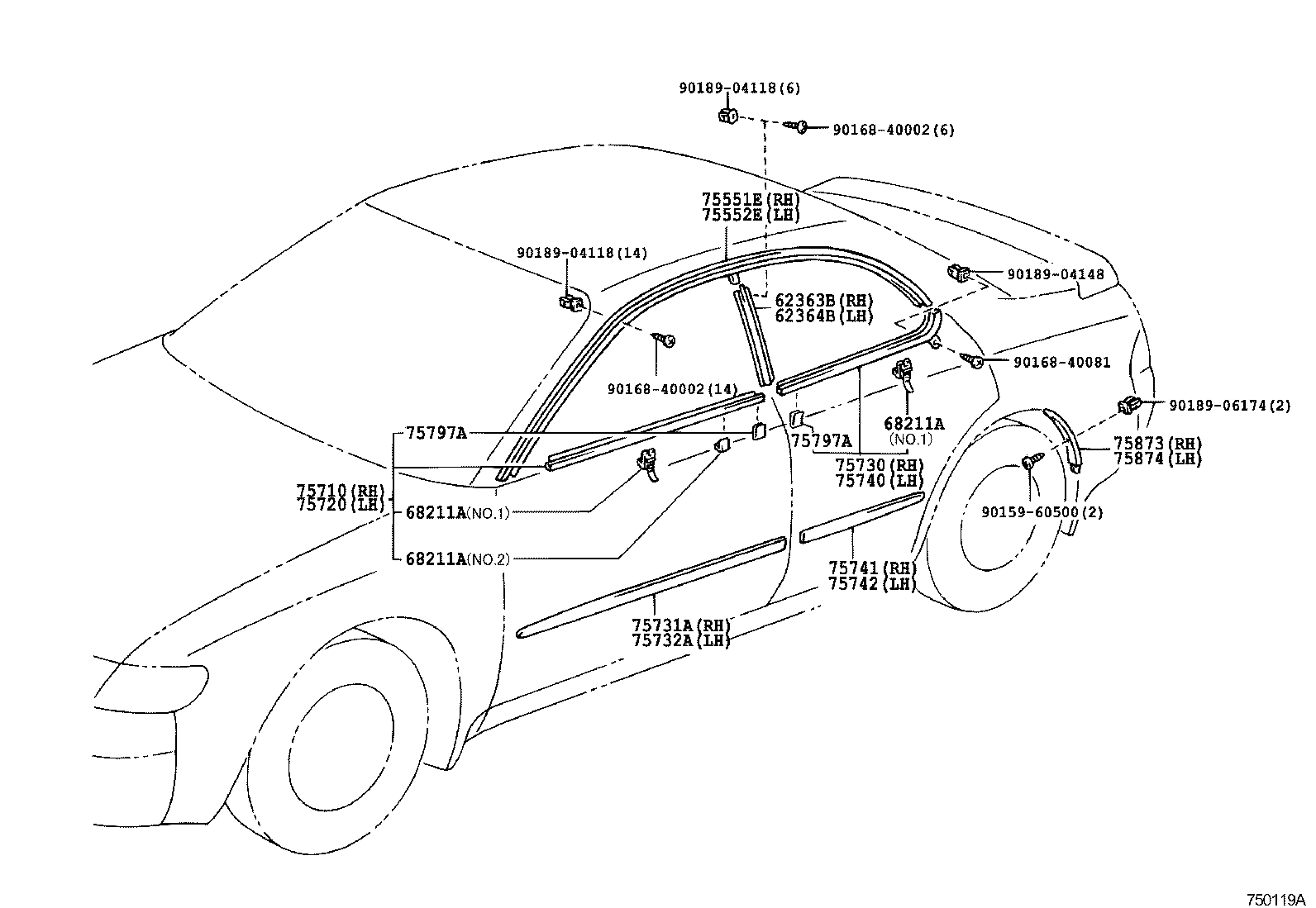

Figure MBV543B MBV543B 1991-06 → 1995-05 Figure 750119A 750119A 1992-05 → —

Part groups

PNCDescription
62363B Retainer, Roof Side Rail Weatherstrip, Center RH
62364B Retainer, Roof Side Rail Weatherstrip, Center LH
68211A Clip, Door Belt Moulding
75071A Moulding Sub-assy, Front Door, Outside RH
75072A Moulding Sub-assy, Front Door, Outside LH
75551E Moulding, Roof Drip Side Finish, RH
75552E Moulding, Roof Drip Side Finish, LH
75651 Moulding, Quarter, Outside RH
75652 Moulding, Quarter, Outside LH
75710 Moulding Assy, Front Door Belt, RH
75720 Moulding Assy, Front Door Belt, LH
75730 Moulding Assy, Rear Door Belt, RH
75731A Moulding, Front Door, Outside RH
75732A Moulding, Front Door, Outside LH
75740 Moulding Assy, Rear Door Belt, LH
75741 Moulding, Rear Door, Outside RH
75742 Moulding, Rear Door, Outside LH
75755C Moulding, Front Door Window Frame, Rear RH
75756C Moulding, Front Door Window Frame, Rear LH
75791B Clip, Belt Moulding Side
75792 Clip, Door Window Frame Moulding
75797A Retainer, Door Belt Moulding End, Front
75873 Moulding, Quarter Panel Wheel Opening, RH
75874 Moulding, Quarter Panel Wheel Opening, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
