Toyota Lvn/Cre/Trn/Mrn

1991-06 → 1998-08 · chassis AE10# · catalogue 153130 · Japan

Discontinued model Data version 1999-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

10 part groups · 2 illustrations

Illustrations

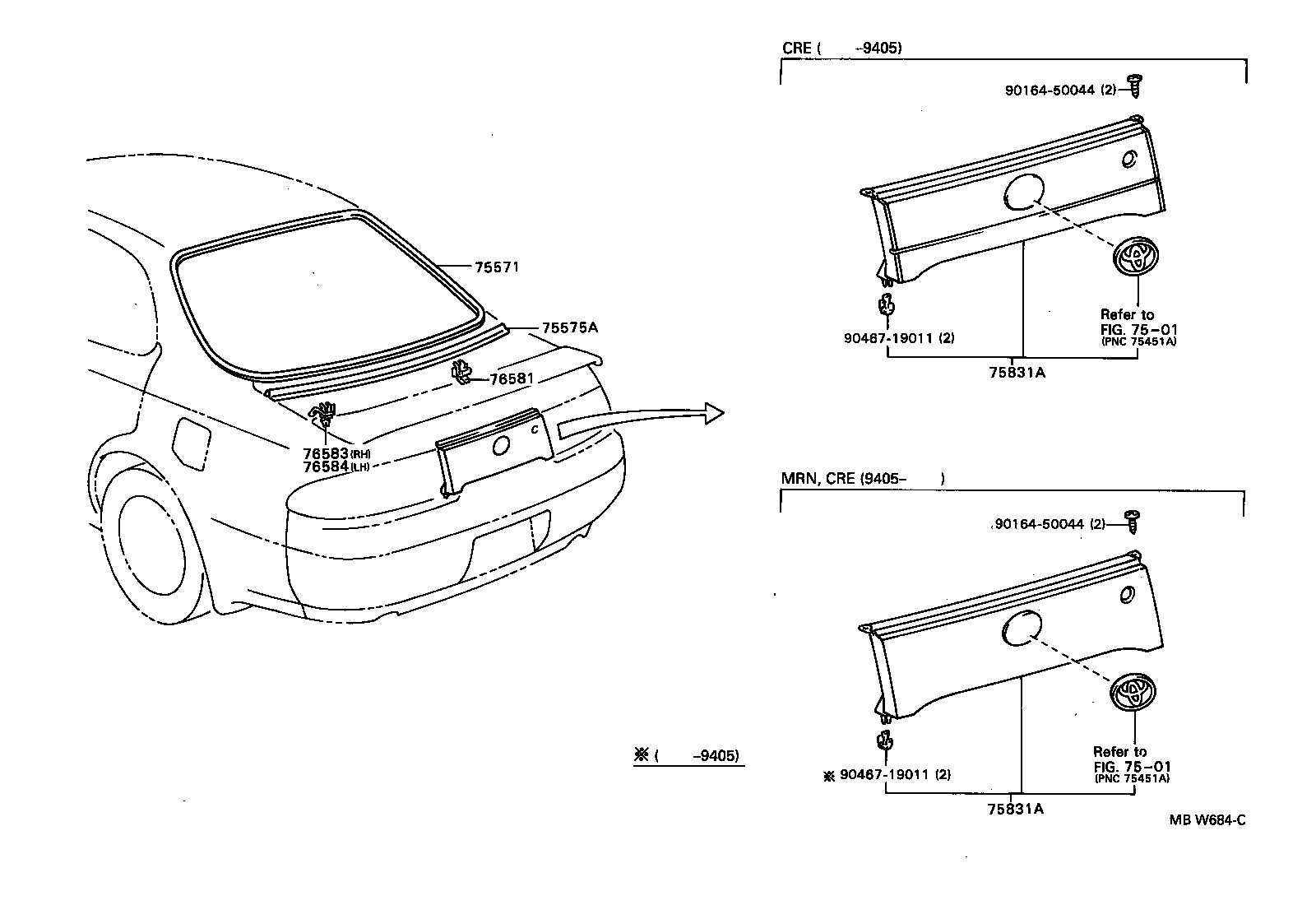

Figure MBV544A MBV544A 1991-06 → 1995-05 Figure MBW684C MBW684C 1992-05 → —

Part groups

PNCDescription
62955E Retainer, Lower Back Finish Panel
75396A Clip, Outside Moulding, NO.2
75494A Clip, Outside Moulding, NO.3
75571 Moulding, Back Window, Outside Upper
75575A Moulding, Back Window, Outside Lower
75803E Moulding Sub-assy, Lower Back Panel
75831A Panel, Lower Back Finish, Center
76581 Retainer, Back Window Outside Moulding
76583 Retainer, Back Window Outside Lower Moulding, RH
76584 Retainer, Back Window Outside Lower Moulding, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
