Toyota Lvn/Cre/Trn/Mrn

1991-06 → 1998-08 · chassis AE10# · catalogue 153130 · Japan

Discontinued model Data version 1999-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

14 part groups · 4 illustrations

Illustrations

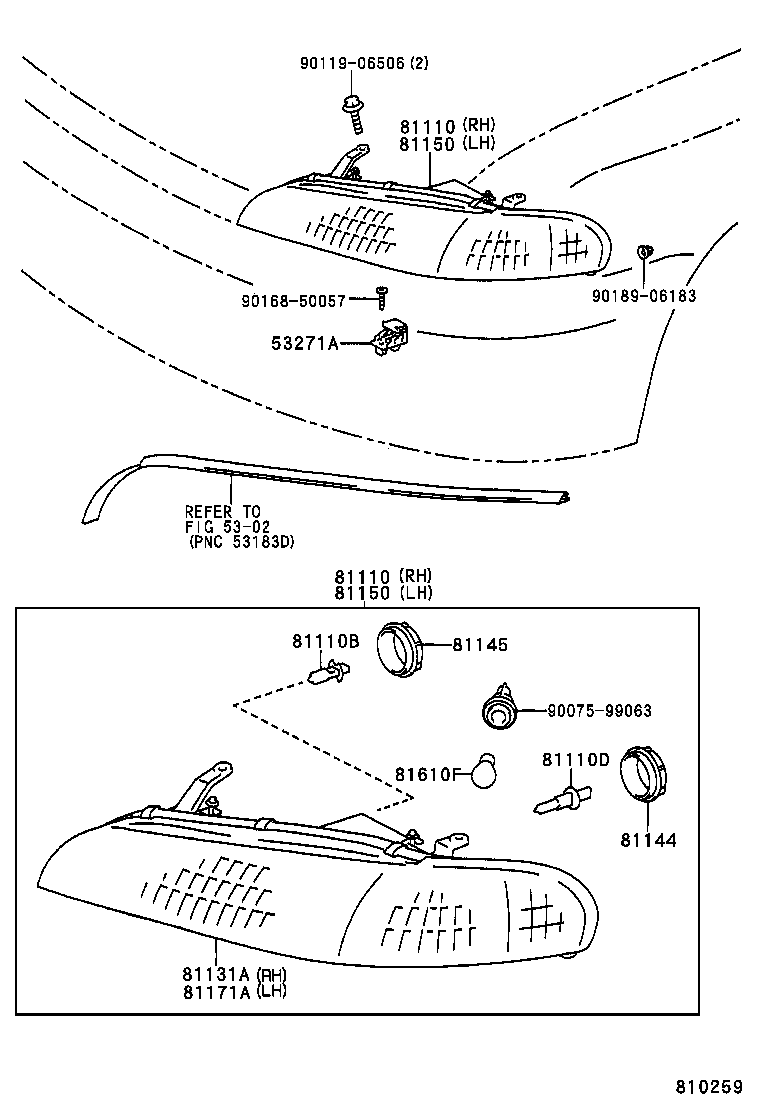

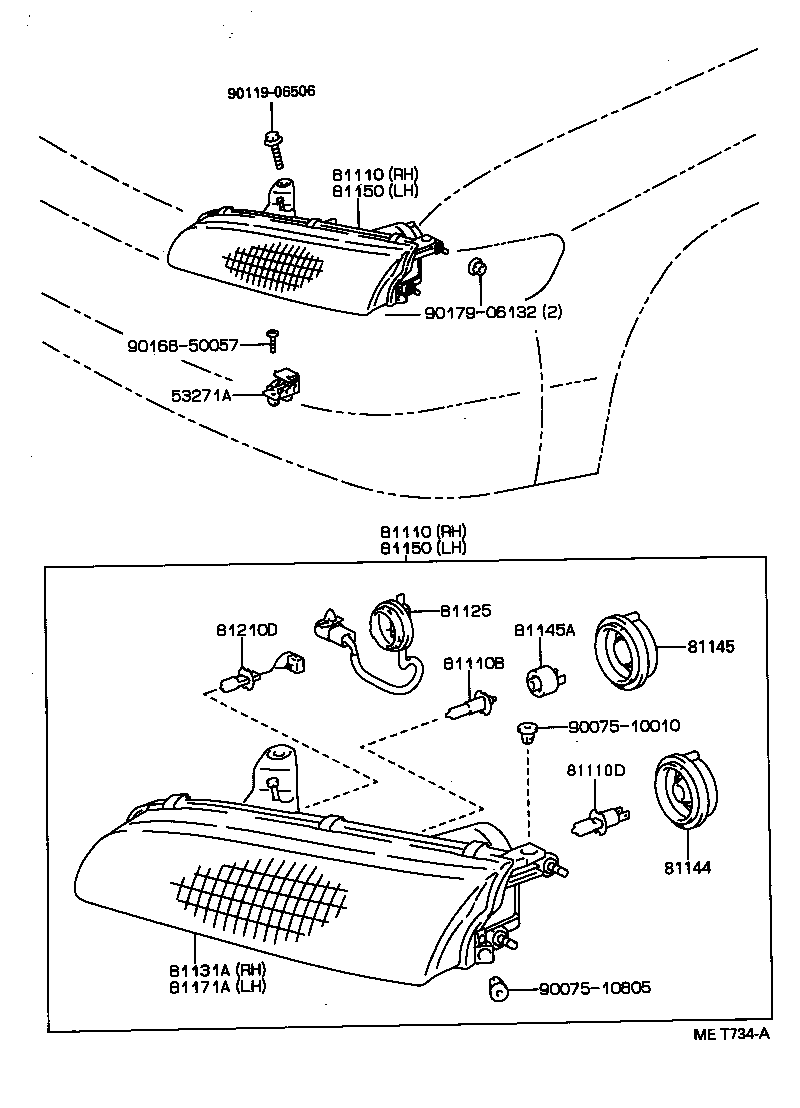

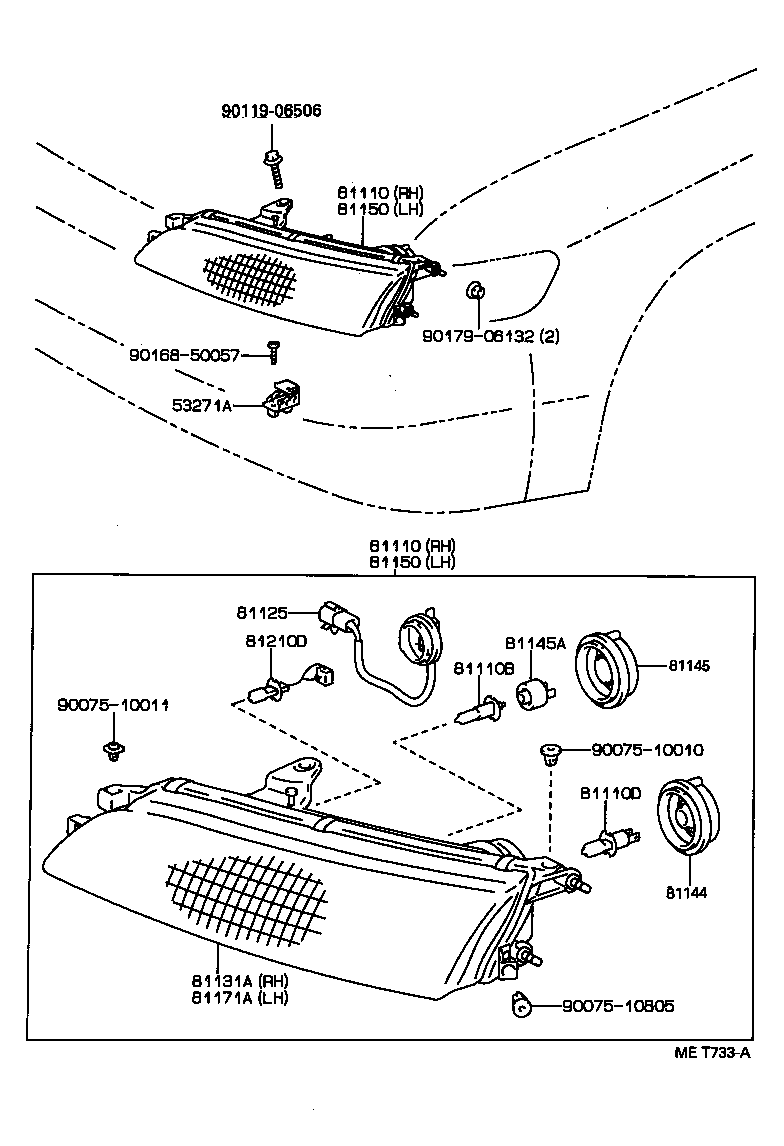

Figure 810258 810258 1991-06 → — Figure 810259 810259 1991-06 → — Figure MET733A MET733A 1992-05 → — Figure MET734A MET734A 1992-05 → —

Part groups

PNCDescription
53271A Bracket, Headlamp Mounting
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81125 Cord, Headlamp
81131A Unit, Headlamp, RH
81144 Cover, Headlamp, NO.1
81144D Cap, Headlamp Locking
81145 Cover, Headlamp, NO.2
81145A Adapter Assy
81150 Headlamp Assy, LH
81171A Unit, Headlamp, LH
81210D Bulb, Fog Lamp
81610F Bulb(FOR CLEARANCE LAMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
