Toyota Lvn/Cre/Trn/Mrn

1991-06 → 1998-08 · chassis AE10# · catalogue 153130 · Japan

Discontinued model Data version 1999-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Clearance Lamp

6 part groups · 2 illustrations

Illustrations

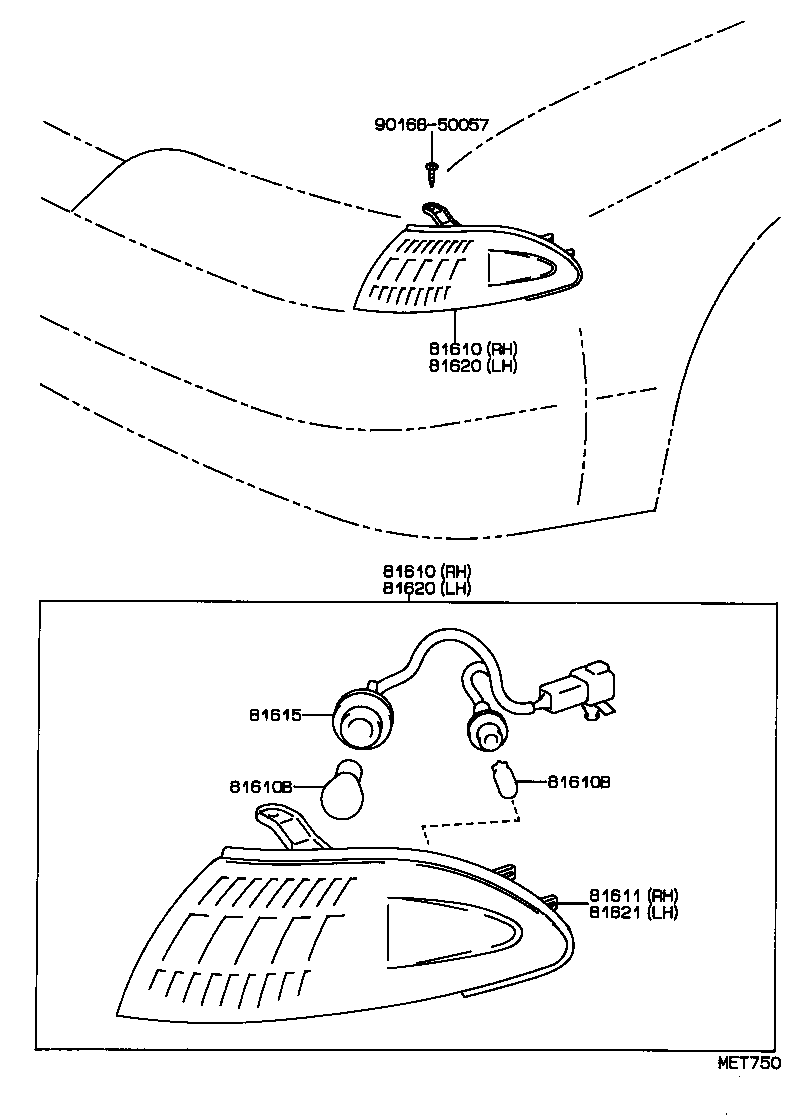

Figure MET749 MET749 1992-05 → — Figure MET750 MET750 1992-05 → —

Part groups

PNCDescription
81610 Lamp Assy, Parking & Clearance, RH
81610B Bulb(FOR PARKING & CLEARANCE LAMP)
81611 Lens, Parking & Clearance Lamp, RH
81615 Socket And Wire, Clearance Lamp
81620 Lamp Assy, Parking & Clearance, LH
81621 Lens, Parking & Clearance Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
