Toyota Lvn/Cre/Trn/Mrn
1991-06 → 1998-08 · chassis AE10# · catalogue 153130 · Japan
Discontinued model
Data version 1999-02

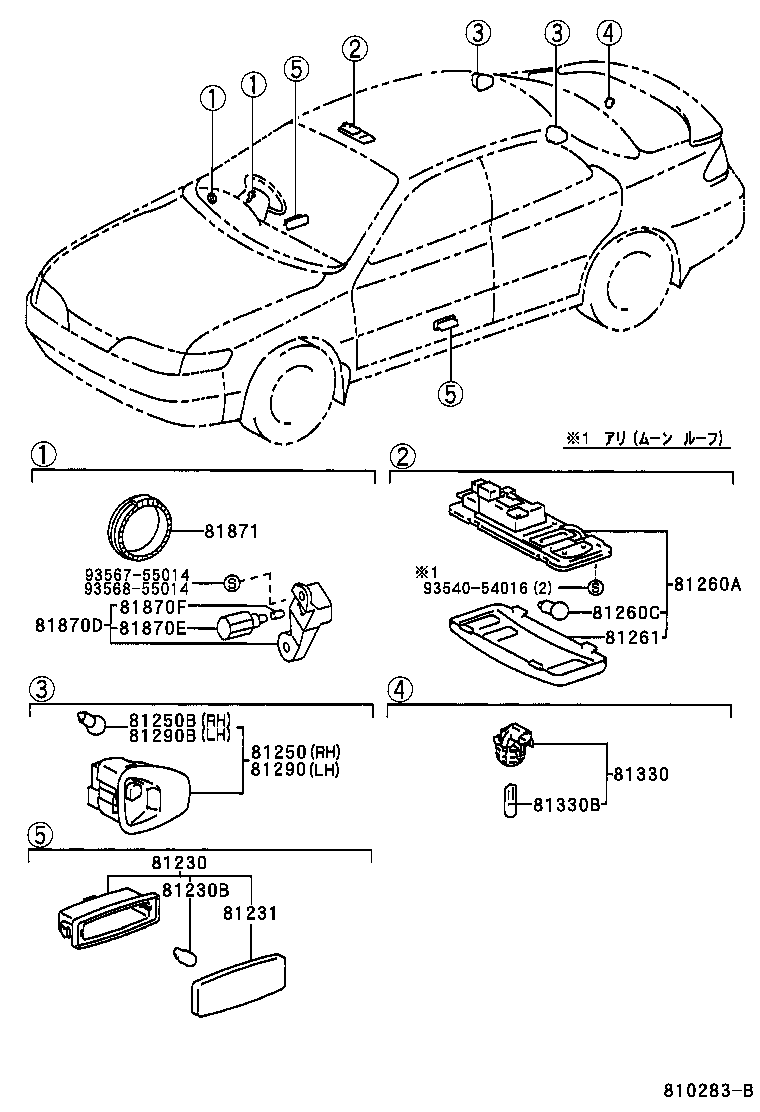

Interior Lamp
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81230 | Lamp Assy, Courtesy |
| 81230B | Bulb(FOR COURTESY LAMP) |
| 81231 | Lens, Courtesy Lamp |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240B | Bulb, Room Lamp, NO.1 |
| 81241 | Lens, Room Lamp, NO.1 |
| 81250 | Lamp Assy, Room, NO.2 |
| 81250B | Bulb, Room Lamp, NO.2 |
| 81260A | Lamp Assy, Map |
| 81260C | Bulb(FOR MAP LAMP) |
| 81261 | Lens And Cover, Map Lamp |
| 81290 | Lamp Assy, Room, NO.3 |
| 81290B | Bulb, Room Lamp, NO.3 |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81870D | Lamp Assy, Key Cylinder |
| 81870E | Bulb, Key Cylinder Lamp |
| 81870F | Cap, Key Cylinder Lamp Bulb |
| 81871 | Lens, Key Illumination |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
