Toyota Lvn/Cre/Trn/Mrn

1991-06 → 1998-08 · chassis AE10# · catalogue 153130 · Japan

Discontinued model Data version 1999-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

34 part groups · 15 illustrations

Illustrations

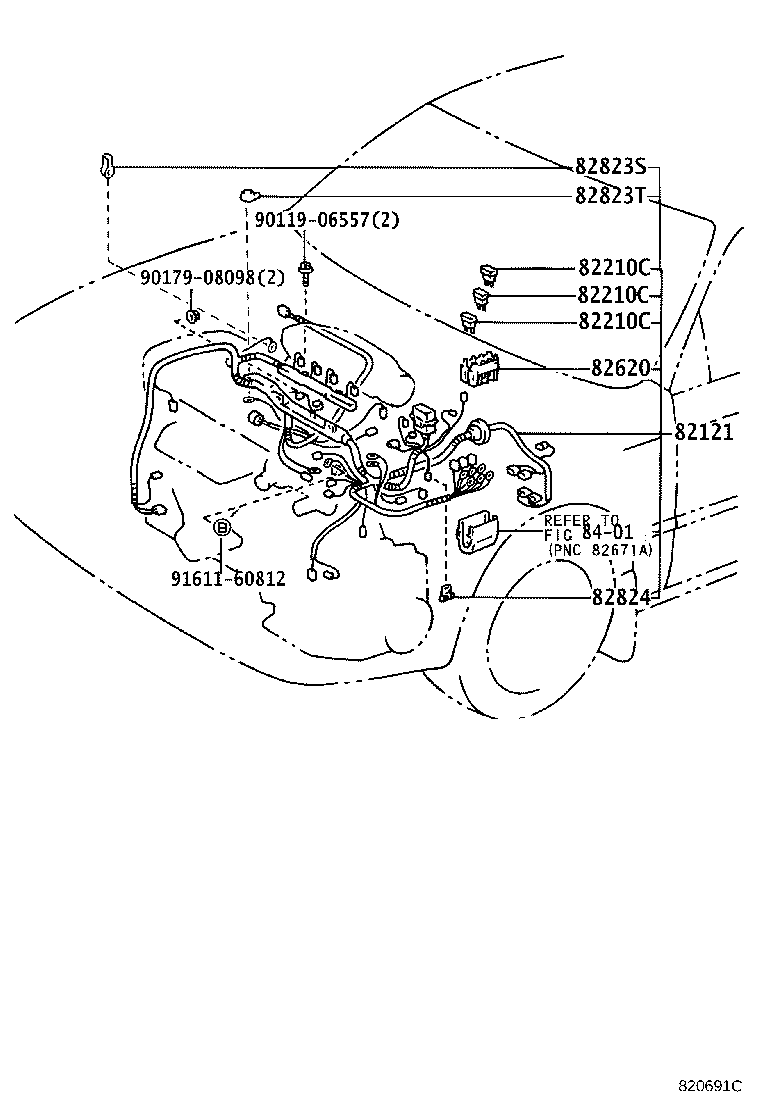

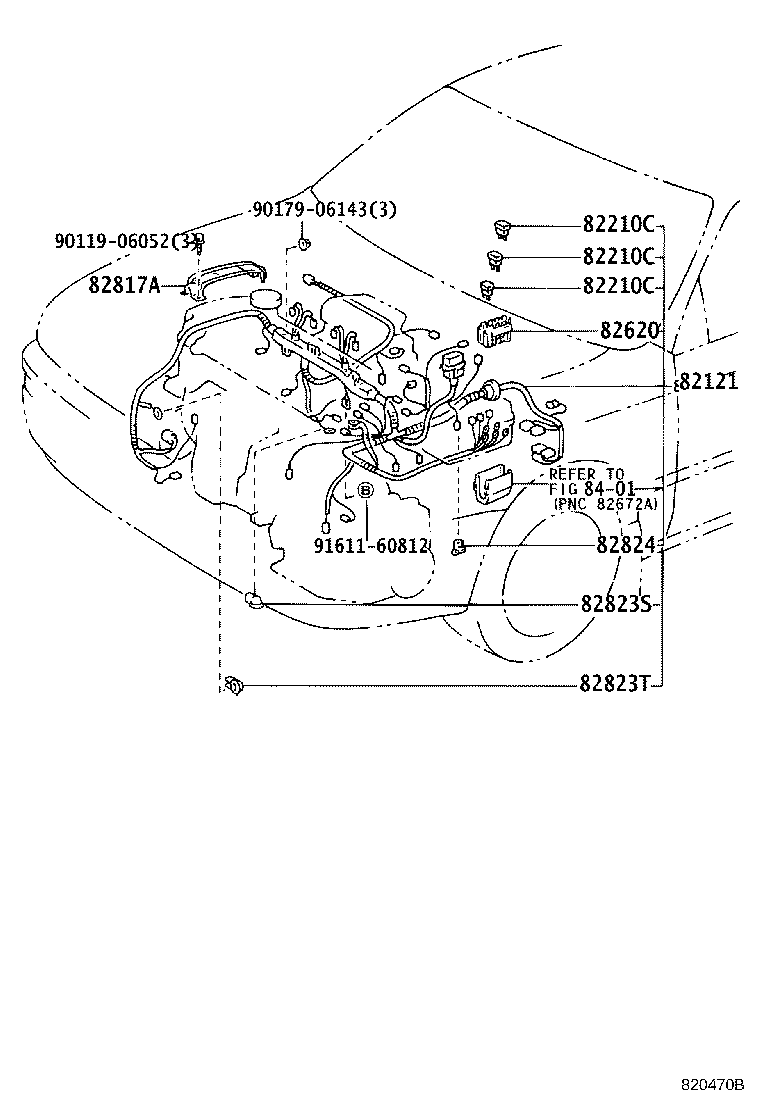

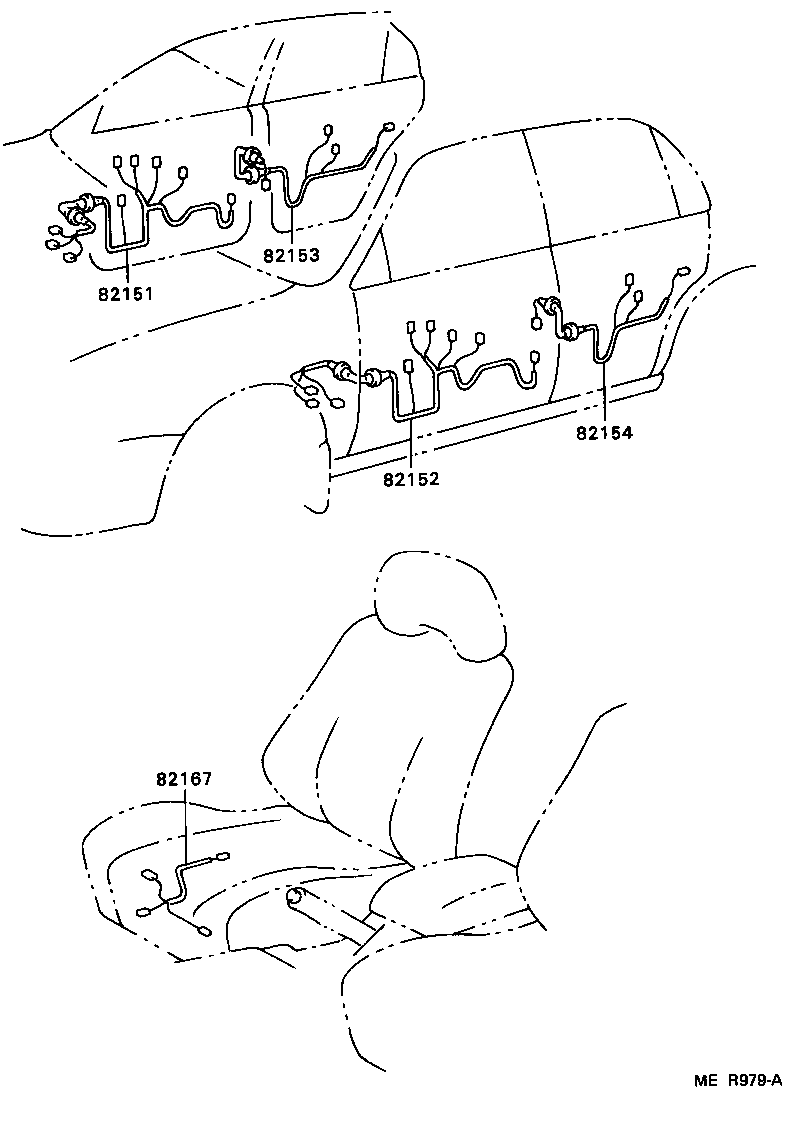

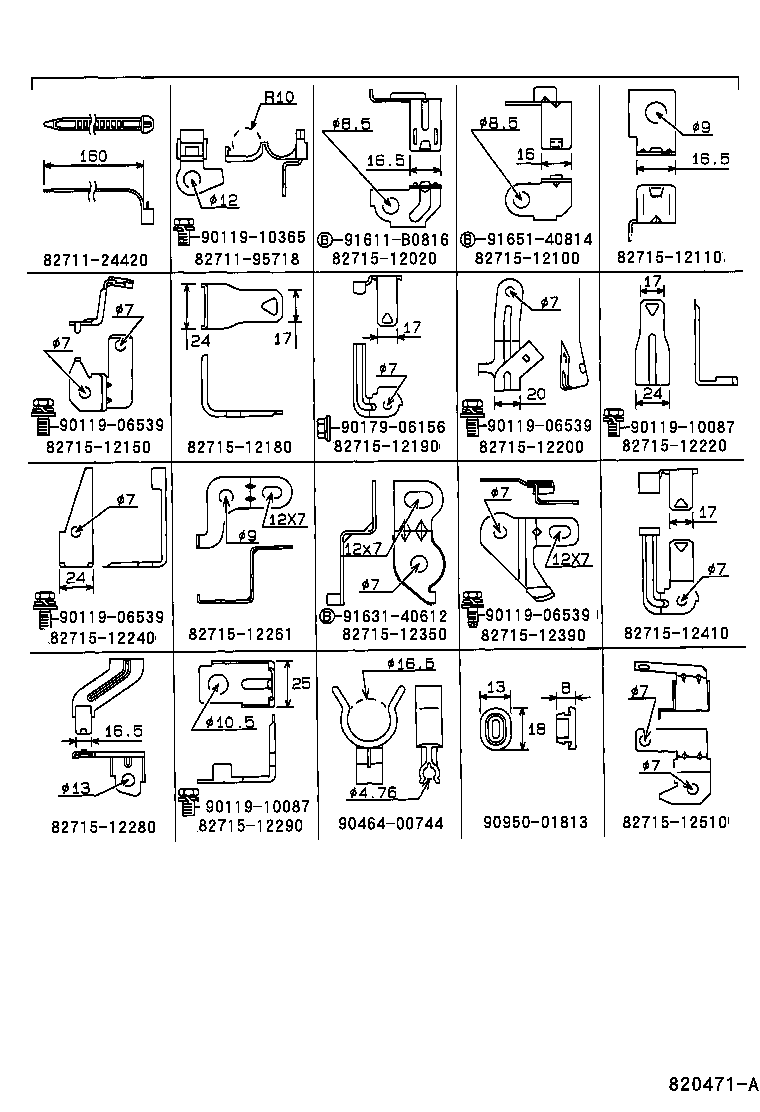

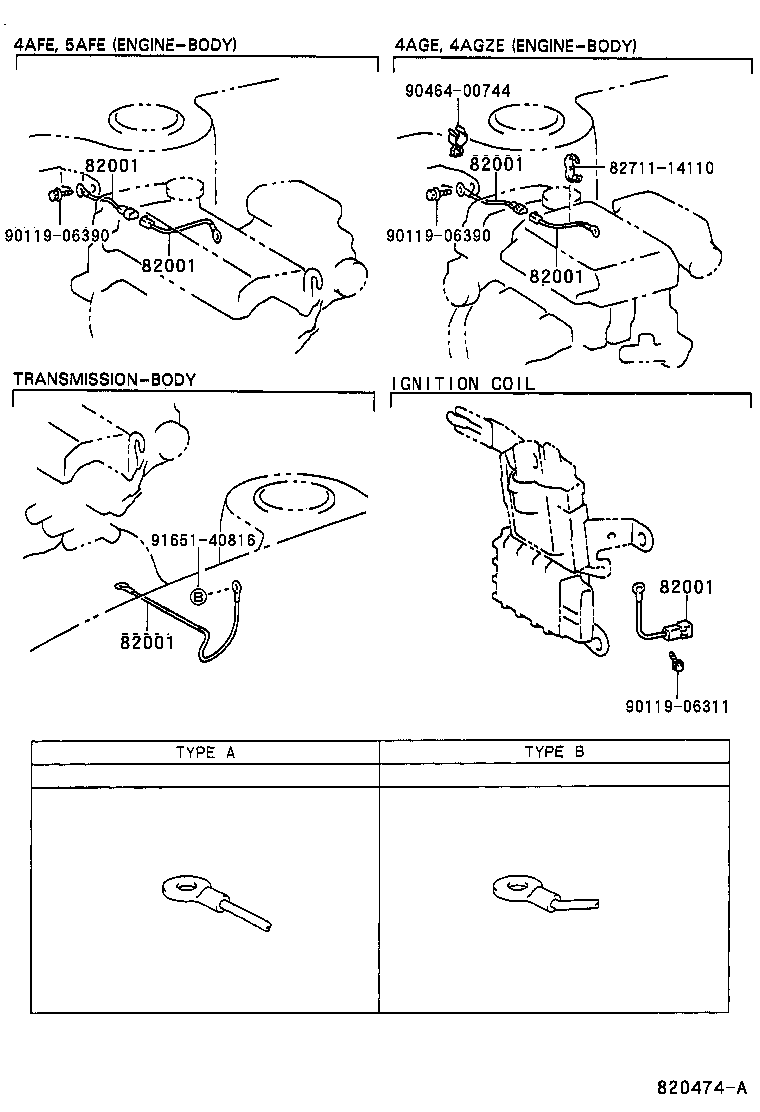

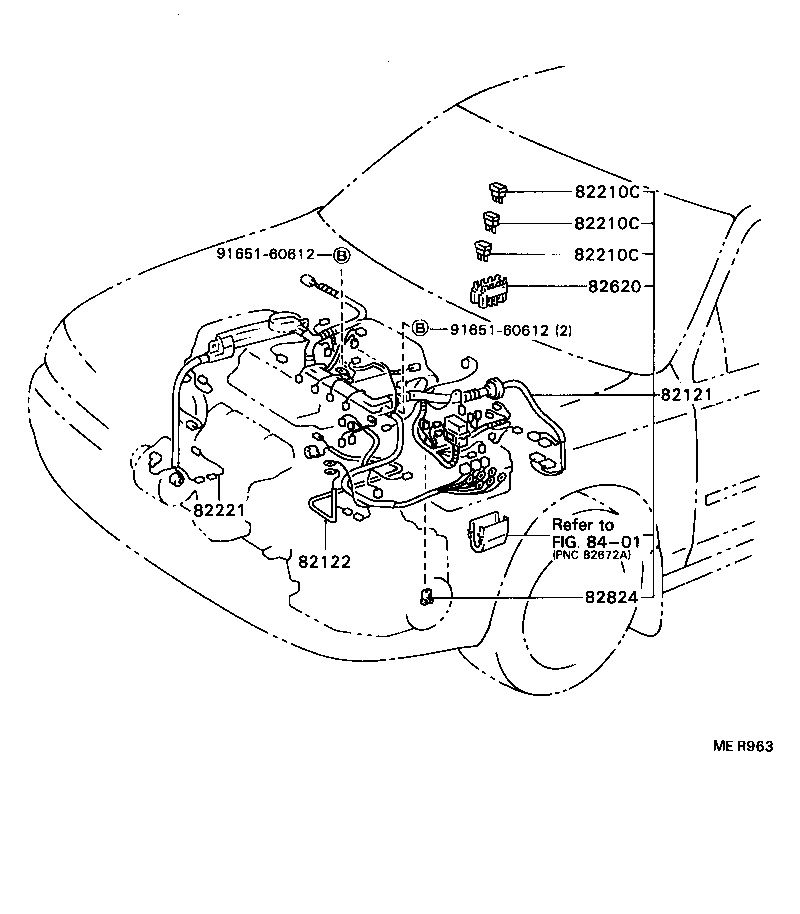

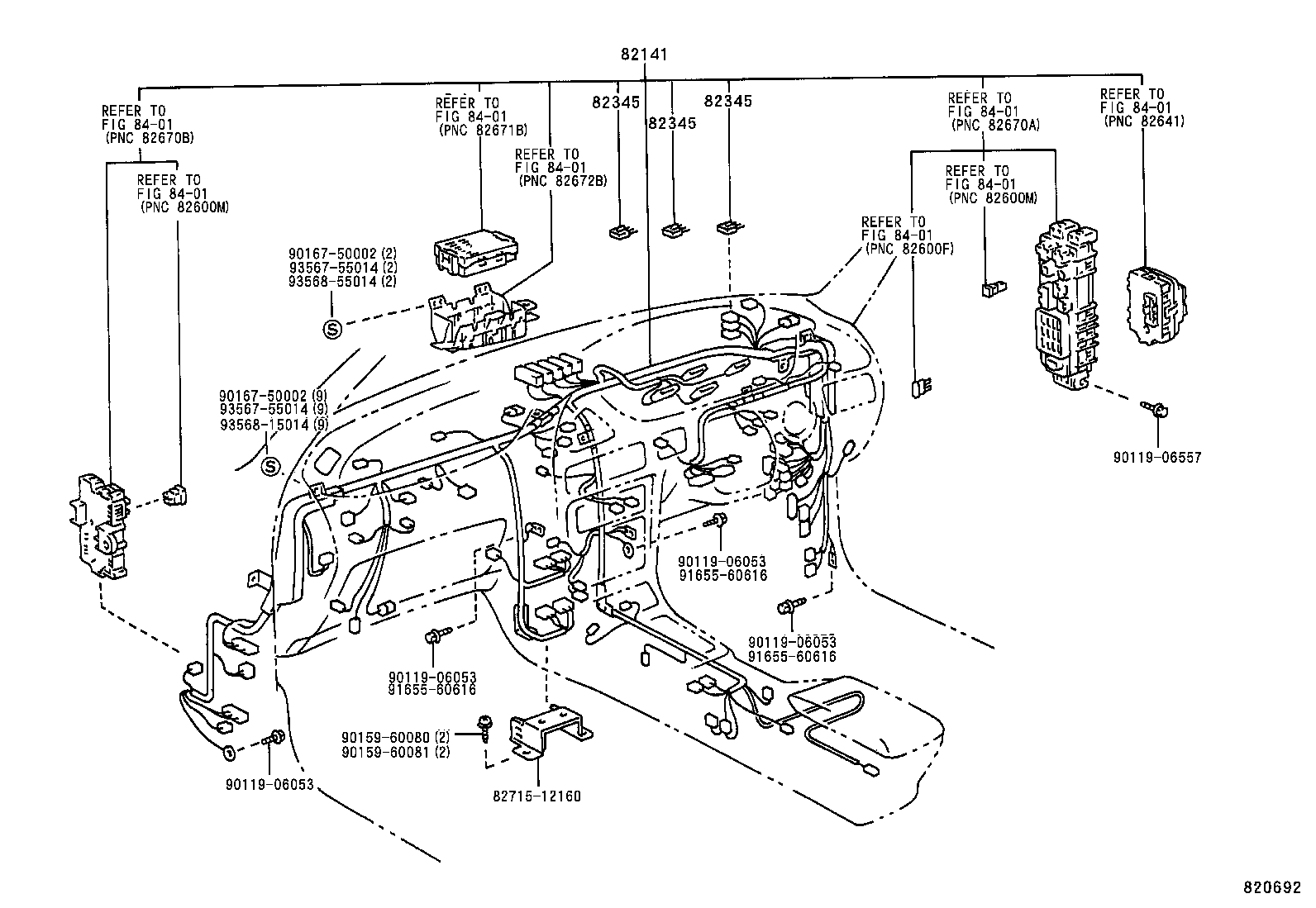

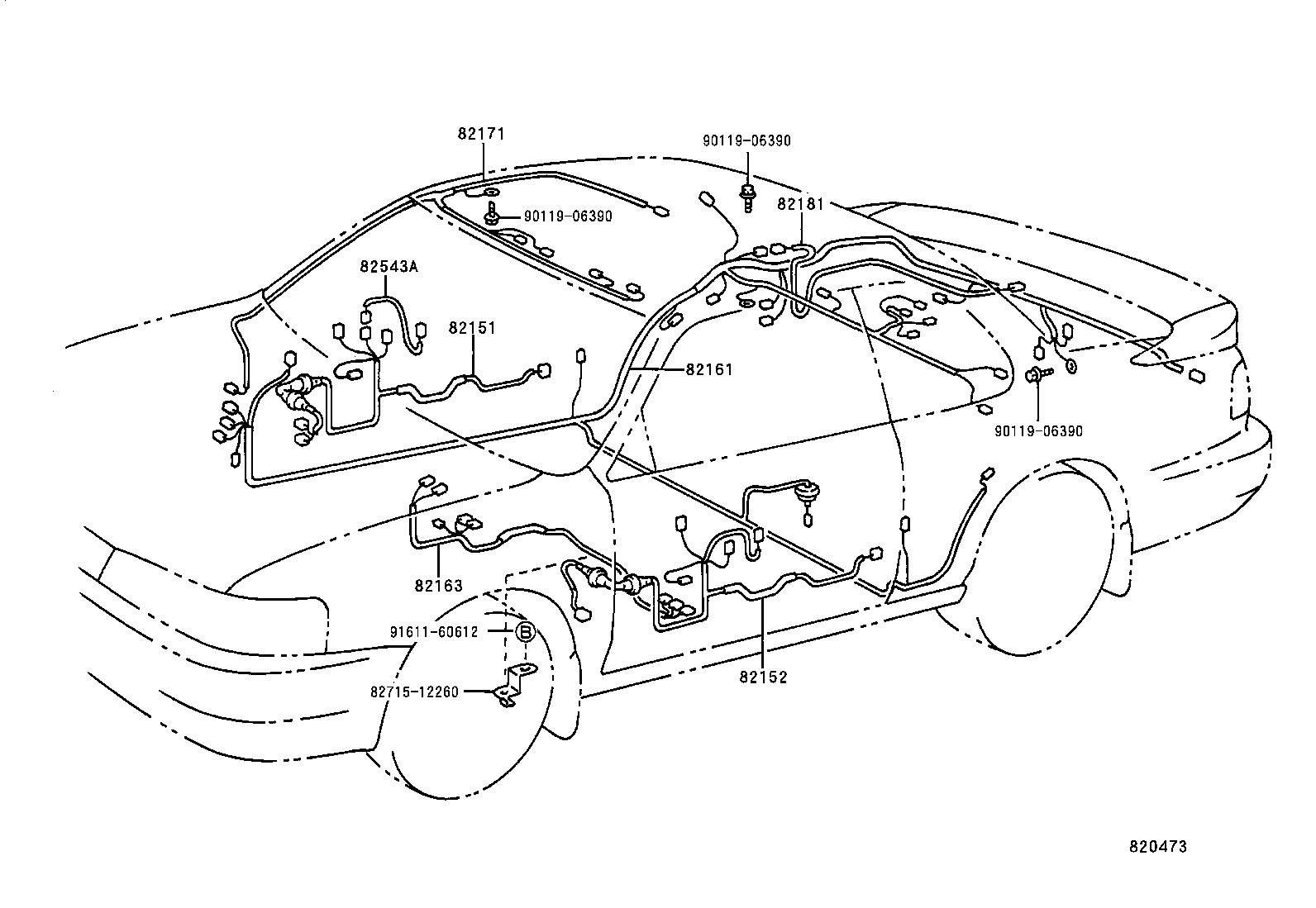

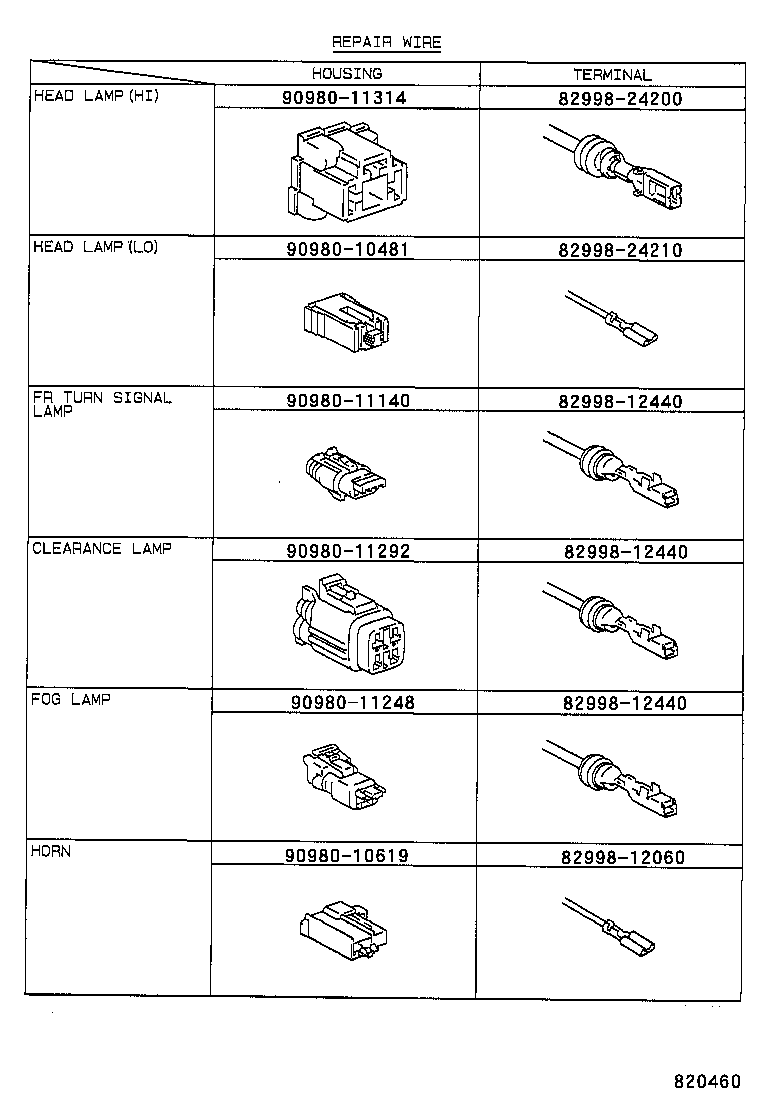

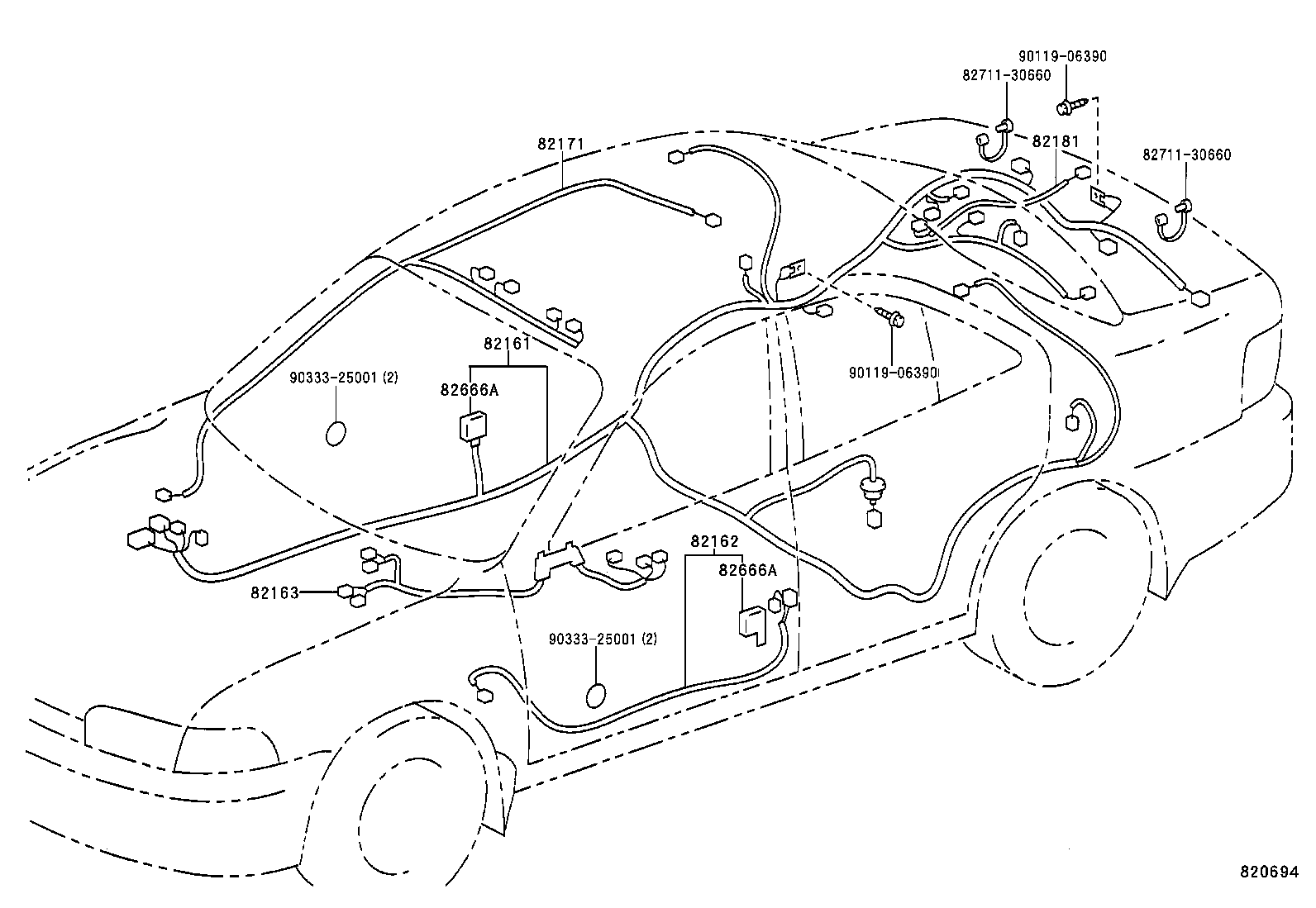

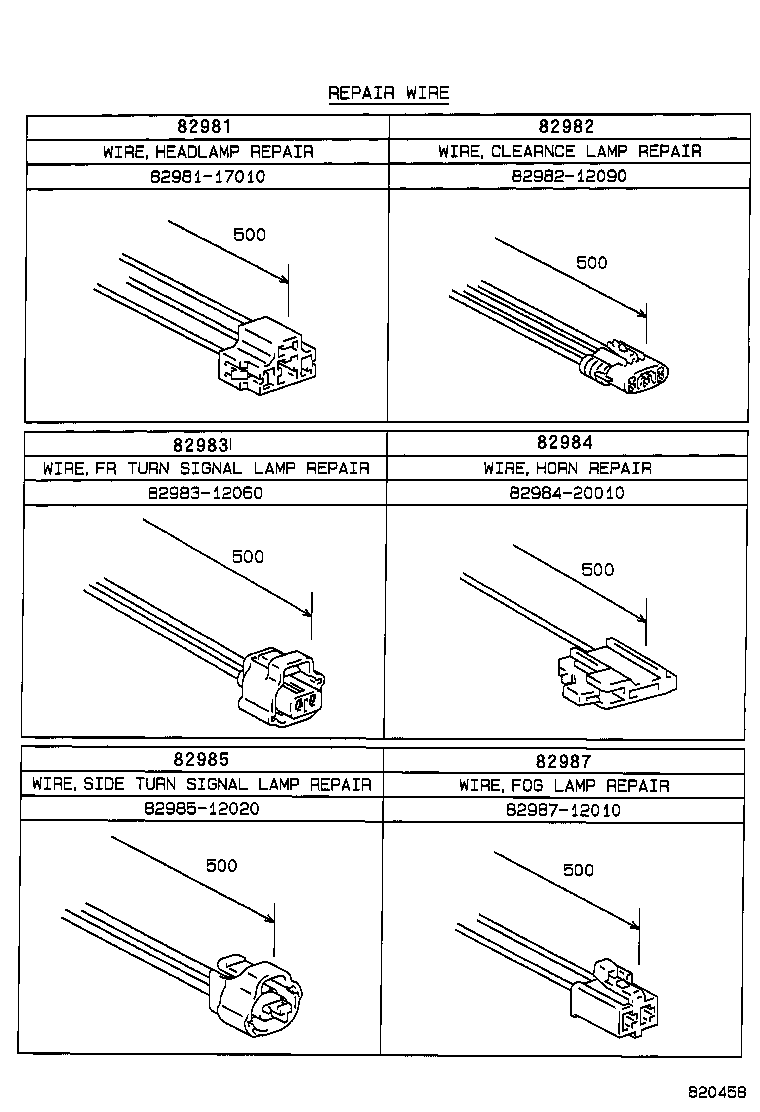

Figure 820690 820690 1991-06 → — Figure 820470B 820470B 1991-06 → — Figure 820691C 820691C 1991-06 → — Figure MER963 MER963 1991-06 → — Figure 820471A 820471A 1991-06 → — Figure 820692 820692 1991-06 → — Figure 820473 820473 1991-06 → — Figure MER979A MER979A 1992-05 → — Figure 820694 820694 1992-05 → — Figure 820458 820458 1991-06 → — Figure 820459 820459 1991-06 → — Figure 820460 820460 1992-05 → — Figure 820461 820461 1992-05 → — Figure 820474A 820474A 1991-06 → — Figure 820462 820462 1991-06 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82167 Wire, Seat, NO.1
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82210C Fusible Link
82221 Wire, Oil Pressure Switch
82345 Diode
82543A Wire, Power Window, RH
82620 Block Assy, Fusible Link
82666A Holder, Connector NO.2
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82985 Wire, Side Turn Signal Lamp Repair
82987 Wire, Fog Lamp Repair
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
