Toyota Lvn/Cre/Trn/Mrn
1991-06 → 1998-08 · chassis AE10# · catalogue 153130 · Japan
Discontinued model
Data version 1999-02
Meter
33 part groups · 4 illustrations
Part groups

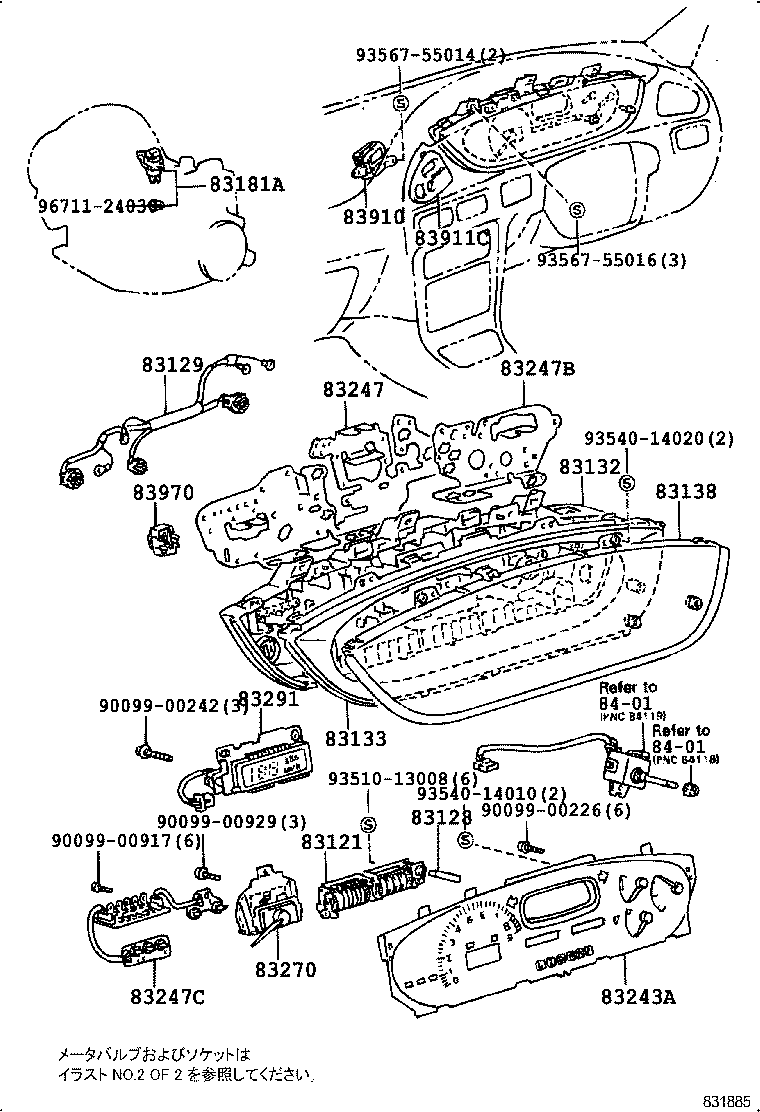

| PNC | Description |
|---|---|

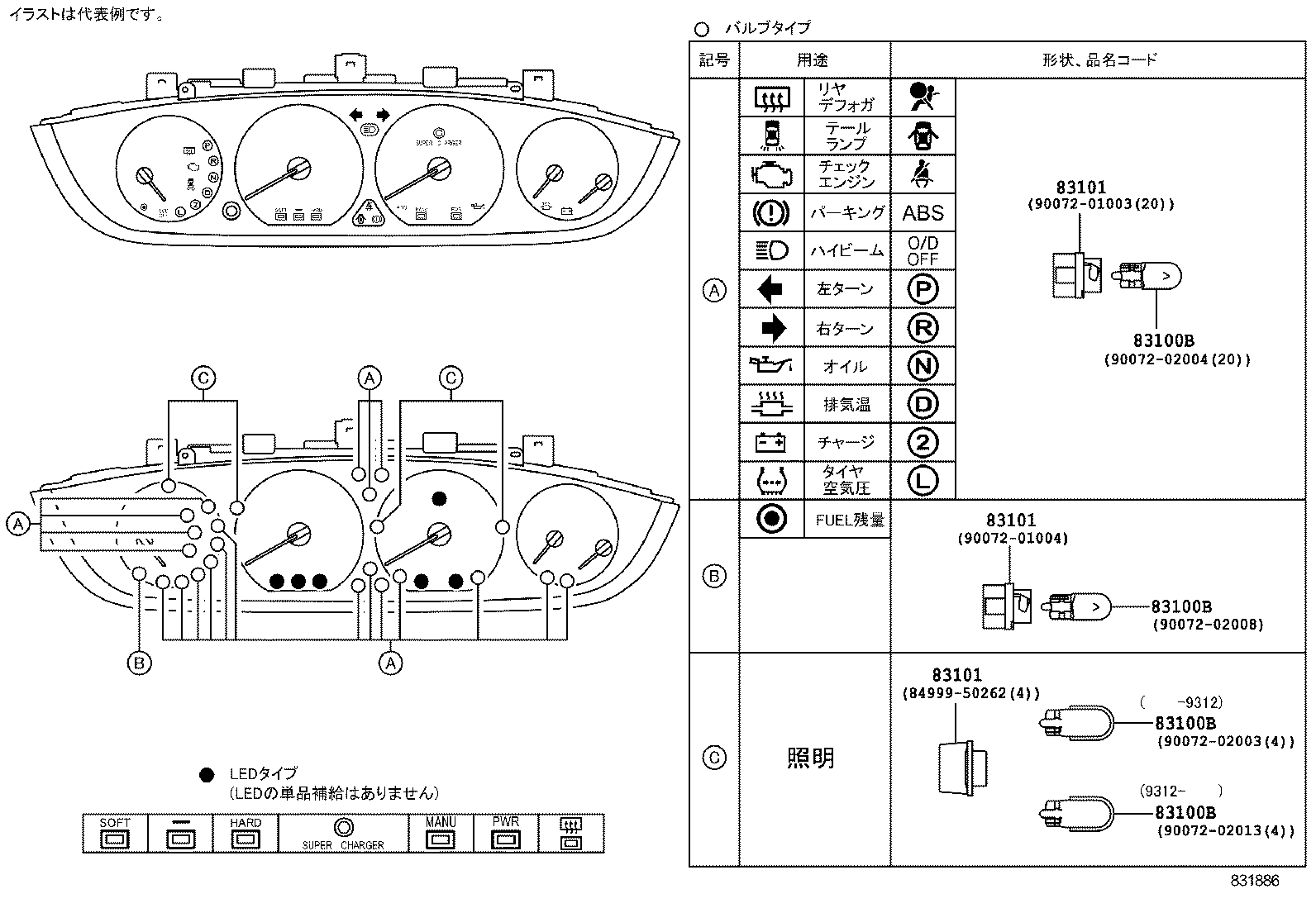

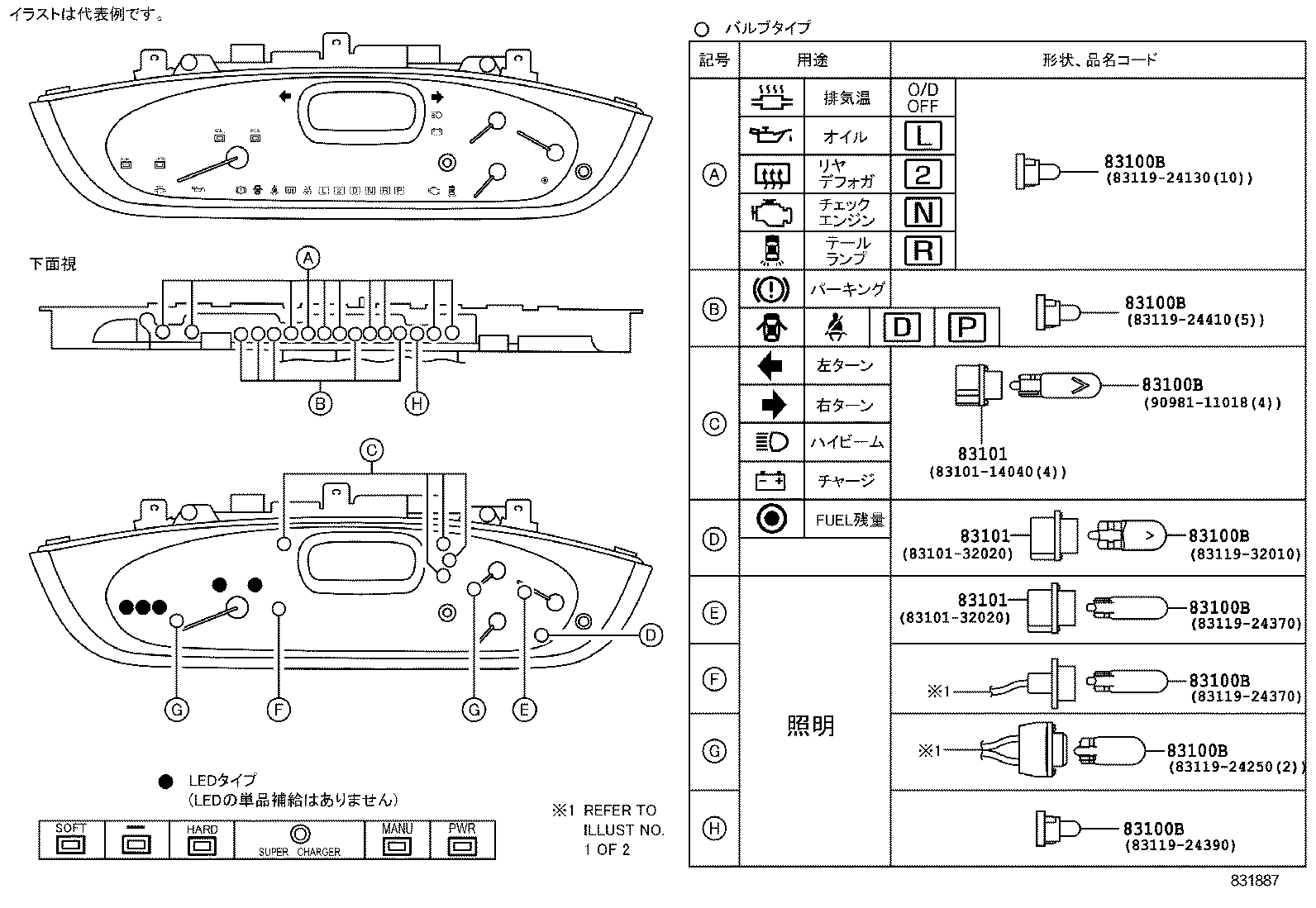

| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83110 | Speedometer Assy |
| 83121 | Counter, Total |
| 83128 | Knob, Trip Counter |
| 83129 | Wire, Meter |
| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83134 | Cover, Combination Meter, NO.1 |
| 83136A | Cover, Combination Meter |
| 83138 | Glass, Speedometer |
| 83145 | Lens, Meter, NO.1 |
| 83145A | Lens, Meter, NO.2 |
| 83145B | Lens, Meter, NO.3 |
| 83145C | Lens, Meter, NO.4 |
| 83145D | Lens, Meter, NO.5 |
| 83145E | Lens, Meter, NO.6 |
| 83145F | Lens, Meter, NO.7 |
| 83145T | Lens, Meter, NO.8 |
| 83145U | Lens, Meter, NO.9 |
| 83145V | Lens, Meter, NO.10 |
| 83181A | Sensor, Speedometer |
| 83243A | Gauge Sub-assy, Fuel Receiver |
| 83244 | Gauge Sub-assy, Water Temperature Receiver |
| 83247 | Plate, Meter Circuit |
| 83247B | Plate, Meter Circuit, NO.2 |
| 83247C | Plate, Mater Circuit, NO.3 |
| 83270 | Tachometer Assy, Engine |
| 83291 | Computer, Combination Meter |
| 83910 | Clock Assy |
| 83910B | Bulb, Clock Indicator |
| 83911C | Ornament, Clock |
| 83970 | Buzzer Assy, Reverse Warning |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
