Toyota Lvn/Cre/Trn/Mrn
1991-06 → 1998-08 · chassis AE10# · catalogue 153130 · Japan
Discontinued model
Data version 1999-02
Abs & Vsc

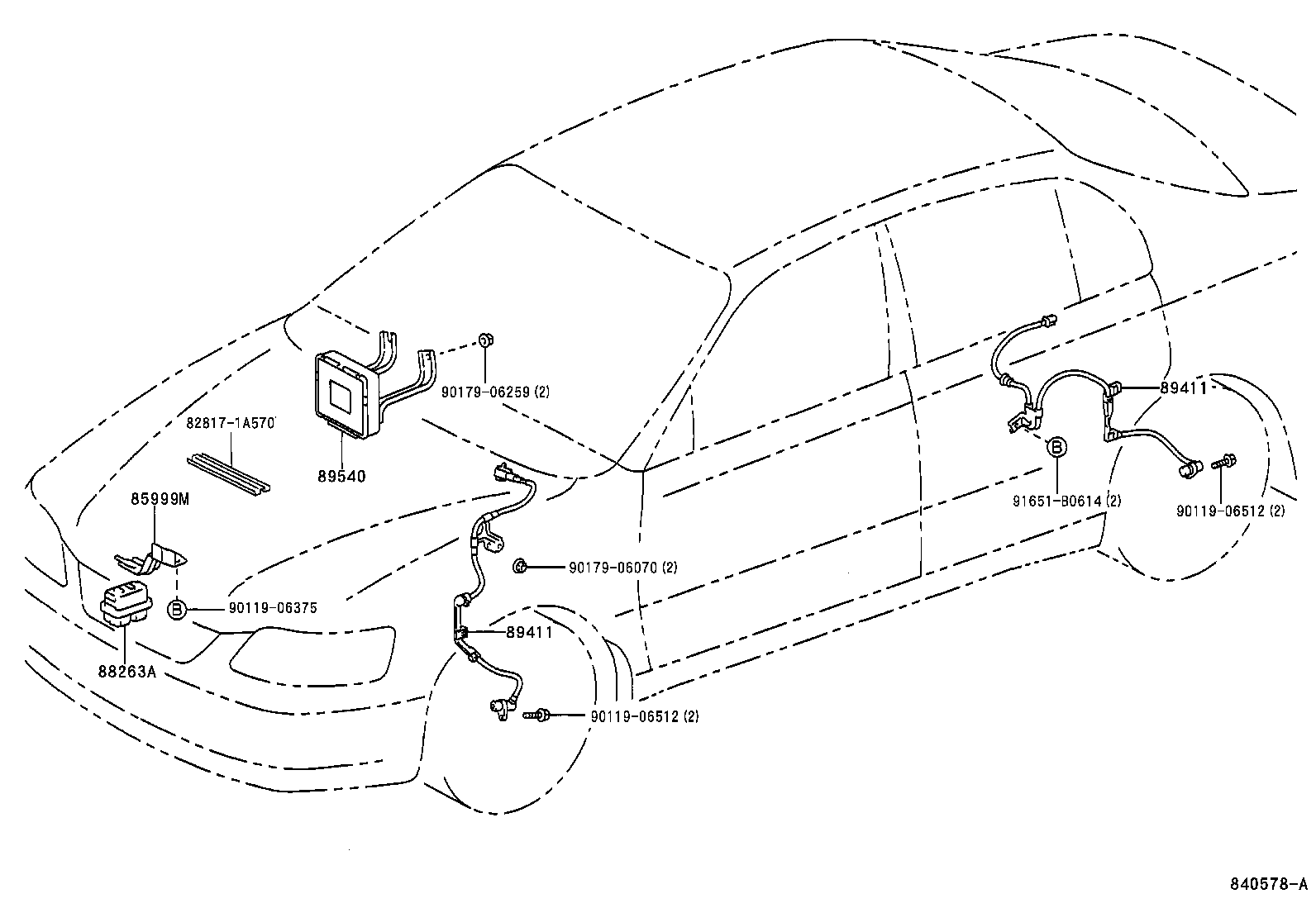

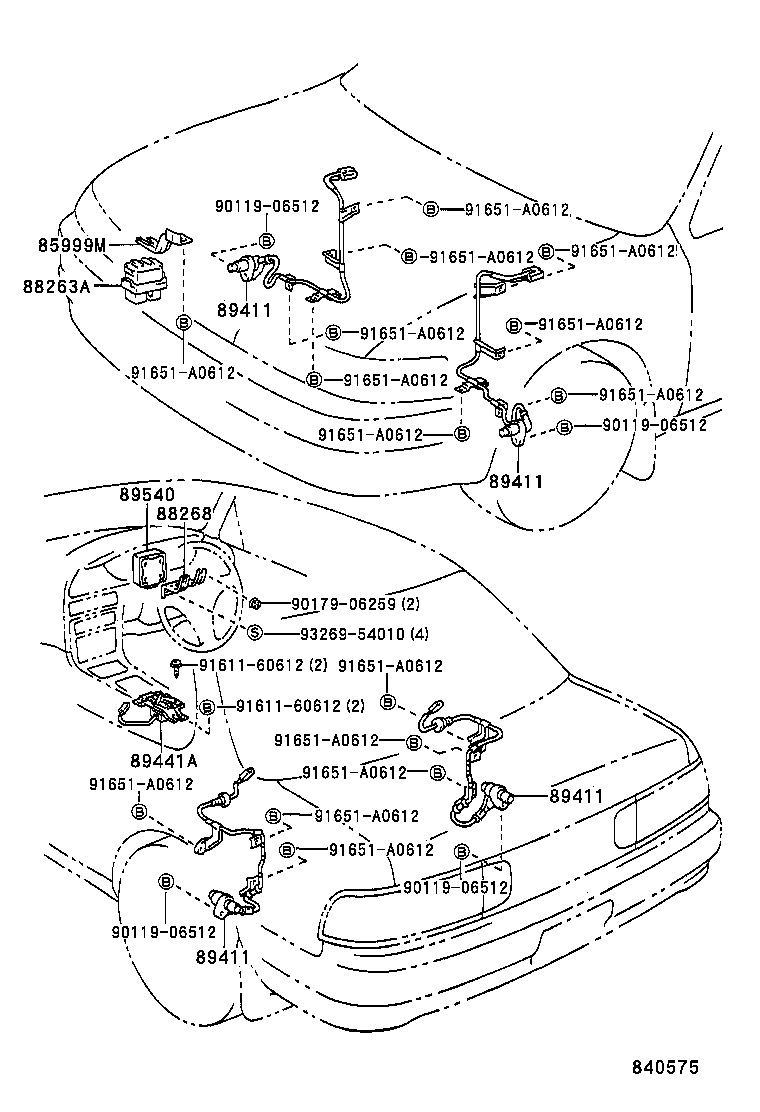

6 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 85999M | Bracket, Relay |
| 88263A | Relay, Skid Control |
| 88268 | Bracket, Skid Control Computer, NO.2 |
| 89411 | Sensor, Speed |
| 89441A | Sensor, Deceleration |
| 89540 | Computer Assy, Skid Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
