Toyota Lvn/Cre/Trn/Mrn

1991-06 → 1998-08 · chassis AE10# · catalogue 153130 · Japan

Discontinued model Data version 1999-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Purifier OR Ion Generator

17 part groups · 8 illustrations

Illustrations

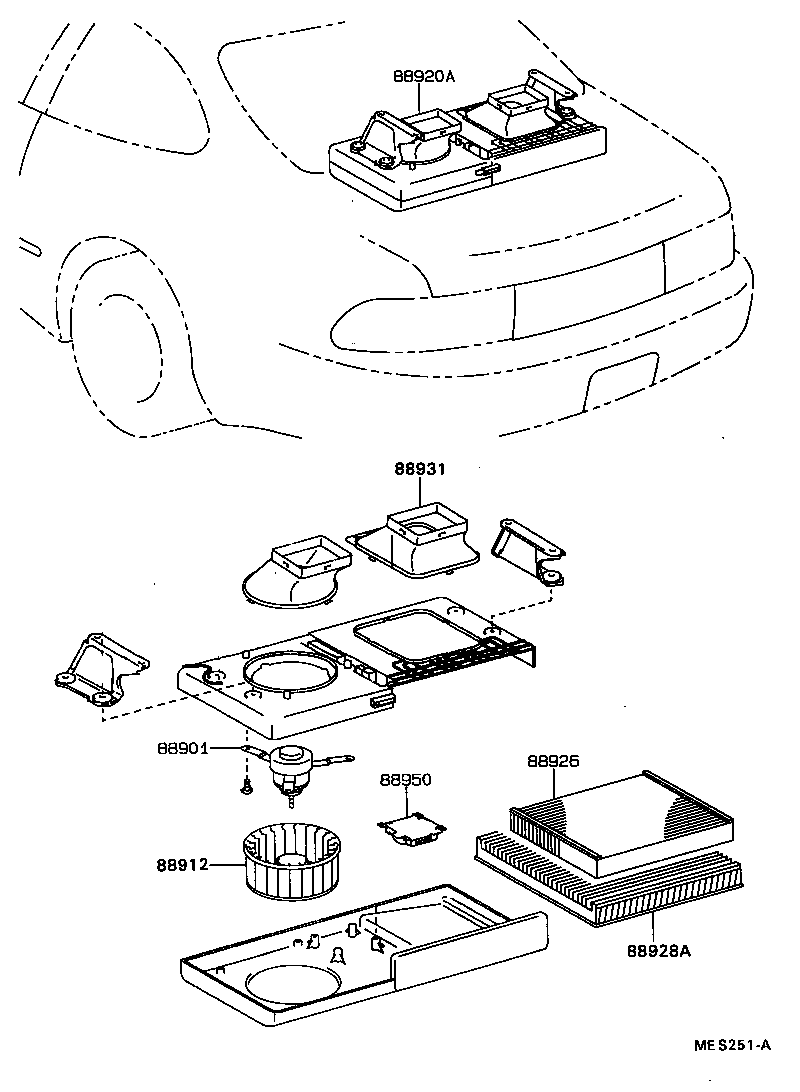

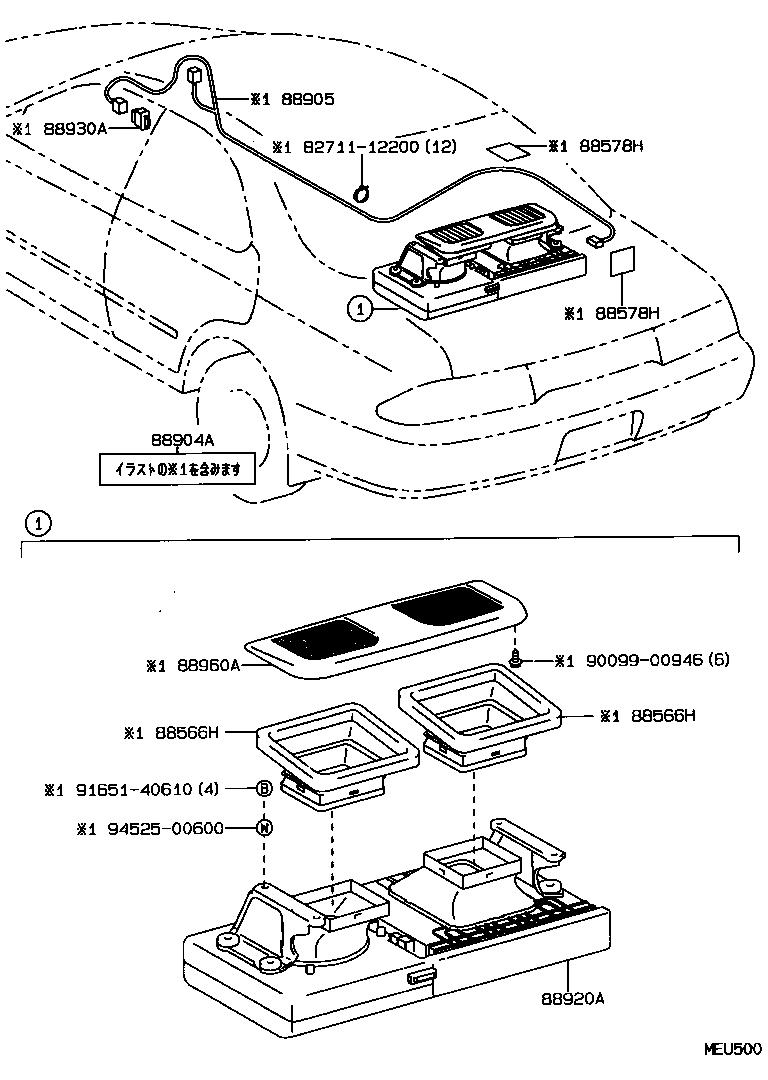

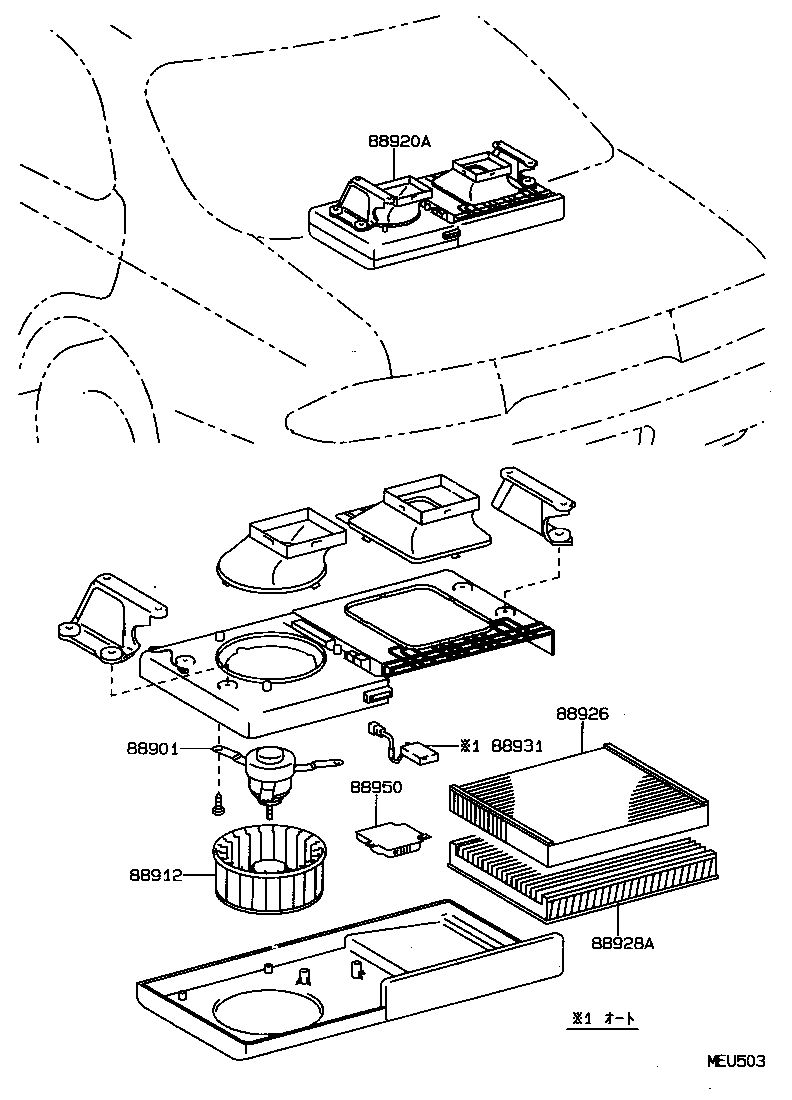

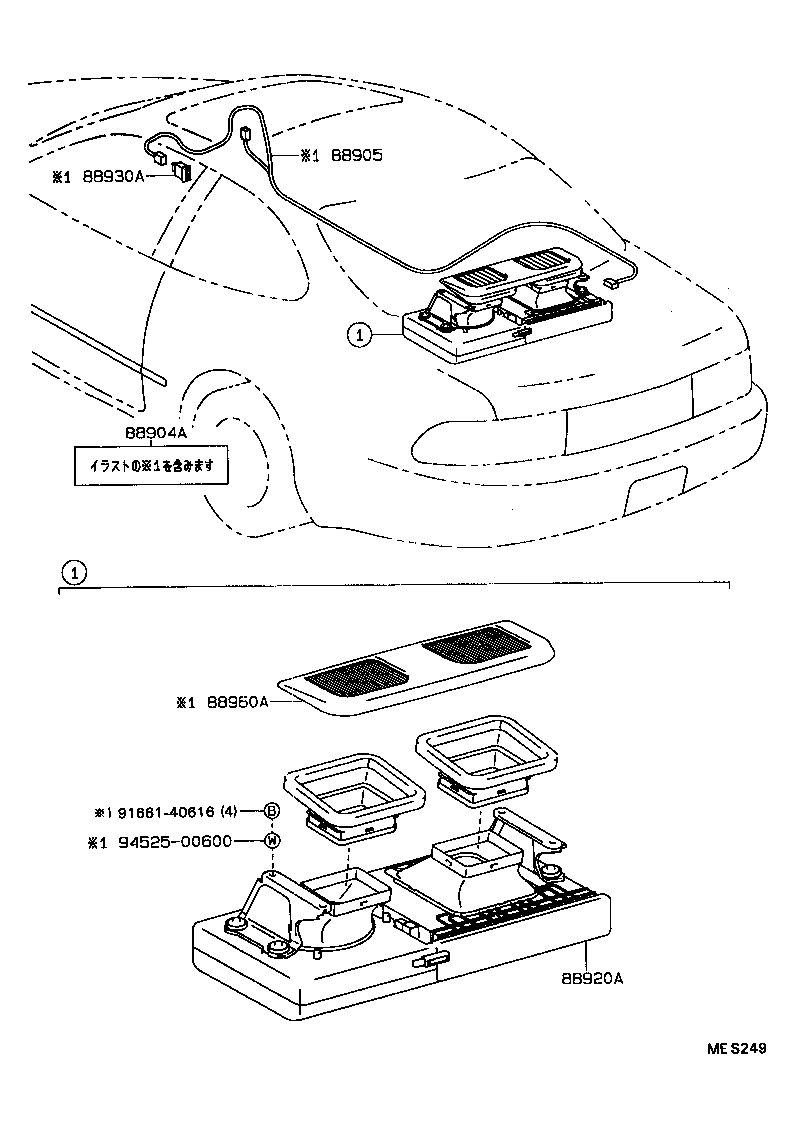

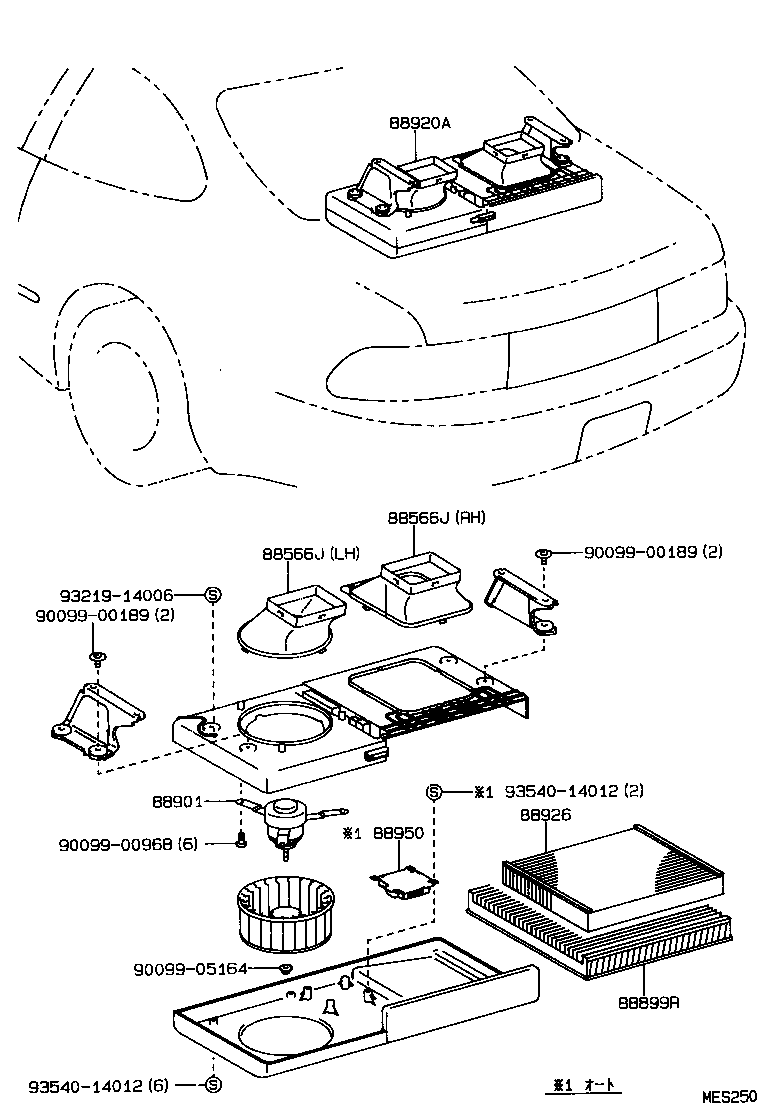

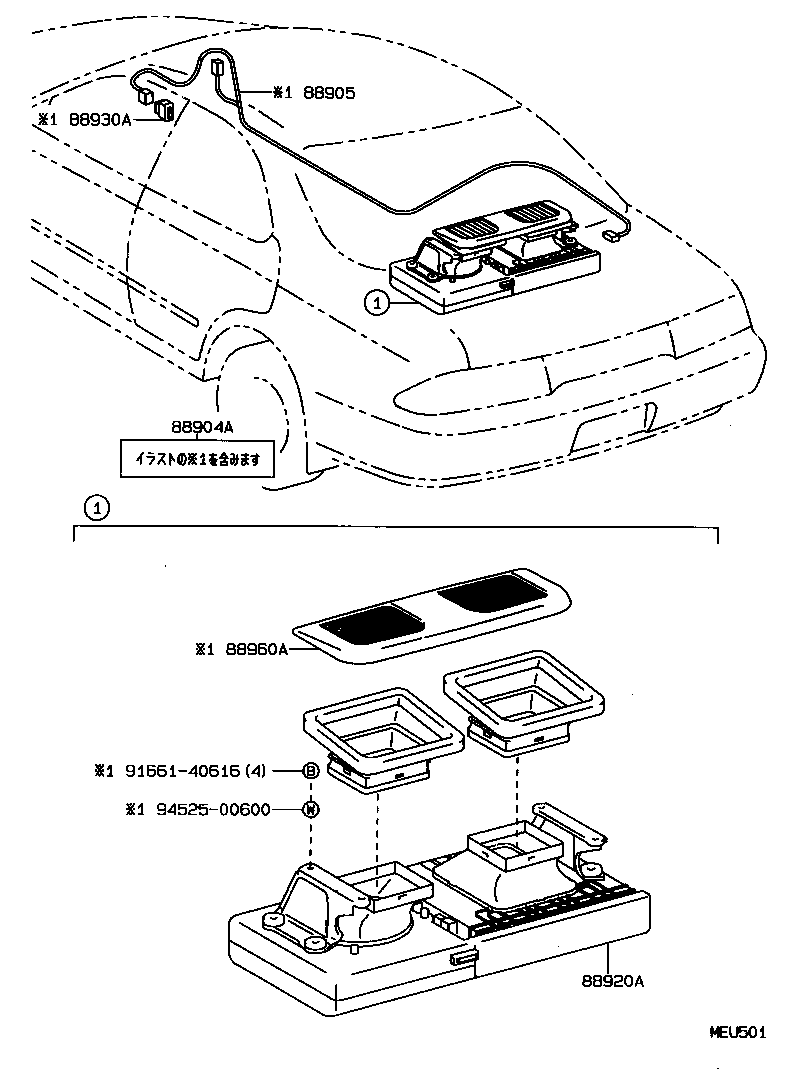

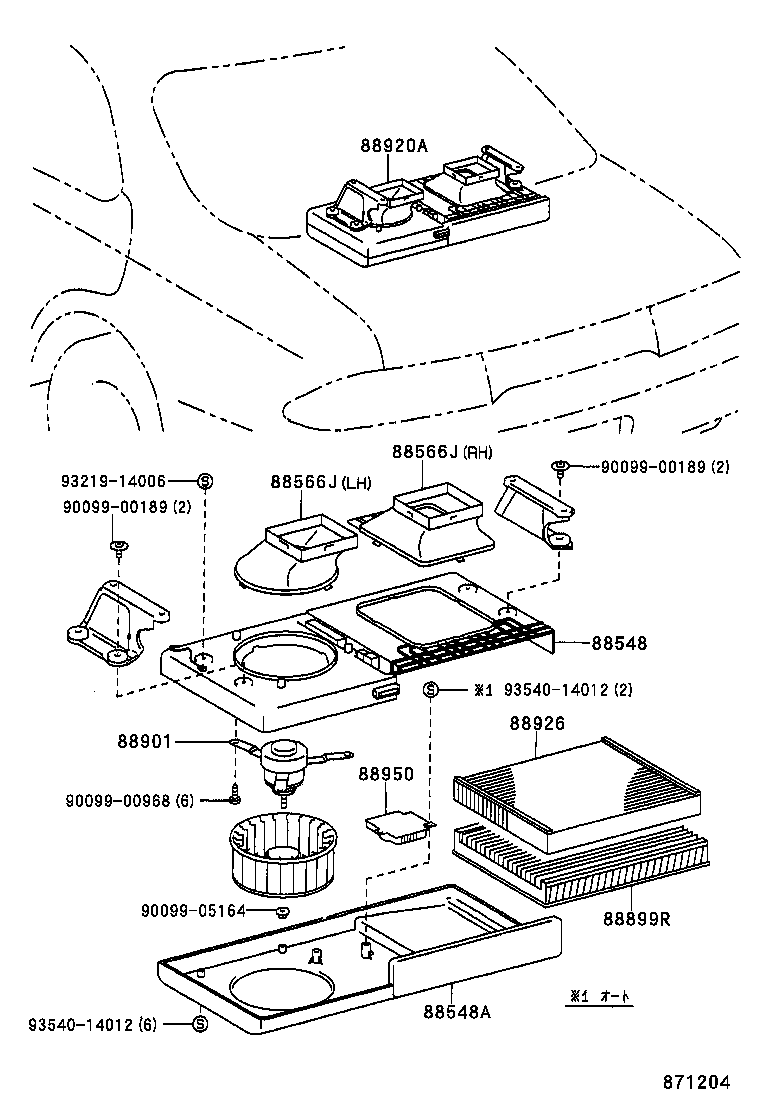

Figure MES248A MES248A 1991-06 → — Figure MES249 MES249 1991-06 → — Figure MEU500 MEU500 1992-05 → — Figure MEU501 MEU501 1992-05 → — Figure MES250 MES250 1991-06 → — Figure MES251A MES251A 1991-06 → — Figure 871204 871204 1992-05 → — Figure MEU503 MEU503 1992-05 → —

Part groups

PNCDescription
88548 Case, Air Purifier NO.1
88548A Case, Air Purifier NO.2
88566H Duct, Air, NO.1
88566J Duct, Air, NO.2
88578H Packing, Air Purifier, NO.2
88899R Frame, Air Purifier
88901 Motor Sub-assy, Air Purifier
88904A Accessory Sub-assy, Air Purifire
88905 Wire Sub-assy, Air Purifier, NO.1
88912 Fan, Air Purifier
88920A Purifier Assy, Air
88926 Filter, Air Purifier
88928A Case, Air Purifier Filter
88930A Switch Assy, Air Purifier
88931 Sensor, Smoke
88950 Amplifier Assy, Air Purifier
88960A Grille Assy, Air Purifier
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
