Toyota Levin/Trueno

1995-05 → 2000-08 · chassis AE11# · catalogue 153140 · Japan

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

21 part groups · 2 illustrations

Illustrations

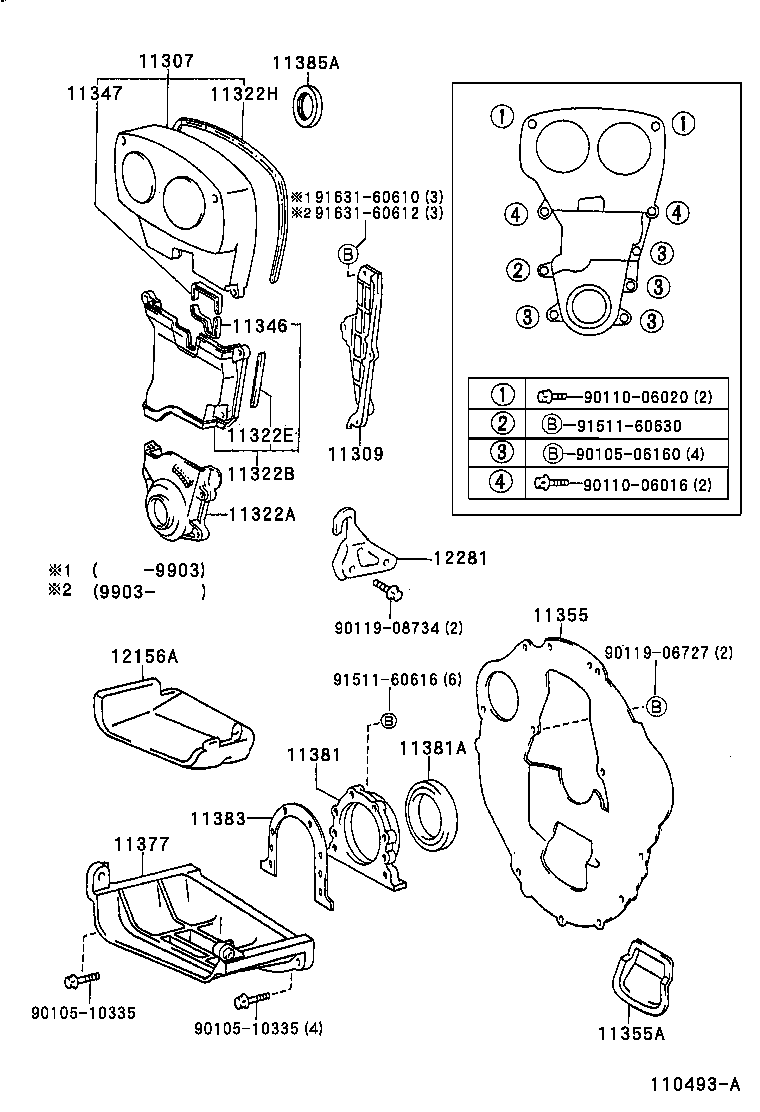

Figure MAJ104 MAJ104 1995-05 → — Figure 110493A 110493A 1995-05 → —

Part groups

PNCDescription
11302 Cover Sub-assy, Timing Chain OR Belt
11302T Plug, Hole
11303 Cover Sub-assy, Crankshaft Gear OR Pulley
11304 Cover, Timing Chain OR Belt, NO.2
11307 Cover, Sub-assy, Timing Belt, NO.3
11309 Cover Sub-assy, Timing Belt, NO.4
11322A Cover, Timing Belt, NO.1
11322B Cover, Timing Belt, NO.2
11322E Gasket, Timing Belt Cover, NO.2
11322H Gasket, Timing Belt Cover, NO.3
11346 Gasket, Timing Belt Cover, NO.4
11347 Gasket, Timing Belt Cover, NO.5
11355 Plate, Rear End
11355A Plug, Hole(FOR REAR END PLATE)
11377 Stiffener, Rear End Plate
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11383 Gasket, Engine Rear Oil Seal Retainer
11385A Seal, Oil(FOR CAMSHAFT)
12156A Insulator, Oil Pan
12281 Hanger, Engine, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
