Toyota Levin/Trueno

1995-05 → 2000-08 · chassis AE11# · catalogue 153140 · Japan

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

15 part groups · 5 illustrations

Illustrations

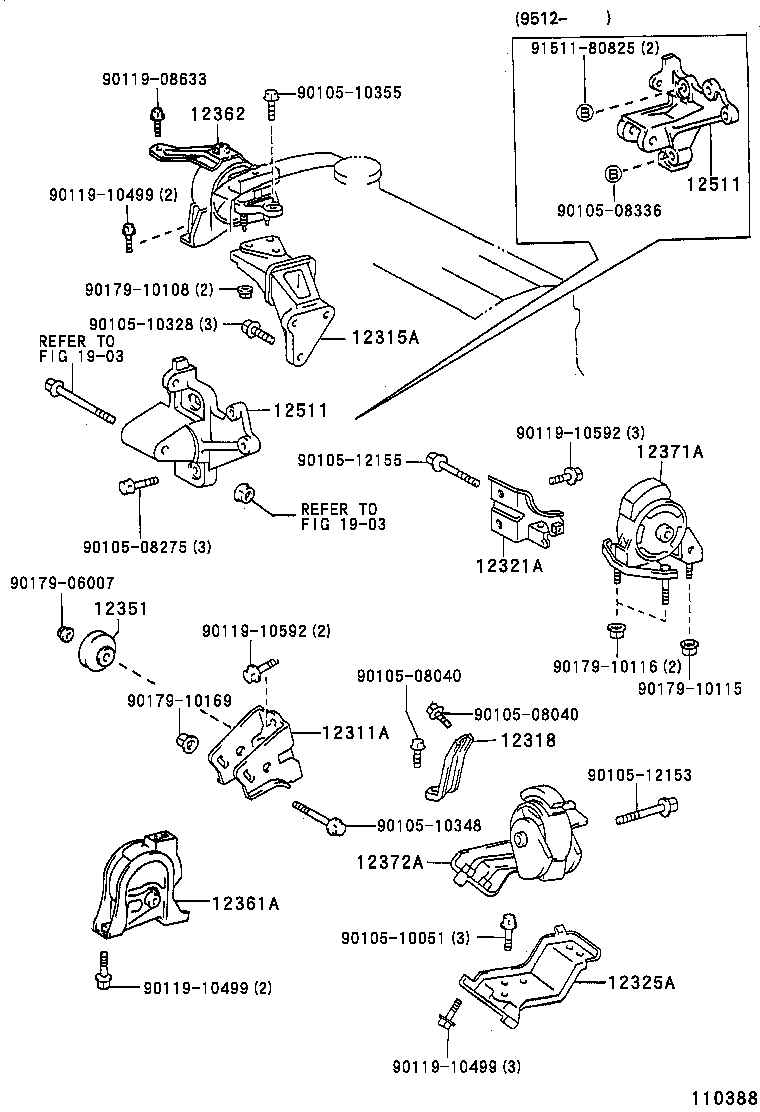

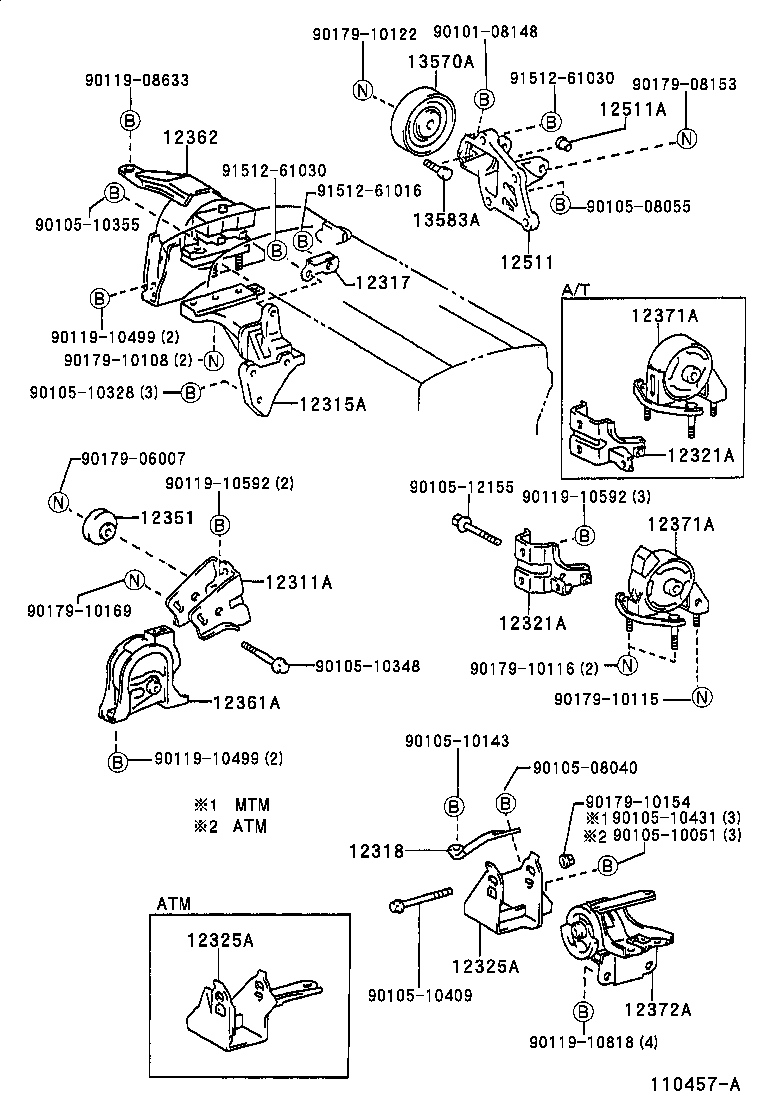

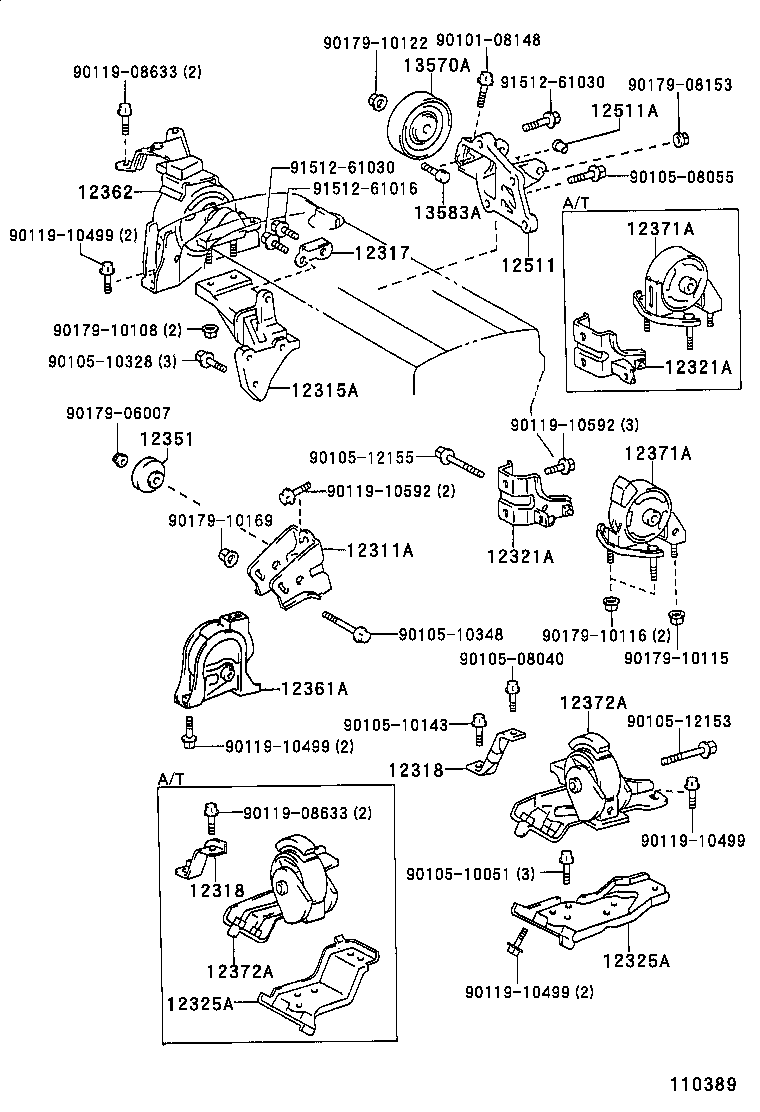

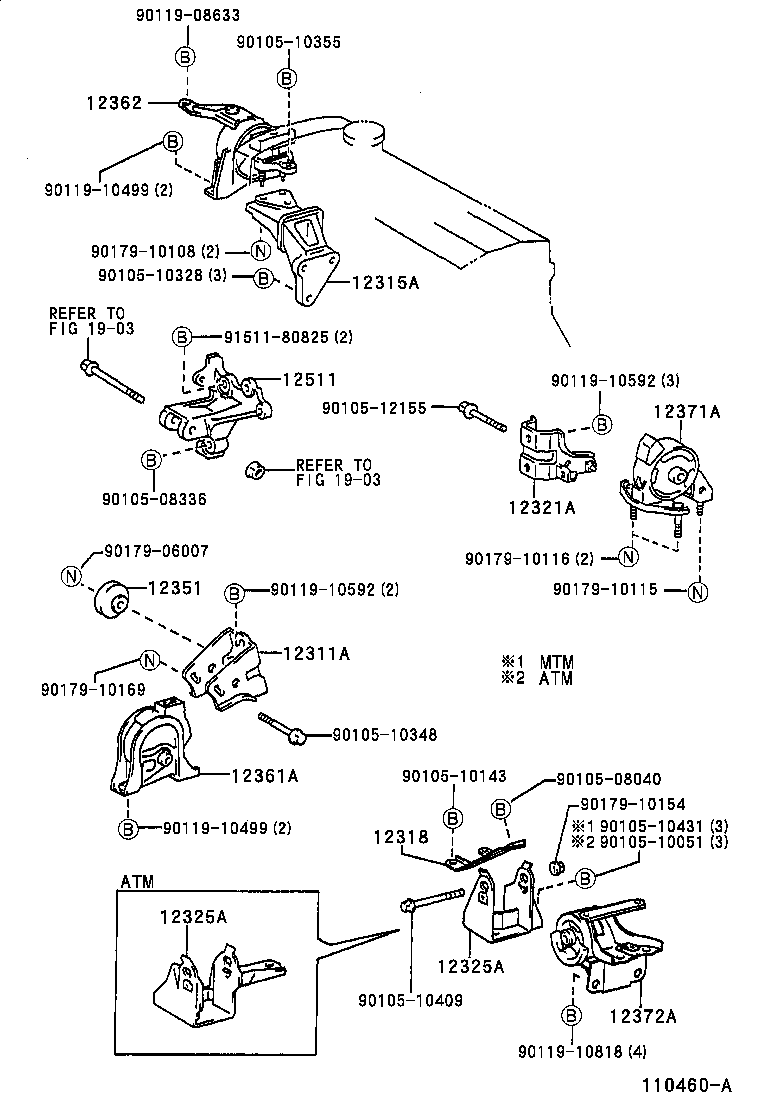

Figure 110387 110387 1995-05 → 1997-04 Figure 110388 110388 1995-05 → 1997-04 Figure 110460A 110460A 1997-04 → — Figure 110389 110389 1995-05 → 1997-04 Figure 110457A 110457A 1997-04 → —

Part groups

PNCDescription
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12317 Stay, Engine Mounting, RH
12318 Stay, Engine Mounting, LH
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12351 Damper, Engine Mounting
12361A Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12362 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12371A Insulator, Engine Mounting, Rear
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12511 Bracket, Alternator, NO.1
12511A Bush, Alternator Bracket
13570A Idler Assy, V-ribbed, NO.1
13583A Shaft, Idler, V-ribbed Belt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
