Toyota Levin/Trueno

1995-05 → 2000-08 · chassis AE11# · catalogue 153140 · Japan

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

26 part groups · 3 illustrations

Illustrations

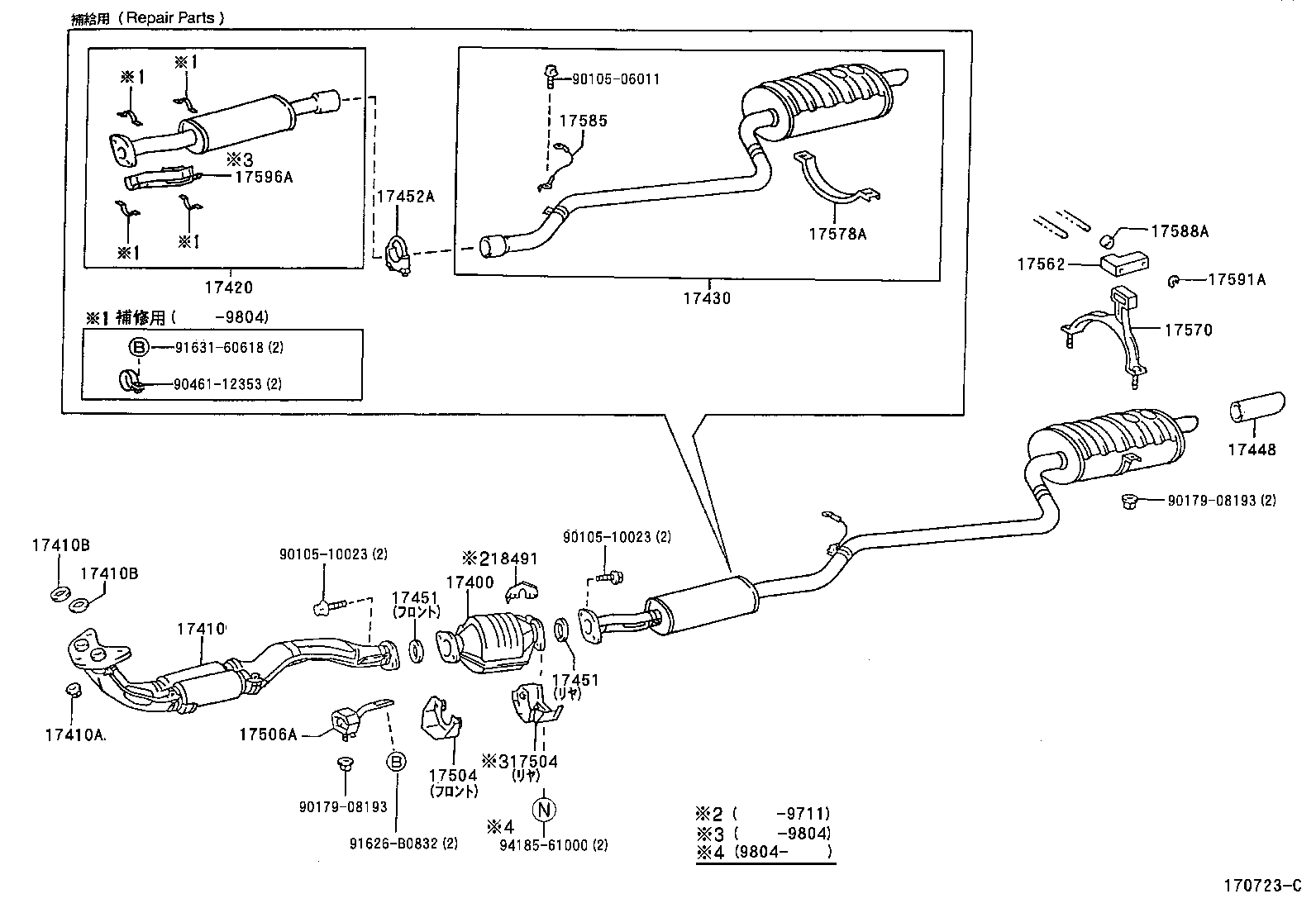

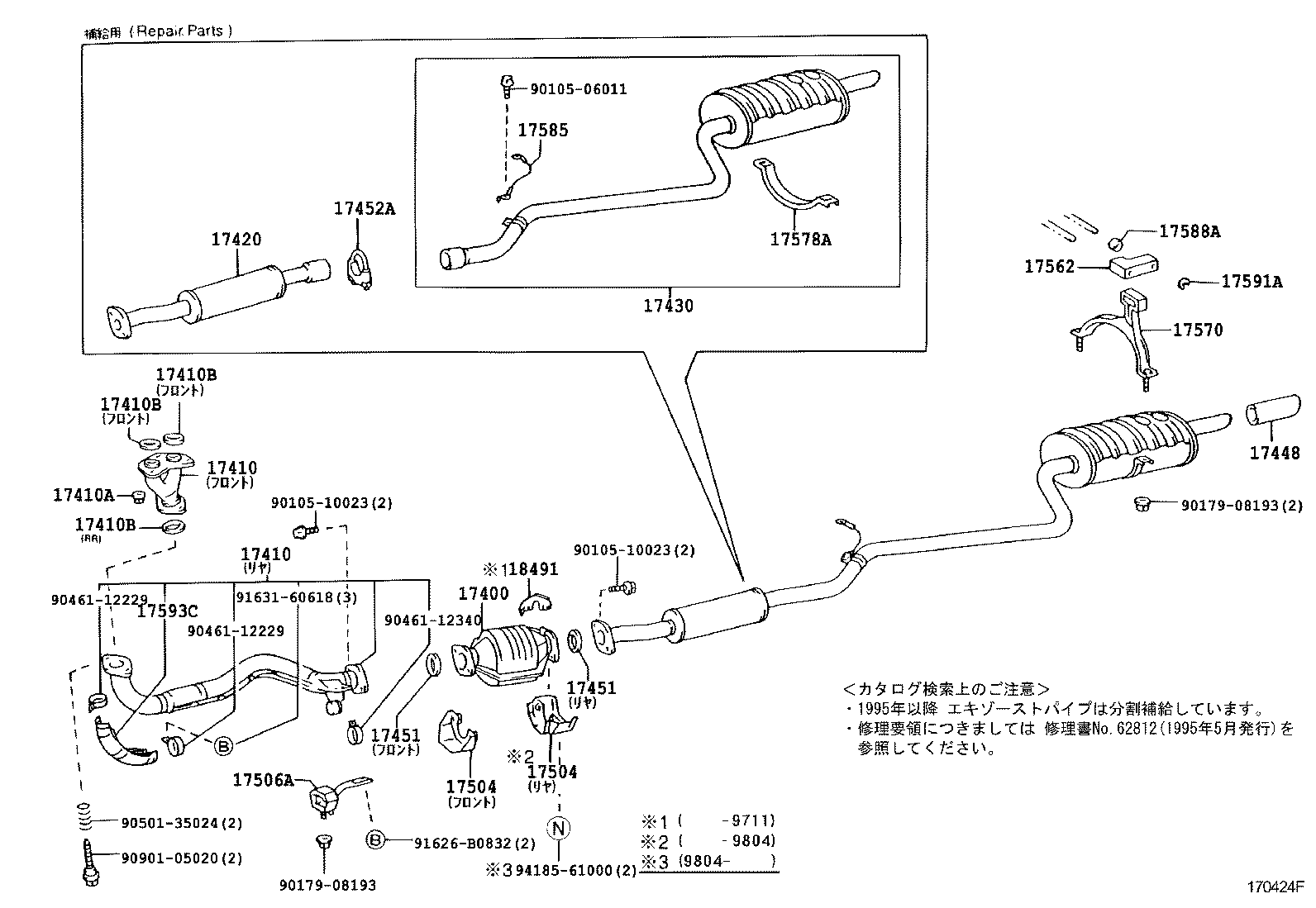

Figure 170648B 170648B 1995-05 → — Figure 170424F 170424F 1995-05 → — Figure 170723C 170723C 1995-05 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17430 Pipe Assy, Exhaust, Tail
17448 Baffle, Tailpipe
17451 Gasket, Exhaust Pipe
17452 Clamp, Exhaust Pipe
17452A Clamp, Exhaust Pipe
17460 Converter Assy, Catalytic W/Pipe
17504 Bracket Sub-assy, Catalytic Converter
17506A Bracket Sub-assy, Exhaust Pipe NO.1 Support
17521A Protector, Exhaust Pipe, Upper NO.1
17522 Protector, Exhaust Pipe, Upper NO.2
17562 Support, Exhaust Pipe, NO.2
17570 Bracket Assy, Exhaust Pipe Support
17578A Clamp, Muffler
17585 Hanger, Exhaust Pipe
17588A Spacer, Exhaust Pipe Hanger
17591A Stopper, Exhaust Pipe Support
17593C Protector, Exhaust Pipe, Lower NO.1
17594A Protector, Exhaust Pipe, Lower NO.2
17596A Protector, Exhaust Pipe, Lower NO.4
18435A Protector, Monolithic Converter
18491 Flange, Thermosensor Inlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
