Toyota Levin/Trueno

1995-05 → 2000-08 · chassis AE11# · catalogue 153140 · Japan

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

14 part groups · 2 illustrations

Illustrations

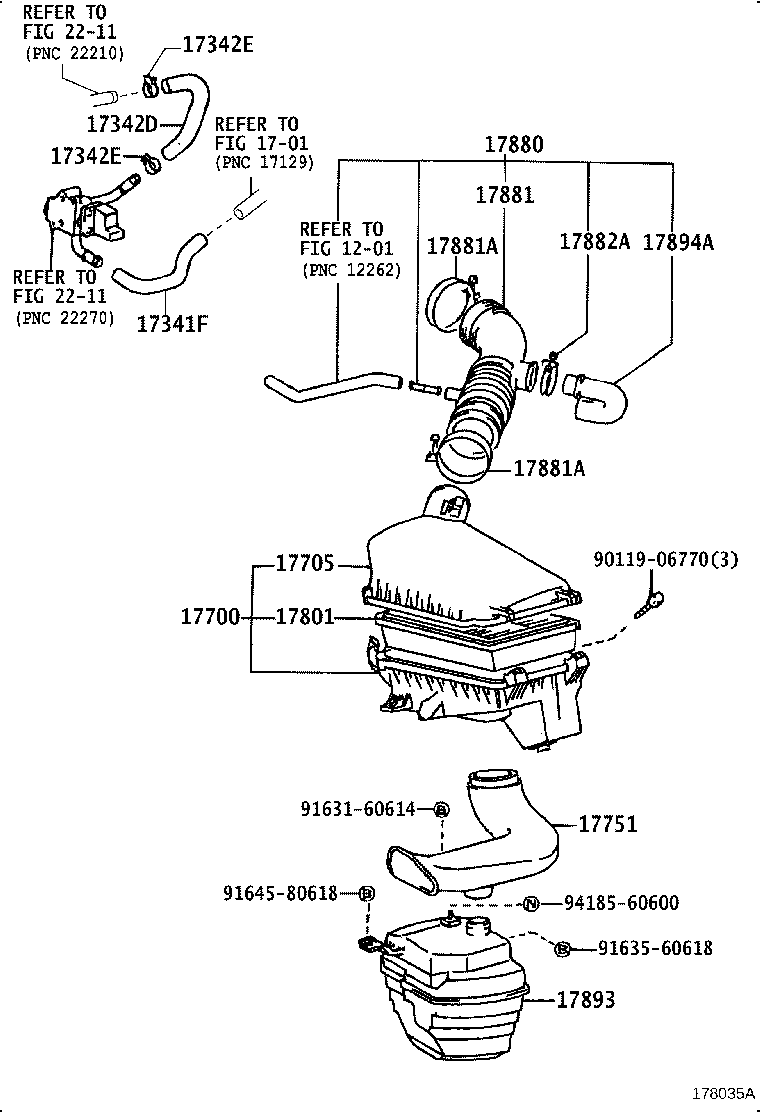

Figure 170440 170440 1995-05 → — Figure 178035A 178035A 1995-05 → —

Part groups

PNCDescription
17341F Hose, Air, NO.1
17342D Hose, Air, NO.2
17342E Clamp OR Clip(FOR AIR HOSE, NO.2)
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17752 Inlet, Air Cleaner, NO.2
17801 Element Sub-assy, Air Cleaner Filter
17880 Hose Assy, Air Cleaner
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17893 Resonator, Intake Air
17894A Resonator, Intake Air, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
