Toyota Levin/Trueno
1995-05 → 2000-08 · chassis AE11# · catalogue 153140 · Japan
Discontinued model
Data version 1998-04

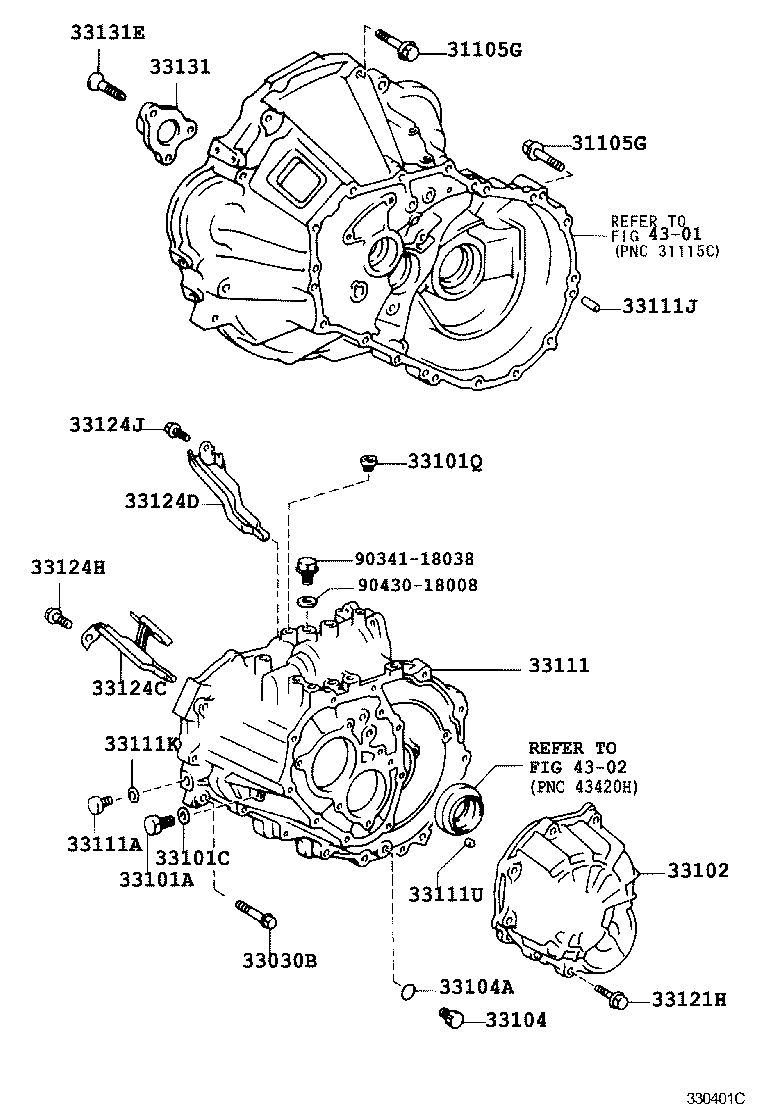

Clutch Housing & Transmission Case (MTM)
20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 31105G | Bolt(FOR TRANSAXLE CASE & ENGINE SETTING) |
| 33030B | Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) |
| 33101A | Plug(FOR MANUAL TRANSMISSION FILLER) |
| 33101C | Gasket(FOR MANUAL TRANSMISSION FILLER PLUG) |
| 33101Q | Plug, NO.1(FOR TRANSMISSION CASE) |
| 33102 | Cover Sub-assy, Manual Transmission Case |
| 33104 | Plug Sub-assy, Drain(MTM) |
| 33104A | Gasket, Drain Plug(MTM) |
| 33111 | Case, Manual Transmission |
| 33111A | Plug, Manual Transmission Case |
| 33111J | Pin, Straight(FOR MANUAL TRANSMISSION CASE) |
| 33111K | Gasket(FOR TRANSMISSION CASE) |
| 33111U | Pin, Ring(FOR MANUAL TRANSMISSION CASE) |
| 33121H | Bolt, W/Washer(FOR TRANSMISSION CASE COVER) |
| 33124C | Pipe, Oil Receiver, NO.1(MTM) |
| 33124D | Pipe, Oil Receiver, NO.2(MTM) |
| 33124H | Bolt(FOR OIL RECEIVER PIPE) |
| 33124J | Bolt, W/Washer |
| 33131 | Retainer, Bearing, Front(MTM) |
| 33131E | Screw(FOR BEARING RETAINER FRONT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
