Toyota Levin/Trueno

1995-05 → 2000-08 · chassis AE11# · catalogue 153140 · Japan

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Disc Wheel & Wheel Cap

7 part groups · 4 illustrations

Illustrations

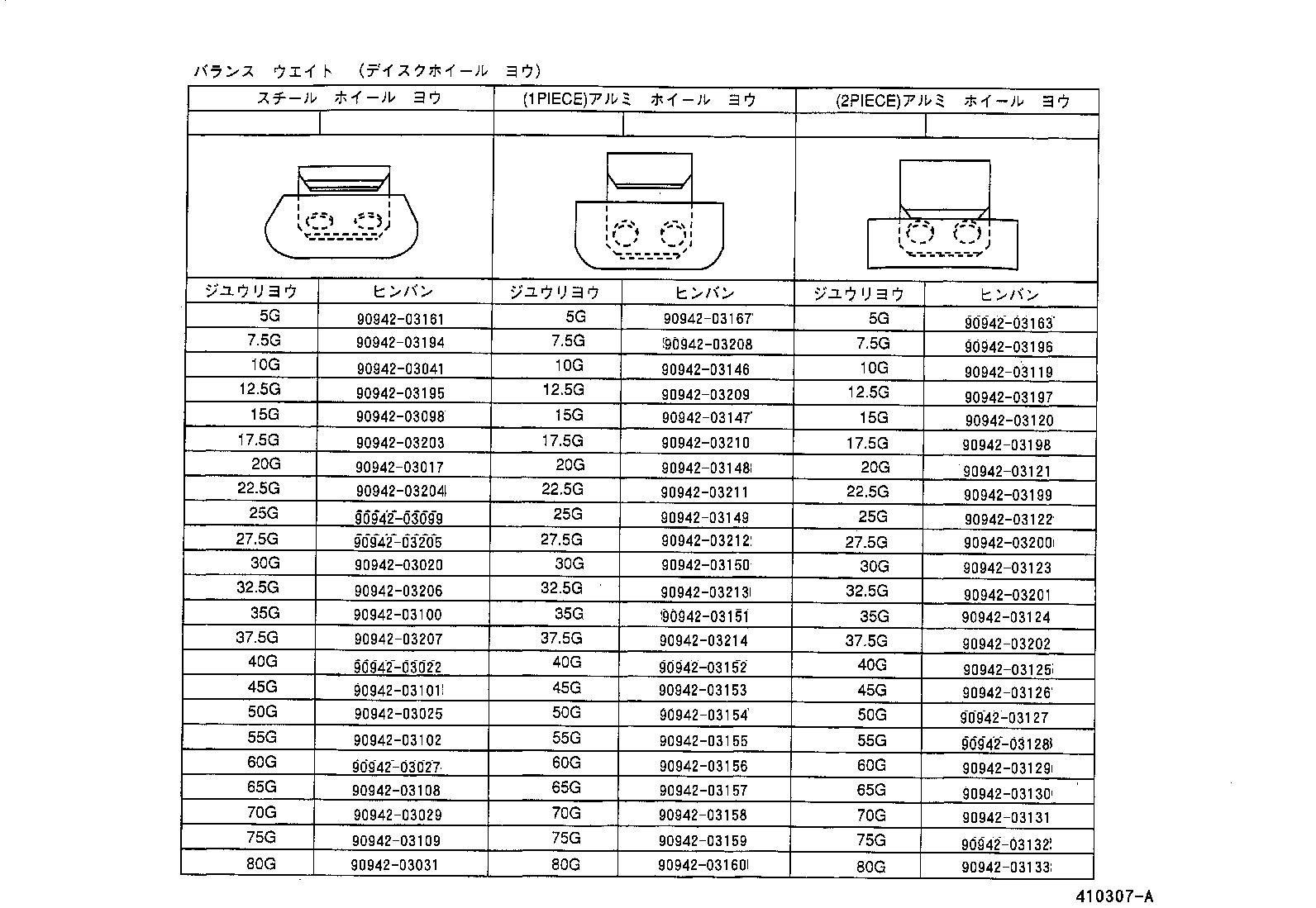

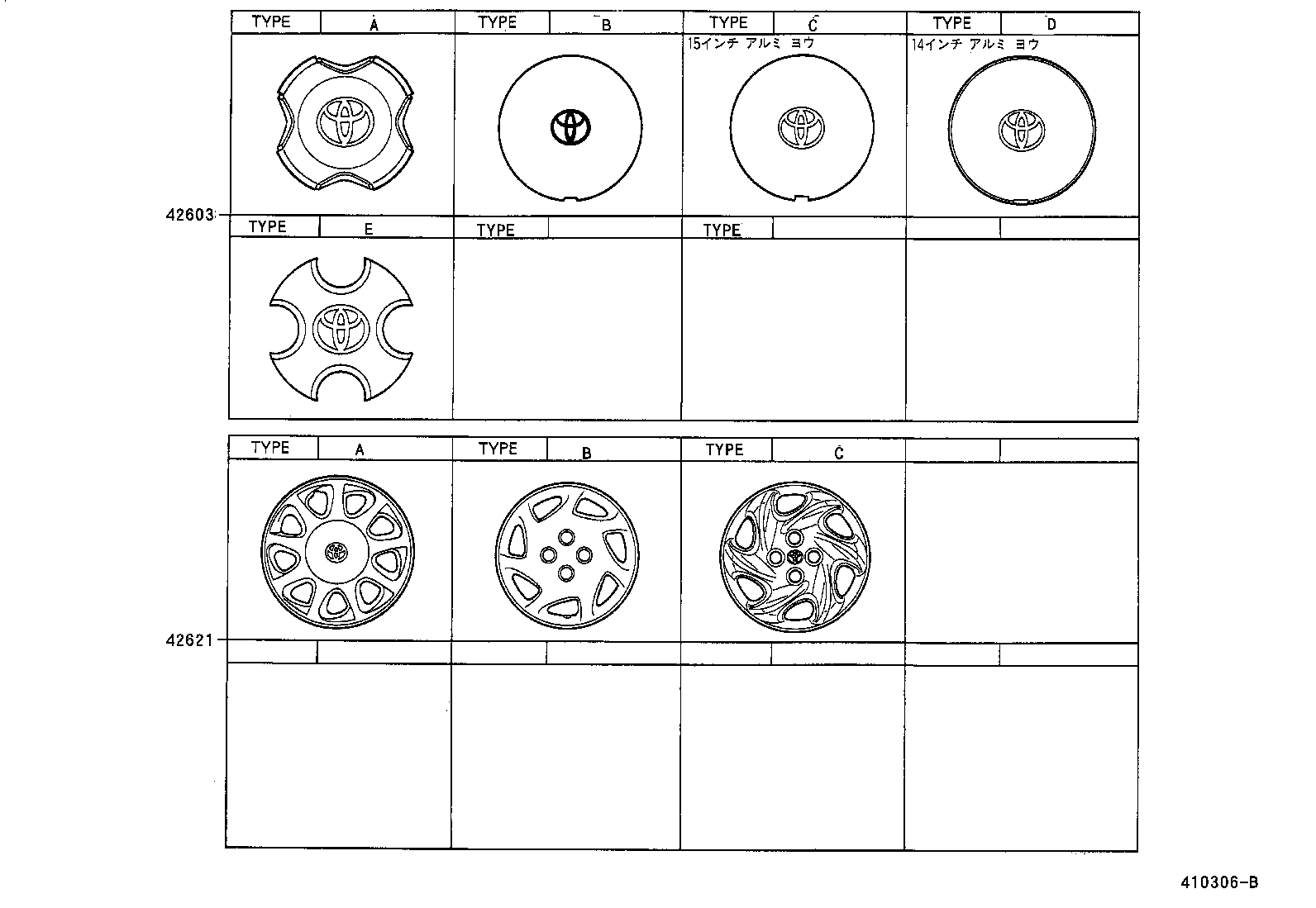

Figure 410305B 410305B 1995-05 → — Figure 410389B 410389B 1995-05 → — Figure 410306B 410306B 1995-05 → — Figure 410307A 410307A 1995-05 → —

Part groups

PNCDescription
42601 Wheel, Disc
42601A Wheel, Disc (FOR SPARE)
42601C Nut, Hub (FOR AXLE)
42603 Ornament Sub-assy, Wheel Hub
42611G Valve (FOR TUBELESS TIRE)
42611J Valve (FOR TUBELESS TIRE SPARE)
42621 Cap, Wheel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
