Toyota Levin/Trueno

1995-05 → 2000-08 · chassis AE11# · catalogue 153140 · Japan

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

17 part groups · 8 illustrations

Illustrations

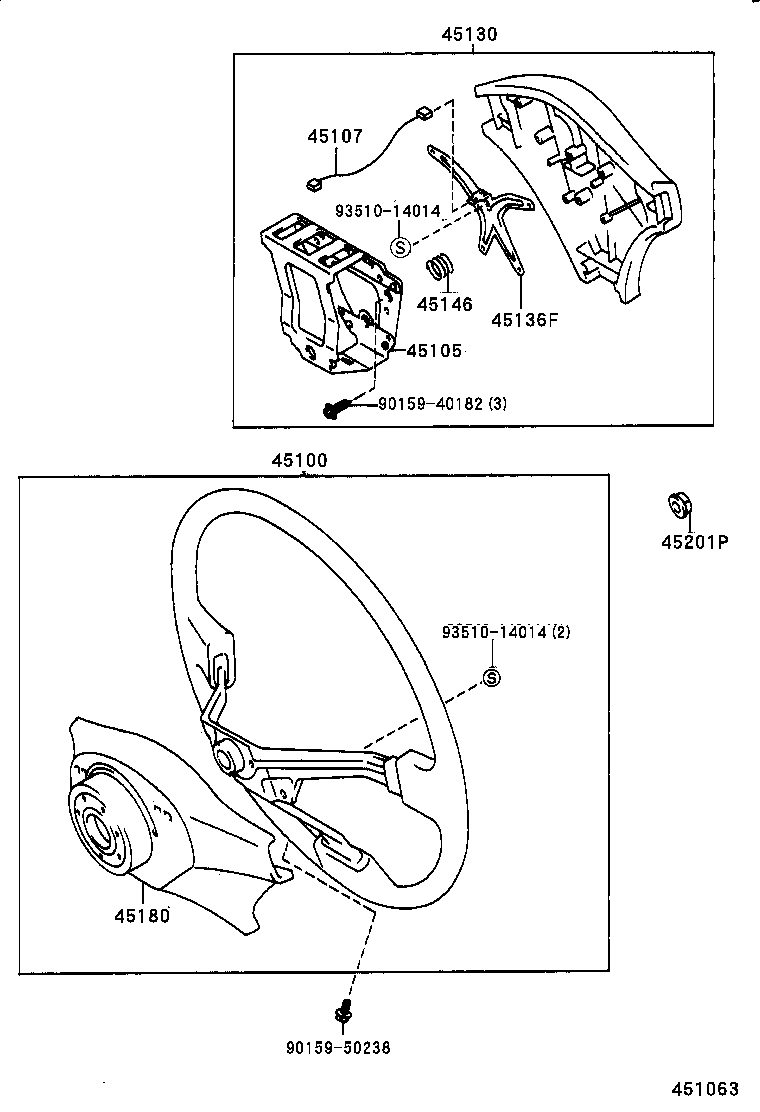

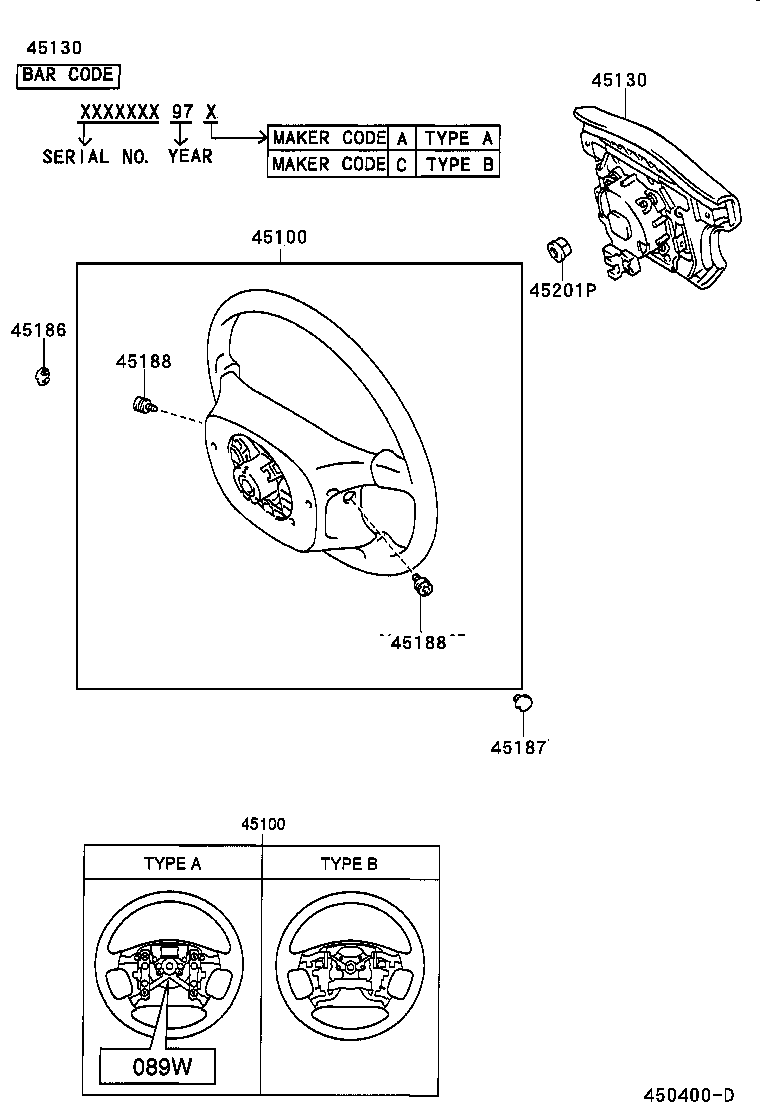

Figure 450394B 450394B 1995-05 → 1996-05 Figure 451063 451063 1995-05 → 1996-05 Figure 454483 454483 1995-05 → 1996-05 Figure 450393B 450393B 1995-05 → 1996-05 Figure 450393B 450393B 1996-05 → — Figure 451062B 451062B 1996-05 → — Figure 450532C 450532C 1997-05 → — Figure 450400D 450400D 1996-12 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45103 Hub Sub-assy, Steering Wheel
45105 Plate Sub-assy, Horn Button Contact, NO.1
45107 Wire Sub-assy, Horn Button
45108B Button Sub-assy, Horn(FOR STEERING WHEEL ASSY)
45112 Pad, Steering Wheel
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45131 Button, Horn, NO.1
45136F Plate, Horn Button Contact, NO.1
45146 Spring, Horn Button Contact
45180 Cover Sub-assy, Steering Wheel
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45188 Screw, Steering Wheel Pad Attaching
45201P Nut, Steering Wheel Set
45713A Damper, Steering Shake
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
