Toyota Levin/Trueno

1995-05 → 2000-08 · chassis AE11# · catalogue 153140 · Japan

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

26 part groups · 10 illustrations

Illustrations

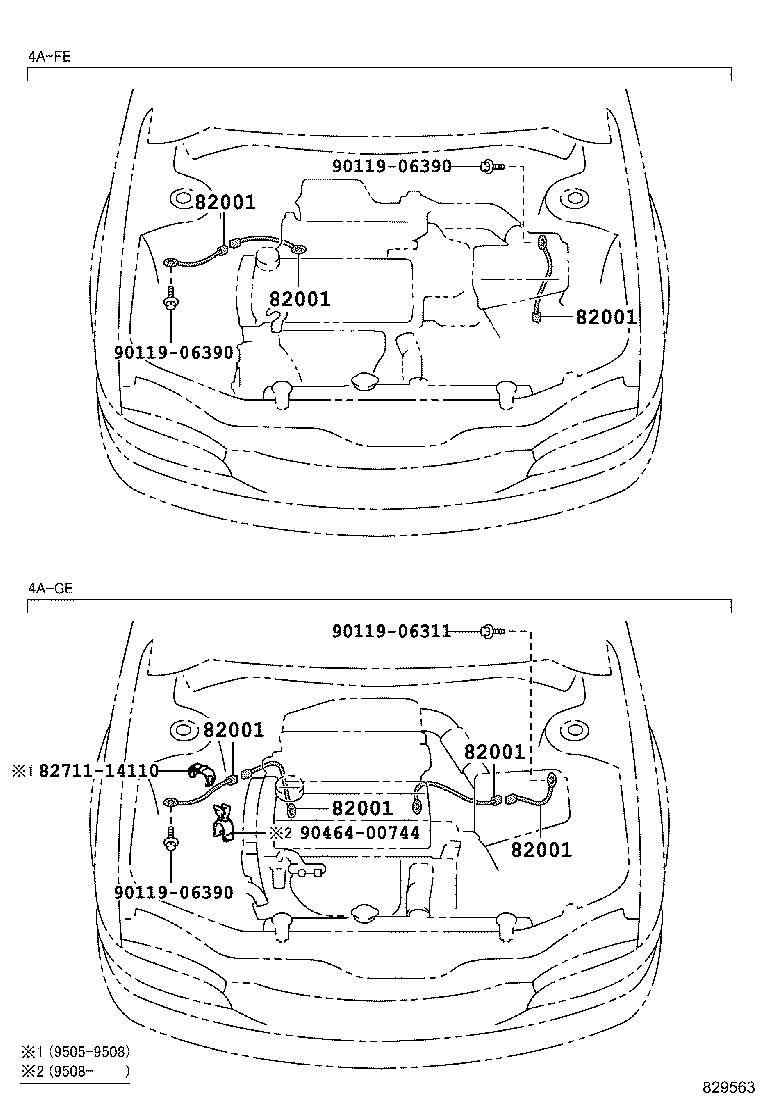

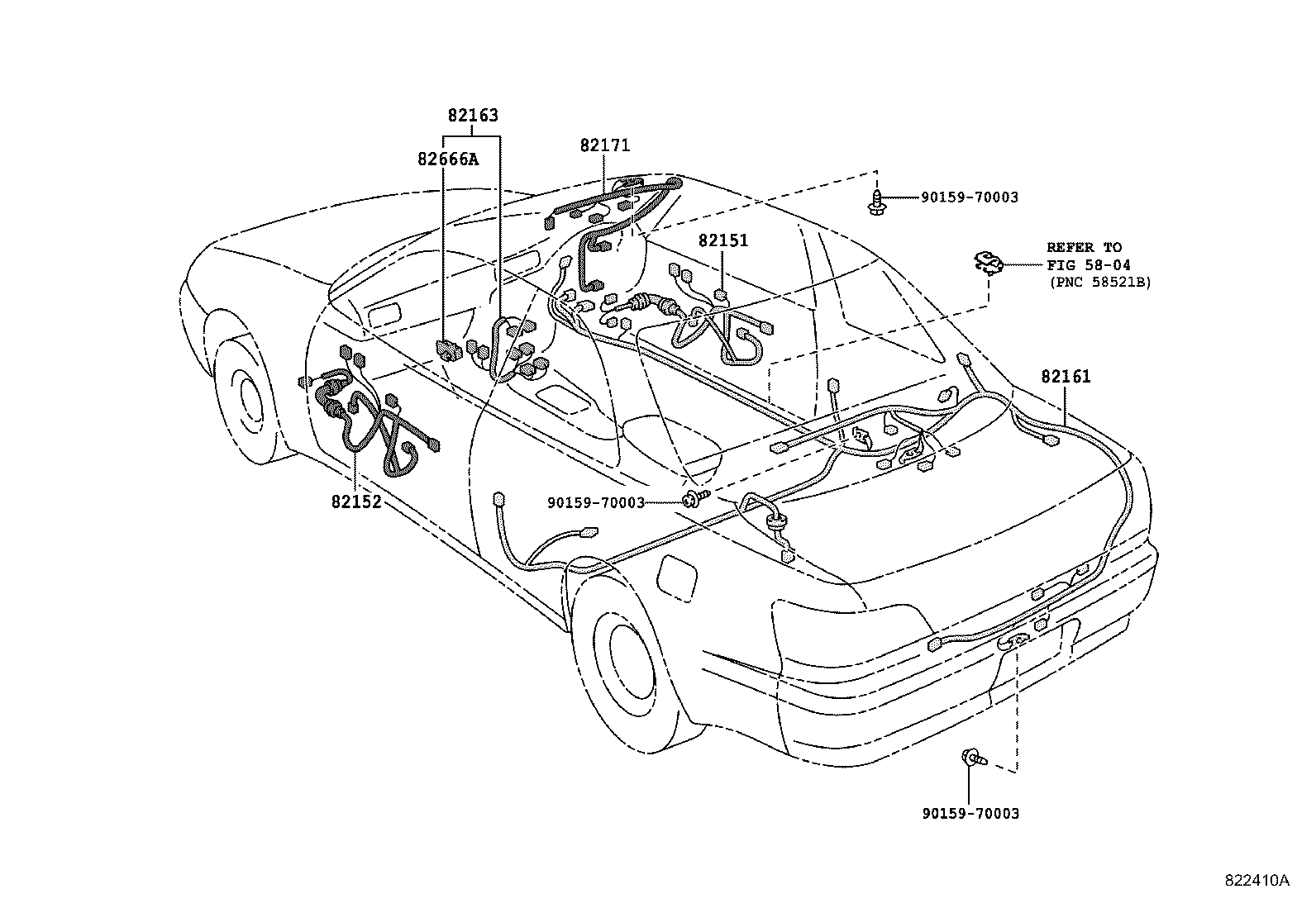

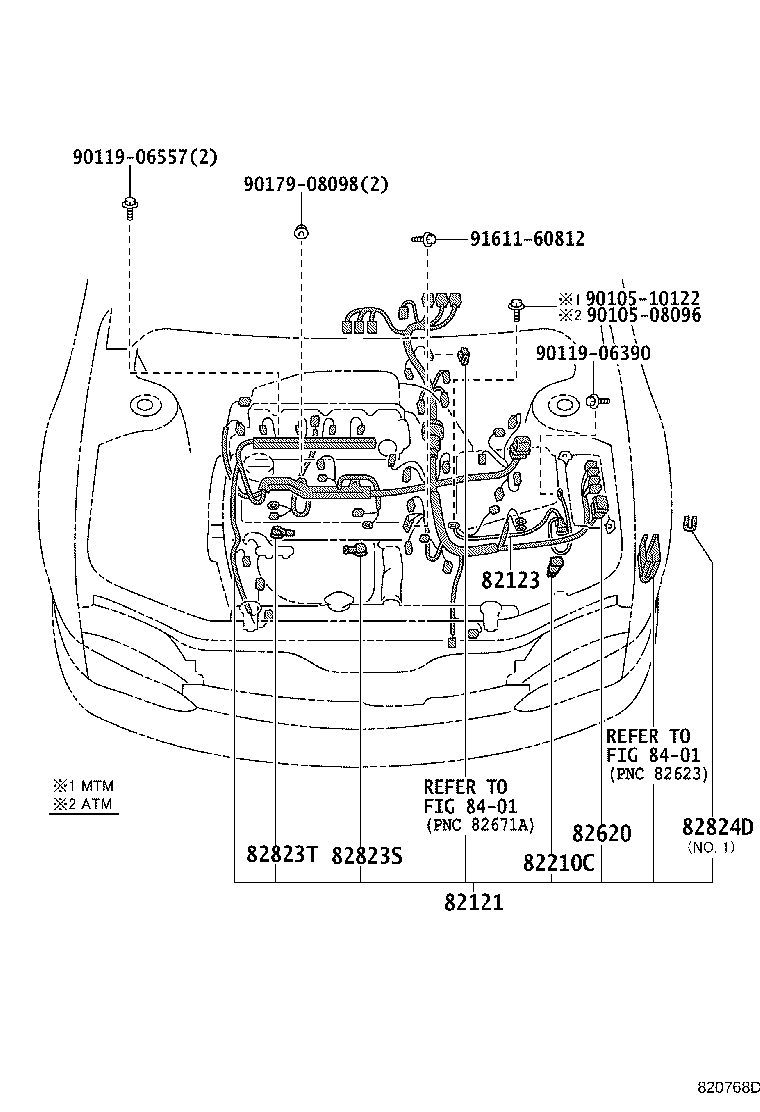

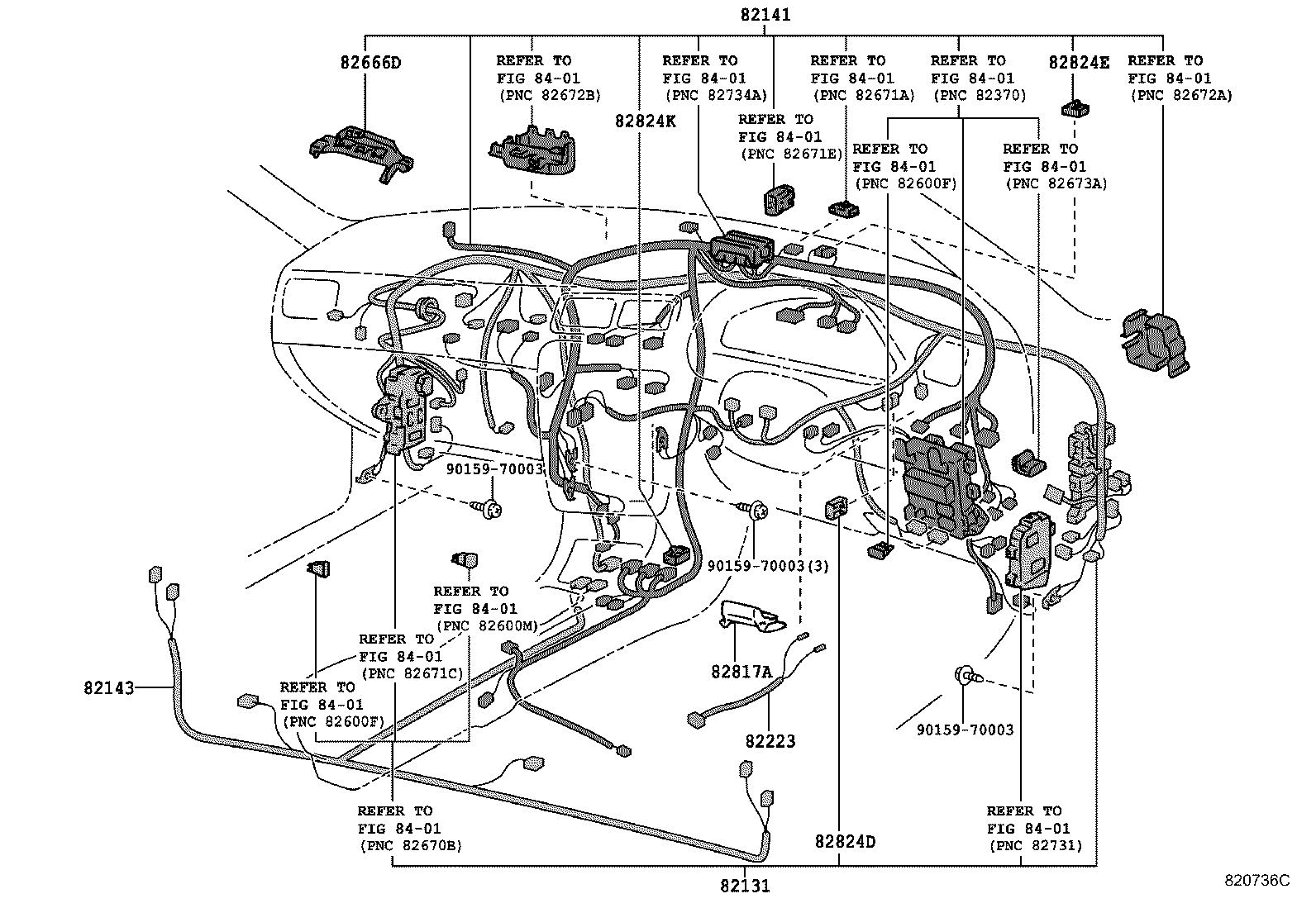

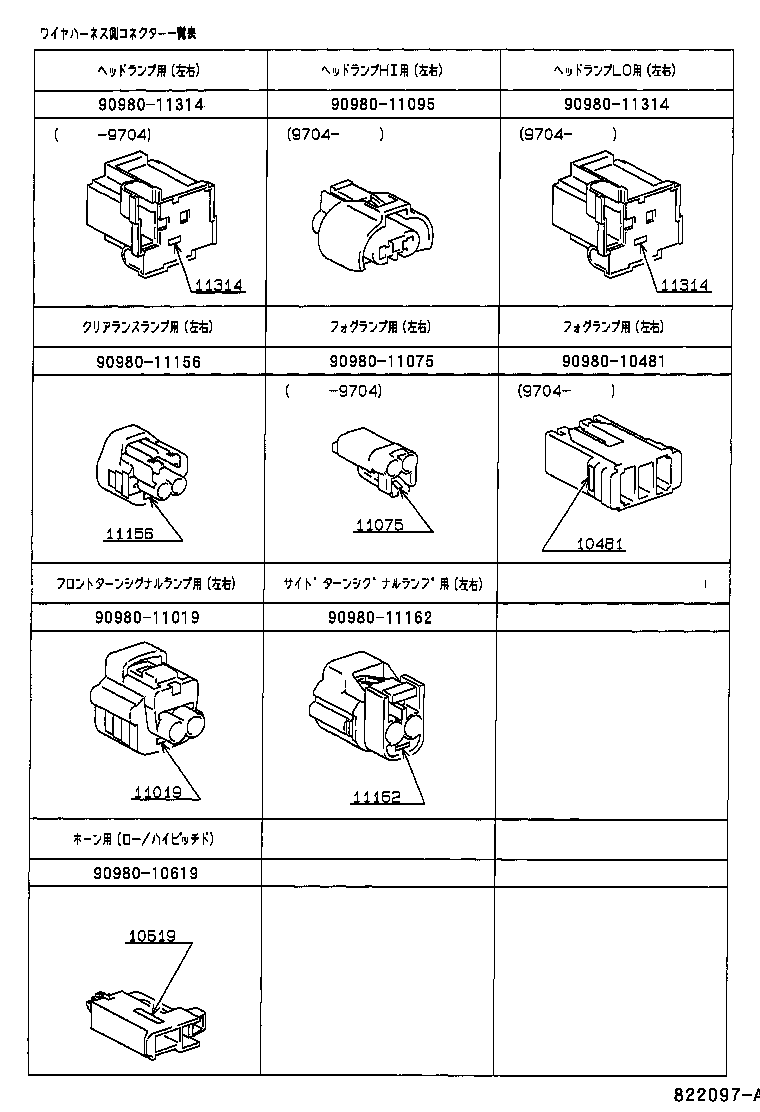

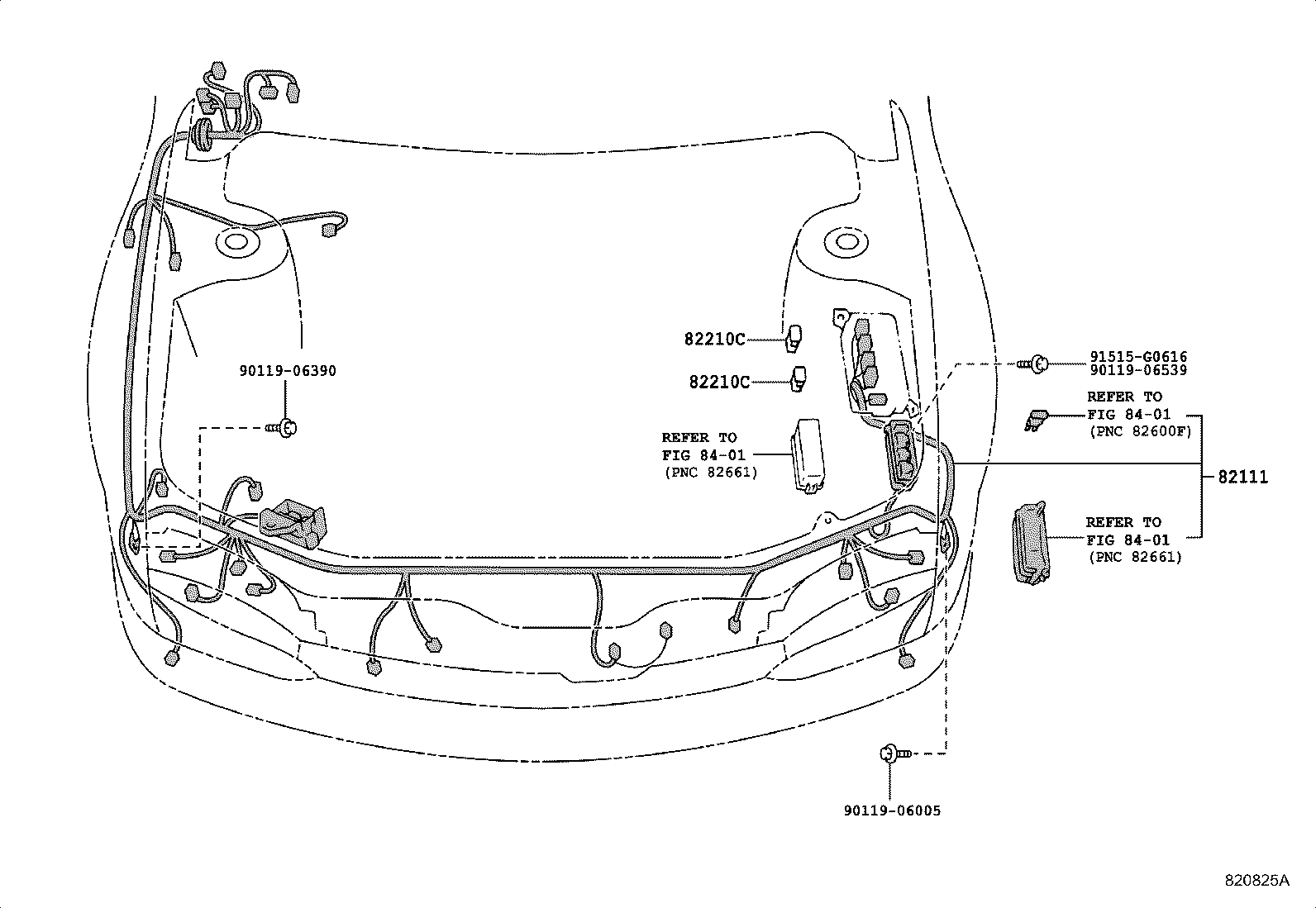

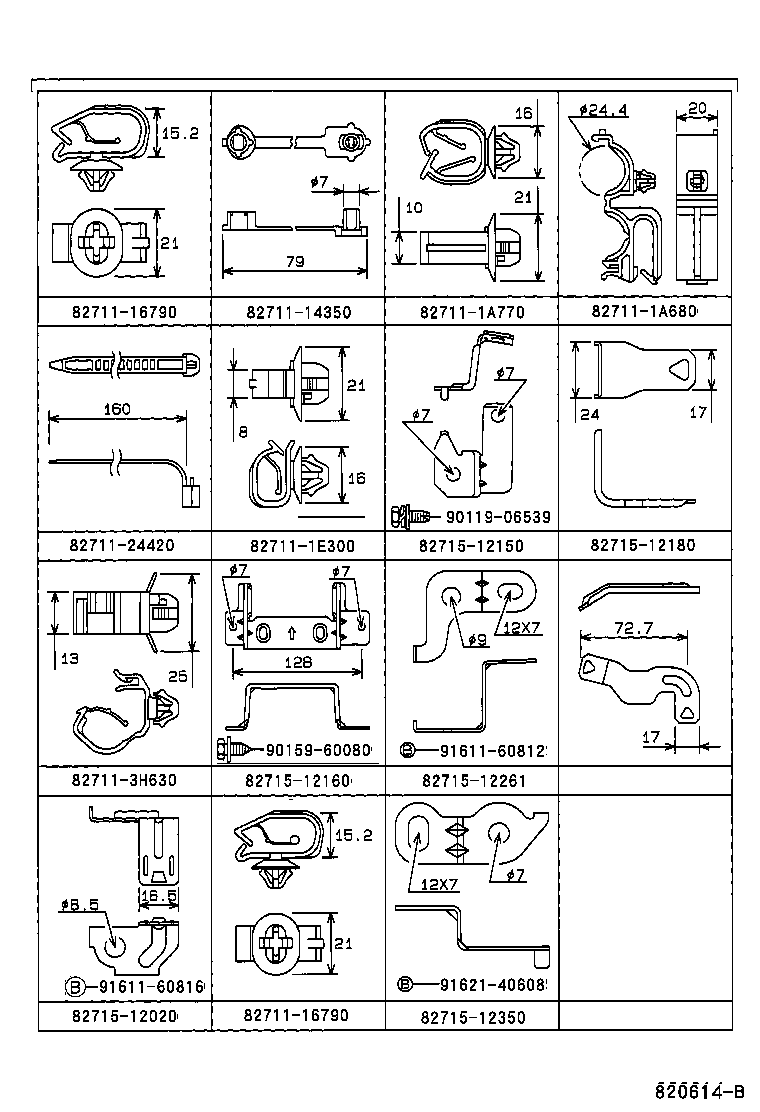

Figure 821505D 821505D 1995-05 → — Figure 820768D 820768D 1995-05 → — Figure 820825A 820825A 1995-05 → — Figure 820736C 820736C 1995-05 → — Figure 822410A 822410A 1995-05 → — Figure 820614B 820614B 1995-05 → — Figure 820769A 820769A 1995-05 → — Figure 829563 829563 1995-05 → — Figure 820600 820600 1995-05 → — Figure 822097A 822097A 1995-05 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82131 Wire, Cowl
82141 Wire, Instrument Panel
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82163 Wire, Floor, NO.3
82171 Wire, Roof, NO.1
82210C Fusible Link
82223 Wire, Switch
82345 Diode
82620 Block Assy, Fusible Link
82666A Holder, Connector NO.2
82666D Holder, Connector NO.5
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824K Connector, Wiring Harness
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
