Toyota Levin/Trueno

1995-05 → 2000-08 · chassis AE11# · catalogue 153140 · Japan

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

7 part groups · 2 illustrations

Illustrations

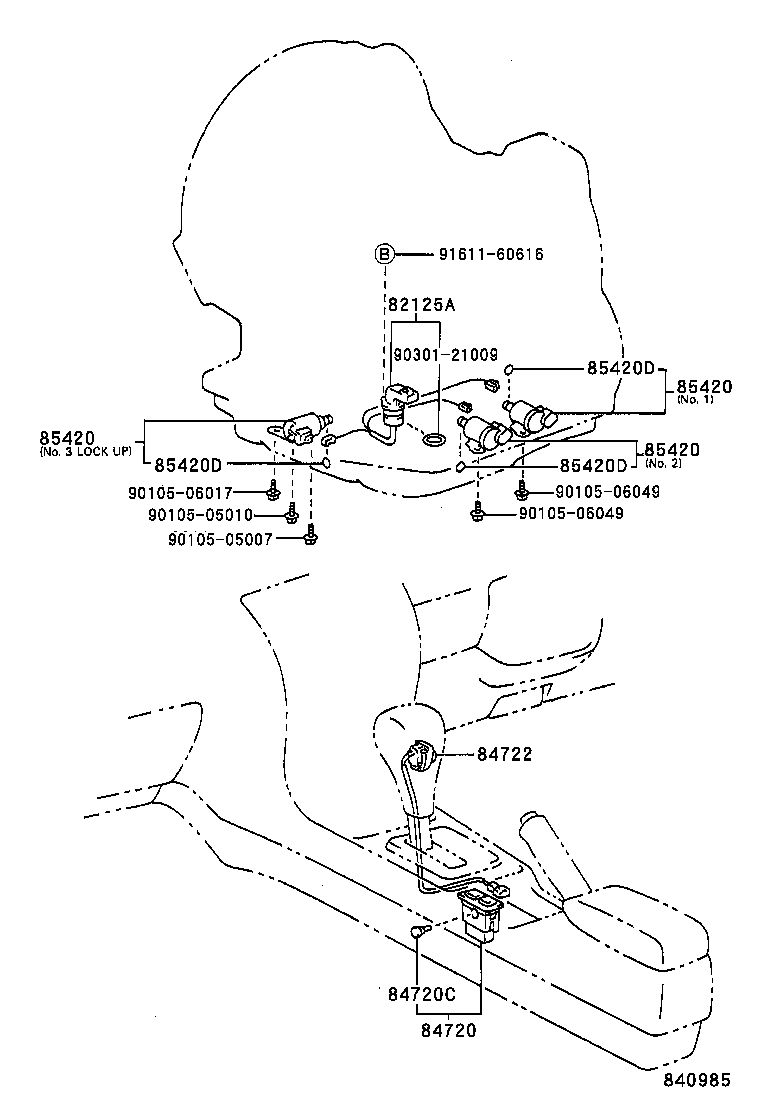

Figure MEZ045 MEZ045 1995-05 → — Figure 840985 840985 1995-05 → —

Part groups

PNCDescription
82125A Wire, Transmission
82125D Plate, Transmission Wire Lock
84720 Switch Assy, Pattern Select
84720C Bulb(FOR PATTERN SELECT SWITCH)
84722 Switch, Transmission Control
85420 Solenoid Assy, Transmission
85420D Ring, O (FOR TRANSMISSION SOLENOID)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
