Toyota Corolla Runx/Allex
2001-01 → 2006-09 · chassis NZE12#,ZZE12# · catalogue 153150 · Japan
Discontinued model
Data version 2007-04

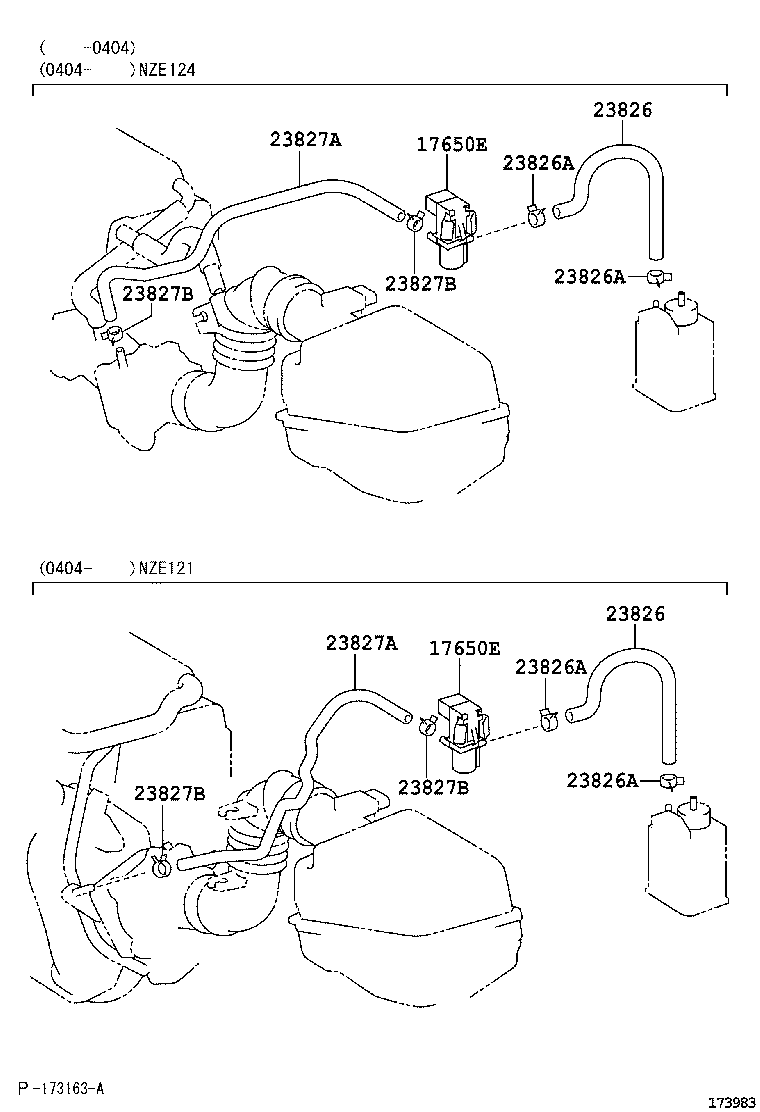

Vacuum Piping
11 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 17650E | Valve, Vacuum Switching |
| 23286A | Valve, Check, NO.2 |
| 23820 | Hose Assy, Fuel Vapor Feed |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23826A | Clip(FOR FUEL VAPOR FEED HOSE, NO.1) |
| 23827A | Hose, Fuel Vapor Feed, NO.2 |
| 23827B | Clip(FOR FUEL VAPOR FEED HOSE, NO.2) |
| 23829 | Hose, Fuel Vapor Feed, NO.3 |
| 23829A | Hose, Fuel Vapor Feed |
| 23829B | Clip(FOR FUEL VAPOR FEED HOSE) |
| 25860A | Valve, Vacuum Switching, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
