Toyota Corolla Runx/Allex

2001-01 → 2006-09 · chassis NZE12#,ZZE12# · catalogue 153150 · Japan

Discontinued model Data version 2007-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

7 part groups · 4 illustrations

Illustrations

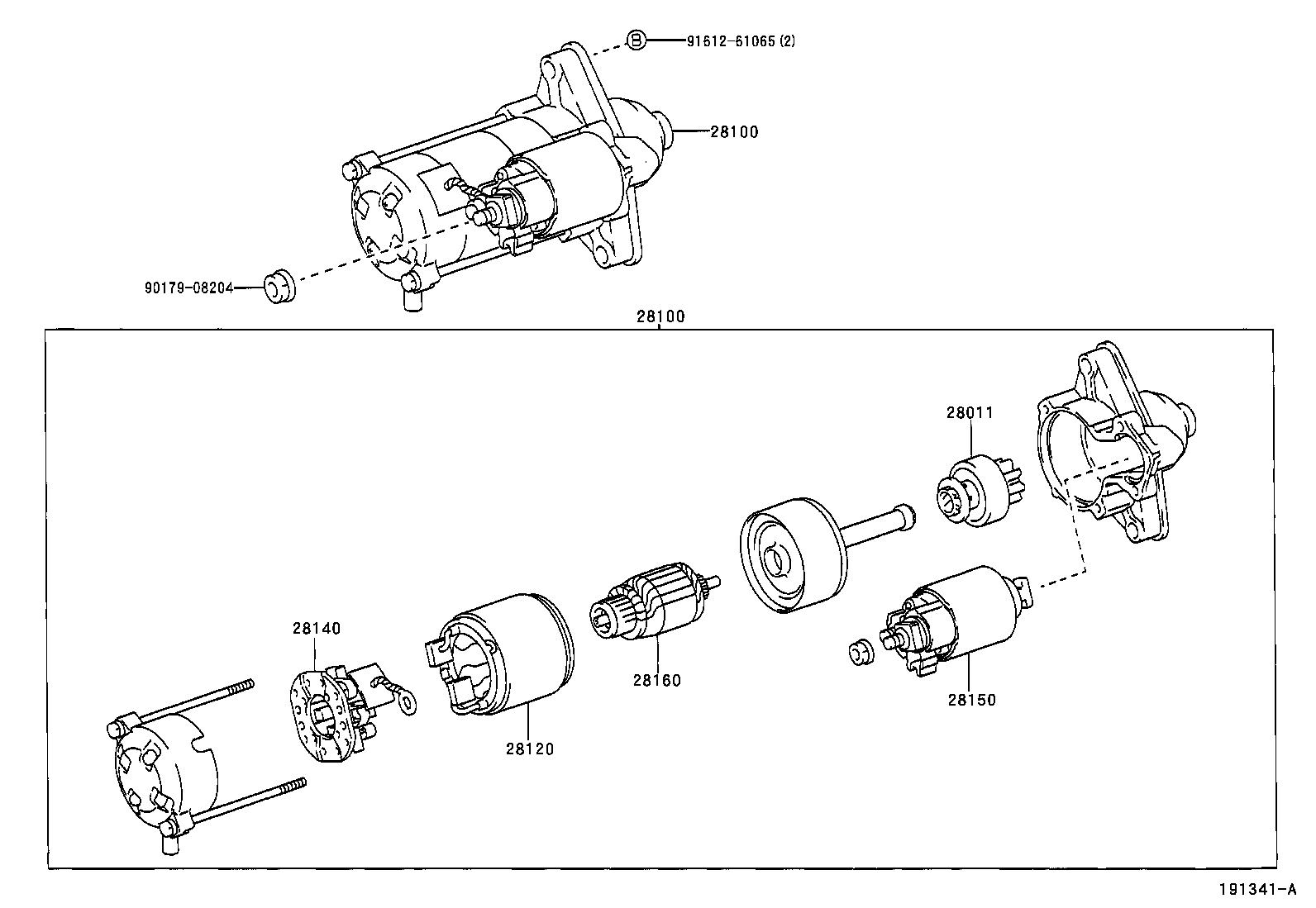

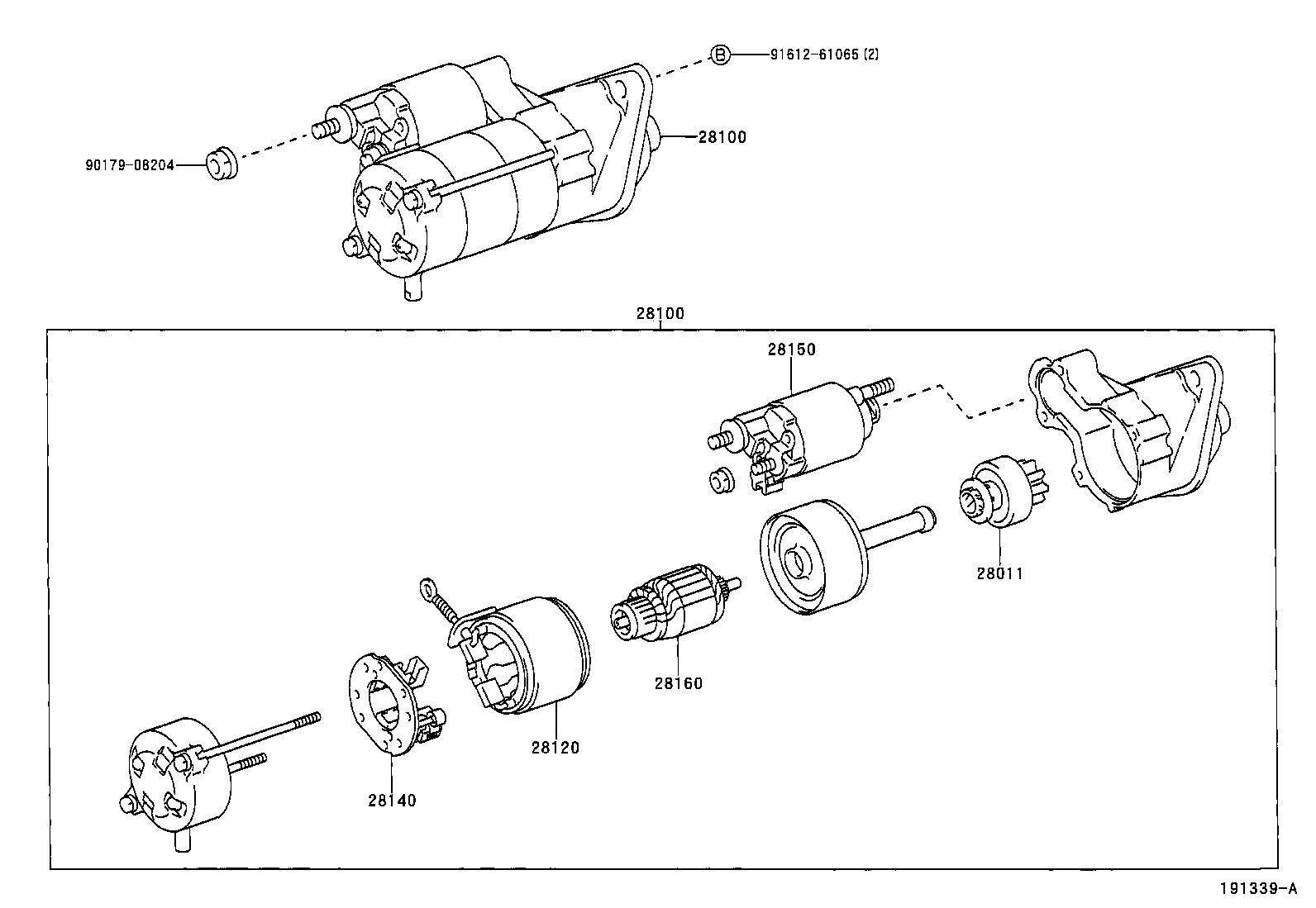

Figure 191340A 191340A 2001-01 → 2002-08 Figure 191339A 191339A 2001-01 → 2002-08 Figure 191341A 191341A 2001-01 → — Figure 191789 191789 2002-08 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28100 Starter Assy
28120 Yoke Assy, Starter
28140 Holder Assy, Starter Brush
28142A Starter Kit
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
