Toyota Corolla Runx/Allex
2001-01 → 2006-09 · chassis NZE12#,ZZE12# · catalogue 153150 · Japan
Discontinued model
Data version 2007-04
Disc Wheel & Wheel Cap
7 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 42601 | Wheel, Disc |
| 42601A | Wheel, Disc (FOR SPARE) |
| 42601C | Nut, Hub (FOR AXLE) |

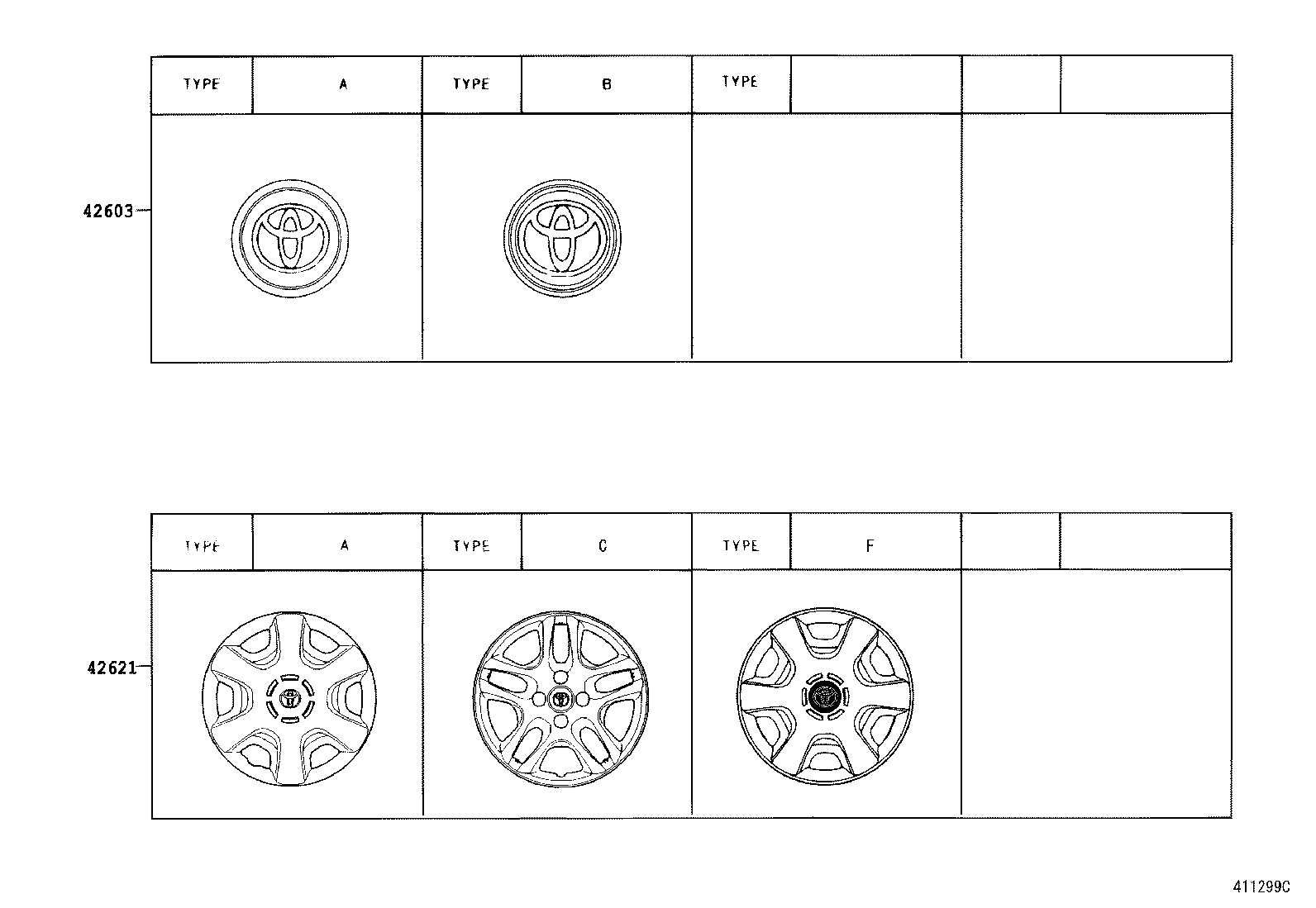

| 42603 | Ornament Sub-assy, Wheel Hub |
| 42611G | Valve (FOR TUBELESS TIRE) |
| 42611J | Valve (FOR TUBELESS TIRE SPARE) |
| 42621 | Cap, Wheel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
